CONWAY Electric SUV "Cairon SUV FS 4.7" Mod. 24
wave, 27,5", red metallic / black metallic, 10-speed SHIMANO "Deore", 42 cm / S
Read more Read less - Article number: 02824977
- Original number: BK23HA0990
The e-bike is equipped with a Bosch Performance Line CX mid-motor, which offers a motor output of 250 W. A Battery with a capacity of 625.0 Wh is available for the energy supply. Drives are provided by a chain drive. The 10-speed SHIMANO Deore derailleur gear system enables gear selection. The bike has a Suspension Fork with a fork travel of 120 mm and a frame travel of 100 mm. The hydraulic disc brakes ensure reliable braking performance. The wheel size is 27.5 inches and the permissible system weight is 140 kg.
Product information
- Battery capacity 625.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Chainstay 500 mm
- Colour designation red metallic / black metallic
- Drive chain drive
- Drive system BOSCH Performance Line CX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features fender
- Frame height 42 cm
- Frame shape wave
- Frame size S
- Frame travel 100 mm
- Gears 10-speed
- Gender ladies
- Main colour red
- Material 1 aluminium
- Permissible system weight 140 kg
- Reach 391 mm
- Seat angle 73.0 °
- Seat tube 420 mm
- Secondary colour black
- Shifting name 10-Gang SHIMANO "Deore"
- Shifting type derailleur shifting
- Stack 634 mm
- Steering tube 150 mm
- Steering tube angle 68.0 °
- Stem length 65.0 mm
- Support up to 25km/h
- Toptube 580 mm
- Transmission 1x 10-speed
- Travel 120 mm
- Type SUV
- Wheel distance 1176 mm
- Wheel size 27,5 "
- Battery: BOSCH "PowerTube 625", 625 Wh, BES3, horizontal
- Battery Lock: AXA "New Lock"
- Brake: TEKTRO "HD-M530", 4/2-Kolben
- Bremse H.R.: TEKTRO Disc Brake "HD-M530", hydraulic, 2 pistons, for 2.3 mm brake rotors
- Chain ring / pulley: MIRANDA, 36 teeth
- Charger: BOSCH 4 A
- Crank: MIRANDA "Classic", 165 mm, for Bosch Gen. 4, ISIS, Q:12, black
- Damper: FOX "Float DPS", 165 mm x 38 mm
- Derailleur hanger: CONWAY für WME carbon, Xyron, RLC FS, Cairon SUV FS, from mod.20
- Display: BOSCH "Intuvia 100", 4-stages, remote control, push aid
- Engine: BOSCH "Performance Line CX", max. 85 Nm
- Fender: SKS "A 75 R"
- Fork: SR SUNTOUR "SF25-XCR34 BOOST Air LOR", 120 mm travel, Thru Axle
- Frame: Intube Bosch, Gen. 4, BES3, aluminum, Wave Fullsuspension, 42 cm
- Front hub: FORMULA "DC-711", 15 x 110 mm, Thru Axle
- Front light: CONTEC "DLUX 80 E+", 80 lux
- Front rotor: TEKTRO "TR203-17", Ø 203 mm, 6-hole, 2.3 mm thick
- Front tire: SCHWALBE "Johnny Watts", 60-584, Reflex
- Grips: CONTEC "MERGE Mountain Comfort", 140 mm, G-Link, black / gray
- Handlebar: LEVELNINE "Low Riser", 720 mm, Ø 31.8 mm, backsweep 9°, upsweep 5°
- Headset: ACROS ZS56/28.6 / ZS56/40, 120° blocklock
- Pedals: VP COMPONENTS "VPE-506"
- Rear carrier: atranvelo "Commute Pro"
- Rear derailleur: SHIMANO "Deore RD-M5130-GS", LINKGLIDE, medium-length cage
- Rear hub: FORMULA "DCL-360", 12 x 142 mm, Thru Axle, 6-hole
- Rear light: CONTEC "TL-335 E-Stop", stop light
- Rear rotor: TEKTRO "TR180-17", Ø 180 mm, 2.3 mm thick
- Rear tire: SCHWALBE "Johnny Watts", 60-584, Reflex
- Remote: BOSCH "BRC3600", LED Remote
- Rims: RODI "Ready 30", 30-622, 32 holes, disc brake, easy eyelets, black
- Saddle: Selle Royal "Vivo", Athletic
- Seatpost: CONWAY "Dropper Post", Ø 30.9 mm, 295 mm long, 75 mm adjustment range
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Spokes: Niro, schwarz
- Stands: URSUS "R81 - Wave Rear"
- Stem: LEVELNINE "Adjustable", 1 1/8", 31,8mm handlebar clamp, 65mm long, black
- Supplier Article Number: BK23HA0990
- EAN: 4251971118126
- MSRP: €4,699.95
- WEEE registration number: DE92509320
- DST-Code: 1B01
- SB-Article: No
- Bidex-Code: 122010
- Fedas-Code: 155021
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight: 28.2 kg
- Bedienungsanleitung DE
- Bedienungsanleitung DK
- Bedienungsanleitung EN
- Bedienungsanleitung ES
- Bedienungsanleitung FR
- Bedienungsanleitung IT
- Bedienungsanleitung NL
- Bedienungsanleitung DE
- Bedienungsanleitung DK
- Bedienungsanleitung EN
- Bedienungsanleitung FR
- Bedienungsanleitung NL
- Bedienungsanleitung
- DE
- DK
- EN
- ES
- FR
- IT
- NL
- Explosionszeichnung Metall
- Explosionszeichnung Kunststoff und Gummi
- Explosionszeichnung Grease
- Explosionszeichnung Torque
| Article | Price | |
|---|---|---|
 suitable for Cairon and Xyron aluminium BES3 models Read more Read less
| ||
 carrier attachment 50mm, self-service package Read more Read less
| ||
 | ||
 31,8 x 720mm, ahead Read more Read less
| ||
 | ||
 12 x 142mm, 174mm long, 1,75mm thread pitch, standard Read more Read less
| ||
 | ||
 125mm adjustment range, Ø 30,9mm, 390mm long Read more Read less
| ||
 | ||
 | ||
 suitable for Cairon SUV FS Z9/14, black Read more Read less
| ||
 suitable for Cairon Wave top (Z11, Z12) and Cairon SUV FS top (Z14), smart system, BES3 Read more Read less
| ||
 suitable for Cairon SUV FS, 165 mm, black ( Z9/14 ) Read more Read less
| ||
 for Cairon BES3 (Z11 / Z12), Xyron BES3 aluminium and carbon (Z11), Cairon SUV FS BES3 (Z14) and Nyvon (Z17) Read more Read less
| ||
 | ||
 | ||
 suitable for Cairon (Z11 and Z12), Cairon SUV FS (Z14) and Xyron (Z11), Gen.4 (Performance CX), smart system (BES3) Read more Read less
| ||
 suitable for Cairon SUV FS, BES2 (Z9) and Cairon SUV FS, BES3 (Z14) Read more Read less
| ||
Ø 30,9mm, 150mm adjustment range, 440mm long Read more Read less
| ||
 | ||
 suitable for Cairon wave (Z11, Z12, Z14), Smart system (BES3) Read more Read less
| ||
 11-13-15-17-20-23-26-30-36-43 teeth, SB-packed, gray Read more Read less
| ||
 medium cage (GS), self-service package Read more Read less
| ||
 suitable for Cairon Wave (Z6, Z11, Z12) and Cairon Wave FS (Z9, Z14), smart system, BES3 Read more Read less
| ||
 | ||
 | ||
 27,5", suitable for Conway Cairon C gents and trapeze from mod.20dimensions (HxW): 385 x 99mm Read more Read less
| ||
 | ||
 Extensions for 500 Wh Battery to 625 Wh Battery Bracket and 625 Wh Battery to 750 Wh Battery Bracket Read more Read less
| ||
 suitable for Cairon Wave below (Z11, Z12) and Cairon SUV FS below (Z14), Smart system, BES3 Read more Read less
| ||
 | ||
 203 mm, old packaging Read more Read less
| ||
 | ||
| ||
 suitable for Cairon, rubber, chain stay cable guide, except MTB gents + Trap. Powertube Read more Read less
| ||
 suitable for Cairon with rear QR (Z12) and Cairon SUV FS (Z14), Smart system, BES3 Read more Read less
| ||
 | ||
 suitable for Cairon and Xyron Aluminium BES2 (Z6) Read more Read less
| ||
 180 mm, old packaging Read more Read less
| ||
 suitable for Cairon SUV FS BES2 (Z9) and Cairon SUV FS BES3 (Z14) Read more Read less
| ||
 | ||
 suitable for Cairon with rear QR axle (Z12) and Cairon SUV FS (Z14), Smart system, BES3 Read more Read less
| ||
 | ||
 suitable for Cairon trapeze and gents (Z11, Z12, Z14) and Xyron (Z11), Smart system, Gen.4 (Performance Line CX), BES3 Read more Read less
| ||
 10-speed, right, without gear display Read more Read less
| ||
 | ||
Ø 30,9mm, 100mm adjustment range, 340mm long Read more Read less
| ||
 10-speed, right, with gear display Read more Read less
| ||
 | ||
 for Cairon SUV FS BES2 (Z9) Read more Read less
| ||
 suitable for all Bosch chargers Read more Read less
|
Smart thought, smart done: the "Cairon SUV FS 4.7" from CONWAY starts the new cycling season with a fully networked makeover. Equipped with the Bosch Smart System, all components can communicate with each other and keep you informed of all tour details. Once the E-Bike Flow app has been set up, it connects to your bike via Bluetooth and you're ready to go.The powerful Bosch "Performance CX" drive, which is powered by the high-capacity 625 Wh "PowerTube" battery, is joined on the "Cairon SUV FS 4.7" by complete frame suspension for even greater comfort. The look remains clean, as the Battery disappears completely into the down tube, where it can remain for charging.The fact that the E-SUV really proves itself on any terrain is demonstrated by the tires: the 60 mm wide "Johnny Watts" from Schwalbe have a robust tread pattern and cope well with forest paths and gravel tracks. Suspension Fork plus Damper with 120 mm travel not only cope with this terrain, they also ensure that you glide confidently through potholes and tree roots. Shifters are 10-speed Shimano "Deore".The "Cairon SUV FS 4.7" is suitable for touring thanks to the carrier fastenings, which can be used to attach panniers or baskets for short trips to the lake. Fenders and the LED Light make the bike fit for the way home through the city. The daylight-bright 80 lux Front Light illuminates the way safely. The rear lights impress with their stop light function. If the hydraulic Disc Brakes have to react spontaneously, cyclists behind can react better.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|

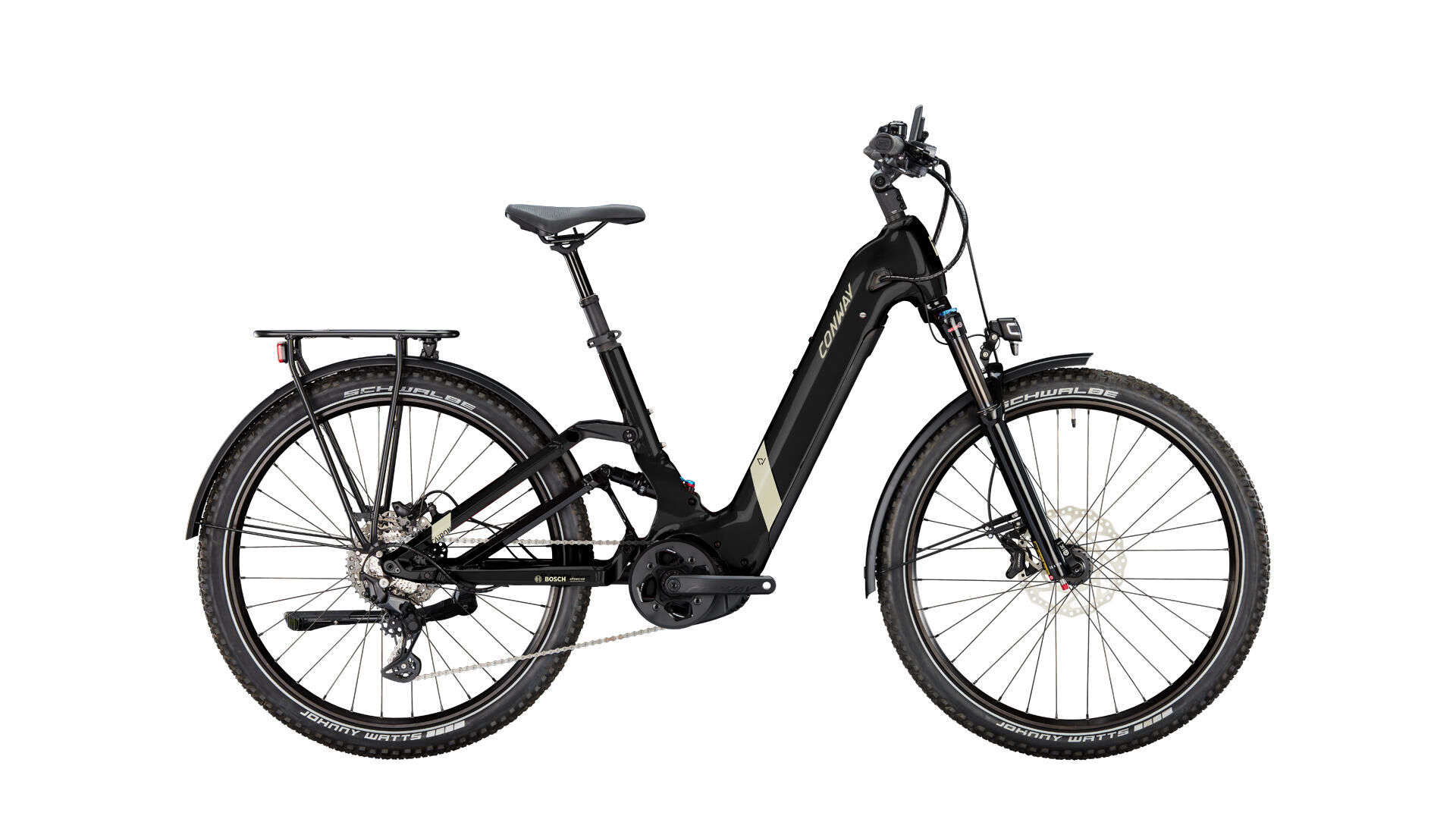

 wave, 27,5", black metallic / desert matt, 10-speed SHIMANO "Deore", 42 cm / S Read more Read less
| ||
wave, 27,5", black metallic / desert matt, 10-speed SHIMANO "Deore", 46 cm / M Read more Read less
| ||
wave, 27,5", black metallic / desert matt, 10-speed SHIMANO "Deore", 50 cm / L Read more Read less
| ||
wave, 27,5", black metallic / desert matt, 10-speed SHIMANO "Deore", 54 cm / XL Read more Read less
| ||
 wave, 27,5", red metallic / black metallic, 10-speed SHIMANO "Deore", 42 cm / S Read more Read less
| ||
wave, 27,5", red metallic / black metallic, 10-speed SHIMANO "Deore", 46 cm / M Read more Read less
| ||
wave, 27,5", red metallic / black metallic, 10-speed SHIMANO "Deore", 50 cm / L Read more Read less
| ||
wave, 27,5", red metallic / black metallic, 10-speed SHIMANO "Deore", 54 cm / XL Read more Read less
|
