CONWAY Electric SUV "Xyron SUV 5.0" (#1)
full suspension, 29", graphit grey matt, 12-speed SRAM "SX Eagle", 49 cm / XL
Read more Read less - Article number: 02810402
- Original number: 01026756

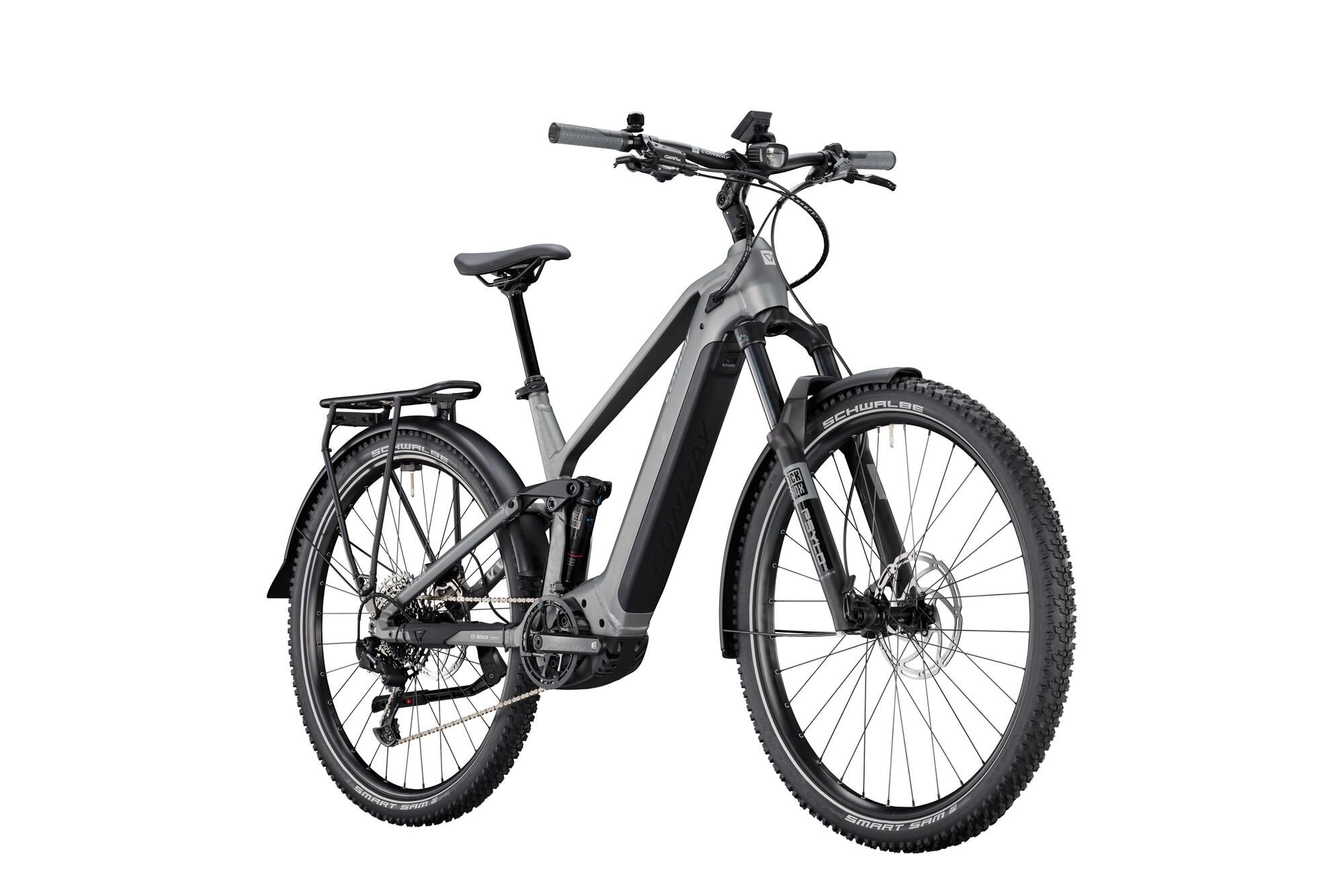

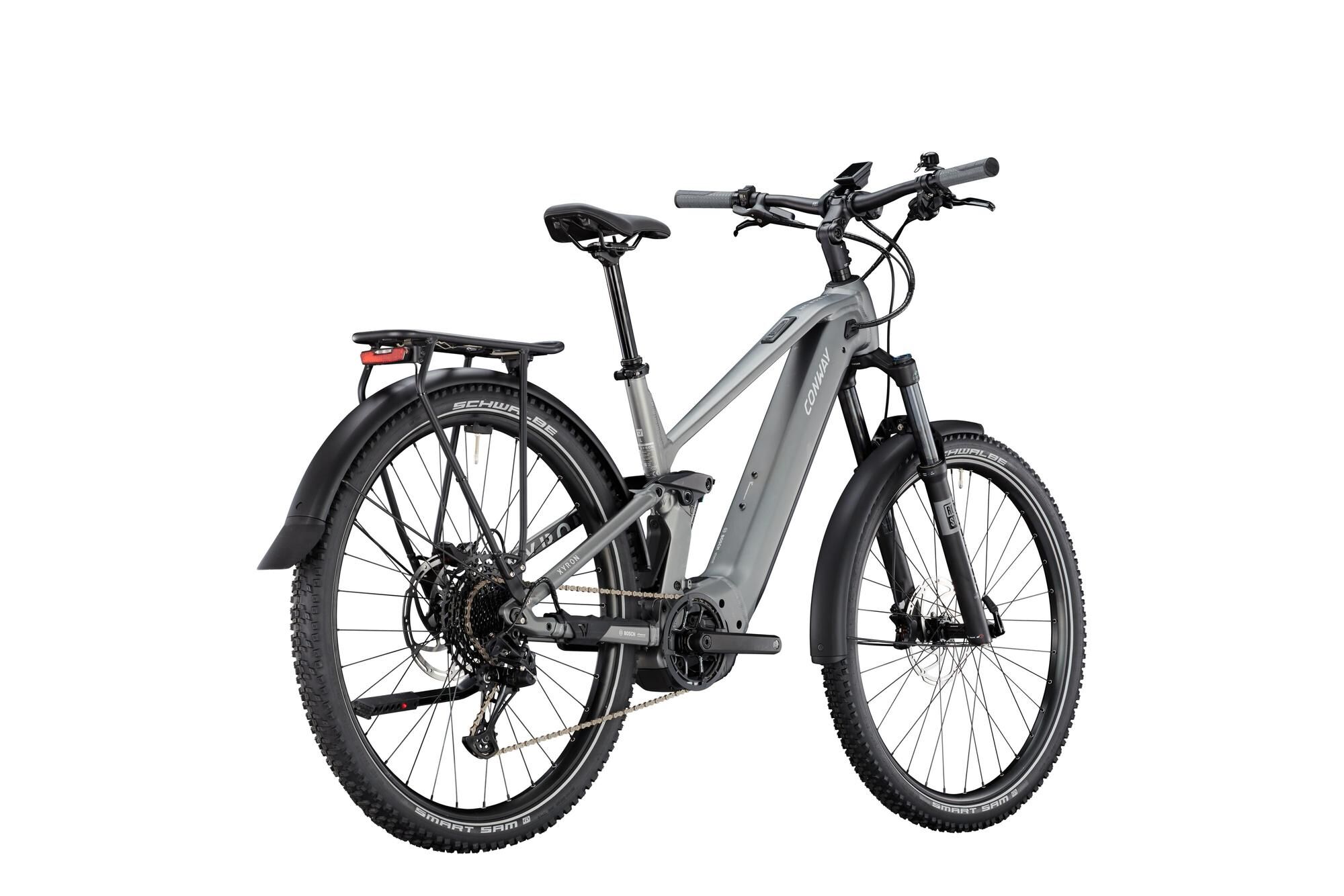

The bike consists of an aluminum frame and is equipped with a Suspension Fork that offers a fork travel of 150 mm. The battery capacity is 750.0 Wh and the drives are provided by a chain drive with a 12-speed SRAM "SX Eagle" Shifting System. Deceleration is provided by a braking system with hydraulic Disc Brakes. The permissible total weight is 140 kg. The electric SUV is also equipped with an electronic Pushing Help and Damper to provide additional stability and support.
PU 1
Product information
- Battery capacity 750.0 Wh
- Brake system hydraulic disc brake
- Category E-bike 2
- Colour designation graphit grey matt
- Drive chain
- Drive system BOSCH Performance Line CX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features damper , electronic sliding aid , fender , suspension fork
- Frame height 49 cm
- Frame shape full suspension
- Frame size XL
- Frame travel 140 mm
- Gears 12-speed
- Gender gents
- Main colour grey
- Material 1 aluminium
- Model series Xyron
- Permissible system weight 140 kg
- Seat angle 75.5 °
- Shifting name 12-Gang SRAM "SX Eagle"
- Shifting type derailleur shifting
- Steering tube angle 65.0 °
- Support up to 25km/h
- Transmission 1x 12-speed
- Travel 150 mm
- Type SUV
- Wheel size 29 "
- Battery BOSCH "PowerTube 750", 750 Wh
- Battery Lock AXA "New Lock"
- Bottom bracket BOSCH
- Brake MAGURA "MT5 eStop"
- Brake lever MAGURA "MT5 eStop"
- Chain / belt SRAM "SX Eagle"
- Chain ring / pulley MIRANDA, 36 teeth
- Charger BOSCH 4 A
- Crank MIRANDA "Classic", 165 mm, for Bosch Gen. 4, ISIS, Q:12, black
- Damper FOX "Float DPS", 185 mm x 50 mm
- Derailleur hanger CONWAY für WME carbon, Xyron, RLC FS, Cairon SUV FS, from mod.20

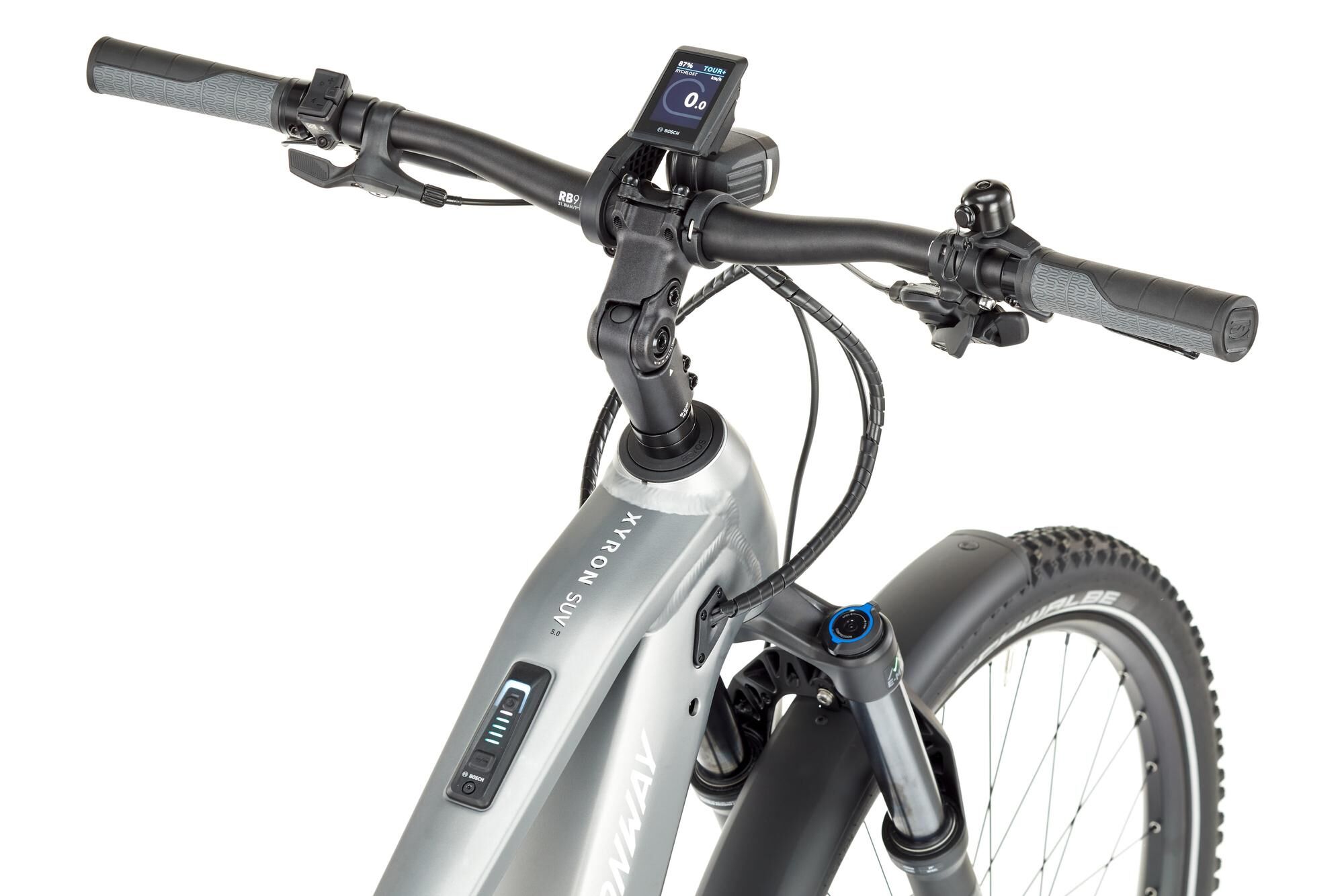

- Display BOSCH "Kiox 300", 4-stages, remote control, push aid

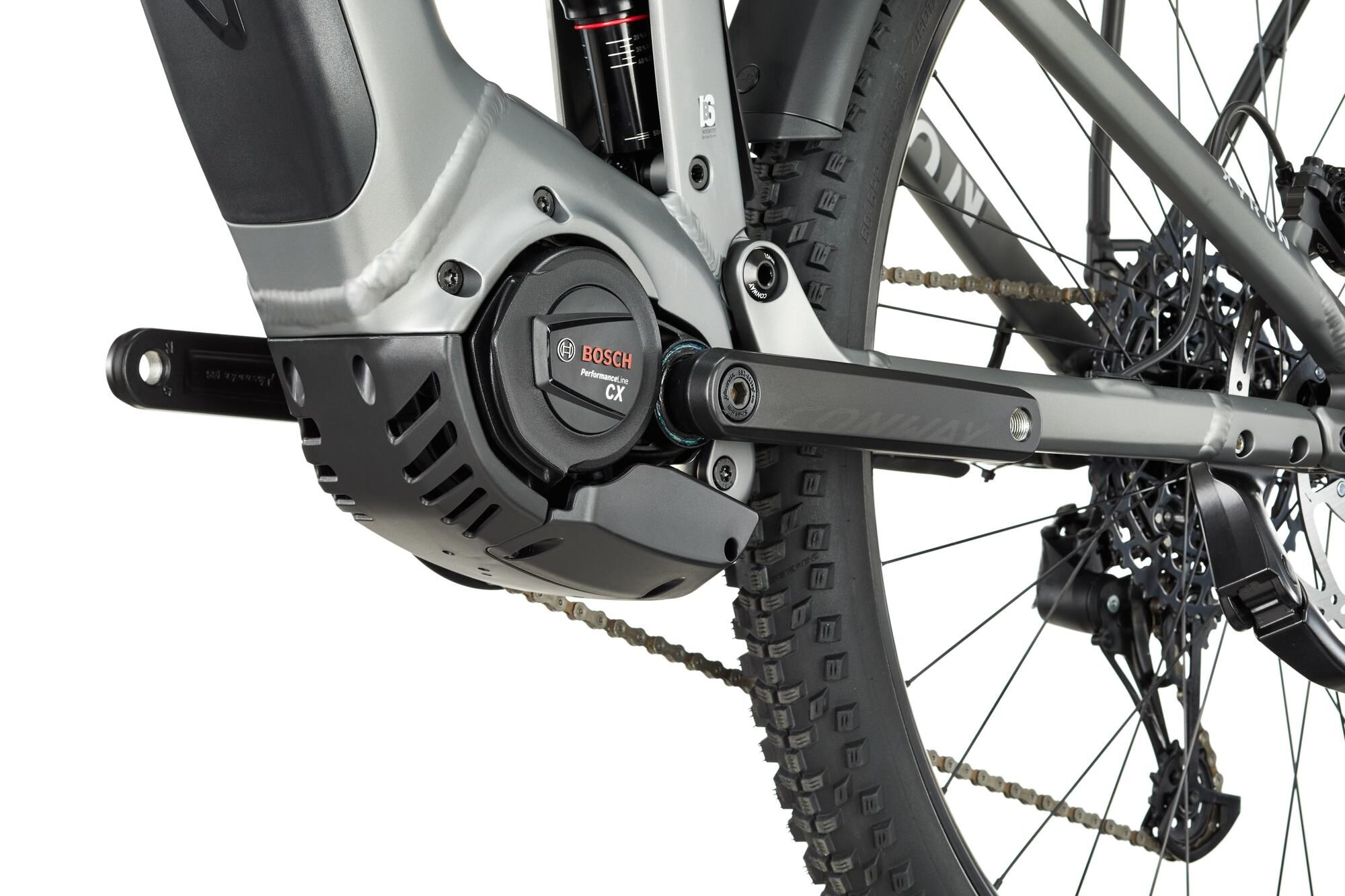

- Engine BOSCH "Performance Line CX", max. 85 Nm
- Fender curana "Apollo 75"
- Fork ROCKSHOX "Psylo Silver RC",150 mm travel, SoloAir, Motion Control, Maxle Lite Thru Axle
- Frame Intube Bosch, Gen. 4, BES3, Aluminium, Fullsuspension, 49 cm
- Front hub SHIMANO "HB-TC500-15-B", 15 x 110 mm Boost, Thru Axle, Center Lock
- Front light HERRMANS "Nordic MR9", 60 lux
- Front rotor TEKTRO "TR203-17", Ø 203 mm, 6-hole, 2.3 mm thick
- Front tire SCHWALBE "Smart Sam", 60-622, Reflex
- Front wheel brake TEKTRO "HD-M535", Post Mount
- Grips CONTEC "MERGE Mountain Straight", 140 mm, G-Link, black / gray
- Handlebar LEVELNINE "Low Riser", 720 mm, Ø 31.8 mm, backsweep 9°, upsweep 5°
- Headset ACROS ZS56/28.6/OD62 / ZS56/40, 150° blocklock
- Pedals VP COMPONENTS "VPE-527"
- Rear carrier atranvelo "Maxi"
- Rear derailleur SRAM "SX Eagle"
- Rear hub SHIMANO "FH-TC500-HS-B", 12 x 148 mm Boost, Center Lock, Thru Axle
- Rear light AXA "Juno E-Bike", brake light
- Rear rotor TEKTRO "TR203-17", Ø 203 mm, 6-hole, 2.3 mm thick
- Rear tire SCHWALBE "Smart Sam", 60-622, Reflex
- Rear wheel brake TEKTRO Disc Brake "HD-M535", hydraulic, 4 pistons, for 2.3 mm brake rotors
- Remote BOSCH "BRC3300", mini remote
- Rims RODI "Tryp 30", 32 Loch, geöst, Tubeless Ready
- Saddle Selle Royal "2315HRN", Athletic
- Seatpost LIMOTEC "D1", Ø 31.6 mm, 465 mm long, 170 mm adjustment range, 0 mm offset
- Sensor Pedal pressure measuring im Motor + speed sensor
- Spokes MACH 1 "PRO"
- Stands URSUS "R90 - Mooi Plus"
- Stem LEVELNINE "Adjustable", 1 1/8", 31,8mm handlebar clamp, 65mm long, black
- System Interface BOSCH "BRC3100"
- Supplier Article Number: 01026756
- EAN 4251971167650
- MSRP: €4,999.95
- WEEE registration number DE92509320
- Fedas-Code 154020
- Bidex-Code 121010
- DST-Code 1E01
- SB-Article No
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight 29.4 kg
- instruction manual
- declaration of conformity DE
- declaration of conformity DK
- declaration of conformity EN
- declaration of conformity ES
- declaration of conformity FR
- declaration of conformity IT
- declaration of conformity NL
- exploded view Grease
- exploded view Kunststoff & Gummi
- exploded view Metall
- exploded view Torque
| Article | Price | |
|---|---|---|
 29", 75mm, suitable for Xyron SUV 4.9 / 6.9 Read more Read less
| PU 1 | |
 Ø 31.6 mm, 500 mm long, 170 mm adjustment range Read more Read less
| PU 10 | |
 12 x 148mm, 180mm long, 1,75mm thread pitch, Boost Read more Read less
| PU 1 | |
 suitable for Xyron Aluminium 29" Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 10 | |
 | PU 10 | |
 | PU 1 | |
 suitable for Xyron aluminium, Smart system, BES3 (Z11) Read more Read less
| PU 1 | |
 suitable for DLUX, mounting on handlebar Ø 31,8mm Read more Read less
| PU 250 | |
 black, single click (shifts one gear per shifting operation), optimized for the E-bike use Read more Read less
| PU 12 | |
 29", 75mm, suitable for CONWAY Xyron SUV 4.9 / 6.9 Read more Read less
| PU 1 | |
 suitable for Cairon and Xyron aluminium BES3 models Read more Read less
| PU 1 | |
 for damper, suitable for Xyron aluminium and carbon, BES3 with smart system (Z11) Read more Read less
| PU 1 | |
 suitable for eWME (Z10), Ryvon (Z18), matching thru axle 0.281.502/5 and Nyvon (Z17), matching thru axle 0.747.383/0 Read more Read less
| PU 1 | |
 | PU 1 | |
 suitable for Cairon trapeze and gents (Z11, Z12, Z14) and Xyron (Z11), Smart system, Gen.4 (Performance Line CX), BES3 Read more Read less
| PU 1 | |
 | PU 20 | |
 suitable for Cairon trapeze and gents with thru axle and Xyron, Smart system, BES3 (Z11) Read more Read less
| PU 1 | |
 | PU 30 | |
 | PU 1 | |
 suitable for Cairon / Xyron (Z11) Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 for Rocker, suitable for WME (Z7), eWME E8000 (Z4/Z5), eWME EP8 (Z10), Xyron Aluminum and Carbon BES2 (Z6) and BES3 (Z11) and Xyron LT / ST (Z20), M15x1.0 mm Read more Read less
| PU 1 | |
 | PU 50 | |
 | PU 10 | |
 32 hole, 110 mm, 15 mm Thru Axle Read more Read less
| PU 25 | |
 for Cairon BES3 (Z11 / Z12), Xyron BES3 aluminium and carbon (Z11), Cairon SUV FS BES3 (Z14) and Nyvon (Z17) Read more Read less
| PU 1 | |
 | PU 1 | |
 Xyron Alu ST 10.0, black matt (Z11) Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 50 | |
 suitable for SUV 5.0 and C2.0, graphite gray matt (Z11) Read more Read less
| PU 1 | |
 suitable for all Bosch chargers Read more Read less
| PU 1 | |
 suitable for WME (Z7), 180 mm / M12 x P1, 75 x 20 mm Read more Read less
| PU 1 | |
| PU 36 | |
 suitable for XYRON Alu BES2 and BES3 (Z6/11) Read more Read less
| PU 1 | |
 Out of Stock 203 mm, old packaging Read more Read less
| PU 20 | |
 Suitable for the smart system (BES3)Note: only for battery sizes CPT400 , PT500, PT625, PT750 Read more Read less
| PU 1 | |
 | PU 1 | |
 suitable for WME Carbon (Z7) and Xyron Carbon BES2 and BES3 (Z6 / Z11), for Xyron Alu the spacer 0.281.070/0 is also required Read more Read less
| PU 1 | |
 | PU 25 | |
 | PU 1 | |
 | PU 7 | |
 SUV 5.0 and C.2.0, graphite gray matt (Z11) Read more Read less
| PU 1 | |
 suitable for Cairon Wave / Trapeze / Men (Z11 and Z12), Xyron Aluminum and Xyron Carbon / Aluminum, smart system, BES3 (Z11) and Xyron LT / ST (Z20) Read more Read less
| PU 1 | |
 | PU 18 | |
 11-13-15-17-19-22-25-28-32-36-42-50 teeth Read more Read less
| PU 10 | |
 | PU 50 | |
 WME Carbon / Xyron / RLC FS / Cairon SUV FS, Mod.20 Read more Read less
| PU 1 | |
 | PU 1 | |
 for Horst link, suitable for Xyron aluminum BES2 (Z6), eWME with EP8 engine (Z10) and Xyron 29" S and SUV models with aluminum rear triangle (Z11)M12 x 1.0, 33.5 mm shaft length Read more Read less
| PU 1 | |
 | PU 1 | |
 suitable for Cairon (Z11 and Z12), Cairon SUV FS (Z14) and Xyron (Z11), Gen.4 (Performance CX), smart system (BES3) Read more Read less
| PU 1 | |
 for the assembly of CLite and Apollo fenders Read more Read less
| PU 1 | |
 for Frame main bearing, suitable for Xyron aluminum and carbon with BES3 and smart system (Z11), Ryvon (Z18) and all Xyron LT / ST, (Z20), M15x1.0 mm Read more Read less
| PU 1 | |
 | PU 1 | |
 29", suitable for Cairon C from mod.20dimensions (HxW): 400 x 99mm Read more Read less
| PU 20 |
The "Xyron SUV 5.0" is an SUV e-bike with a Bosch mid-motor and a battery capacity of 750 Wh. It offers support up to a speed of 25 km/h. The full-suspension design ensures a comfortable ride, while the chain drive and 12-speed derailleur gears from SRAM (model "SX Eagle") enable precise and flexible gear selection. The wheel size is 29" and the braking system consists of hydraulic disc brakes that provide reliable stopping power. With a fork suspension travel of 150 mm and a frame suspension travel of 140 mm, the bike is suitable for various off-road conditions. The equipment includes Fenders and reliable, powerful lighting.
