CONWAY Electric trekking bike "Cairon T 3.0 750" Mod. 24
wave, 28", shadowgrey metallic matt / black metallic matt, 9-speed TEKTRO "M350", 46 cm / M
- Article number: 02829885
Product information
- Battery capacity: 750.0 Wh
- Bosch Smart System: yes
- Brake system: hydraulic disc brake
- Category: trekking bike
- Chainstay: 455 mm
- Colour designation: shadowgrey metallic matt / black metallic matt
- Drive: chain drive
- Drive system: BOSCH
- Drive version: middle motor
- E-bike: yes
- Engine power: 250 W
- Features: fender
- Frame height: 46 cm
- Frame shape: wave
- Frame size: M
- Gears: 9-speed
- Gender: ladies
- Main colour: grey
- Material 1: aluminium
- Permissible total weight: 130 kg
- Reach: 415 mm
- Seat angle: 74.5 °
- Seat tube: 460 mm
- Secondary colour: black
- Shifting name: 9-Gang TEKTRO "M350"
- Shifting type: derailleur shifting
- Stack: 675 mm
- Steering tube: 150 mm
- Steering tube angle: 68.0 °
- Stem length: 65.0 mm
- Support: up to 25km/h
- Toptube: 600 mm
- Transmission: 1x 9-speed
- Travel: 100 mm
- Wheel distance: 1159 mm
- Wheel size: 28 "
- Battery: BOSCH "PowerTube 750", 750 Wh, BES3, horizontal
- Battery Lock: AXA "Block XXL", for PowerTube, BES3
- Bremse H.R.: TEKTRO disc brake "HD-T280", hydraulic, 2 piston, for 1,8mm rotors
- Bremse V.R.: TEKTRO disc brake "HD-T280", hydraulic, 2 piston, post mount, for 1,8mm rotors
- Chain / belt: SHIMANO "CN-HG53"
- Chain guard: HESLING "Move", plastic, 38 teeth, black
- Chain ring / pulley: MIRANDA, 36 teeth, for Bosch Gen. 4, Direct Mount, Booster
- Charger: BOSCH 4 A, BES3
- Crank: MIRANDA "Classic", 165 mm, for Bosch Gen. 4, ISIS, Q:12, black
- Derailleur hanger: CONWAY für WME carbon, Xyron, RLC FS, Cairon SUV FS, from mod.20
- Display: BOSCH "Kiox 300", 4-stages, remote control, push aid
- Engine: BOSCH "Performance Line CX" Gen. 4, BES3
- Fender: CURANA "Apollo 65", aluminum, 65 mm, black
- Frame: Intube Bosch, Gen. 4, BES3, aluminum, Wave, 46 cm
- Frame Lock: AXA "Block XXL", for PowerTube, BES3
- Front hub: FORMULA "DC 511", 15 x 110mm, 6-hole, 32 holes, thru axle, black
- Front light: CONTEC "DLUX 50 E+", 50 lux
- Front rotor: TEKTRO "TR180-52", Ø 180mm, 6-hole, thickness: 1,8mm
- Front tire: CONTINENTAL "Contact Cruiser", 50-622, reflex
- Grips: CONTEC "MERGE Mountain Comfort", 140mm, G-Link, black / grey
- Handlebar: LEVELNINE "Trekking", 660mm, Ø 31,8mm, black
- Headset: ACROS ZS56/28.6 / ZS56/40, 1 1/8" - 1.5" tapered, 120° blocklock bottom
- Pedals: UNION "SP-827"
- Rear carrier: ATRAN VELO "Commute Pro", AVS system, F-Fix, black
- Rear derailleur: TEKTRO "RD-M350"
- Rear hub: FORMULA "EHL-148S", 12 x 148mm, 6-hole, 11-speed HG, 32 holes, thru axle, black
- Rear light: CONTEC "TL-335 E-Stop", distance between screws: 50mm, stoplight function
- Rear rotor: TEKTRO "TR180-52", Ø 180mm, 6-hole, thickness: 1,8mm
- Rear tire: CONTINENTAL "Contact Cruiser", 50-622, reflex
- Remote: BOSCH "BRC3600", LED remote
- Rims: RODI "Blackrock 25", 25-622, 32 holes disc brake, easy eyelets, black
- Saddle: SELLE ROYAL "Vivo", ladies, moderate, black
- Seatpost: ERGOTEC "SP-10.0", Ø 31.6 mm, 350 mm long, 45 mm travel, Level 5, black
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: TEKTRO "SL-M350R", 9-speed
- Spokes: Niro, schwarz
- Sprocket / pulley: TEKTRO "CS-M350-9", 9-speed, 11-46 teeth
- Stands: URSUS "R81 - Wave Rear", adjustable, 40mm hole distance, matt black
- Stem: LEVELNINE "Adjustable", 1 1/8", 31,8mm handlebar clamp, 65mm long, black
- EAN: 4251971120822
- MSRP: €3,999.95
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Bedienungsanleitung Vélo français
- Bedienungsanleitung Fiets Nederlands
- Bedienungsanleitung
- Explosionszeichnung Kunststoff und Gummi
- Bedienungsanleitung Biorad deutsch
- KE_CONWAY_2024_DK
- Explosionszeichnung Metall
- KE_CONWAY_2024_IT
- Bedienungsanleitung E-bike Nederlands
- KE_CONWAY_2024_NL
- Bedienungsanleitung El-cykel dansk
- KE_CONWAY_2024_FR
- Bedienungsanleitung Bicicletta italian
- Bedienungsanleitung Cykel dansk
- Bedienungsanleitung E-Rad deutsch
- Bedienungsanleitung VAE français
- KE_CONWAY_2024_EN
- Bedienungsanleitung e-bike english
- KE_CONWAY_2024_ES
- Bedienungsanleitung bike english
- Bedienungsanleitung Bicicleta español
- KE_CONWAY_2024_DE
| Article | Price | |
|---|---|---|
 SHIMANO hyperglide chain "CN-HG53" 118 links
| ||
 CONWAY Cable Guide suitable for Cairon Wave / Trapeze / Men (Z11 and Z12), Xyron Aluminum and Xyron Carbon / Aluminum, smart system, BES3 (Z11) and Xyron LT / ST (Z20)
| ||
 BOSCH "PowerTube" Battery horizontal
| ||
 ERGOTEC suspension seatpost "SP-10.0" Ø 31,6mm
| ||
 CONWAY charging socket holder for Cairon BES3 (Z11 / Z12), Xyron BES3 aluminium and carbon (Z11), Cairon SUV FS BES3 (Z14) and Nyvon (Z17)
| ||
 BOSCH display "Kiox 300" black
| ||
 TEKTRO disc brake "HD-T280" left, without adapter
| ||
 BOSCH charger 4 A, 230 V
| ||
 FASI touch-up stick grey
| ||
 ATRANVELO rear rack "Commute Pro AVS" 29", suitable for Cairon C from mod.20dimensions (HxW): 400 x 99mm
| ||
 BOSCH display bracket "Kiox 300" 31,8mm
| ||
 CURANA front fender "Apollo" 28", 65mm, suitable for CONWAY Cairon T 5.0
| ||
 AXA frame and battery lock set "Block XXL" black
| ||
 CONWAY cover cap suitable for Cairon Wave (Z6, Z11, Z12) and Cairon Wave FS (Z9, Z14), smart system, BES3
| ||
 CONWAY cover suitable for Cairon trapeze, gents and wave, Smart System, BES3 (Z11 / Z12)
| ||
 SHIMANO Chain "CN-E6070" 138 links, self-service package
| ||
 HESLING chain guard "Move" matt black, 38 teeth, suitable for Conway Cairon
| ||
 BOSCH Power Cable suitable for all Bosch chargers
| ||
 CONTEC LED front light "DLUX 50 E+" bulk
| ||
 CURANA rear fender "Apollo" 28", 65mm, suitable for Cairon T 5.0
| ||
 CONWAY headset "ZS56 / ZS56" suitable for Cairon and Xyron aluminium BES3 models
| ||
 URSUS rear kickstand "R81 - Wave Rear" 40mm hole distance
| ||
 CONWAY assembly set suitable for Cairon trapeze and gents (Z11, Z12, Z14) and Xyron (Z11), Smart system, Gen.4 (Performance Line CX), BES3
| ||
 BOSCH control unit "LED Remote" black
| ||
 TEKTRO disc brake "HD-T280" right, without adapter
| ||
 CONWAY battery cover Z11
| ||
 CONWAY downtube cover suitable for Cairon Wave top (Z11, Z12) and Cairon SUV FS top (Z14), smart system, BES3
| ||
 CONWAY Motor Cover suitable for Cairon (Z11 and Z12), Cairon SUV FS (Z14) and Xyron (Z11), Gen.4 (Performance CX), smart system (BES3)
| ||
 CONWAY cable guide set "DT" cover with openings
| ||
 CONWAY assembly set suitable for Cairon wave (Z11, Z12, Z14), Smart system (BES3)
| ||
 SHIMANO front hub "Alivio" HB-MT400 mod.19 32 holes, black, 110mm installation width
| ||
 TEKTRO rotor "TR52" Ø 180 mm, old packaging
| ||
 FSA crank arm set "CK-745" 165mm crank length
| ||
 ATRANVELO carrier attachment "F-Fix V2 R360" black
| ||
 CONTEC LED rear rack light "TL-335 E-Stop" carrier attachment 50mm, self-service package
| ||
 MIRANDA chain ring "Epsilon" 36 teeth
| ||
 VICTORIA adapter extension from 500 Wh battery to 625 Wh battery bracket and from 625 Wh battery to 750 Wh battery bracket
| ||
 CONWAY downtube cover suitable for Cairon Wave below (Z11, Z12) and Cairon SUV FS below (Z14), Smart system, BES3
| ||
 CONWAY mounting set Bosch Gen.4, suitable for Conway Cairon
| ||
 FSA crank arm set "CK-745" 170mm crank length
| ||
 URSUS rear kickstand "R78XL - King Evo Rear XL" 40mm hole distance
| ||

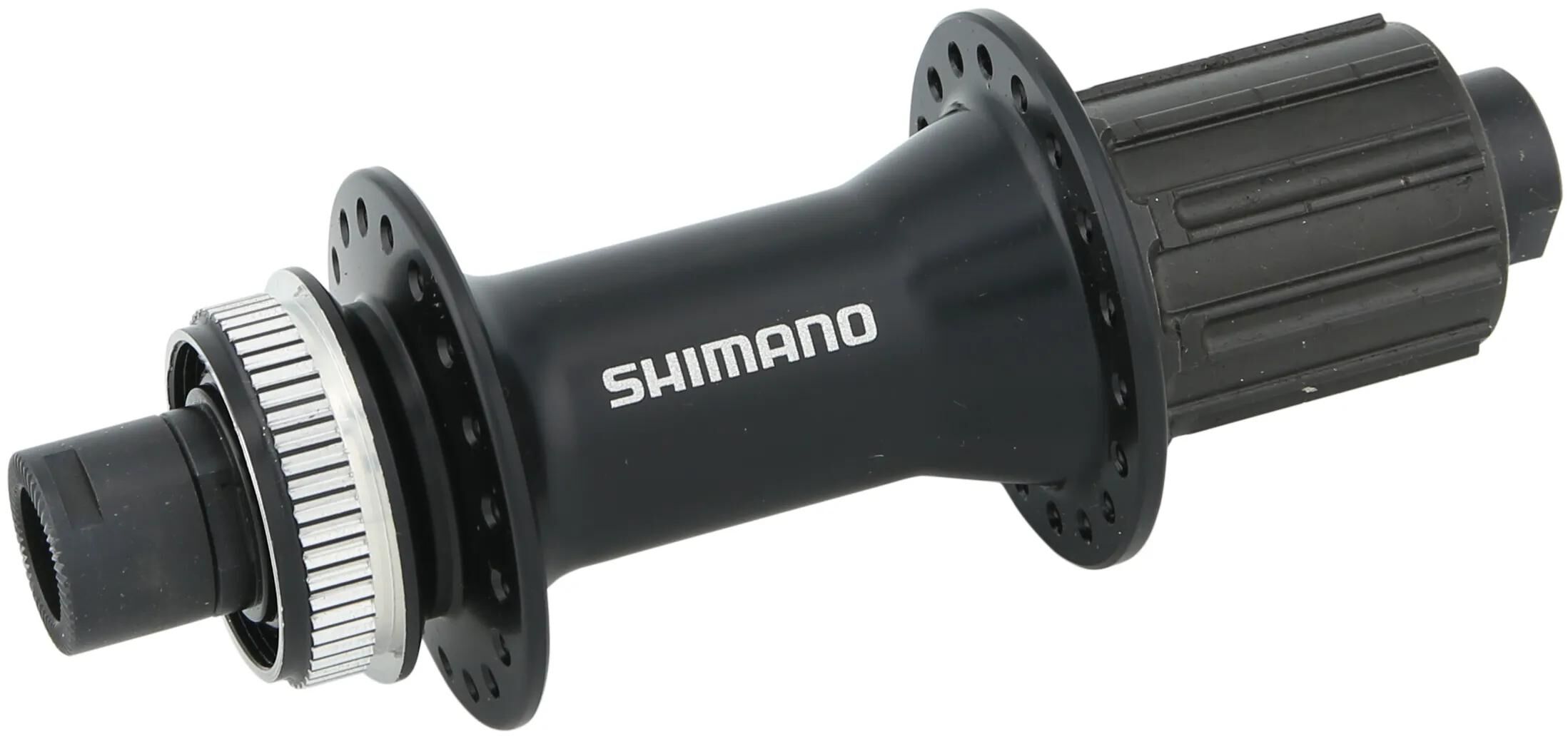

 SHIMANO rear hub "Alivio" FH-MT400 Mod.19 32 holes, black, 148mm
| ||
 FASI touch-up stick black matt 20/21
| ||
 ROCKSHOX QR axle "Rear Maxle Ultimate" 12 x 148mm, 180mm long, 1,75mm thread pitch, Boost
|
Trekking and touring - that's what the "T" stands for on the "Cairon T 3.0 750". The e-bike is optimally designed for versatile use on these tours, but also for everyday rides. Thanks to the Bosch Smart System, the bike is fully connected. It can be configured and provides you with all tour information, which you can read in the E-Bike Flow app or on the "Kiox 300" display.The electric drive supports you when pedaling up to 25 km/h with full power, because the "Performance CX" drive of the 4th generation is the most powerful motor from Bosch. Its location at the bottom bracket gives the bike a decidedly natural ride. The battery guarantees extensive riding fun with 750 Wh. The Tektro derailleur provides fine-tuning for propulsion. It provides smooth and precise shifting, as well as a long service life.The bike is fully suitable for touring and urban use with the mudguards, the Axa lock and a side stand. The luggage rack can carry all kinds of bags and baskets - whether you're carrying a change of clothes, a bottle of wine for a sundowner at the lake or just fresh fruit.
