CONWAY Gravel bike "GRV 10.0 SE" (#1)
diamond, 28", graphite grey matt, 12-speed SRAM "Rival XPLR AXS", 49 cm / L
Read more Read less - Article number: 02810578
- Original number: 01026335
The gravel bike consists of a carbon frame and is equipped with a 12-speed SRAM Rival XPLR AXS derailleur. The drives are provided by a chain. The hydraulic Disc Brakes ensure reliable braking power. With a wheel size of 28", the bike offers good handling. The permissible system weight is 130 kg. The color designation of the frame is graphite grey matt.
Product information
- Brake system hydraulic disc brake
- Chainstay 420 mm
- Colour designation graphite grey matt
- Drive chain
- E-bike no
- Frame height 49 cm
- Frame shape diamond
- Frame size L
- Gears 12-speed
- Gender gents
- Main colour grey
- Material 1 carbon
- Permissible system weight 130 kg
- Reach 388 mm
- Seat angle 73.0 °
- Seat tube 493 mm
- Shifting name 12-Gang SRAM "Rival XPLR AXS"
- Shifting type derailleur shifting
- Stack 597 mm
- Steering tube 170 mm
- Steering tube angle 72.0 °
- Stem length 90.0 mm
- Toptube 570 mm
- Transmission 1x 12-speed
- Type gravel bike
- Wheel distance 1026 mm
- Wheel size 28 "
- Bottom bracket: SRAM "DUB", Pressfit 86.5, Road Wide
- Brake: SRAM "Rival AXS"
- Brake lever: SRAM "Rival AXS"
- Crankset: SRAM "Rival 1 Wide", 172.5 mm, 40 teeth
- Derailleur hanger: CONWAY for GRV Carbon, from 2019 model
- Fork: 28", Carbon, tapered 1 1/8"- 1.5", 300 mm Schaft, Flat Mount, graphite grey matt
- Frame: Carbon, diamond, 49 cm
- Front hub: DT SWISS "G1800", 15 x 110 mm
- Front rotor: SRAM "Paceline", Ø 160 mm, Centerlock
- Front tire: SCHWALBE "G-One Allround", 40-622
- Grips: FIZIK "Tempo Microtex Bondcush Soft", black
- Handlebar: EASTON "EA70 AX", 440 mm, Ø 31.8 mm, Reach 80 mm, Drop 120 mm, Flare 16°
- Headset: GLORY WHEEL IS42/28.6 / IS52/40
- Laufrad V.R.: DT SWISS "G 1800 Spline", 12 x 100 mm, Thru Axle, Center Lock

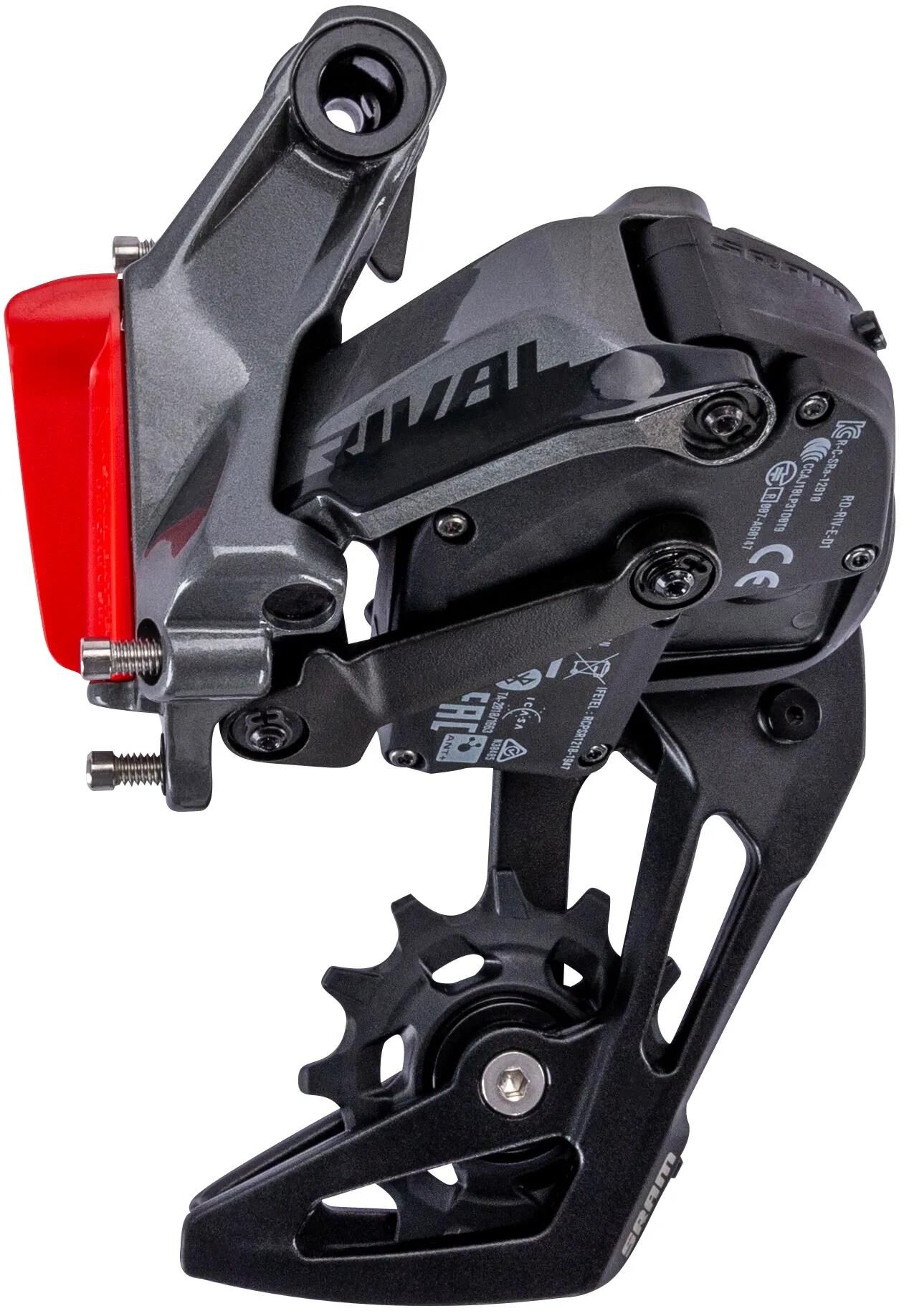

- Rear derailleur: SRAM "Rival XPLR eTAP AXS"
- Rear hub: DT SWISS "G1800", 12 x 142 mm, Microspline
- Rear rotor: SRAM "Paceline", Ø 160 mm, Centerlock
- Rear tire: SCHWALBE "G-One Allround", 40-622
- Rims: DT SWISS "G1800"
- Saddle: FIZIK "Tempo Argo R5"
- Seatpost: EASTON "EA50", Ø 27.2 mm, 350 mm long, 10 mm offset
- Spokes: DT SWISS
- Stem: EASTON "EA70", 1 1/8", 31,8mm handlebar clamp, 90mm long, angle 7°, black
- Supplier Article Number: 01026335
- EAN: 4251971170339
- MSRP: €3,499.95
- Fedas-Code: 158012
- Bidex-Code: 104020
- DST-Code: 1G00
- SB-Article: No
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight: 9.4 kg
| Article | Price | |
|---|---|---|
 suitable for GRV Carbonhub standard 12 x 100 mm, total length 121 mm, thread pitch M12 x 1.75, thread length 16 mmNote: matching Locking Lever 0.281.498/6 Read more Read less
| ||
 40 teeth, 172,5mm crank length Read more Read less
| ||
 for steering tube (from 2019) Read more Read less
| ||
 graphite gray matt (YS 9309-1 matt) Read more Read less
| ||
 | ||
 integrated, suitable for GRV Carbon (from 2022) and Nyvon (Z17) Read more Read less
| ||
 for 10 - 36/44 teeth cassette sprockets Read more Read less
| ||
 for bottom bracket (from 2019) Read more Read less
| ||
 | ||
GRV, carbon, black, set, incl. screw, from 2019 Read more Read less
| ||
 left, front brake with 950mm line Read more Read less
| ||
 suitable for GRV Carbon Read more Read less
| ||
10.0 SE, graphite gray matt, Mod. 25 Read more Read less
| ||
 | ||
 | ||
 suitable for GRV with aluminium / carbon frames from mod. 2021 Read more Read less
| ||
 | ||
 | ||
 | ||
 right, rear brake with 1800mm line Read more Read less
| ||
 | ||
 for threadless road bottom bracket housing Pressfit 86,5mm housing width, for wide axle Read more Read less
| ||
 | ||
 10-11-13-15-17-19-21-24-28-32-38-44 Teeth Read more Read less
| ||
 suitable for GRV carbon from 2019 / aluminum from 2021, 164 mm, M12 x P1.75 x 20 mm Read more Read less
| ||
 Ø 160 mm, without Lock Ring Read more Read less
| ||
 |
Discover the versatility of the Conway "GRV 10.0 SE"! Made for gravel racing, long tours, weekenders and quick laps whenever it suits. The "GRV 10.0 SE" is the perfect touring companion for every adventure.As the top model in the GRV range, the gravel bike offers everything you need for demanding tours. The 12-speed SRAM "Rival AXS" derailleur system with 1x12-speed transmission allows you to change gears quickly and precisely and meets the highest demands in terms of reliability and shifting feel. Thanks to the wireless, electronic shifting system, you benefit from reliable performance and low-maintenance handling.The lightweight carbon frame and 28" wheels ensure an agile and responsive riding experience. The hydraulic Disc Brakes guarantee reliable braking power in all weathers, so you are always safe on the road.Equipped with Schwalbe "G-One Allround" tires (40 mm), the bike offers excellent grip on loose surfaces. They grip safely and reliably on gravel tracks and dry surfaces. They even impress on the road thanks to their versatile tread pattern with light and smooth rolling behavior.At just 9.4 kg, the Carbon Graveler is a real flyweight and impresses with its robustness and a permissible total weight of 130 kg. Ideal for anyone who wants more from a gravel bike and has high demands in terms of quality and equipment.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 diamond, 28", graphite grey matt, 12-speed SRAM "Rival XPLR AXS", 45 cm / S Read more Read less
| ||
 diamond, 28", graphite grey matt, 12-speed SRAM "Rival XPLR AXS", 47 cm / M Read more Read less
| ||
 diamond, 28", graphite grey matt, 12-speed SRAM "Rival XPLR AXS", 49 cm / L Read more Read less
| ||
 diamond, 28", graphite grey matt, 12-speed SRAM "Rival XPLR AXS", 50 cm / XL Read more Read less
|
