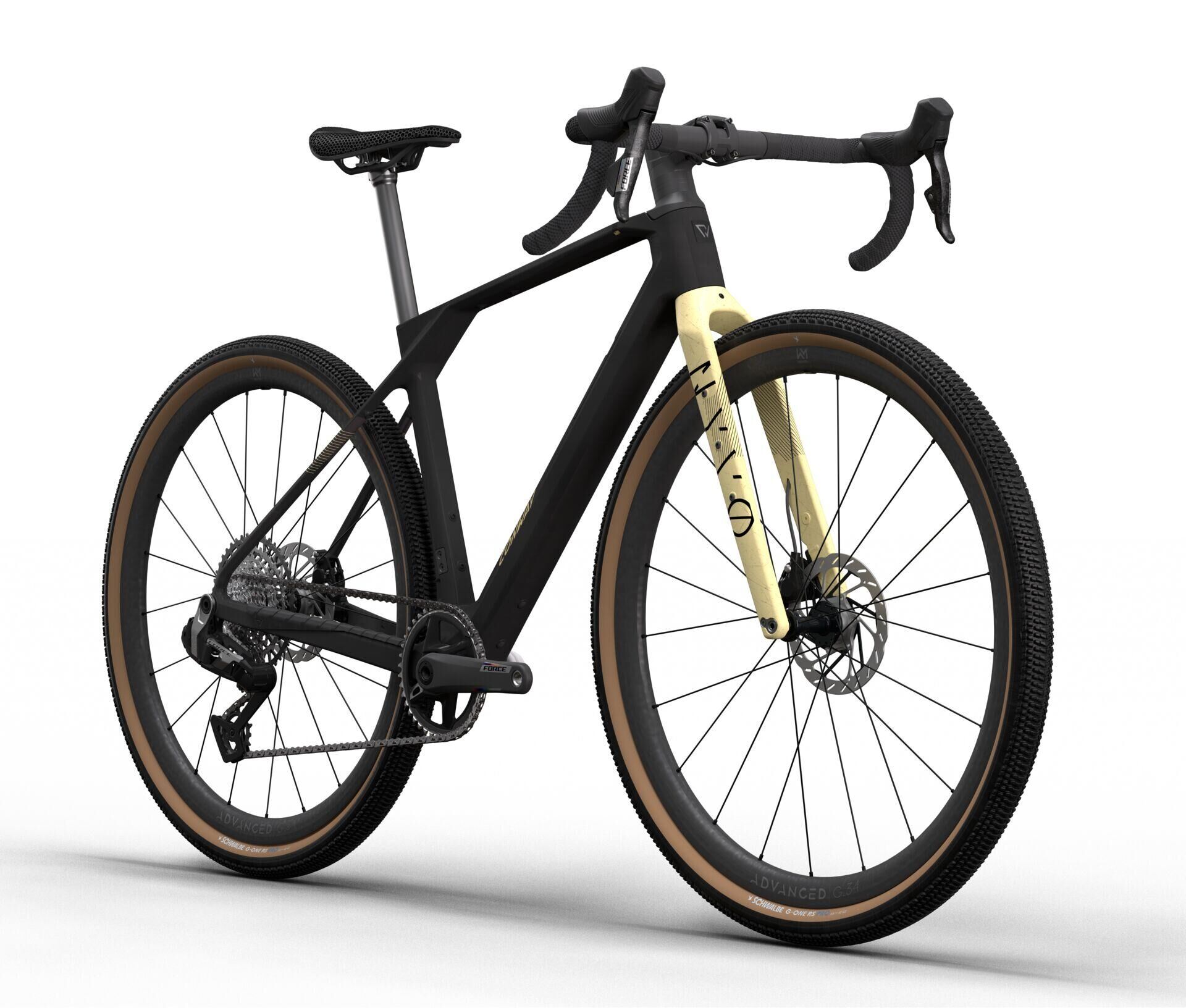

CONWAY Gravel bike "Nyvo 16.0" (#1)
diamond, 28", carbon raw matt, 13-speed SRAM "Force AXS T-Type", 49 cm / L
Read more Read less - Article number: 02810924
- Original number: BK26HA3230
The gravel bike has a carbon frame and is equipped with a 13-speed SRAM Force AXS T-Type derailleur. The wheel size is 28". The braking system consists of hydraulic disc brakes mounted on both wheels. The permissible system weight is 130 kg. The finish is in carbon raw matt. The drives are powered by a chain, which ensures reliable power transmission.
Product information
- Brake system hydraulic disc brake
- Chainstay 428 mm
- Colour designation carbon raw matt
- Drive chain
- E-bike no
- Frame height 49 cm
- Frame shape diamond
- Frame size L
- Gears 13-speed
- Gender gents
- Main colour black
- Material 1 carbon
- Permissible system weight 130 kg
- Reach 400 mm
- Seat angle 73.5 °
- Seat tube 490 mm
- Shifting name 13-Gang SRAM "Force AXS T-Type"
- Shifting type derailleur shifting
- Stack 592 mm
- Steering tube 145 mm , 160 mm
- Steering tube angle 72.0 °
- Stem length 90.0 mm
- Toptube 575 mm
- Transmission 1x 13-speed
- Type gravel bike
- Wheel distance 1042 mm
- Wheel size 28 "
- Bottom bracket: SRAM "PF 86,5 DUB"
- Brake: SRAM "Force AXS"
- Brake lever: SRAM "Force AXS"
- Chain / belt: SRAM "Rival"
- Crankset: SRAM "Force 1 XPLR", 40T, 172,5 mm
- Derailleur hanger: 0347028/3

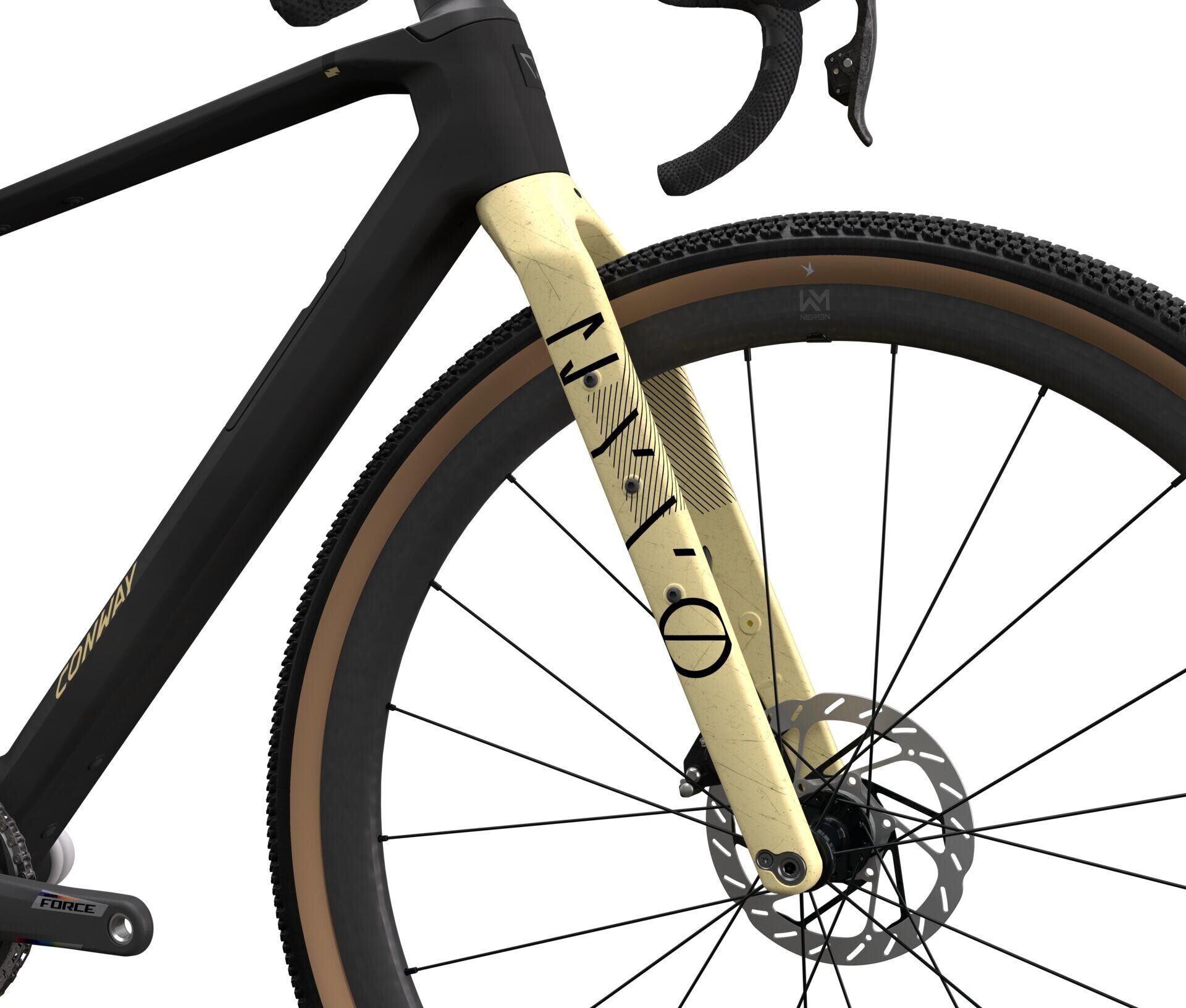

- Fork: Gravel "Carbon/Carbon"
- Frame: CONWAY Gravel, Carbon/Carbon
- Front hub: NEWMEN "Advanced G.34", Carbon/Carbon, 12 x 100 mm
- Front rotor: SRAM "Paceline", 160 mm, Centerlock
- Front tire: SCHWALBE "G-One RS Pro EVO", 40-622
- Grips: VELO "VLT-1051 black"

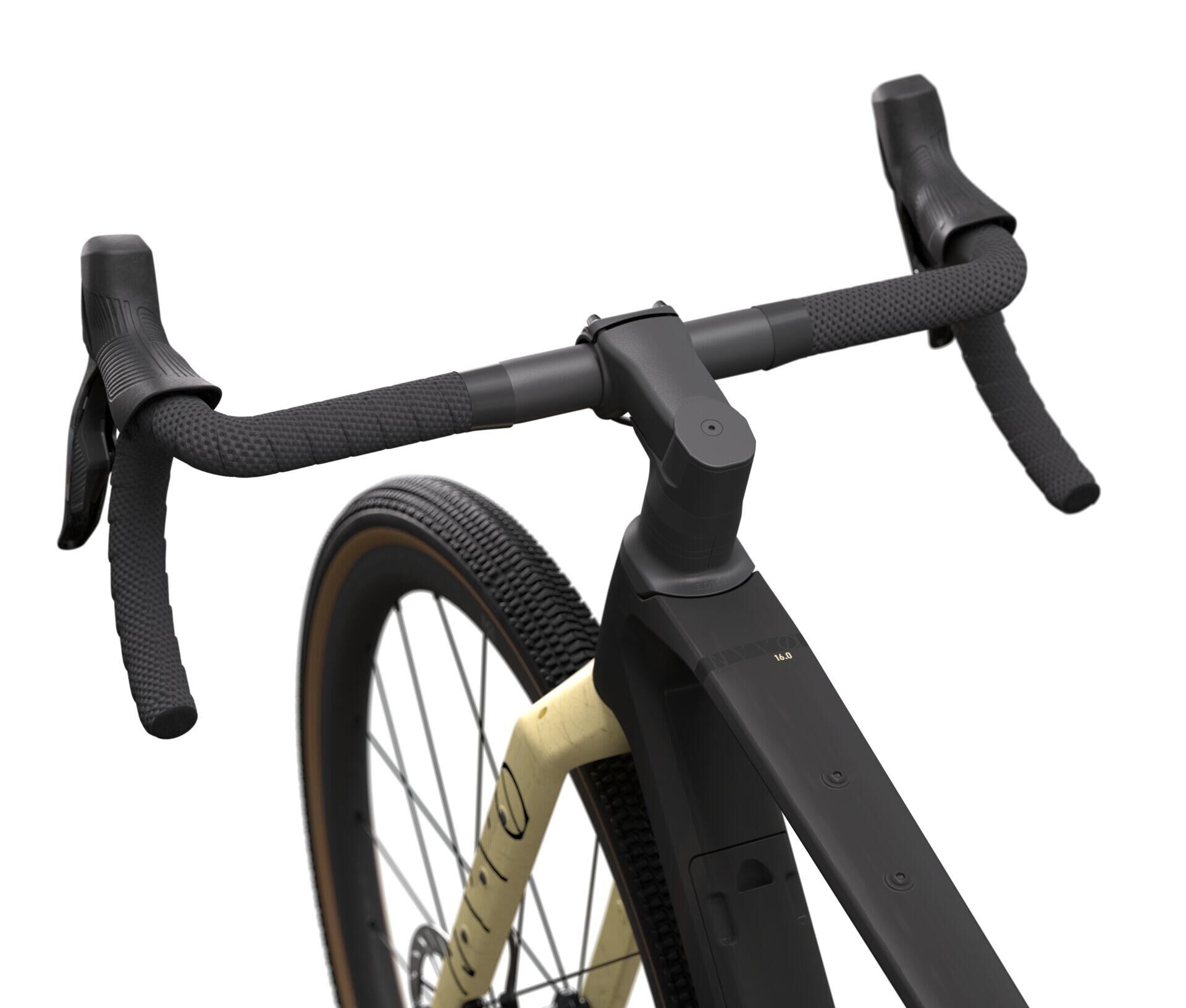

- Handlebar: CG "Gravel Carbon/Carbon Light", 420mm
- Headset: ACROS "IS52 / IS52 ICR"

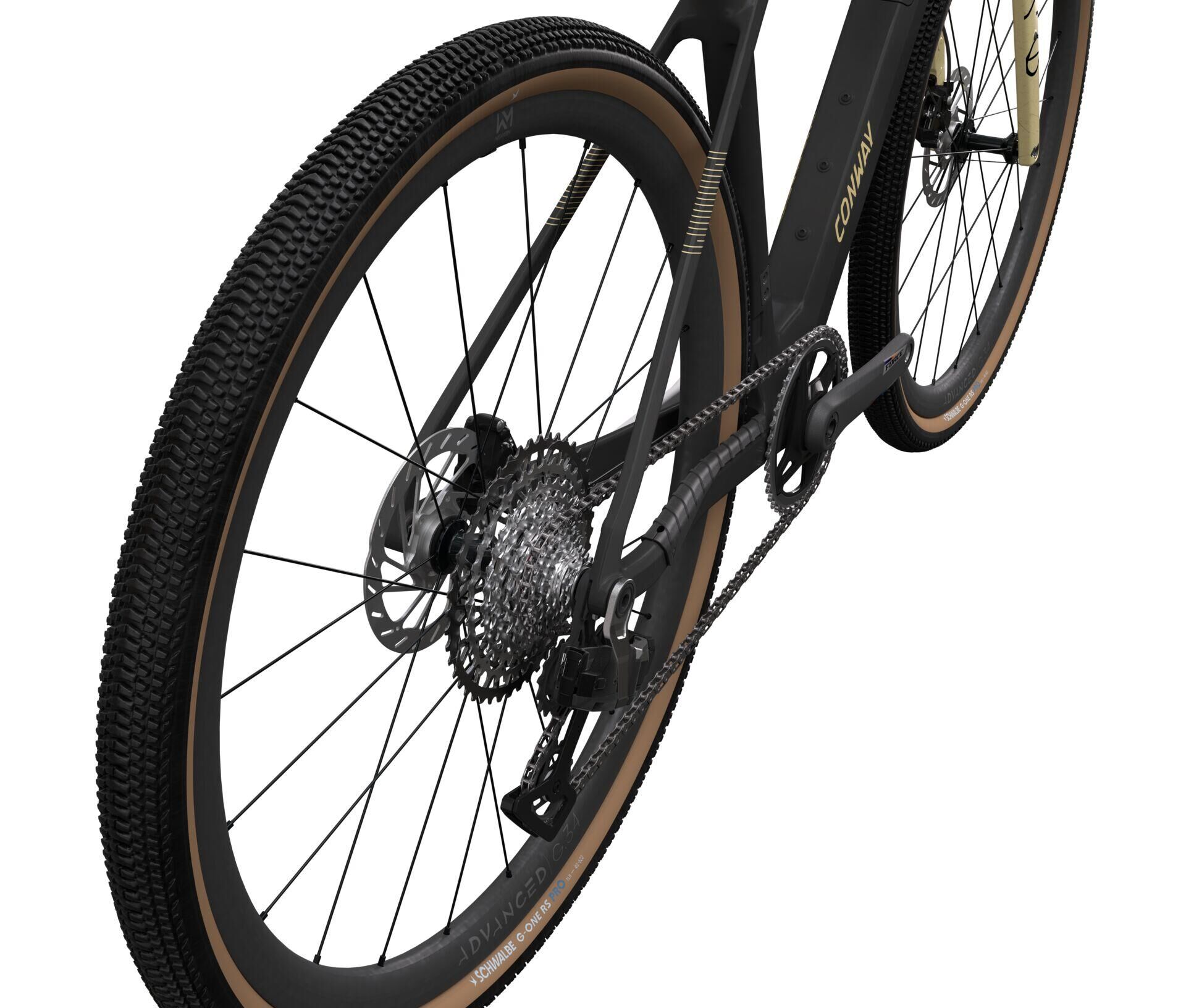

- Rear derailleur: SRAM "Force AXS XPLR T-Type", 13speed
- Rear hub: NEWMEN "Advanced G.34", Carbon/Carbon, 12 x 142 mm
- Rear rotor: SRAM "Paceline", 160 mm, Centerlock
- Rear tire: SCHWALBE "G-One RS Pro EVO", 40-622
- Rims: NEWMEN "Advanced G.34", Carbon/Carbon
- Saddle: FIZIK "Vento Argo Adaptive R1", 150
- Seatpost: CG "Road Carbon/Carbon Light", 27,2, 400mm
- Shifting lever: SRAM "Force AXS"
- Spokes: NEWMEN
- Sprocket / pulley: SRAM "XG 1351", 10-46 Z.
- Stem: SATORI "Viper", ICR, 90mm
- Supplier Article Number: BK26HA3230
- EAN: 4251971177390
- MSRP: €4,499.95
- WEEE registration number: DE92509320
- Fedas-Code: 158012
- Bidex-Code: 104020
- DST-Code: 1G00
- SB-Article: No
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight: 7.9 kg
Do you want maximum performance on any surface? As the top model in the range, our "Nyvo 16.0" offers you exactly that. It is built for speed, precision and comfort.The geometry puts you in a powerful, stretched riding position: the reach and stack are tuned for sporty efficiency, the head tube angle and stem length ensure precise steering behavior, while the seat angle and short Chain Stay provide you with direct propulsion.The centerpiece: the electronic SRAM Force AXS T-Type drivetrain with 13 gears. It shifts at lightning speed, wirelessly and under load - perfect for demanding gravel tours and changing terrain. The carbon frame with fully integrated cables, many mounting points and space for wide tires rounds off the setup. The hidden neoprene bag in the frame compartment is a smart detail that offers you space for useful tools. A bike for those who know what they want - and don't compromise.
