CONWAY MTB full suspension "RLC FS 4.9" Mod. 23
full suspension, 29", red metallic / black metallic, 12-speed SRAM "GX" Mix, 51 cm / L
Read more Read less - Article number: 02822526
- Original number: BK23HA0230
Please note the different equipment and prices of the individual models!
Product information
- Brake system hydraulic disc brake
- Category full suspension
- Chainstay 445 mm
- Colour designation red metallic / black metallic
- Drive chain drive
- E-bike no
- Features damper , suspension fork
- Frame height 51 cm
- Frame shape full suspension
- Frame size L
- Frame travel 100 mm
- Gears 12-speed
- Gender gents
- Main colour red
- Material 1 carbon
- Permissible system weight 130 kg
- Reach 473 mm
- Seat angle 72.0 °
- Seat tube 505 mm
- Secondary colour black
- Shifting name 12-Gang SRAM "GX" Mix
- Shifting type derailleur shifting
- Stack 604 mm
- Steering tube 115 mm
- Steering tube angle 69.5 °
- Stem length 90.0 mm
- Toptube 625 mm
- Transmission 1x 12-speed
- Travel 110 mm
- Wheel distance 1175 mm
- Wheel size 29 "
- Bottom bracket: SRAM "DUB", Pressfit BB89/92, 89 mm / 92 mm housing width
- Chain / belt: SRAM "SX Eagle"
- Crankset: SRAM "NX Eagle", 175 mm, 32 teeth
- Damper: ROCKSHOX "Deluxe Select + RT", 210 x 50 mm
- Derailleur hanger: CONWAY für WME carbon, Xyron, RLC FS, Cairon SUV FS, from mod.20
- Fork: ROCKSHOX "Reba RL", 110 mm travel, SoloAir, Motion Control RL, Maxle Lite Thru Axle
- Frame: Carbon, full suspension, 51 cm
- Front hub: FORMULA "DC-711", 15 x 110 mm, Thru Axle
- Front rotor: SHIMANO "SM-RT56", Ø 180 mm, 6-hole
- Front tire: SCHWALBE "Racing Ray" Tires, 60-622
- Grips: SQlab "70X"
- Handlebar: LEVELNINE "Flat Bar", 740 mm, Ø 31.8 mm, Backsweep 8°
- Headset: ACROS ZS44/28.6 / ZS56/40
- Rear derailleur: SRAM "GX Eagle"
- Rear hub: FORMULA "DHT-1481", 12 x 148 mm Boost, Thru Axle, 6-hole
- Rear rotor: SHIMANO "SM-RT56", Ø 160 mm, 6-hole
- Rear tire: SCHWALBE "Racing Ralph", 60-622

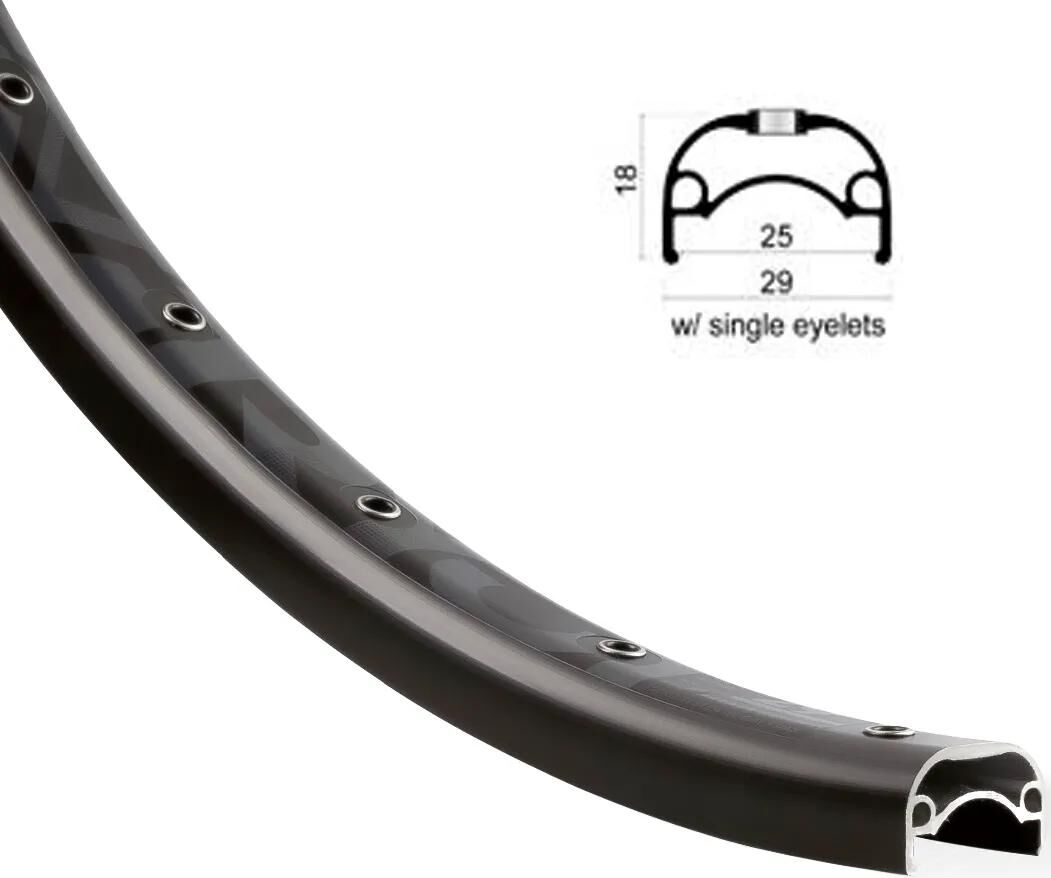

- Rims: RODI "Ryot 25", 25-622, 32 holes, disc brake, easy eyelets, black
- Saddle: CONWAY "1489 sport light"
- Seatpost: CONTEC "Drop-A-Gogo", Ø 31.6 mm, 390 mm long, 125 mm adjustment range
- Spokes: Niro schwarz
- Stem: LEVELNINE "Race A-Head", 1 1/8", 31,8mm handlebar clamp, 90mm long, angle 6°, black
- Supplier Article Number: BK23HA0230
- EAN: 4251971103160
- MSRP: €3,299.95
- Bidex-Code: 101020
- DST-Code: 1E00
- Fedas-Code: 154040
- SB-Article: No
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight: 12.8 kg
| Article | Price | |
|---|---|---|
![]() | ||
![]() | ||
![]() | ||
![]() RLC FS 7.9, red metallic / black metallic Read more Read less
| ||
![]() Ø 31,6mm, 125mm adjustment range, 390mm long Read more Read less
| ||
![]() | ||
![]() | ||

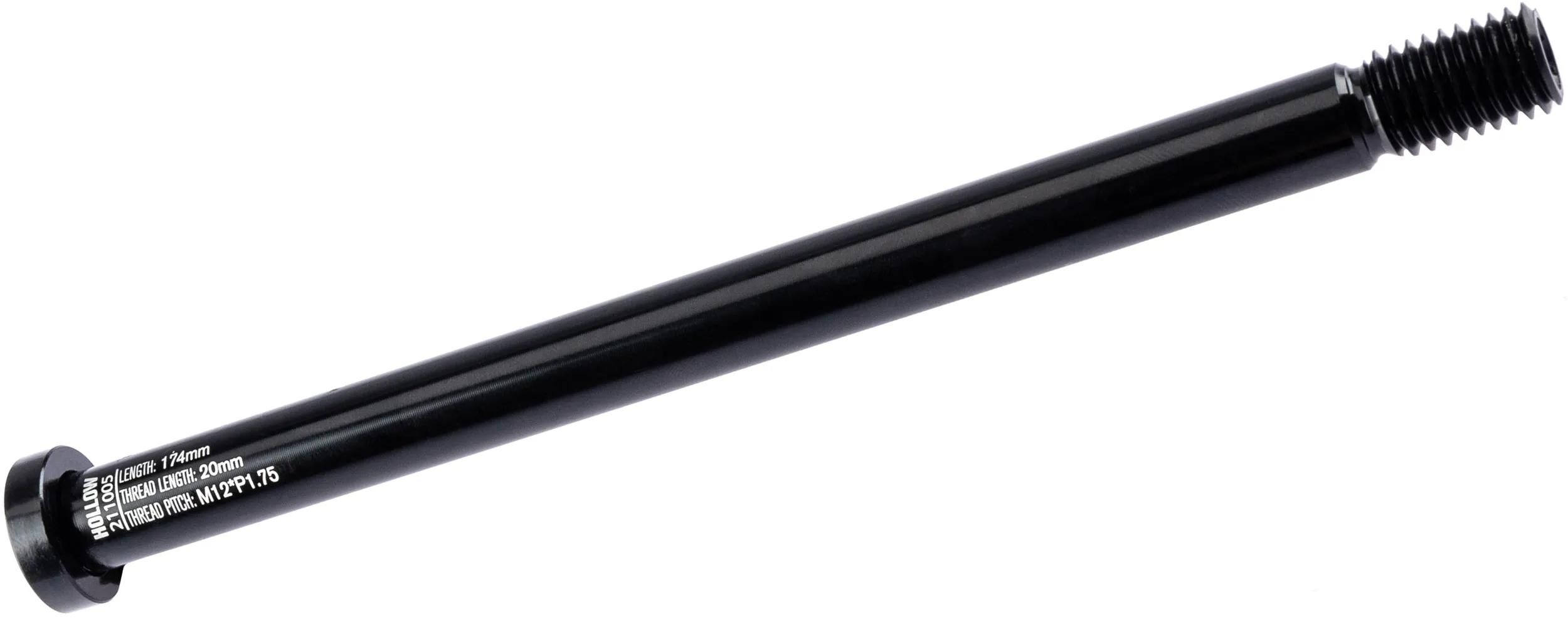

![]() suitable for RLC, 174 mm / M12 x P1, 75 x 20 mm Read more Read less
| ||
![]() Ø 31,6mm, 100mm adjustment range, 340mm long Read more Read less
| ||
![]() Ø 31,6mm, 125mm adjustment range, 390mm long Read more Read less
| ||
![]() rear, 1700mm line, right lever, resin pads B01S Read more Read less
| ||
![]() 10-12-14-16-18-21-24-28-32-36-42-52 teeth Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() 32 teeth, 175mm crank length Read more Read less
| ||
![]() | ||
![]() | ||
![]() suitable for RLC FS 2021-2023 (Z8) Read more Read less
| ||
![]() suitable for RLC FS 2021-2023 (Z8) Read more Read less
| ||
![]() | ||
![]() | ||
![]() Carbon, suitable for RLC FS Carbon MY21 Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() front, 1000mm line, left lever, resin pads B01S Read more Read less
| ||
![]() | ||
![]() lunar grey, max. 52 teeth Read more Read less
| ||
![]() RLC FS 7.9, red metallic / black metallic Read more Read less
| ||
![]() for threadless MTB bottom bracket housing Pressfit 89 / 92, 89 / 92mm housing width, for chainline 55mm Read more Read less
| ||
![]() | ||
![]() 12 x 148mm, 180mm long, 1,75mm thread pitch, Boost Read more Read less
| ||
![]() | ||
![]() | ||
![]() suitable for WME (Z7), 180 mm / M12 x P1, 75 x 20 mm Read more Read less
|
Awake the racer in you - and that with the "RLC FS 4.9", because the full suspensed bike has everything it needs for this. The CONWAY Factory Racing Team was the inspiration for the development of the fast and lightweight race full suspension bikes for cross country and marathon. Lightweight, torsionally stiff and fast it has become with its full carbon frame. And the moderate sporty seating position is designed accordingly for the long haul.The bike starts the new season with two technical innovations. On the one hand, it is the ROCKSHOX "Reba" fork, which smoothes all potholes and tree roots with its 110mm travel. It is supported by the already familiar ROCKSHOX damper and the 55mm wide "Race King" tires from CONTI.Also new is the CONTEC "Drop-A-Gogo" adjustable seatpost which allows you to optimally distribute your body weight. The support is controlled via a remote control, which is installed in the cockpit. The SRAM "GX Eagle" 12-speed gears will get you on the road. With the SHIMANO "BR MT410" the speed can be finely divided, but if it must be, vigorously reduced.The race full suspensed bike genes come from the CONWAY siblings "WME" and "RLC", its riding style is correspondingly sporty, the seating position nevertheless suitable for long distances. And if you want to turn the race full suspensed bike into a real marathon and downcountry bike, you can also install a suspension fork with 120mm travel. Looking even further ahead: The "RLC FS" series is already prepared for the FOX "Livevalve" suspension systems.
