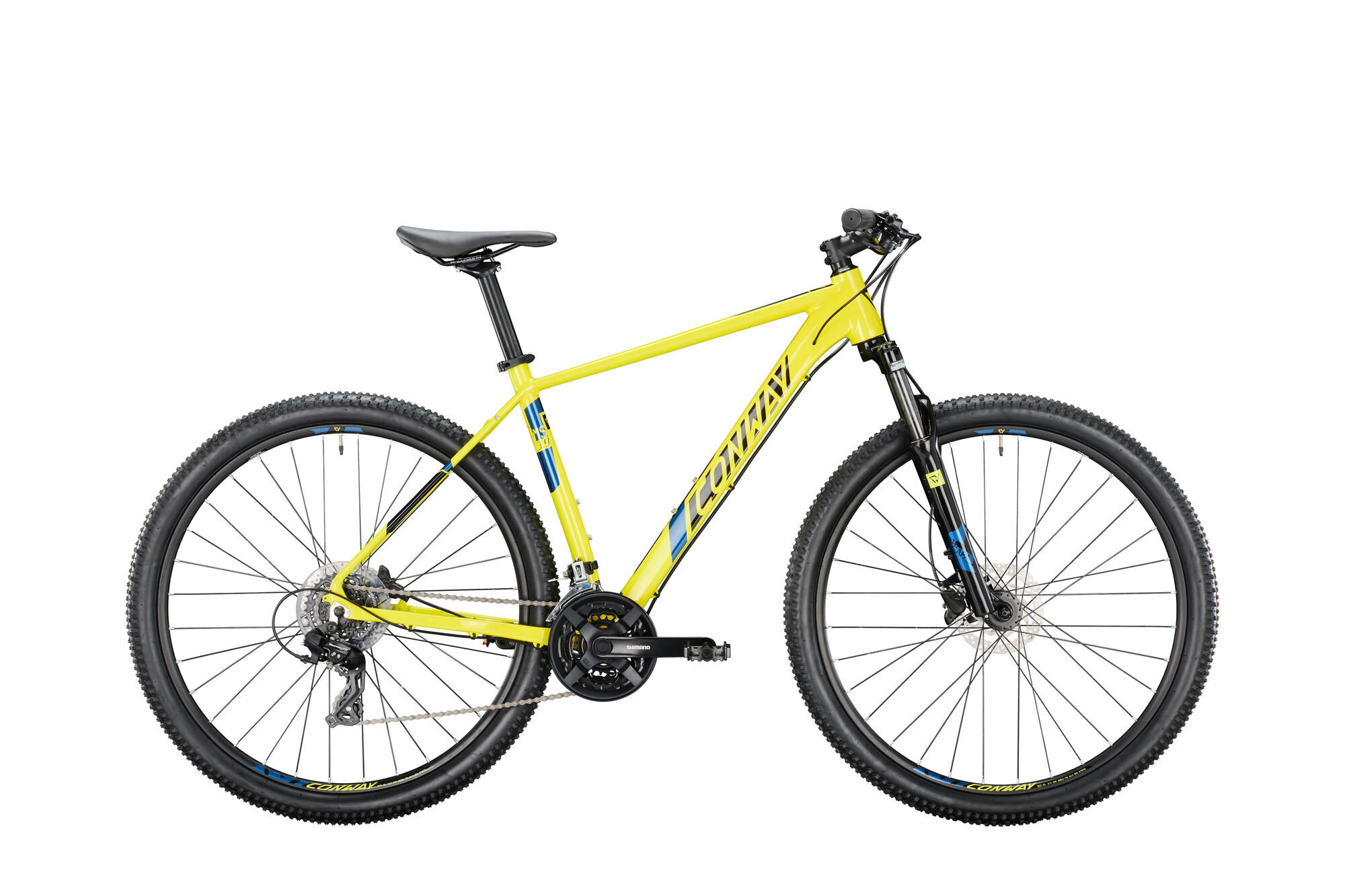

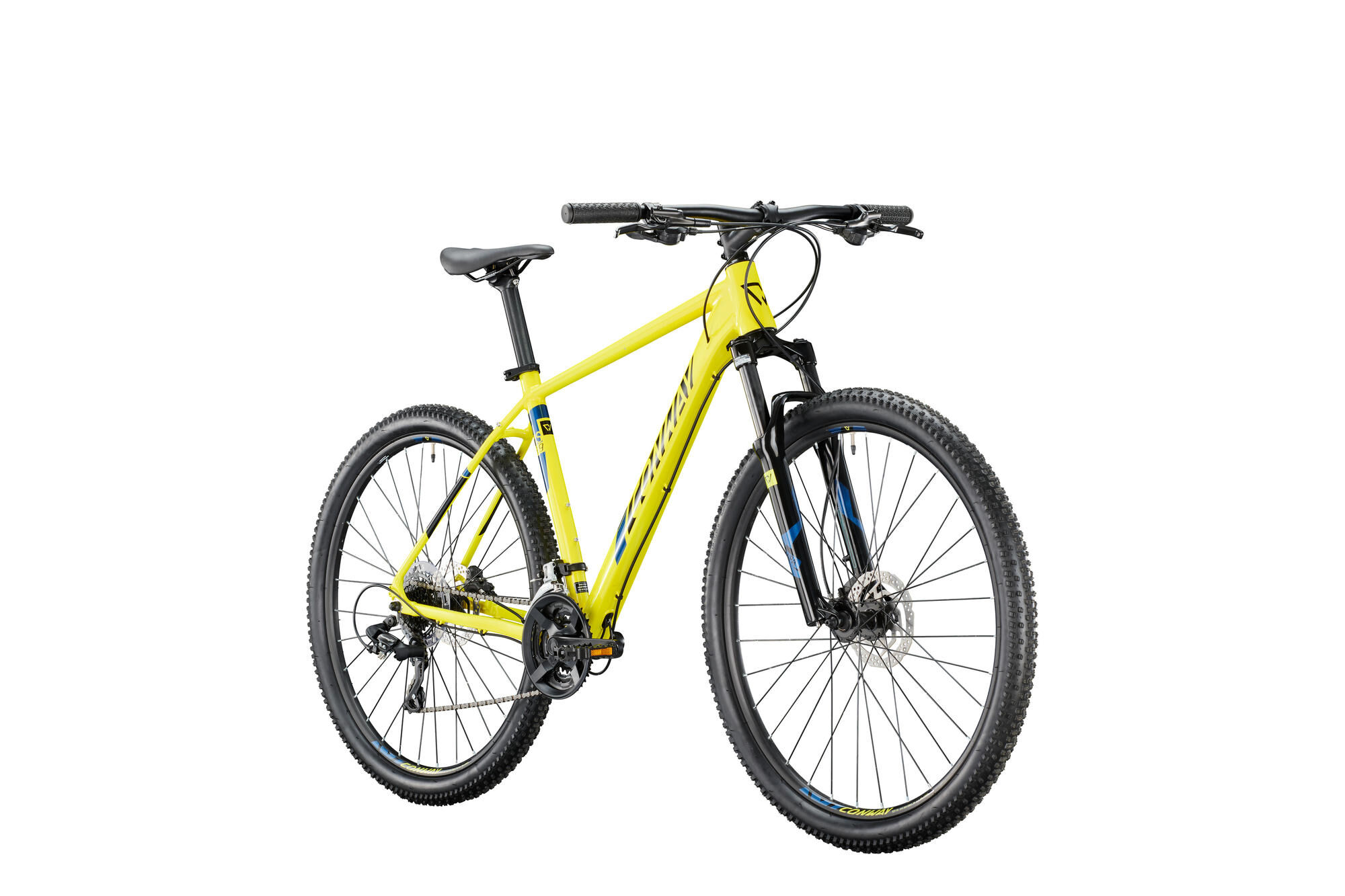

CONWAY MTB hardtail "MS 3.9" Mod. 24
hardtail, 29", acid metallic / darkblue metallic, 21-speed SHIMANO "TX800", 56 cm / XL
Read more Read less - Article number: 02891356
Product information
- Brake system hydraulic disc brake
- Category hardtail
- Chainstay 448 mm
- Colour designation acid metallic / darkblue metallic
- Drive chain drive
- E-bike no
- Features suspension fork
- Frame height 56 cm
- Frame shape hardtail
- Frame size XL
- Gears 21-speed
- Gender gents
- Main colour green
- Material 1 aluminium
- Permissible system weight 130 kg
- Reach 423 mm
- Seat angle 72.4 °
- Seat tube 559 mm
- Secondary colour blue
- Shifting name 21-Gang SHIMANO "TX800"
- Shifting type derailleur shifting
- Stack 652 mm
- Standover height 865 mm
- Steering tube 140 mm
- Steering tube angle 70.0 °
- Stem length 110.0 mm
- Toptube 630 mm
- Transmission 3x 7-speed
- Travel 100 mm
- Wheel distance 1124 mm
- Wheel size 29 "
- Bottom bracket: SHIMANO "BB-UN101", BSA, 68 mm / 70 mm housing width
- Bremse H.R.: TEKTRO Disc Brake "HD-M275", hydraulic, 2 pistons, for 1.8 mm brake rotors
- Chain / belt: KMC "Z7", 7-speed
- Crankset: SHIMANO "Tourney FC-TY301", 175 mm, 24/34/42 teeth
- Damper: 0
- Derailleur hanger: CONWAY for MS / MC / ML 27.5", 29" from 2019 model onwards
- Fork: RST "Capa T", 100 mm travel, QR
- Frame: Aluminum, diamond, 56 cm
- Front derailleur: SHIMANO "Altus FD-M313", Down Swing
- Front hub: QUANDO "KT-K68F", QR
- Front rotor: TEKTRO "TR160-24", Ø 160 mm, 6-hole
- Front tire: WTB "Ranger", 57-622
- Grips: CONWAY "Sport", 130 mm, black
- Handlebar: LEVELNINE Handlebar, 720 mm, Ø 31.8 mm, Rise 0.5 mm
- Headset: FSA "Orbit 1.5B ZS", ZS44/28.6 / ZS56/40, reduction cone
- Pedals: WELLGO "C280DU"
- Rear derailleur: SHIMANO "Tourney TX RD-TX800"
- Rear hub: QUANDO "KT-MD2R", 6-hole, QR
- Rear rotor: TEKTRO "TR160-24", Ø 160 mm, 6-hole
- Rear tire: WTB "Ranger", 57-622
- Rims: CONWAY "35 Bar", 32 hole
- Saddle: Selle Royal "Vivo", Athletic
- Seatpost: CONWAY, Ø 31.6 mm, 350 mm long
- Spokes: Steel black
- Stem: CONWAY, 1 1/8", 31,8mm handlebar clamp, 110mm long, angle 7°, black
- EAN: 4251507977449
- MSRP: €599.95
- Bidex-Code: 101010
- DST-Code: 1E00
- SB-Article: No
- Fedas-Code: 154010
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight: 14.8 kg
| Article | Price | |
|---|---|---|
![]() 12-14-16-18-21-26-32 teeth Read more Read less
| ||
![]() | ||
![]() | ||
![]() 122,5mm axle length, 68mm housing width Read more Read less
| ||
![]() also suitable for Conway WME Aluminium 27,5 (Z1), 29“ (Z2), WME MT (Z3) from 2015-2019 and eWME from 2017-2020 (Z4 and Z5) Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() 720mm long, Ø 31,8mm, 9° backsweep, 5° upsweep, rise: 15mm Read more Read less
| ||
![]() | ||
![]() | ||
![]() 110mm long, 31,8mm handlebar clamp Read more Read less
| ||
![]() | ||
| Article | Price | |
|---|---|---|
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() moss / black, size M Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() moss / black, size XL Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() grey / black, size XXL Read more Read less
| ||
![]() | ||
![]() grey melange with silver sticker Read more Read less
| ||
![]() | ||
![]() grey / black, size XS Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() moss / black, size XXL Read more Read less
| ||
![]() | ||
![]() grey / black, size L Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() grey / black, size XL Read more Read less
| ||
![]() | ||
![]() moss / black, size L Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() grey / black, size S Read more Read less
| ||
![]() | ||
![]() | ||
![]() moss / black, size XS Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() moss / black, size S Read more Read less
| ||
![]() | ||
![]() | ||
![]() grey / black, size M Read more Read less
| ||
![]() | ||
![]() |
Sporty & comfortableChic and solid - that is the entry-level mountain bike "MS 3.9" from CONWAY. The lightweight yet sturdy aluminum frame provides a sporty yet comfortable riding position, so that you can use this bike for long tours on the weekend as well as for a crisp after-work ride. New components that complement the solid equipment are the hydraulic disc brakes, which can be finely dosed on the one hand, but which also grip properly when it comes down to it - especially in wet conditions. The 57 mm wide "Ranger" WTB tires bite firmly into loose ground and convince with their high puncture protection.The suspension fork from SUNTOUR smoothes bumps from field and forest roads with the usual 100 mm travel in cross country and marathon. For steep climbs and long descents, the 7-speed SHIMANO derailleur with its total of 21 gears always provides the right cadence.If there is no forest road for the evening round, then the "MS 3.9" can also be steered agilely through the city. Since the frame has the necessary eyelets, you can also retrofit mudguards for everyday use. And of course, the good damping properties also score on cobblestones and potholed roads.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
![]() hardtail, 29", acid metallic / darkblue metallic, 21-speed SHIMANO "TX800", 41 cm / S Read more Read less
| ||
![]() hardtail, 29", acid metallic / darkblue metallic, 21-speed SHIMANO "TX800", 46 cm / M Read more Read less
| ||
![]() hardtail, 29", acid metallic / darkblue metallic, 21-speed SHIMANO "TX800", 51 cm / L Read more Read less
| ||
![]() hardtail, 29", acid metallic / darkblue metallic, 21-speed SHIMANO "TX800", 56 cm / XL Read more Read less
| ||

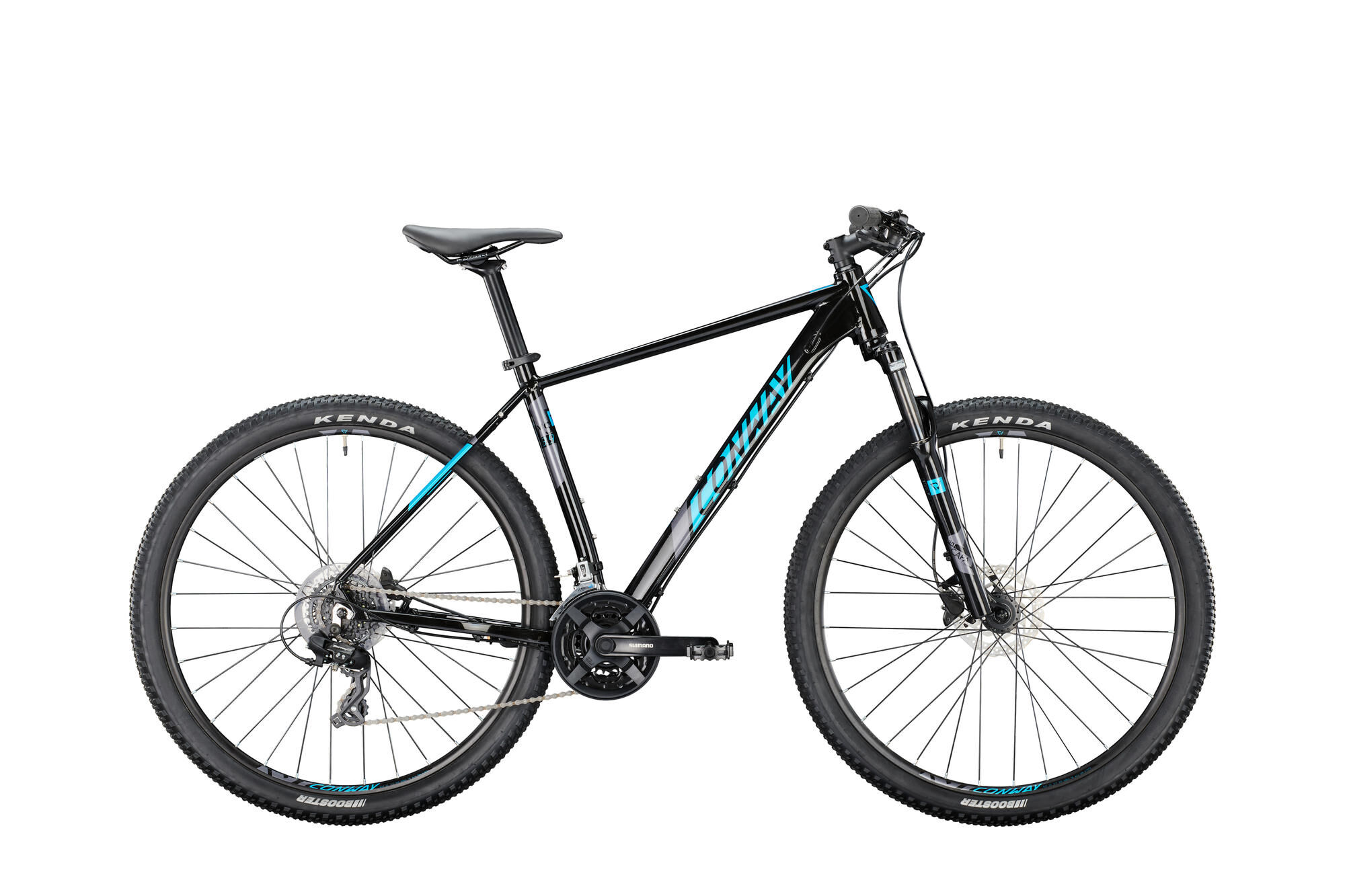

![]() hardtail, 29", black metallic / turquoise metallic, 21-speed SHIMANO "TX800", 41 cm / S Read more Read less
| ||
