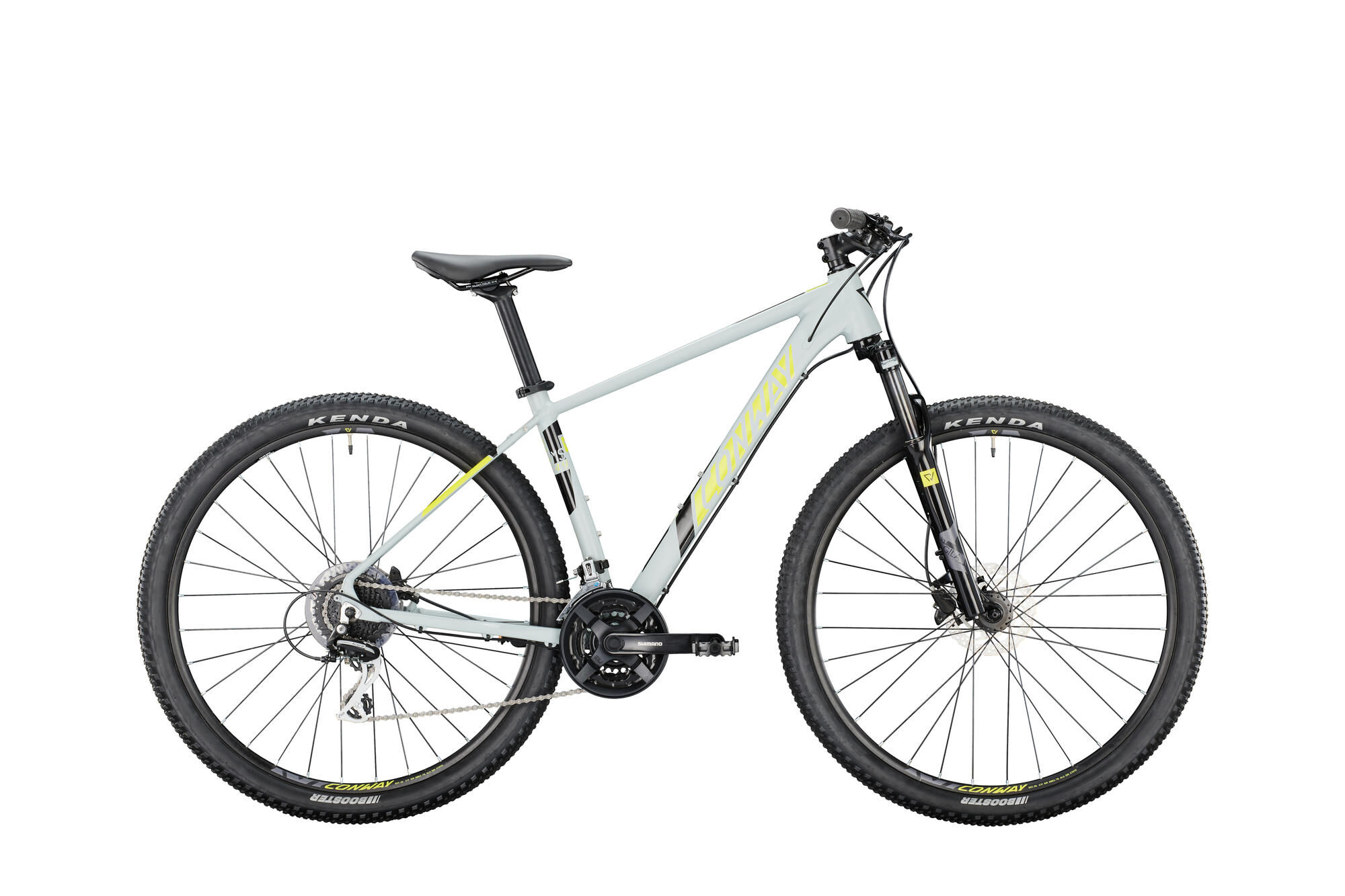

CONWAY MTB hardtail "MS 4.9" Mod. 24
- Article number: 02891414
The MTB hardtail consists of an aluminum frame. The Suspension Fork offers a fork travel of 100 mm and is mounted on 29" wheels. Drives are provided by a chain drive. A 24-speed SHIMANO "Acera" derailleur is installed for gear selection. There are hydraulic Disc Brakes on the wheels. The permissible system weight is 130 kg.
Product information
- Brake system hydraulic disc brake
- Chainstay 448 mm
- Colour designation lightgrey matt / acid metallic
- Drive chain
- E-bike no
- Features suspension fork
- Frame height 46 cm
- Frame shape hardtail
- Frame size M
- Gears 24-speed
- Gender gents
- Main colour grey
- Material 1 aluminium
- Permissible system weight 130 kg
- Reach 389 mm
- Seat angle 72.4 °
- Seat tube 457 mm
- Secondary colour green
- Shifting name 24-Gang SHIMANO "Acera"
- Shifting type derailleur shifting
- Stack 634 mm
- Standover height 800 mm
- Steering tube 120 mm
- Steering tube angle 70.0 °
- Stem length 70.0 mm
- Toptube 590 mm
- Transmission 3x 8-speed
- Travel 100 mm
- Type hardtail
- Wheel distance 1089 mm
- Wheel size 29 "
- Bottom bracket: SHIMANO "BB-UN101", BSA, 68 mm / 70 mm housing width
- Bremse H.R.: TEKTRO Disc Brake "HD-M275", hydraulic, 2 pistons, for 1.8 mm brake rotors
- Chain / belt: KMC "Z8", 8-speed
- Crankset: SHIMANO "Tourney FC-TY301", 175 mm, 24/34/42 teeth
- Derailleur hanger: CONWAY for MS / MC / ML 27.5", 29" from 2019 model onwards
- Fork: RST "Gila ML", 100 mm travel, QR
- Frame: Aluminum, diamond, 46 cm
- Front derailleur: SHIMANO "Altus FD-M313", Down Swing
- Front hub: QUANDO "KT-K68F", QR
- Front rotor: TEKTRO "TR160-24", Ø 160 mm, 6-hole
- Front tire: WTB "Ranger", 57-622
- Grips: CONWAY "Sport", 130 mm, black
- Handlebar: LEVELNINE Handlebar, 720 mm, Ø 31.8 mm, Rise 0.5 mm
- Headset: FSA "Orbit 1.5B ZS", ZS44/28.6 / ZS56/40, reduction cone
- Pedals: WELLGO "C280DU"
- Rear derailleur: SHIMANO "Acera RD-M360"
- Rear hub: QUANDO "KT-K68R", 6-hole, QR
- Rear rotor: TEKTRO "TR160-24", Ø 160 mm, 6-hole
- Rear tire: WTB "Ranger", 57-622
- Rims: CONWAY "35 Bar", 32 hole
- Saddle: Selle Royal "Vivo", Athletic
- Seatpost: CONWAY, Ø 31.6 mm, 350 mm long
- Spokes: Steel black
- Stem: CONWAY, 1 1/8", 31,8mm handlebar clamp, 70mm long, angle 7°, black
- EAN: 4251507977500
- MSRP: €649.95
- Bidex-Code: 101010
- DST-Code: 1E00
- SB-Article: No
- Fedas-Code: 154010
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight: 14.8 kg
| Article | Price | |
|---|---|---|
![]() silver / gray, SB-packed, 122 links Read more Read less
| ||
![]() also suitable for Conway WME Aluminium 27,5 (Z1), 29“ (Z2), WME MT (Z3) from 2015-2019 and eWME from 2017-2020 (Z4 and Z5) Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() 122,5mm axle length, 68mm housing width Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() silver, self-service package, 114 links Read more Read less
| ||
![]() 11-13-15-17-20-23-26-34 teeth Read more Read less
| ||
![]() | ||
![]() rear, 1700mm cable, reight lever Read more Read less
| ||
![]() | ||
![]() 70mm long, 31,8mm handlebar clamp Read more Read less
| ||
![]() front, 1000mm cable, left lever Read more Read less
| ||
![]() | ||
![]() 175mm, with chain guard ring Read more Read less
| ||
![]() 720mm long, Ø 31,8mm, 9° backsweep, 5° upsweep, rise: 15mm Read more Read less
| ||
![]() | ||
![]() EPT, self-service package, 114 links Read more Read less
|
| Article | Price | |
|---|---|---|
![]() grey / black, size M Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() moss / black, size L Read more Read less
| ||
![]() | ||
![]() moss / black, size XXL Read more Read less
| ||
![]() grey / black, size XL Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() grey / black, size S Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() grey / black, size XXL Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() moss / black, size S Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() moss / black, size XL Read more Read less
| ||
![]() | ||
![]() | ||
![]() grey melange with silver sticker Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() moss / black, size M Read more Read less
| ||
![]() grey / black, size XS Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() moss / black, size XS Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() grey / black, size L Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() |
Product variants
| Article | Price | |
|---|---|---|
![]() hardtail, 29", lightgrey matt / acid metallic, 24-speed SHIMANO "Acera", 41 cm / S Read more Read less
| ||
![]() hardtail, 29", lightgrey matt / acid metallic, 24-speed SHIMANO "Acera", 46 cm / M Read more Read less
| ||
![]() hardtail, 29", lightgrey matt / acid metallic, 24-speed SHIMANO "Acera", 51 cm / L Read more Read less
| ||
![]() hardtail, 29", lightgrey matt / acid metallic, 24-speed SHIMANO "Acera", 56 cm / XL Read more Read less
| ||

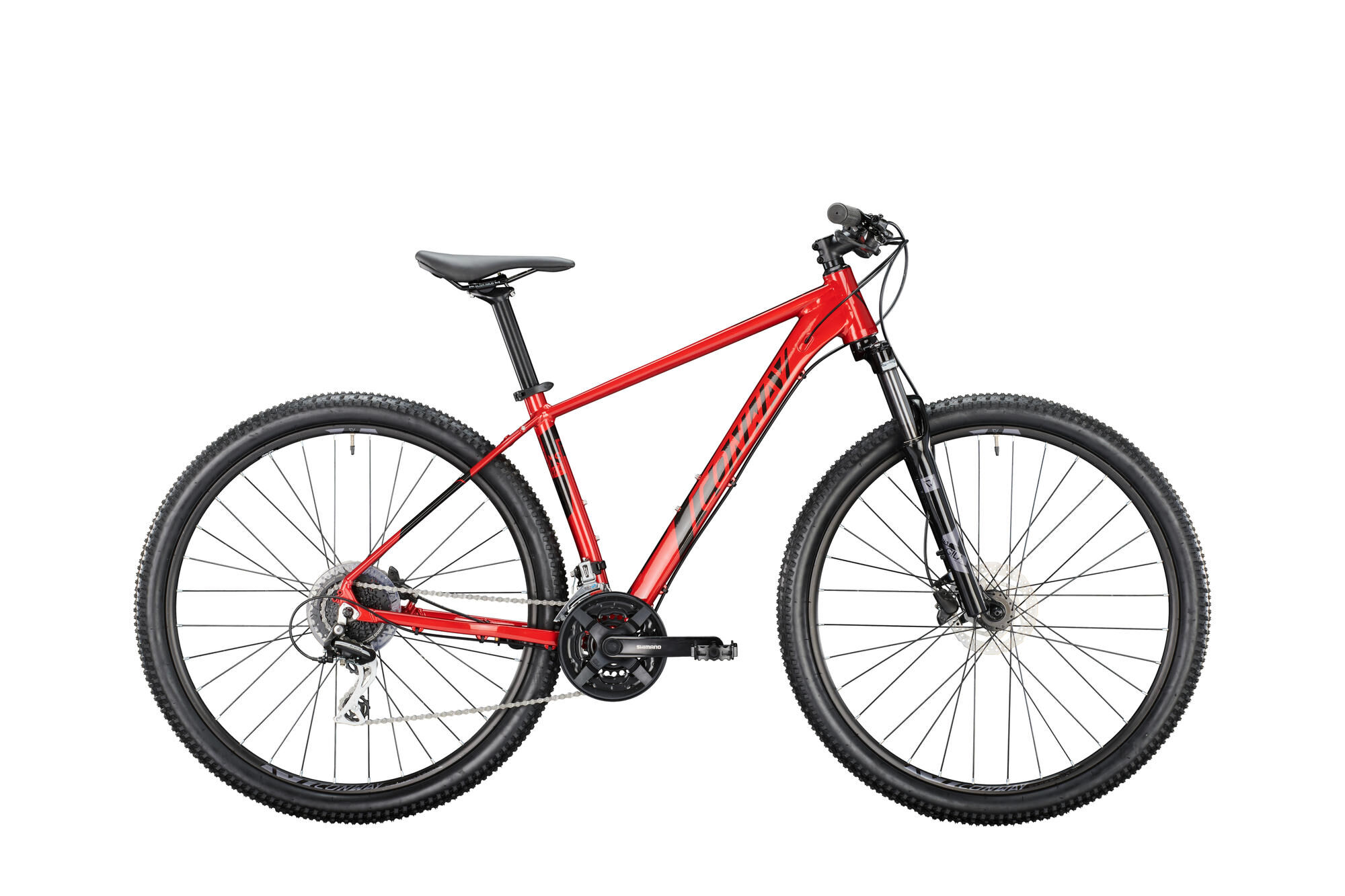

![]() hardtail, 29", red metallic / black metallic, 24-speed SHIMANO "Acera", 41 cm / S Read more Read less
| ||
