CONWAY MTB hardtail "MS 5.9" Mod. 24
hardtail, 29", darkblue metallic / acid metallic, 27-speed SHIMANO "Alivio", 56 cm / XL
Read more Read less - Article number: 02891513
Product information
- Brake system hydraulic disc brake
- Category hardtail
- Chainstay 448 mm
- Colour designation darkblue metallic / acid metallic
- Drive chain drive
- E-bike no
- Features suspension fork
- Frame height 56 cm
- Frame shape hardtail
- Frame size XL
- Gears 27-speed
- Gender gents
- Main colour blue
- Material 1 aluminium
- Permissible system weight 130 kg
- Reach 423 mm
- Seat angle 72.4 °
- Seat tube 559 mm
- Secondary colour green
- Shifting name 27-Gang SHIMANO "Alivio"
- Shifting type derailleur shifting
- Stack 652 mm
- Standover height 865 mm
- Steering tube 140 mm
- Steering tube angle 70.0 °
- Stem length 110.0 mm
- Toptube 630 mm
- Transmission 3x 9-speed
- Travel 100 mm
- Wheel distance 1124 mm
- Wheel size 29 "
- Bottom bracket: SHIMANO "BB-UN101", BSA, 68 mm / 70 mm housing width
- Bremse H.R.: TEKTRO Disc Brake "HD-M280", hydraulic, 2 pistons, for 1.8 mm brake rotors
- Chain / belt: KMC "Z99", 9-speed
- Crankset: SHIMANO "Alivio FC-MT101", square, 175 mm, 22/30/40 teeth
- Derailleur hanger: CONWAY for MS / MC / ML 27.5", 29" from 2019 model onwards
- Fork: RST "Blaze RLO", 100 mm travel, QR
- Frame: Aluminum, diamond, 56 cm

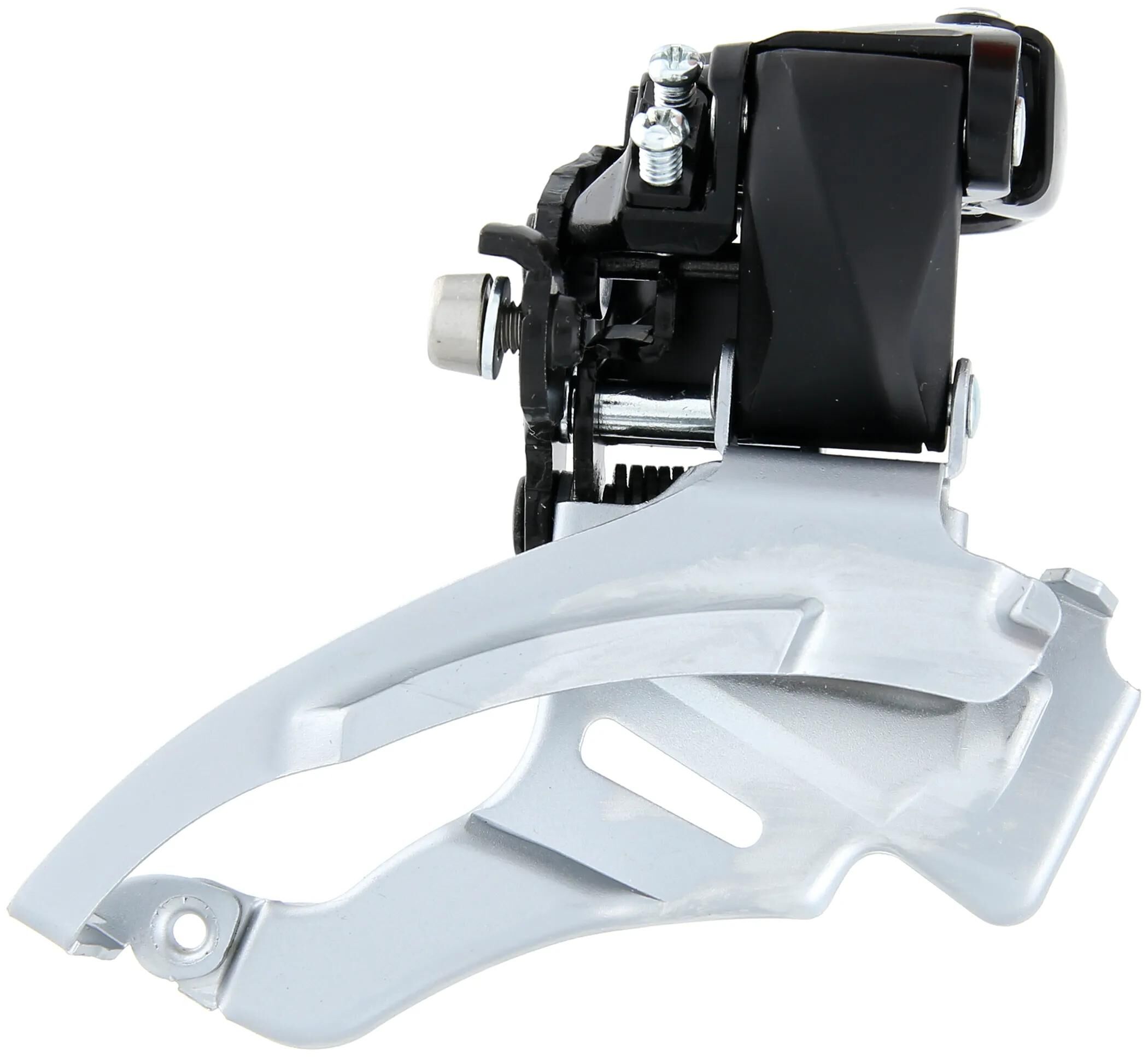

- Front derailleur: SHIMANO "Altus FD-M2000", Down Swing
- Front hub: QUANDO "KT-K68F", QR
- Front rotor: TEKTRO "TR160-24", Ø 160 mm, 6-hole
- Front tire: WTB "Ranger", 57-622, Reflex
- Grips: CONWAY "Sport", 130 mm, black
- Handlebar: LEVELNINE Handlebar, 720 mm, Ø 31.8 mm, Rise 0.5 mm
- Headset: FSA "Orbit 1.5B ZS", ZS44/28.6 / ZS56/40, reduction cone
- Pedals: WELLGO "C280DU"
- Rear derailleur: SHIMANO "Alivio RD-M3100"
- Rear hub: QUANDO "KT-K68R", 6-hole, QR
- Rear rotor: TEKTRO "TR160-24", Ø 160 mm, 6-hole
- Rear tire: WTB "Ranger", 57-622, Reflex
- Rims: RODI "Blackrock 23", 23-622, 32 holes, disc brake, easy eyelets, black
- Saddle: Selle Royal "Vivo", Athletic
- Seatpost: CONWAY, Ø 31.6 mm, 350 mm long
- Spokes: Steel black
- Stem: CONWAY, 1 1/8", 31,8mm handlebar clamp, 110mm long, angle 7°, black
- EAN: 4251507977609
- MSRP: €729.95
- Bidex-Code: 101010
- DST-Code: 1E00
- SB-Article: No
- Fedas-Code: 154010
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight: 14.9 kg
| Article | Price | |
|---|---|---|
![]() 110mm long, 31,8mm handlebar clamp Read more Read less
| ||
![]() also suitable for Conway WME Aluminium 27,5 (Z1), 29“ (Z2), WME MT (Z3) from 2015-2019 and eWME from 2017-2020 (Z4 and Z5) Read more Read less
| ||
![]() | ||
![]() | ||

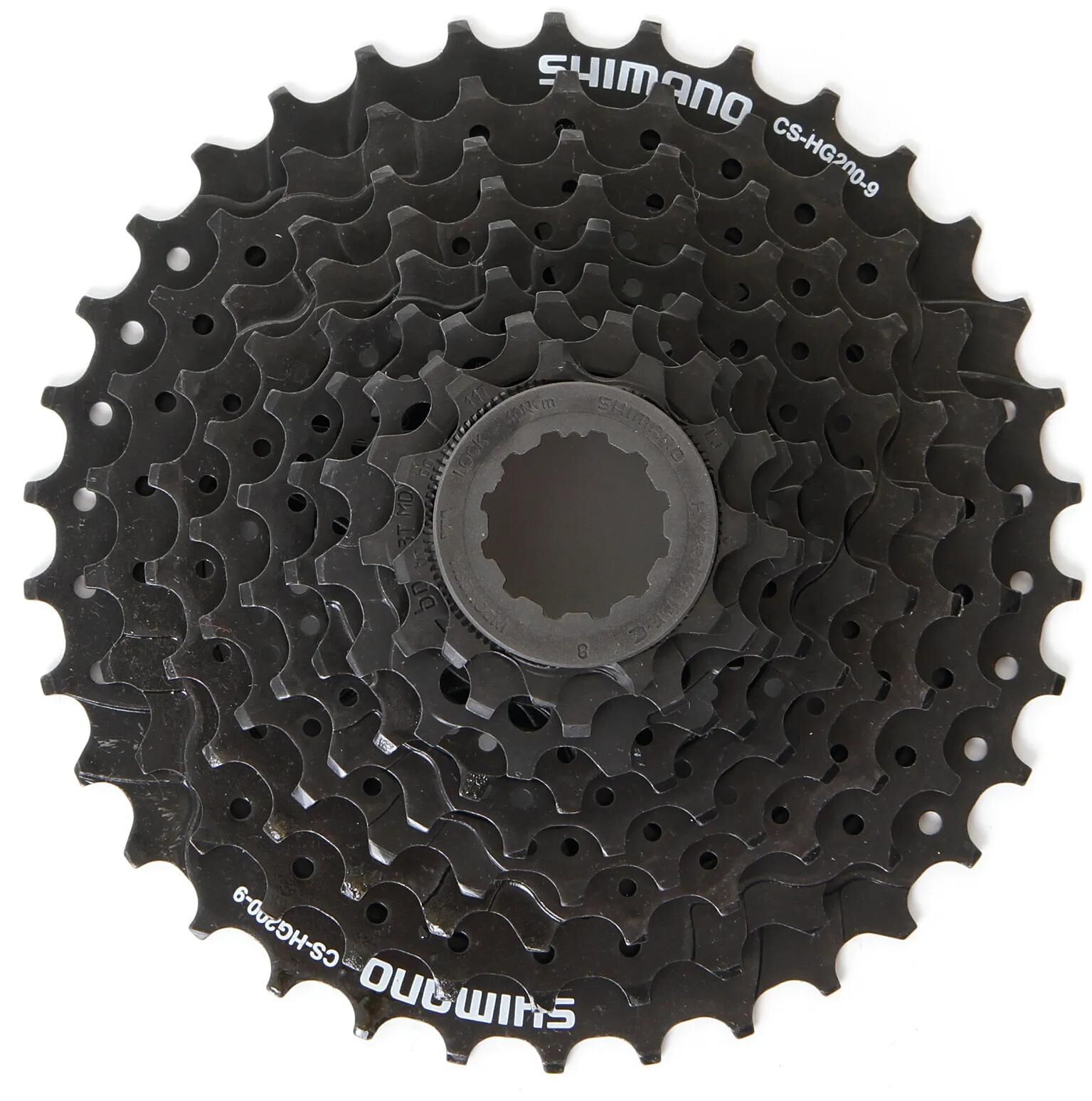

![]() 11-13-15-17-20-23-26-30-34 teeth Read more Read less
| ||
![]() silver / gray, SB-packed, 122 links Read more Read less
| ||
![]() 175mm, with chain guard ring Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() 122,5mm axle length, 68mm housing width Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() 720mm long, Ø 31,8mm, 9° backsweep, 5° upsweep, rise: 15mm Read more Read less
| ||
![]() |
| Article | Price | |
|---|---|---|
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() grey / black, size S Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() moss / black, size XXL Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() grey melange with silver sticker Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() moss / black, size L Read more Read less
| ||
![]() | ||
![]() grey / black, size XXL Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() moss / black, size XL Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() grey / black, size XL Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() grey / black, size XS Read more Read less
| ||
![]() | ||
![]() grey / black, size M Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() moss / black, size XS Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() grey / black, size L Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() moss / black, size M Read more Read less
| ||
![]() | ||
![]() moss / black, size S Read more Read less
| ||
![]() | ||
![]() |
All-terrain & grippyThe CONWAY "MS 5.9" brings everything that makes a properly off-road bike. New are the 57 mm wide "Ranger" WTB tires, which bite firmly into loose ground with their lug profile and thus always provide good traction. The high puncture protection is a plus factor. The off-road idea is continued with the RST "Blaze" RLO fork, which smooths out all bumps with its 100 mm travel. Since the seating position is pleasantly upright, you can venture with the MTB well and gladly on extensive tours. In addition, the 9-speed SHIMANO "Alivio" derailleur offers a wide range of gears and ratios with which it is pleasant to pedal, even on long climbs. On descents, however, the bike scores with its reliable hydraulic disc brakes, the "BR-MT200" from SHIMANO even in wet conditions.The "MS 5.9" is just as suitable for everyday use, because the hardtail is equipped with threaded eyelets on which you can mount mudguards. And: The good damping properties of fork and tire also apply without restriction on cobblestones.
