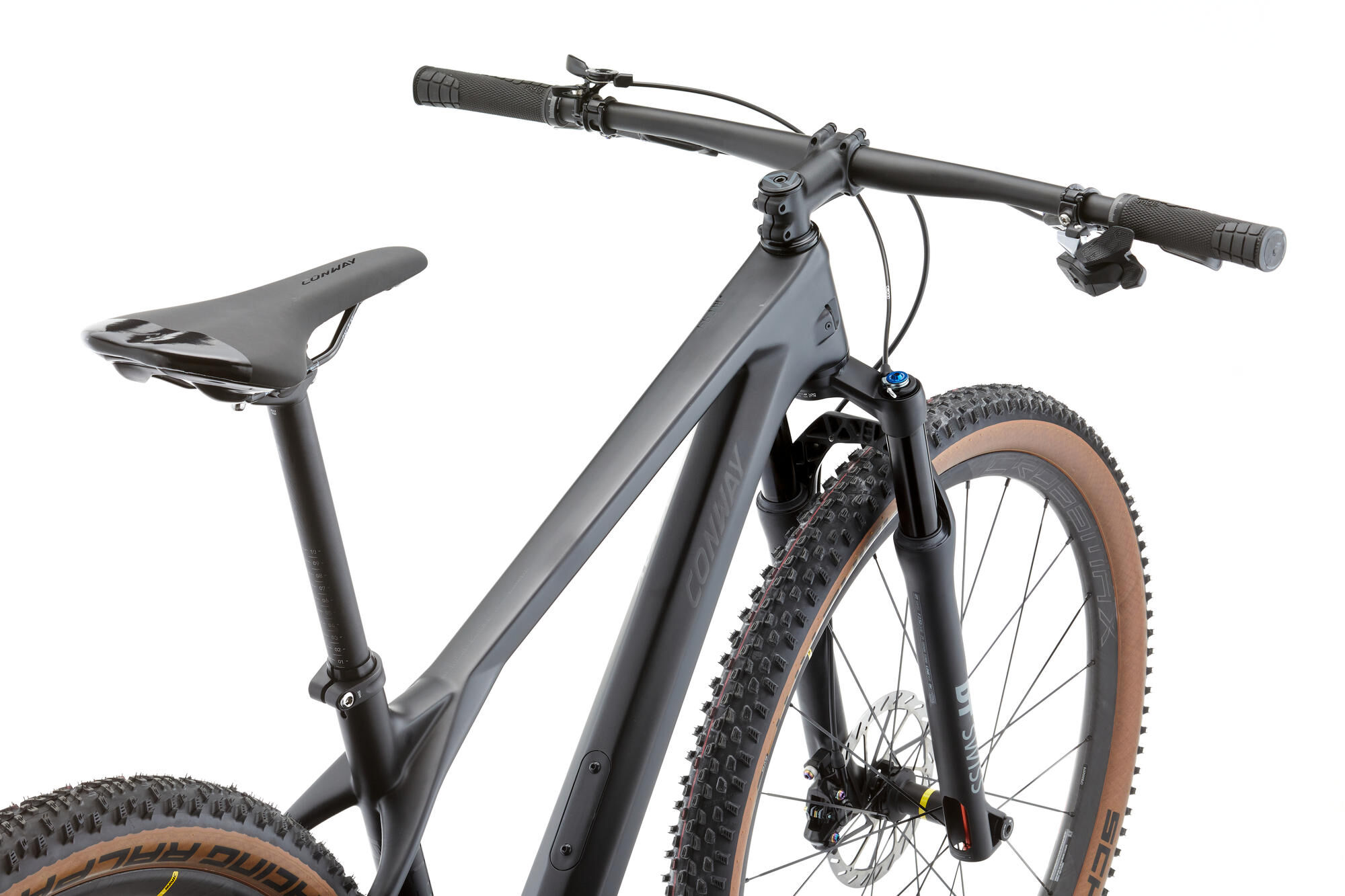

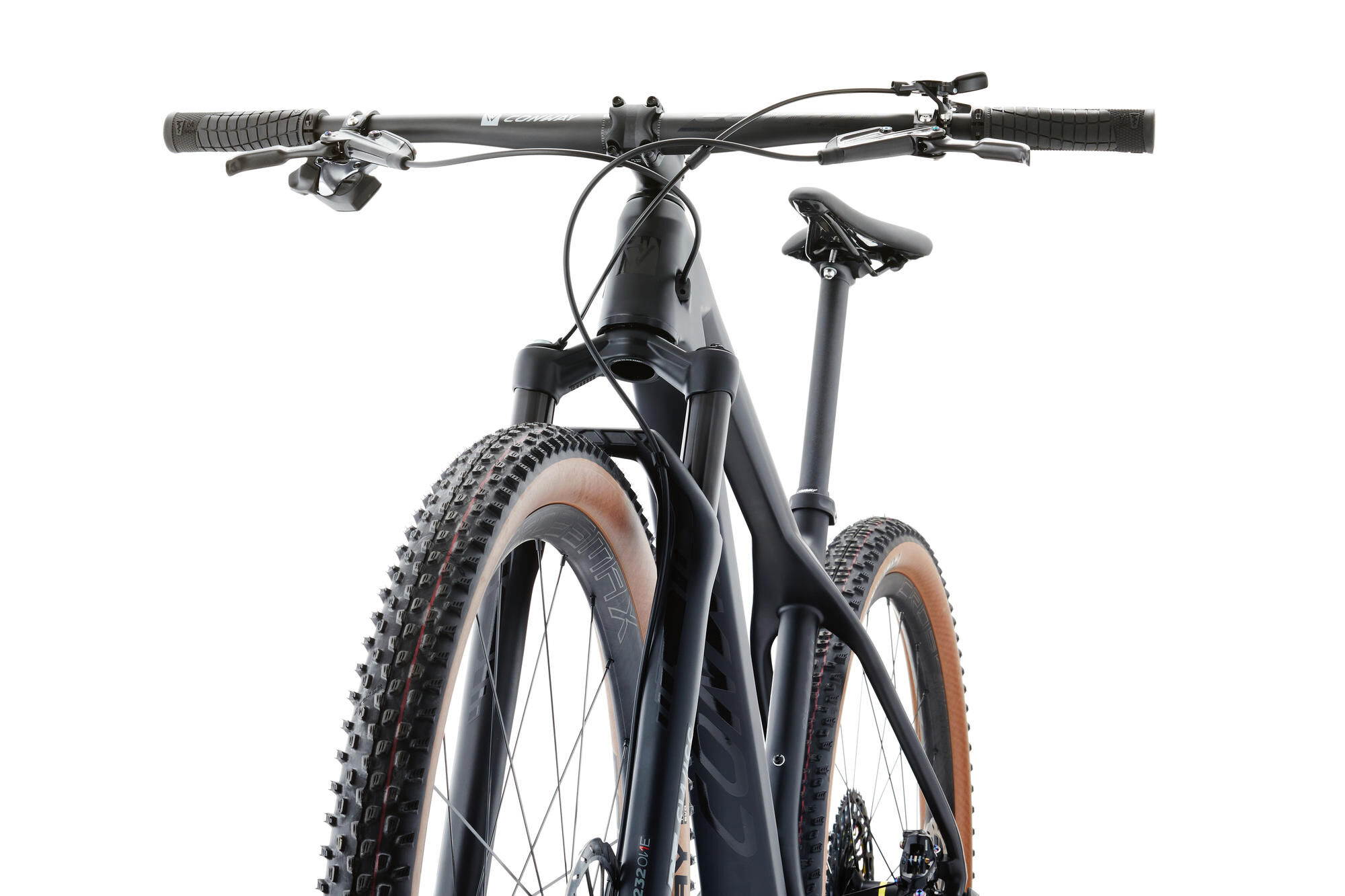

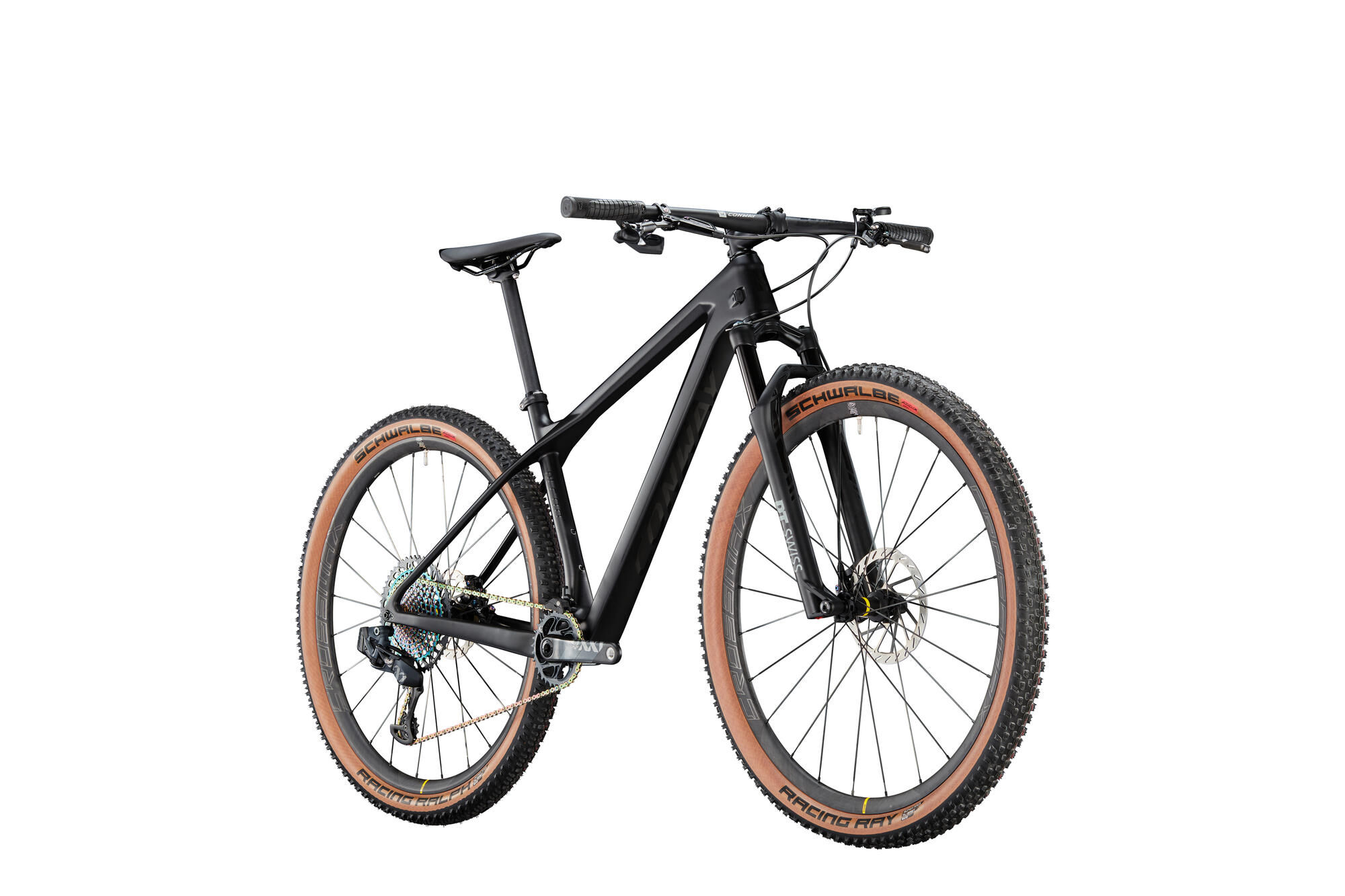

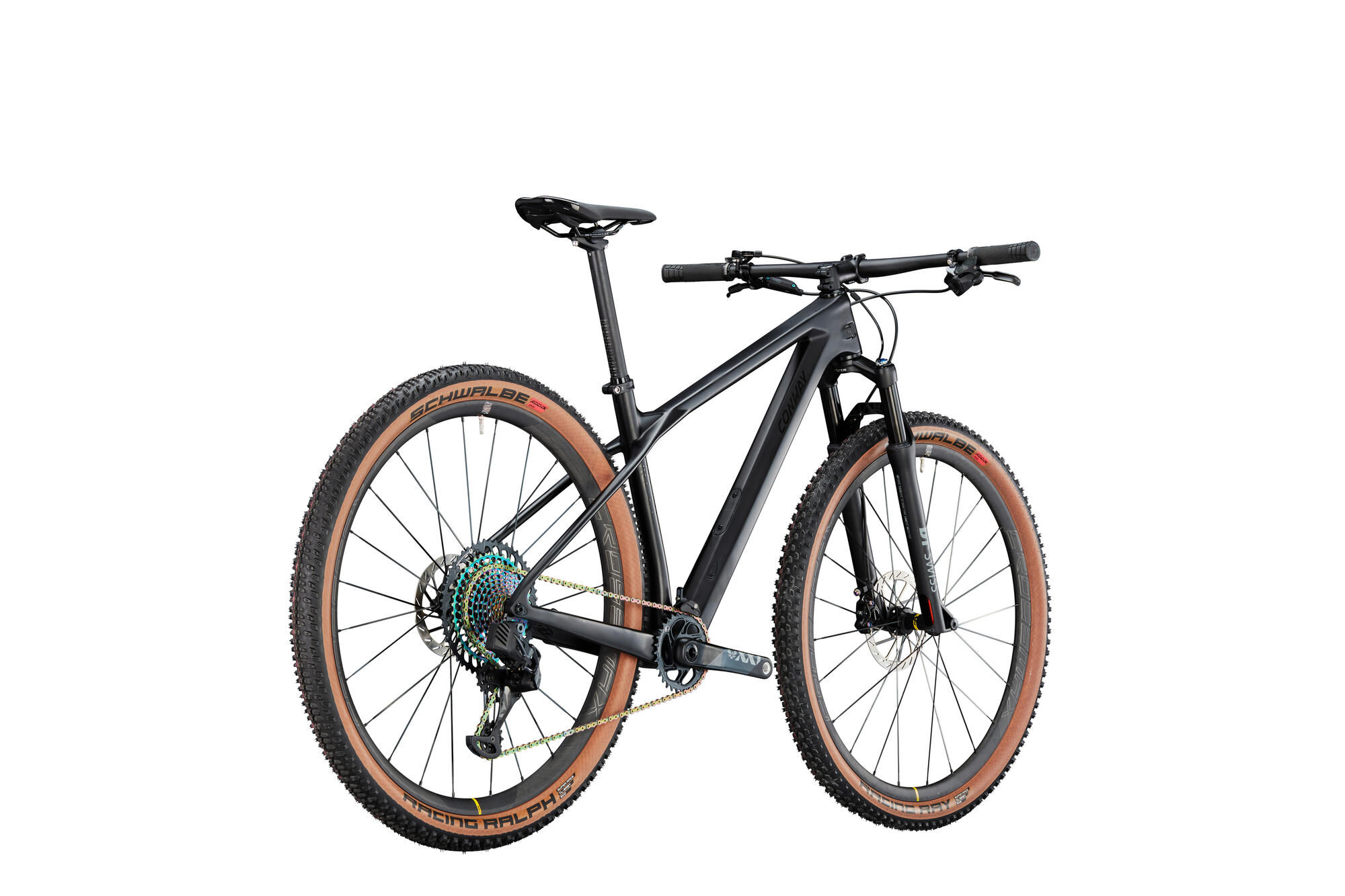

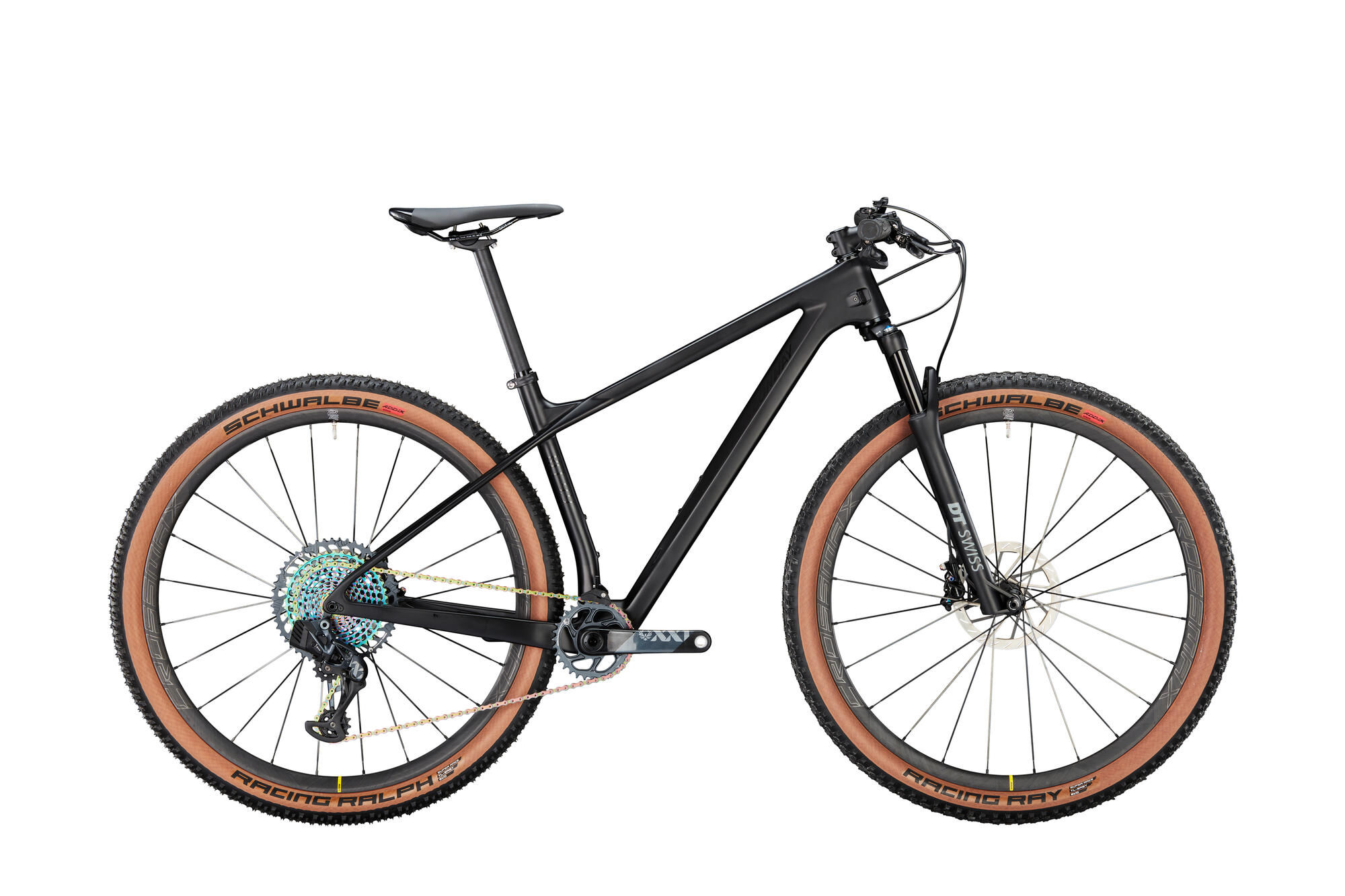

CONWAY MTB hardtail "RLC 9.9" Mod. 23
hardtail, 29", carbon raw matt / black metallic, 12-speed SRAM "XX1 AXS", 54 cm / XL
Read more Read less - Article number: 02822492
- Original number: BK23HA0200
Das MTB Hardtail ist mit einem Rahmen aus Carbon ausgestattet und hat eine Federgabel mit einem Gabelfederweg von 100 mm. Die 29"-Laufräder sind für eine bessere Traktion und Stabilität konzipiert. Der Antrieb erfolgt über eine Kette. Die Gangwahl wird über eine 12-Gang SRAM "XX1 AXS" Kettenschaltung ermöglicht. Das Bremssystem besteht aus hydraulischen Scheibenbremsen, die an Vorder- und Hinterrad montiert sind. Das zulässige Systemgewicht beträgt 130 kg.
Product information
- Brake system hydraulic disc brake
- Chainstay 424 mm
- Colour designation carbon raw matt / black metallic
- Drive chain drive
- E-bike no
- Features suspension fork
- Frame height 54 cm
- Frame shape hardtail
- Frame size XL
- Gears 12-speed
- Gender gents
- Main colour black
- Material 1 carbon
- Permissible system weight 130 kg
- Reach 451 mm
- Seat angle 73.5 °
- Seat tube 540 mm
- Secondary colour black
- Shifting name 12-Gang SRAM "XX1 AXS"
- Shifting type derailleur shifting
- Stack 637 mm
- Steering tube 125 mm
- Steering tube angle 69.5 °
- Stem length 100.0 mm
- Toptube 640 mm
- Transmission 1x 12-speed
- Travel 100 mm
- Type hardtail
- Wheel distance 1141 mm
- Wheel size 29 "
- Bottom bracket: SRAM "DUB", Pressfit BB89/92, 89 mm / 92 mm housing width
- Crankset: SRAM "XX1 Eagle", 175 mm, 32 teeth
- Derailleur hanger: CONWAY for RLC, from mod. 2019
- Fork: DT SWISS "F 232 ONE", 100 mm travel, LINEAIR, INCONTROL, Thru Axle
- Frame: Carbon, diamond, 54 cm
- Front hub: MAVIC „Crossmax Carbon SL R″, 15 x 110 mm
- Front rotor: SRAM "HS2", Ø 180 mm, 6-hole, 2.00 mm thickness
- Front tire: SCHWALBE "Racing Ray" Tires, 60-622
- Grips: SQlab "70X"
- Handlebar: LEVELNINE "Pro Team Carbon Flat Bar", 760 mm, Ø 31.8 mm, Backsweep 8°, Rise 0 mm
- Headset: GLORY WHEEL IS42 / 28.6 / ZS56/40, Blocklock

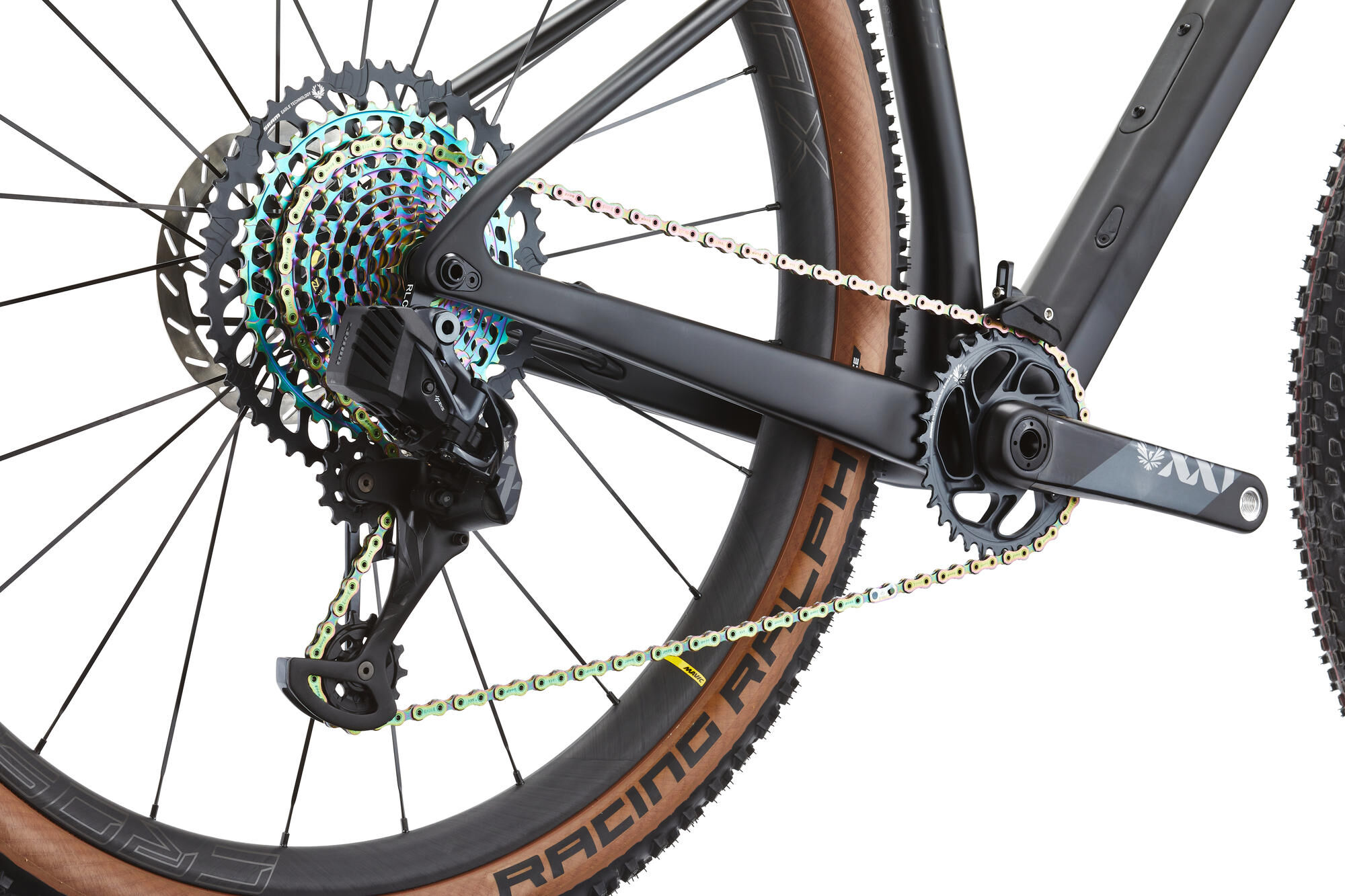

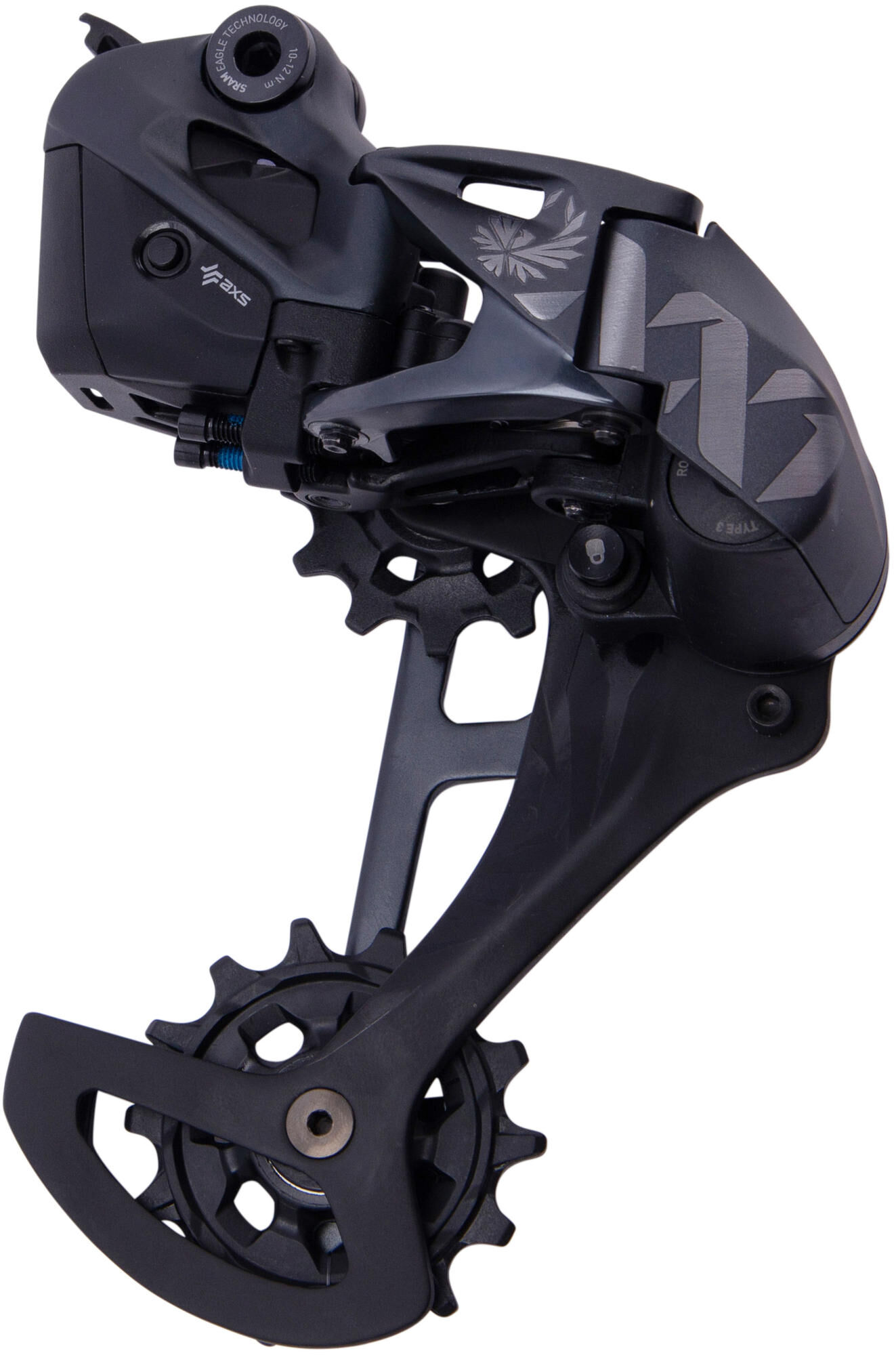

- Rear derailleur: SRAM "XX1 Eagle AXS"
- Rear hub: MAVIC „Crossmax Carbon SL R″, 12 x 148 mm
- Rear rotor: SRAM "HS2", Ø 160 mm, 6-hole, 2.00 mm thickness
- Rear tire: SCHWALBE "Racing Ralph", 60-622
- Rims: MAVIC
- Saddle: CONWAY "1489 super light"
- Seatpost: CONWAY, Ø 27.2 mm, 350 mm long
- Spokes: MAVIC
- Stem: LEVELNINE "Race A-Head", 1 1/8", 31,8mm handlebar clamp, 100mm long, angle 6°, black
- Supplier Article Number: BK23HA0200
- EAN: 4251971103139
- MSRP: €5,999.95
- Bidex-Code: 101010
- DST-Code: 1E00
- SB-Article: No
- Fedas-Code: 154010
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight: 9.7 kg
| Article | Price | |
|---|---|---|
 | ||
 black, suitable for RLC from mod.19 Read more Read less
| ||
 | ||
 black, suitable for RLC mod.19 Read more Read less
| ||
 6-hole, Ø 180mm, with steel mounting screws Read more Read less
| ||
 suitable for WME (Z7), 180 mm / M12 x P1, 75 x 20 mm Read more Read less
| ||
 rear, 2000mm line, with rainbow colours screws Read more Read less
| ||
 | ||
 | ||
 black, suitable for RLC mod.19 Read more Read less
| ||
 | ||
 front, 950mm line, with rainbow colours screws Read more Read less
| ||
 | ||
 | ||
 12 x 148mm, 180mm long, 1,75mm thread pitch, Boost Read more Read less
| ||
 suitable for RLC, 174 mm / M12 x P1, 75 x 20 mm Read more Read less
| ||
 | ||
 aluminium, silver, suitable for RLC from mod.19 Read more Read less
| ||
 for threadless MTB bottom bracket housing Pressfit BB89/92, 89 / 92mm housing width Read more Read less
| ||
 | ||

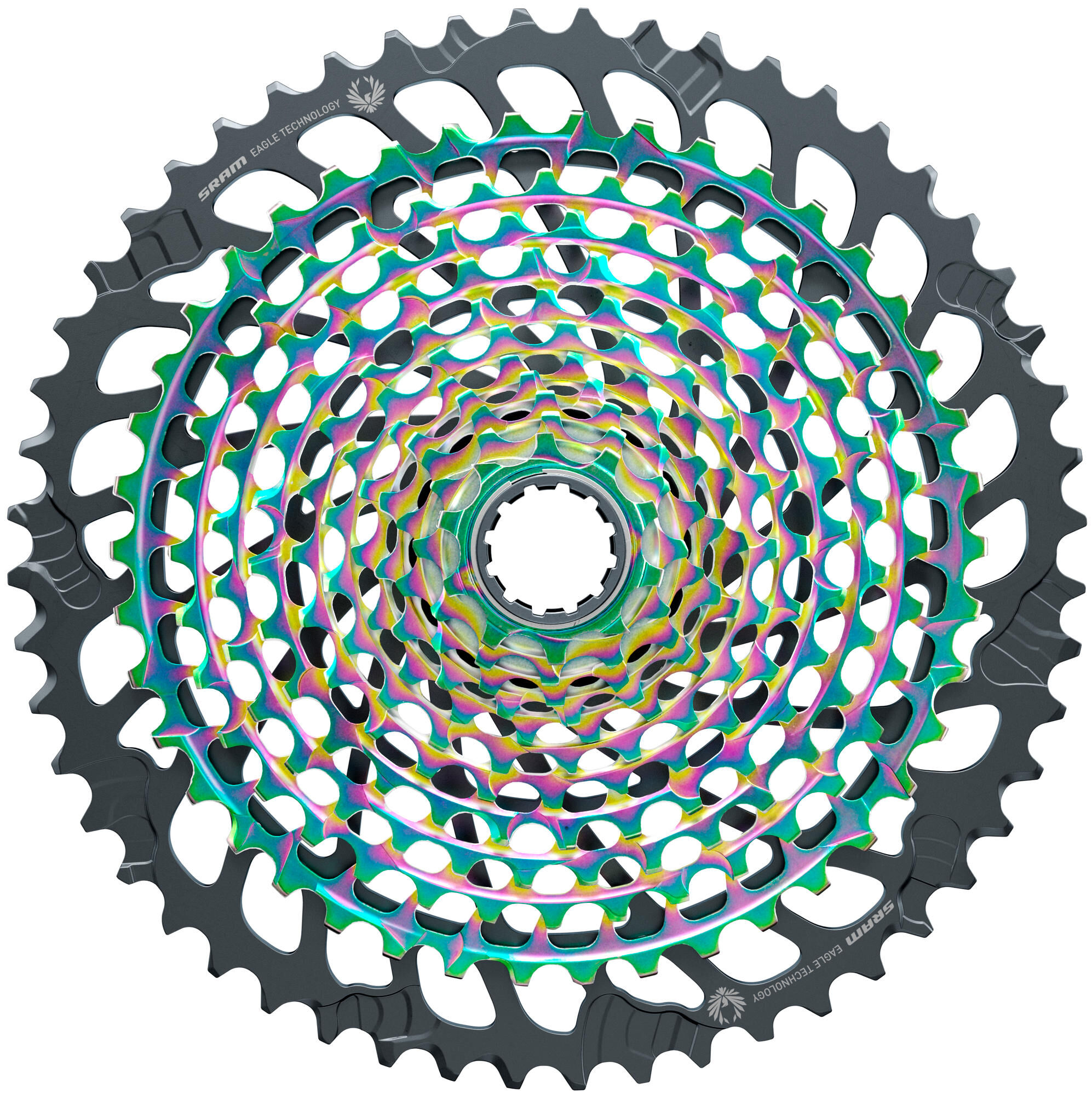

 10-12-14-16-18-21-24-28-32-36-42-52 teeth, rainbow colours Read more Read less
| ||
 3mm offset, 32 teeth, black Read more Read less
| ||
 3mm offset, 32 teeth, black Read more Read less
| ||
 | ||
 6-hole, Ø 160mm, with steel mounting screws Read more Read less
|

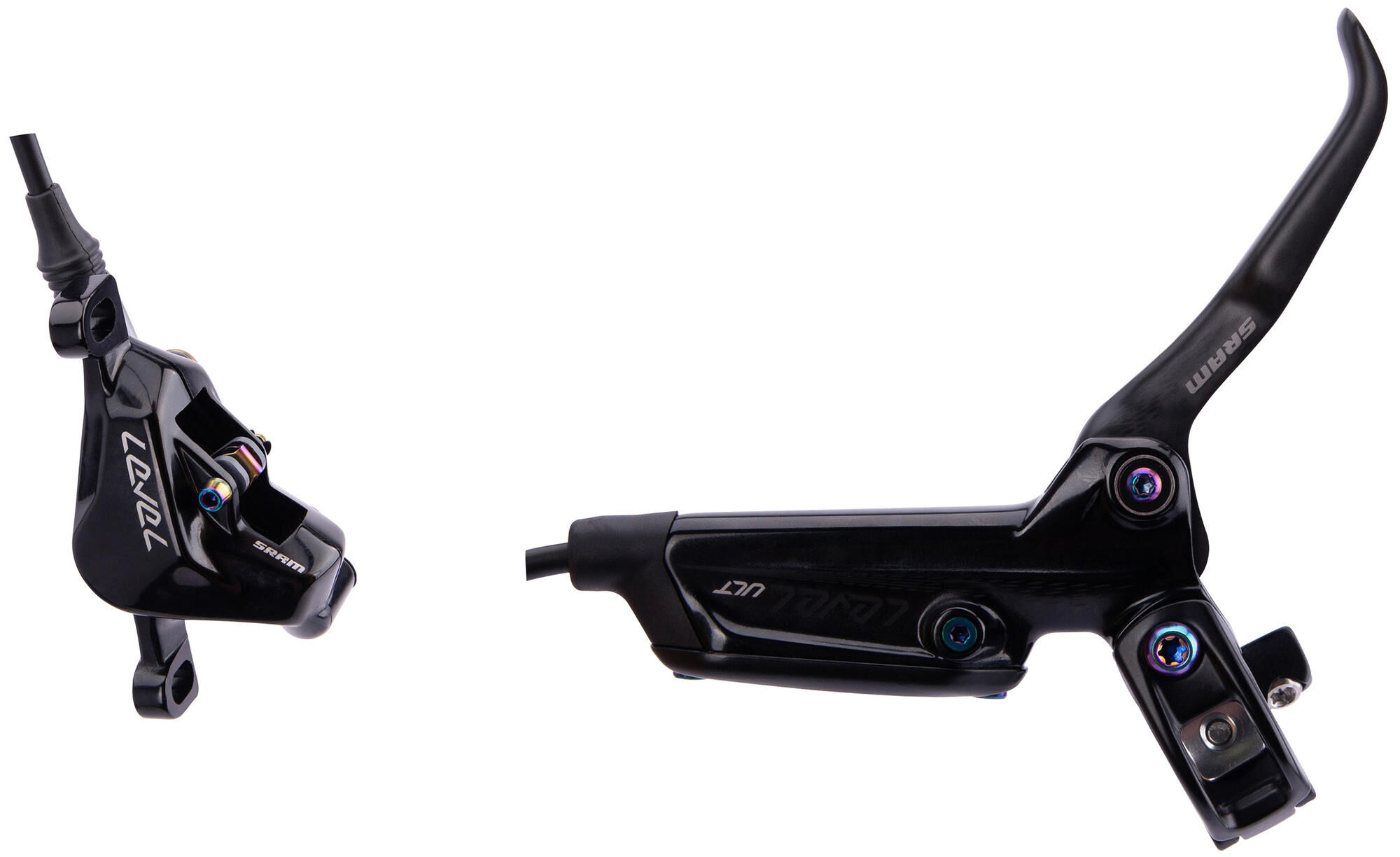

Want an exclusive high-end racer? The "RLC 9.9" is the top model of the "RLC" series! Many small details entwine around the high quality and feather-light carbon frame. Only a little more than 1000g it brings to the scales. New is the electronic "Eagle AXS" circuit from SRAM, which in the "XX1" version installed here with its bandwidth of over 500% exactly meets the requirements of cross-country and marathon routes.Also high-end is the hydraulic "Level Ultimate" disc brake, which is not only convincing on XC race tracks, you can also safely complete light trails with the two-piston variant. The DT SWISS "XRC1501" system wheels provide fast propulsion. Mounted on them are the proven combination of SCHWALBE "Racing Ray" on the front wheel and "Racing Ralph" in 60mm each on the rear wheel. The tires are also manufactured in the high-class Evolution Line with Addix Compound. The high-end racer becomes fully off-road capable with the DT SWISS "F232" 100mm suspension fork.Thinking outside the box are some smart features that the hardtail has to offer. For example, instead of the 27.2mm carbon seatpost, you can retrofit a lowerable variant with a 30.9mm diameter, including internal cable routing. Furthermore, the frame is designed for the internal routing of "Di2" cables. The service flap under the bottle cage helps when routing the cables and is placeholder for the battery of a SHIMANO "Di2" circuit.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 hardtail, 29", carbon raw matt / black metallic, 12-speed SRAM "XX1 AXS", 39 cm / S Read more Read less
| ||
hardtail, 29", carbon raw matt / black metallic, 12-speed SRAM "XX1 AXS", 44 cm / M Read more Read less
| ||
hardtail, 29", carbon raw matt / black metallic, 12-speed SRAM "XX1 AXS", 49 cm / L Read more Read less
| ||
hardtail, 29", carbon raw matt / black metallic, 12-speed SRAM "XX1 AXS", 54 cm / XL Read more Read less
|
