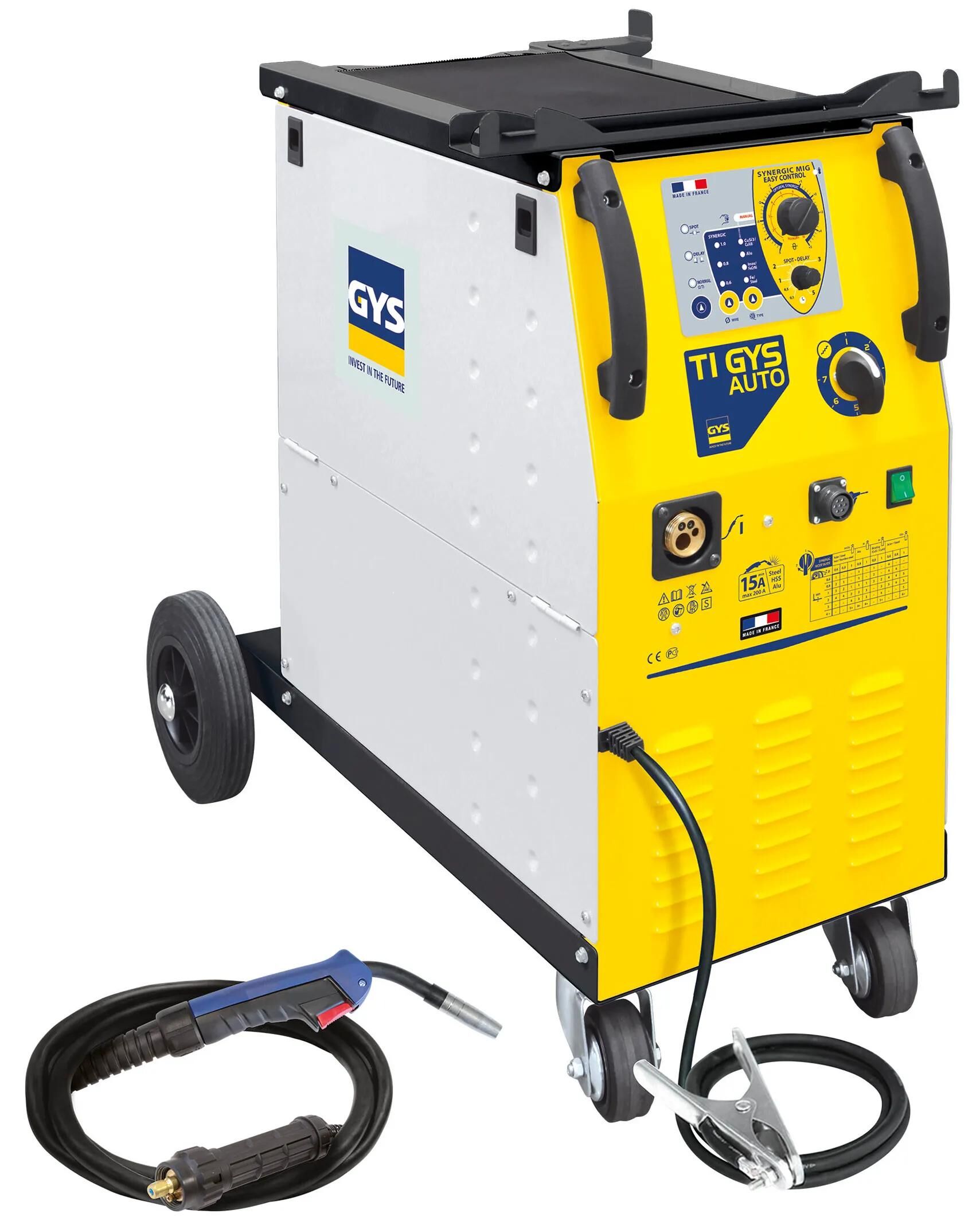

GYS welding device "T1GYS AUTO"

MIG-MAG protection gas welding plants, 3 phase, half-synergic, with Euro burner connection, incl. accessory set

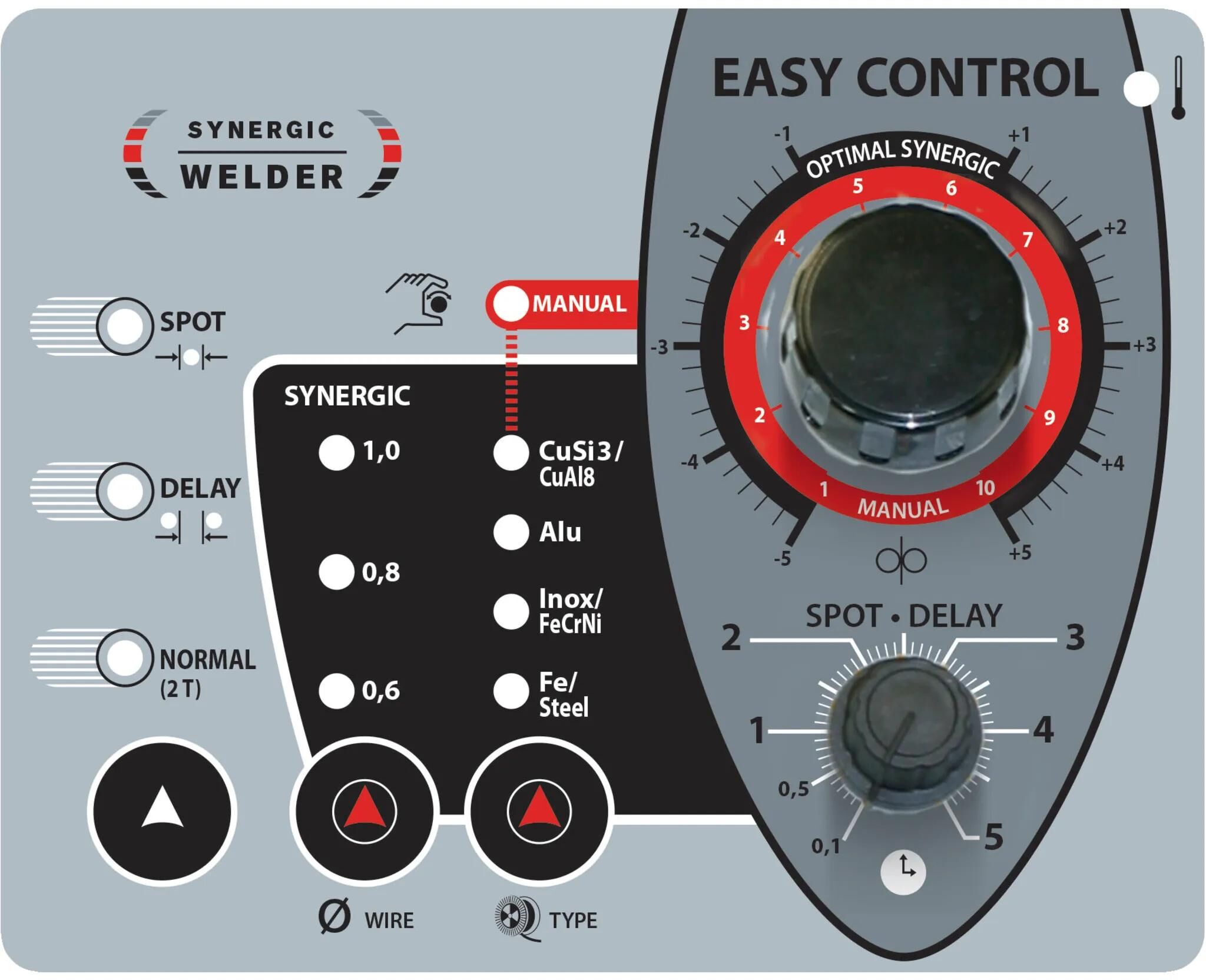

Suitable for welding steel, stainless steel, aluminiun and for MIG brazing of high-tensile strength steels with CuSI3 and CuAl8 wires, ideal for car body repairs. The wire speed is adjusted on the spool gun torch directly, to weld aluminium AISi5 and AISi12. With three modes: standard (2T), spot, plug welding function (spot welding with adjustable spot diameter) und delay, chain stitch function (spot welding with adjustable distance)

Technical data:
braze/welding area: 15 - 200A
welding wire guidance: 4 rollers
welding wire Ø: 0,6 - 1,0mm, suitable for wire roller Ø: 100, 200 or 300mm
duty cycle EN60974-1 (40°C): 25% / 150A
power supply: 400V/ 3 phase
dimensions: 47 x 77 x 79cm

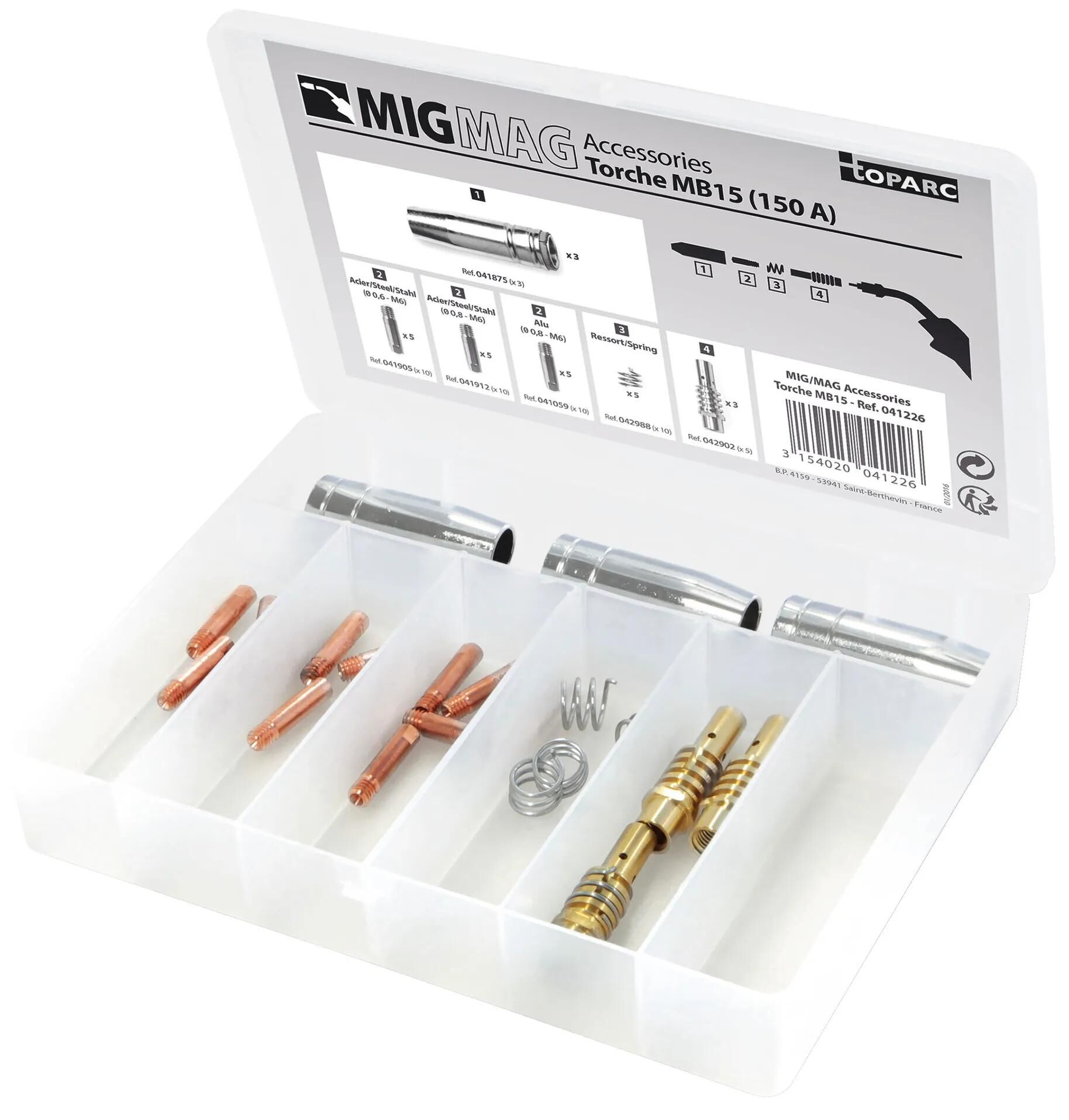

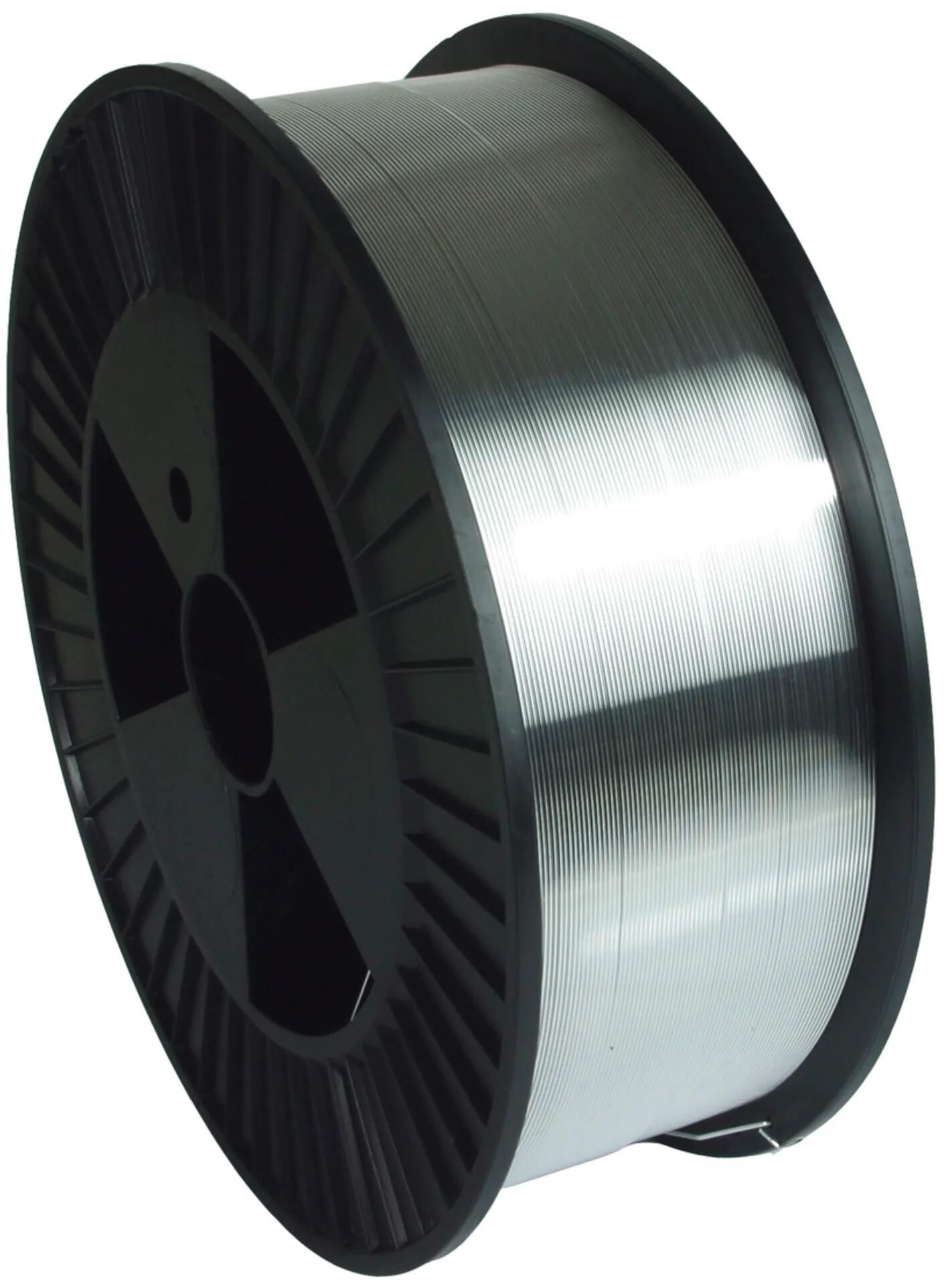

Scope of delivery: 1 T1GYS AUTO, 1 torch, 1 massive coil - steel - SG2 - Ø 200mm - Ø 0,8mm - 5kg, 1 accessory set MB15 - 150A - for MIG torch, 1 pressure reducer - 2 pressure gauges (30 l/min), 1 welding helmet (LCD Fireman 9-13 true color)
