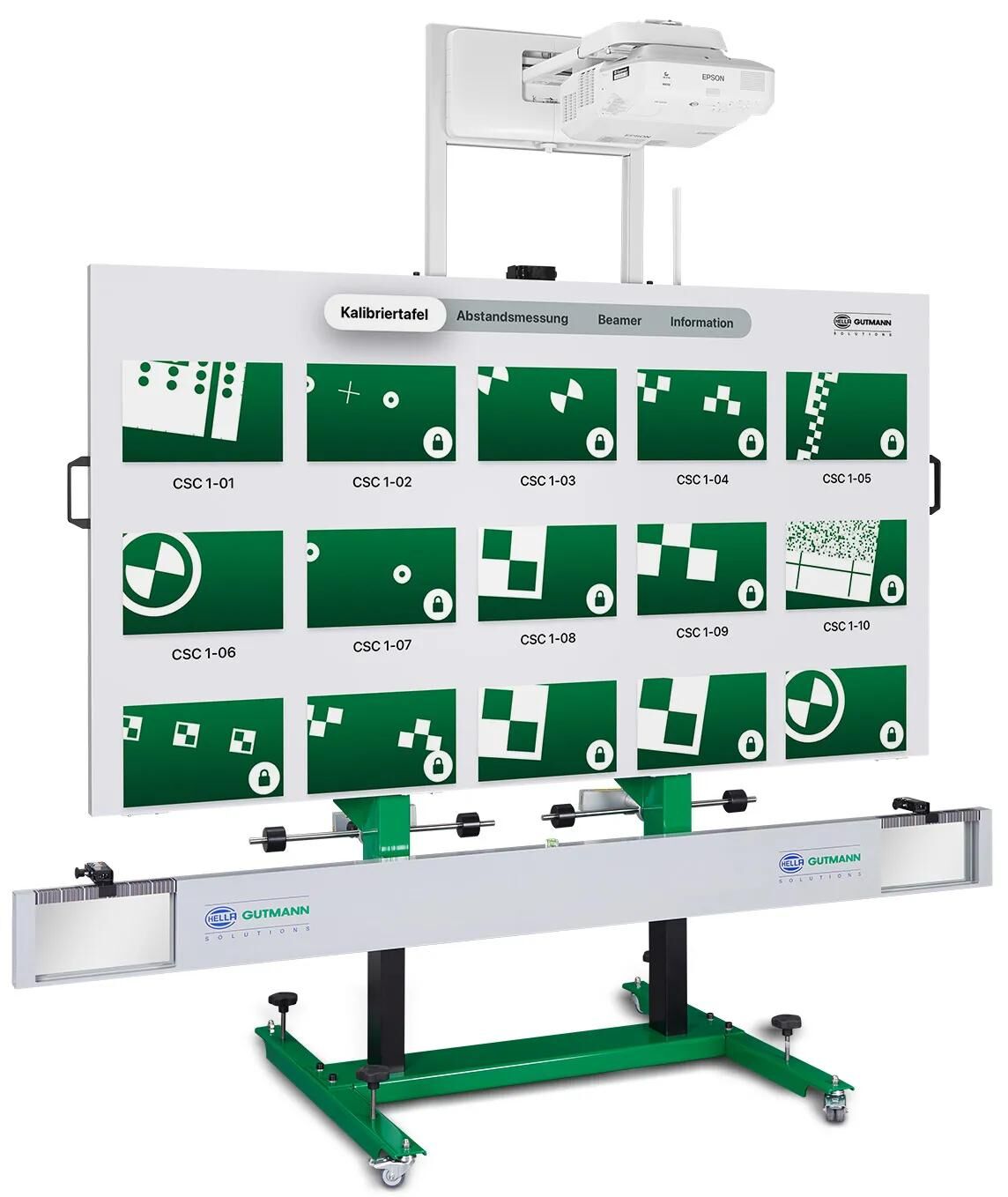

HELLA GUTMANN Calibration system "CSC –Tool Digital"
compatible with common accessory components
- Article number: 89657467
- Original number: 8PD 015 269-501
camera und sensor calibration tool digital
For adjusting and calibrating driver assistance systems. The new CSC-Tool Digital is the space-saving alternative to the CSC-Tool SE. The large-format calibration targets for front cameras are provided digitally and projected onto the screen of the CSC-Tool in the workshop via the associated short-distance beamer. This means that the targets are available more quickly, and new vehicle models can be calibrated earlier. The digital calibration targets are obtained via the CSC-Tool Digital app, which can be conveniently downloaded from the Apple app store. The digital calibration targets are transmitted to the projector via an Apple TV box on the top edge of the screen, which is included in the scope of delivery. The control and selection of the required targets is done via remote control. The calibration targets are purchased via the in-app purchase process. The user can flexibly choose between different purchase variants.
Requirement:
Wheel Sensor SE (front camera calibration) or Wheel Alignment Kit (wheel alignment), and Apple ID.
Basic scope of delivery:
calibration chart VAG group (unlimited use)
1x basic frame incl. 2x lifting cylinders
1x projection surface
2x adjustable foot
1x measuring rod and 1x mirror bar
1x operating element, control unit & cabling
2x distance wheel sensor
1x short distance beamer
1x bracket short distance beamer
1x Apple TV incl. power cable and remote control
1x Apple TV mount
1x HDMI cable
2x laser range finder incl. holder
Product information
- Design calibration system
- Features digital
- Main colour silver
- Range of application car
- Secondary colour green
- Variant Article
- Supplier Article Number: 8PD 015 269-501
- MSRP: €13,792.10
- SB-Article: No
- Brand/Supplier HELLA GUTMANN
- Unit of measure: PIECE
| Article | Price | |
|---|---|---|

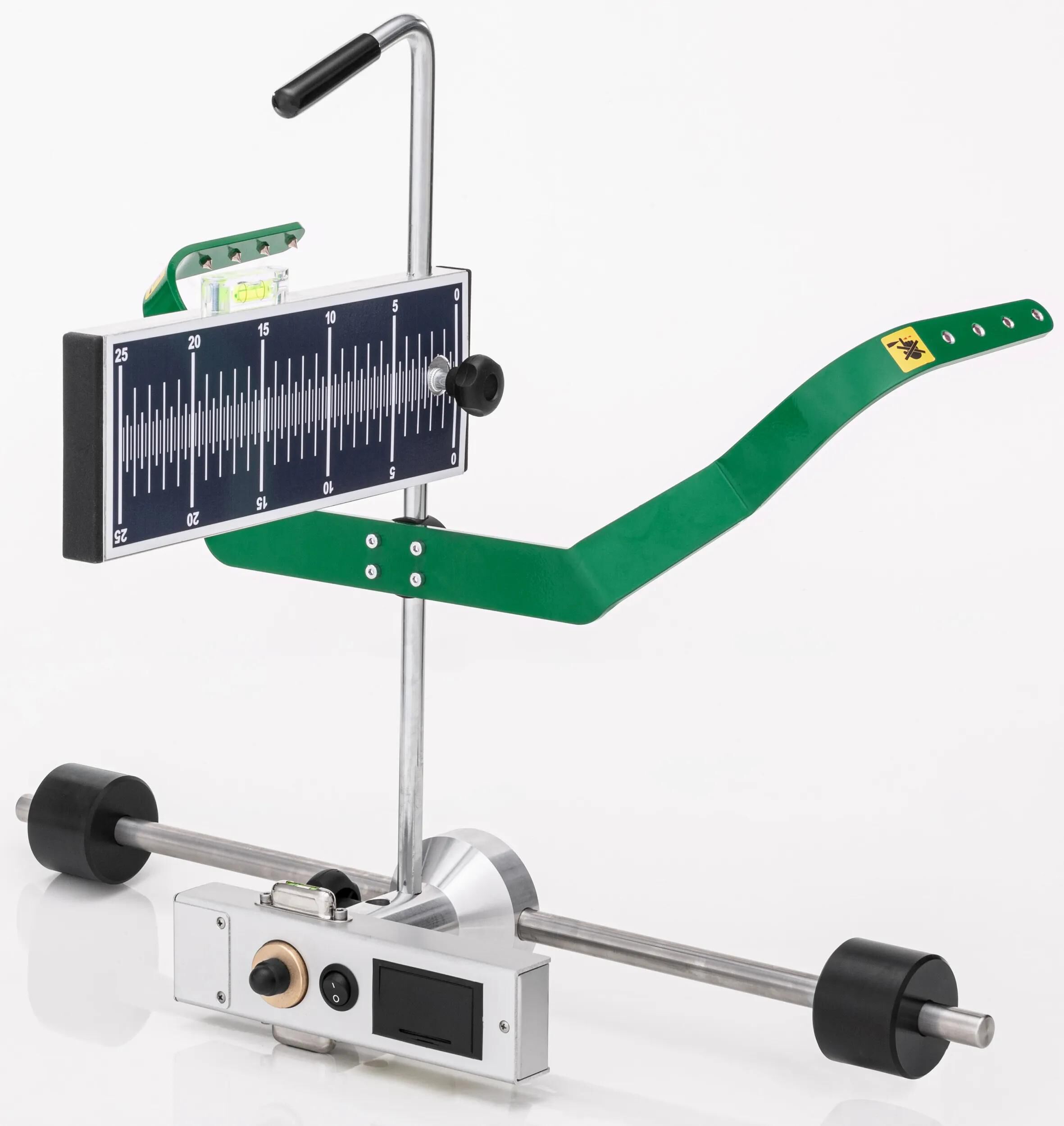

 wheel sensor SE, for exact positioning of the CSC-Tool SE or CSC-Tool Digital directly in front of the vehicle Read more Read less
| PU 1 | |

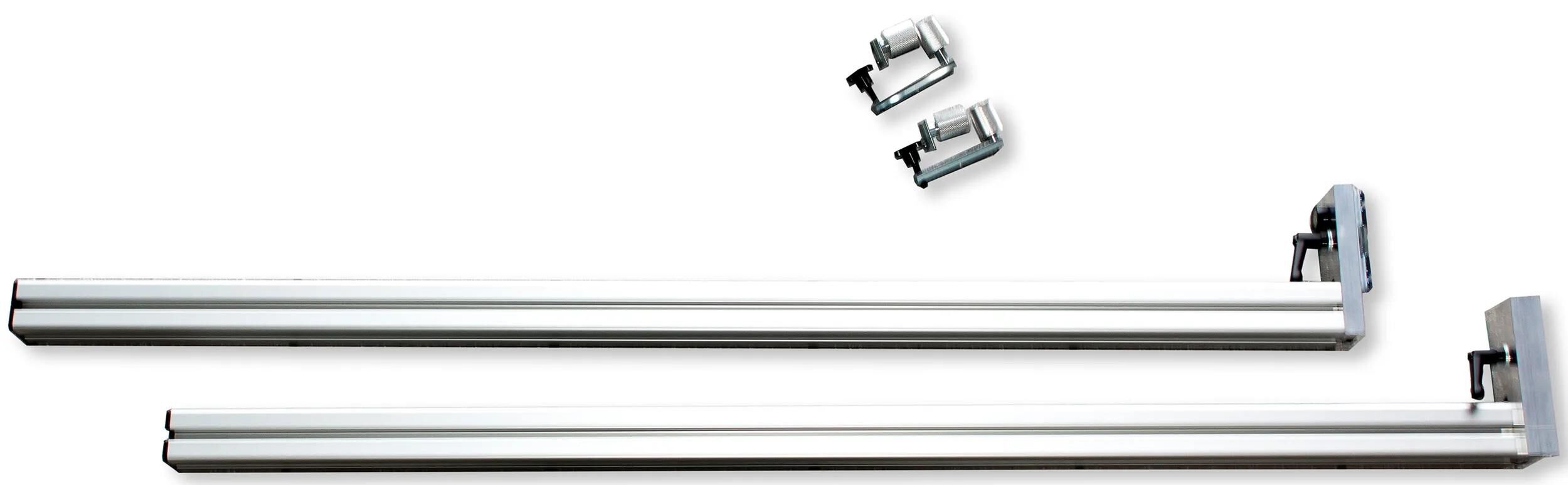

 rear cam kit I addition (additional profile), for calibrating the ambient camera system and the rear view cameraScope of delivery:2x target mounting profile4x Mounting Screw for Target2x VAG target Read more Read less
| PU 1 | |
 rear cam kit I basic (profile), for calibrating the ambient camera system and the rear view cameraScope of delivery:2x base support profile divided (Basic)2x sliding carriage for measuring tapes2x measuring tapes2x Mounting Screw for TargetVAG-Group TargetMercedes-Benz Target Read more Read less
| PU 1 | |

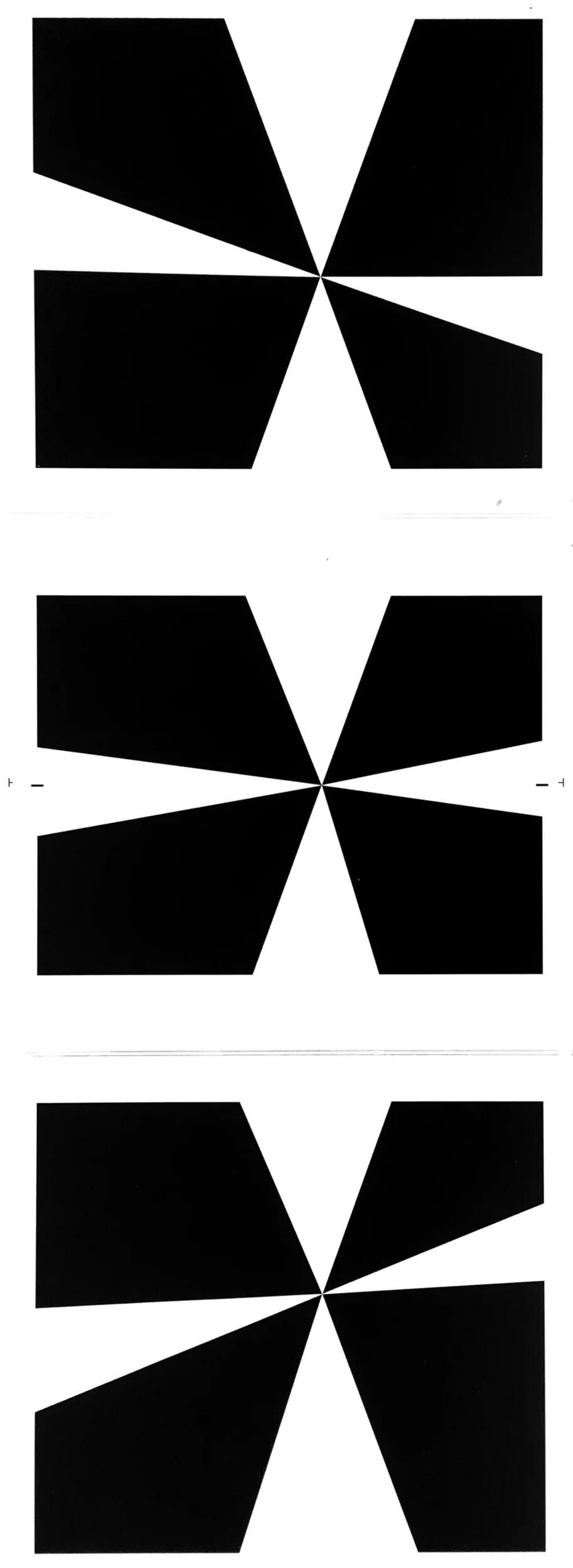

 rear cam kit I addition (calibration chart set), for calibration of the ambient camera system and the rear view camera VAGScope of delivery:2x Target VAG Read more Read less
| PU 1 | |

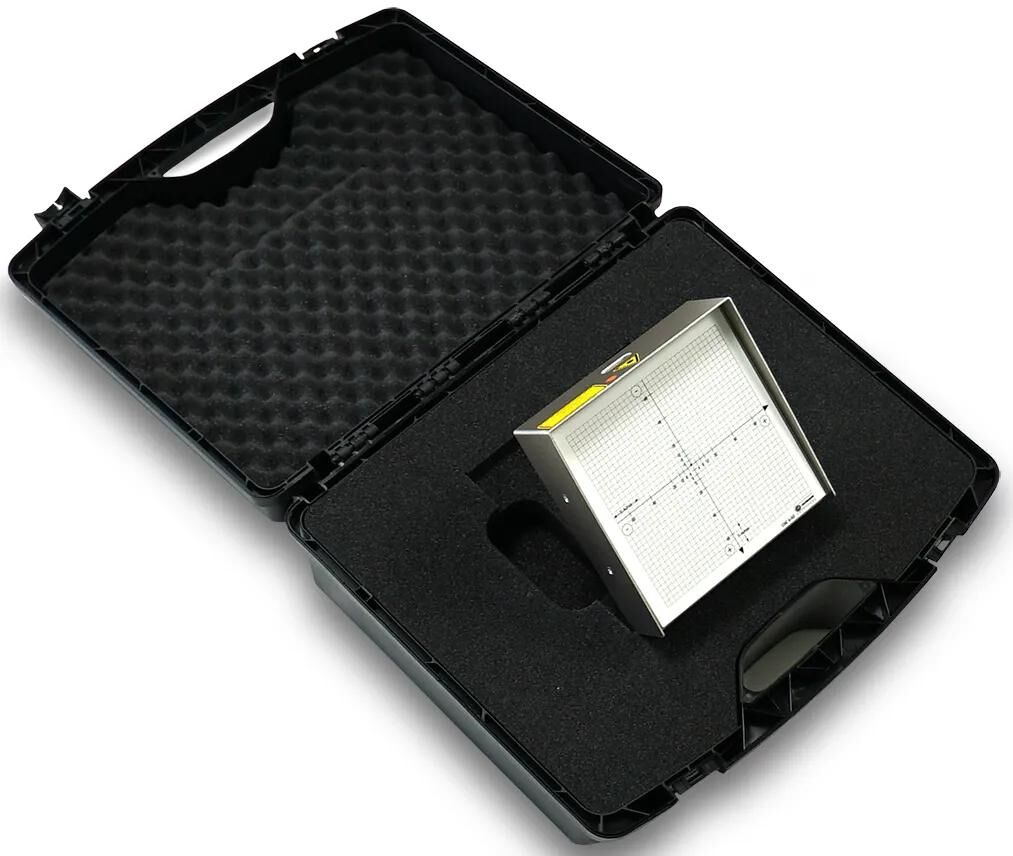

 magnetic laser, for the adjustment of certain radar sensorsScope of delivery:1x magnetic laser1x cases Read more Read less
| PU 1 | |

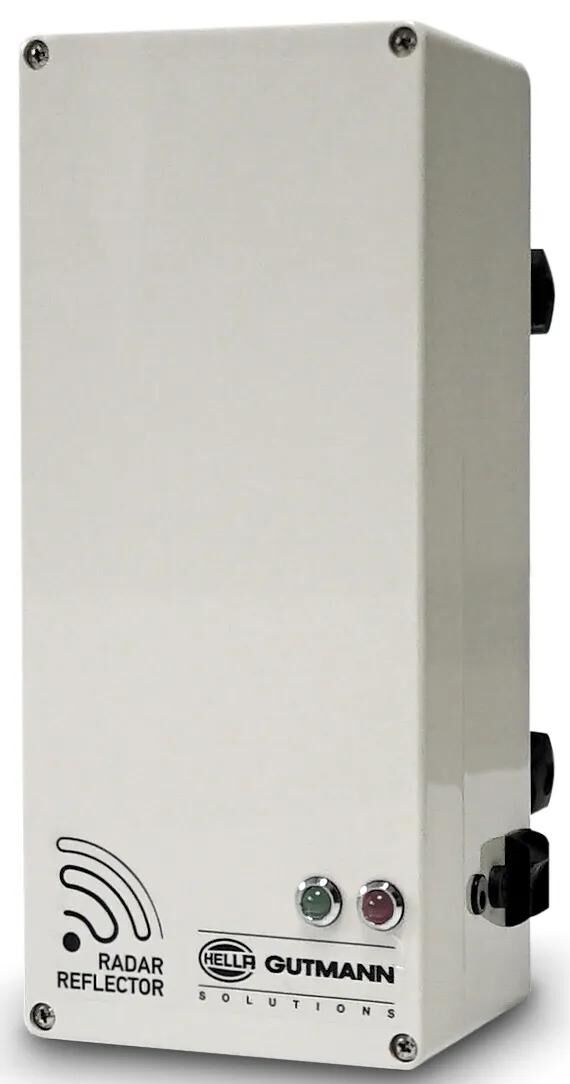

 radarreflector 4-06, for adjustment of radar sensors (lane angle / blind spot assistant) on Audi and MazdaScope of delivery:1x radar reflector CSC 4-061X Power suppliesRequired:Radar kit (#8PZ 015 269-051)Basic Calibration Panel Set VAG / Mercedes (#8PZ 010 611-691)Addition Profile (#8PZ 010 611-611) Read more Read less
| PU 1 | |

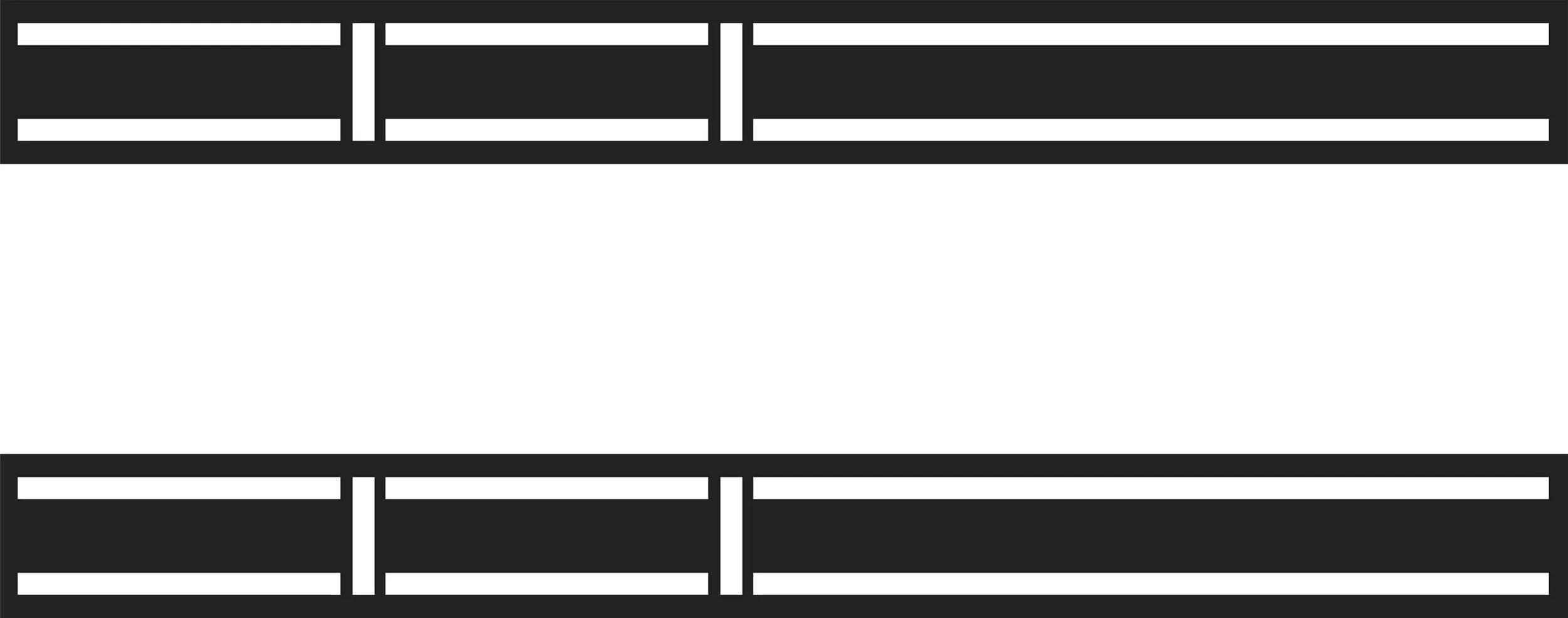

 rear cam kit II side (additional profile and VAG target carpet), for calibrating the ambient camera system and the rear view cameraScope of delivery:2x VAG-Target carpet4x frame profile Read more Read less
| PU 1 | |

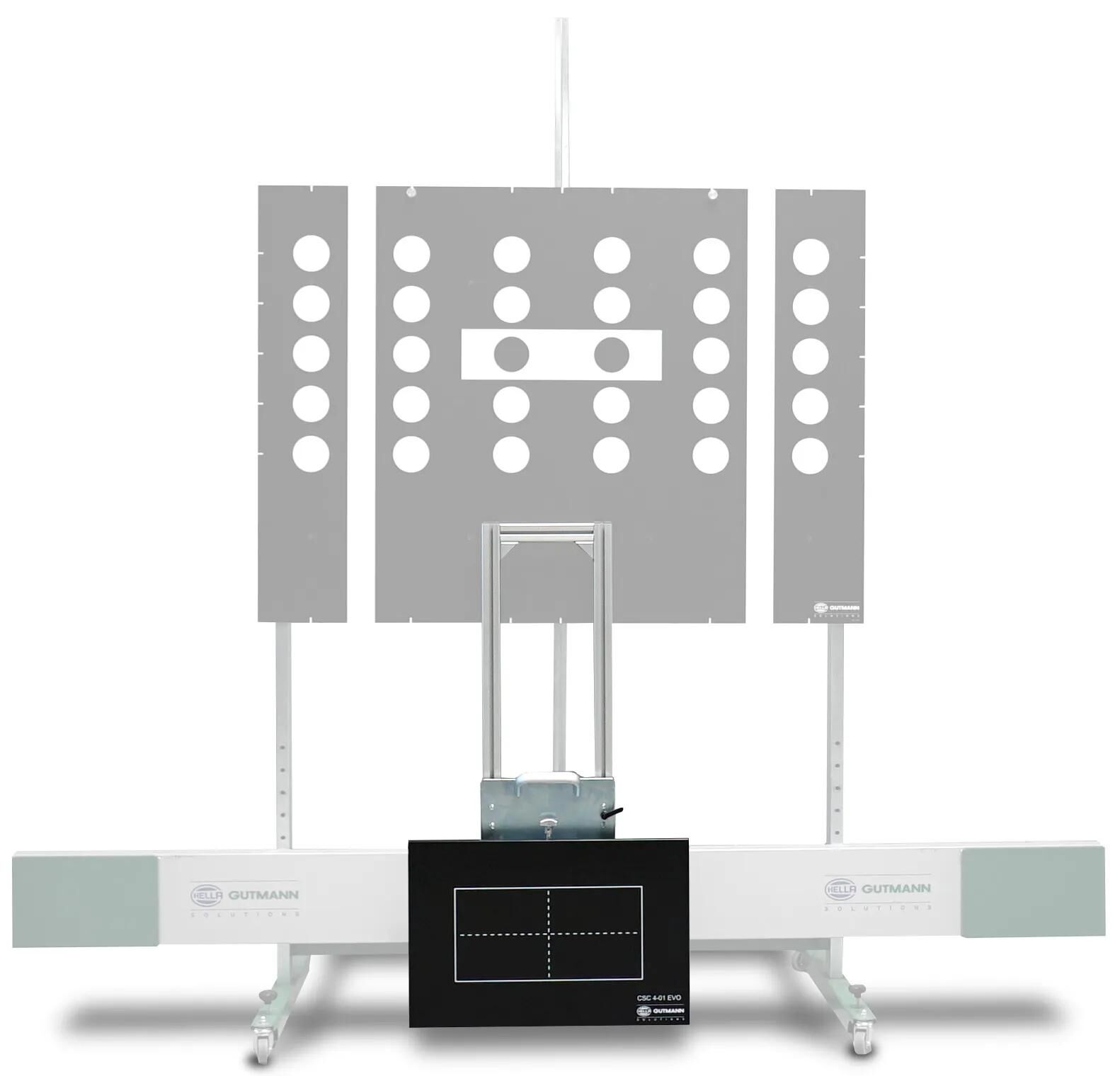

 radar kit I EVO, for calibration of radar sensors at almost any position heightScope of delivery:1x system holder1x angle adjusting plate Read more Read less
| PU 1 | |

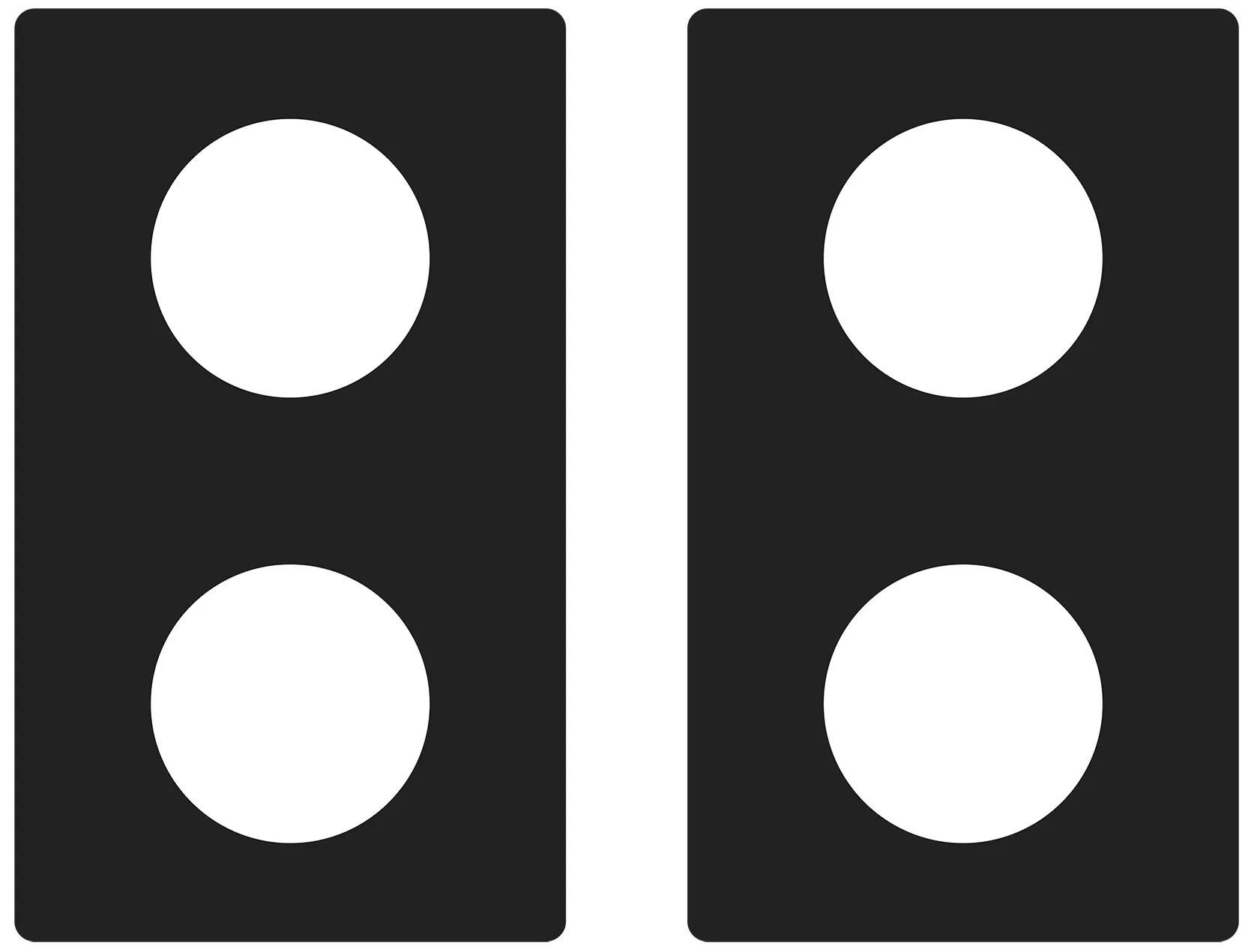

 rear cam kit I basic (calibration chart set), for calibration of the environment camera system and the rear view camera VAG, MercedesScope of delivery:1x Target VAG 2-011x Target Mercedes Benz 2-02 Read more Read less
| PU 1 |
