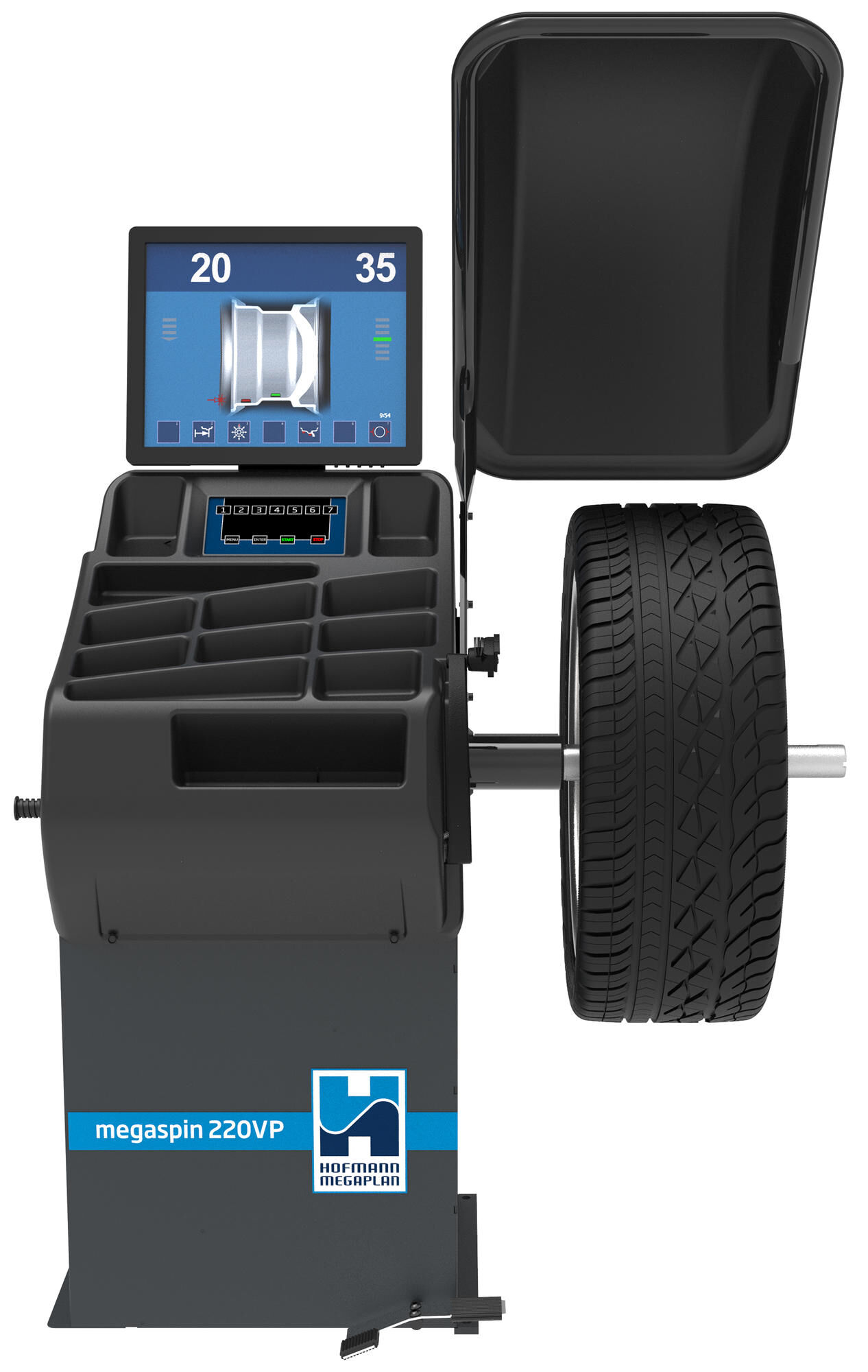

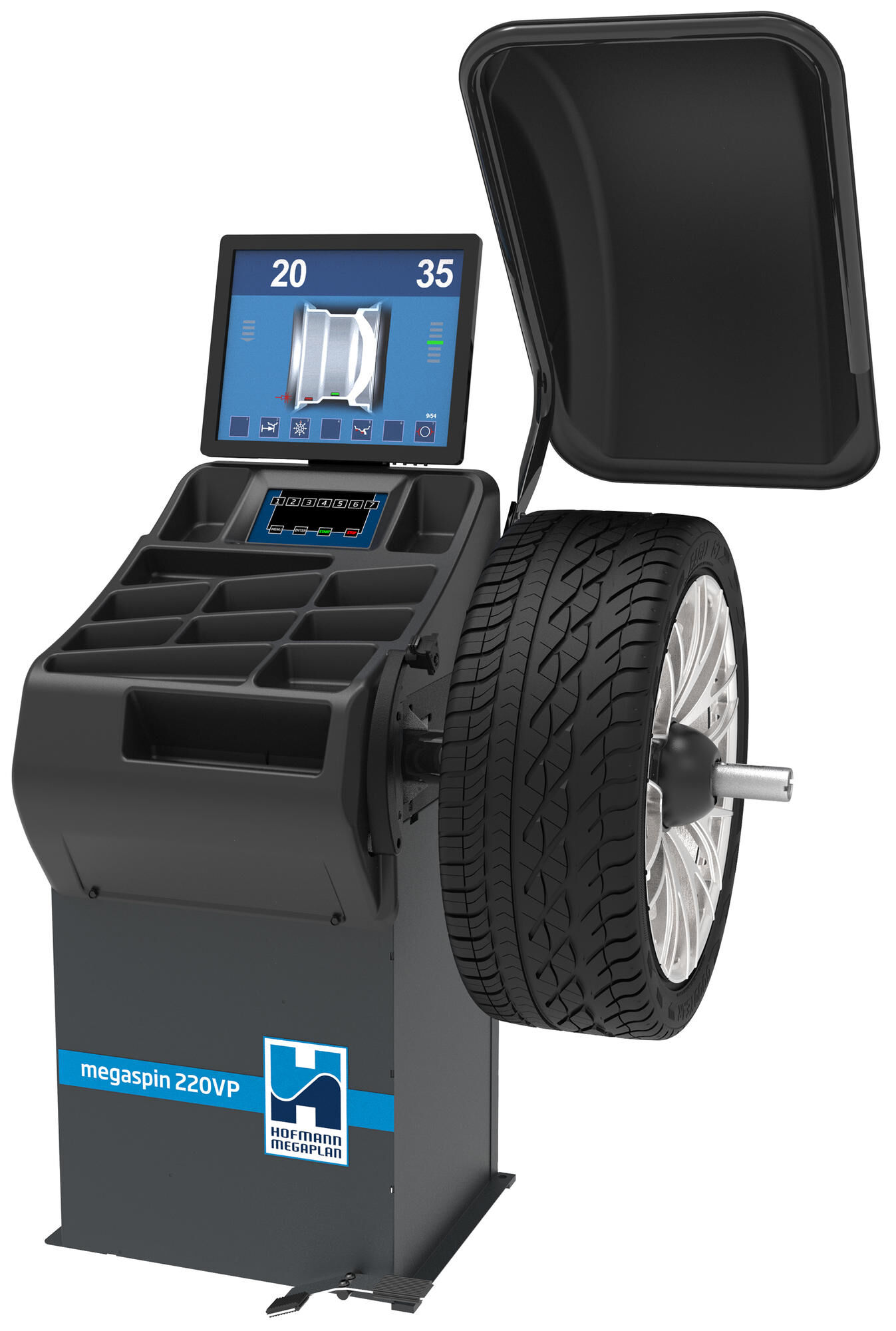

HOFMANN MEGAPLAN wheel balancer "megaspin 220VP"

• Article number: 89668541
• Original number: MEGASPIN 220VP

Passenger car, 3D software (Virtual Sonar), 17" TFT monitor, line laser, pneumatic clamping
The pneumatic clamping ensures optimum wheel centering on the spindle and thus shortens the mounting time. Automatic measuring gauge for measuring distance and diameter. Line laser and electric brakes ensure precise marking and positioning of the rims. Automatic pre-positioning after completion of the measuring run just before the exact placement point of the weight, a hand movement is sufficient for correct positioning of the tire. After balancing the first level, a push of a button automatically positions the wheel on the second balancing level. Virtual Sonar for calculating the rim width for steel rims and to avoid operating errors, panel with touch system (enables intuitive use of all functions), Easy AUTO SELECT (automatically selects the correct program for steel or alloy rims), all programs for the tire specialist (SPLIT, OPT, ALU), 3 centring cones (Ø 45 / 110 mm).

Technical data:
Rim width: 1.5 - 20"
Rim diameter: 10 - 30"
Wheel diameter (max.): 1200 mm (34")
Wheel width (max.): 530 mm
Wheel weight (max.): 75 kg
Measuring time for 15 kg wheel: 4.7 s
Compressed air min / max: 7 / 10 bar
Speed: 100 rpm
Weight: 110 kg
Average noise level: 70 dB(A)
Electrical connection: 115 - 230 V / 50/60 Hz
