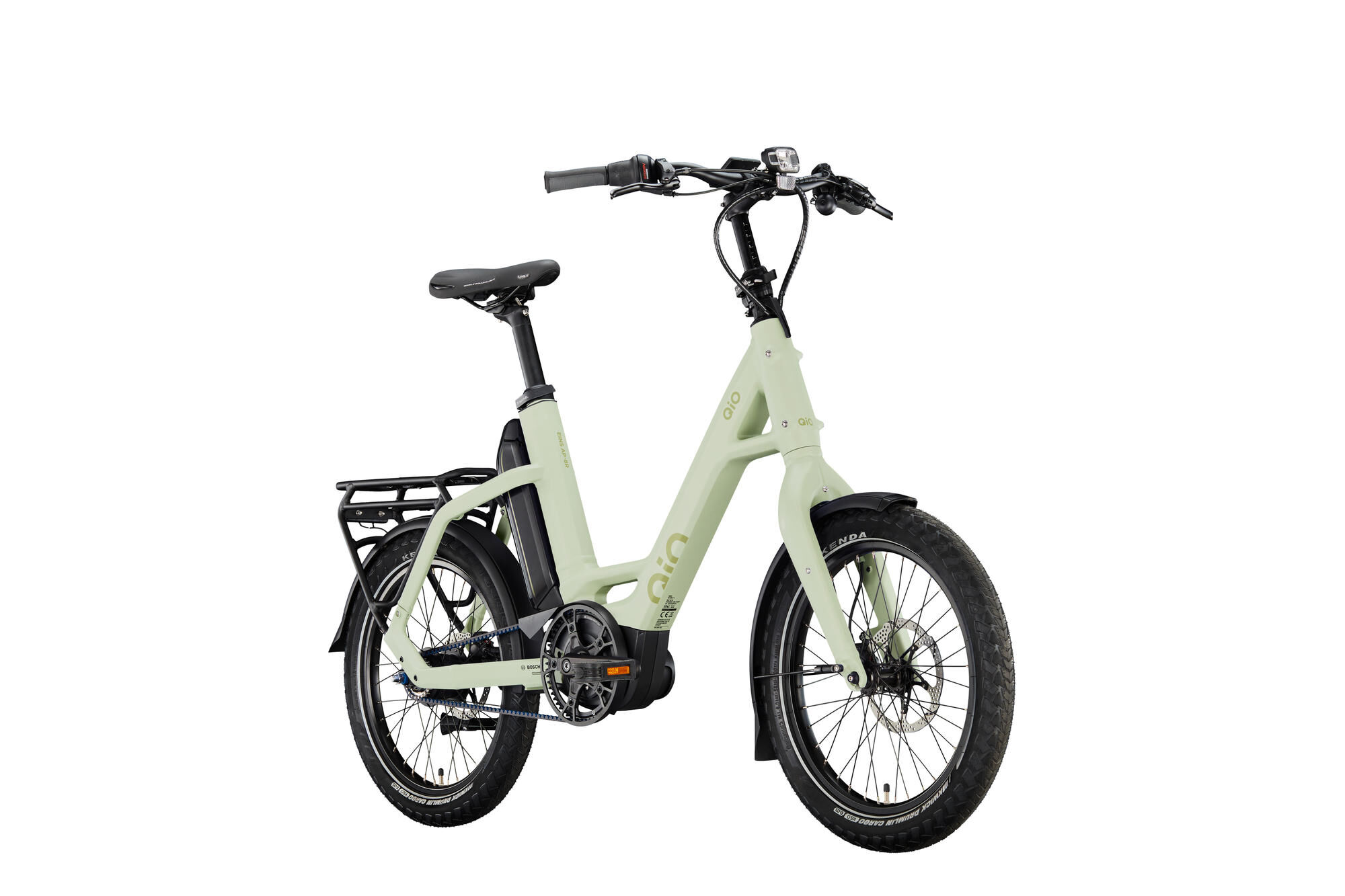

QiO Electric compact bike "EINS AP-8R" Mod. 24

unisex, 20", light olive matt, 8-speed SHIMANO "Nexus" coaster brake, 48 cm

Article number: 02651299
Original number: 01722291

This item is available in 16 variants. All in Accessories All in Alternative articles

The electric compact bike is equipped with a BOSCH Active Line Plus mid-motor, which offers 250 W of power. The integrated battery capacity is 545 Wh. The drives are powered by a belt drive. The bike has a hub gear system for gear selection. The 20" wheels are mounted on an aluminum frame. The model is equipped with an electronic Pushing Help and a system luggage carrier. The permissible system weight is 180 kg. Fenders and a chain guard are also available.

Product information

Battery capacity 545.0 Wh
Bosch Smart System yes
Brake system coaster brake
Colour designation light olive matt
Drive belt
Drive system BOSCH Active Line Plus
Drive version middle motor
E-bike yes
Engine power 250 W
Features fender
Frame height 48 cm
Frame shape unisex
Gears 8-speed
Gender unisex
Main colour green
Material 1 aluminium
Permissible system weight 180 kg
Shifting name 8-Gang SHIMANO "Nexus" Rücktritt
Shifting type internal gear shifting
Support up to 25km/h
Type compact bike
Wheel size 20 "

Battery: BOSCH "PowerPack 545", 545 Wh
Battery Lock: CONTEC "PowerLoc"
Chain guard: CURANA "C+", 55 teeth
Chain ring / pulley: GATES "CDX", 55 teeth, belt line 45.5 mm
Charger: BOSCH 4 A
Crank: Stronglight "Magan 3B", 170 mm
Derailleur hanger: QIO Slider Dropout
Display: BOSCH "Intuvia 100", 4-stages, remote control, push aid
Engine: BOSCH "Active Line Plus", max. 50 Nm
Fender: SKS "A 69 R"
Fork: QIO EINS 20", aluminum, tapered 1 1/4" - 1.5", 313.5 mm shaft, post mount, lead metal glossy
Frame: QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm, light olive matt
Front hub: SHIMANO "Deore HB-M6000", Center Lock, QR
Front light: CONTEC "DLUX 80 E+", 80 lux
Front rotor: TRP "TR-25", Ø 180 mm, Centerlock
Front tire: KENDA "Kwick Drumlin Cargo", 62-406, Reflex
Grips: HERRMANS "Clik Original DD37"
Handlebar: ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
Handlepost: BY.SCHULZ "Twist", Ø 28.6 mm, 1 1/4", T17
Headset: TOKEN "TK255E-HJ01", IS52/40 / IS52/44
Pedals: UNION "SP-153", foldable
Rear carrier: QIO "MIK HD"
Rear hub: SHIMANO "Nexus SG-C6061-8CD", 8-speed, 5-hole
Rear light: CONTEC "TL-335 E-Stop", stop light
Rear rotor: TEKTRO "TR160-47", Ø 160 mm, 5-hole
Rear tire: KENDA "Kwick Drumlin Cargo", 62-406, Reflex
Remote: BOSCH "BRC3600", LED Remote
Rims: SCHÜRMANN "YAK DISC 25", 25-406, 36 holes, disc brake, black
Saddle: Selle Royal "Nuvola 5060", Relaxed
Seatpost: by,schulz "R.3 P-QR", Ø 34.9 mm, 400 mm long, 25 mm offset
Sensor: Pedal pressure measuring im Motor + speed sensor
Spokes: Niro, schwarz
Stands: URSUS "R78 - King Mini"
Stem: BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black

Supplier Article Number: 01722291
EAN: 4251971142114
MSRP: €3,799.00
Fedas-Code: 159021
DST-Code: 1A01
WEEE registration number: DE92509320
SB-Article: No
Bidex-Code: 123040
Brand/Supplier QiO
Unit of measure: PIECE
Weight: 26.2 kg

	Article	Price
Select article	QiO Bottle Cage "Bottle Cage" black Read more Read less Article number: 08199796 Original number: CL-095	Quantity
Select article	QiO Single Bag "Gabriel" black Read more Read less Article number: 07292048 Original number: 18023	Quantity
Select article	BASIL Wire Space Frame black Read more Read less Article number: 07380637 Original number: 74067	Quantity
Select article	QiO Basket Bag "Basket Bag Luis" black Read more Read less Article number: 07292101 Original number: 2321	Quantity
Select article	QiO Folding Lock "Folding Lock" "Folding Lock Duo", black, incl. one short and one long XPlus Lock Cylinder Read more Read less Article number: 03528411 Original number: 64549	Quantity
Select article	QiO Carrier Bag "Noah" black Read more Read less Article number: 07292030 Original number: 18020	Quantity
Select article	QiO Fixture Strap "Maxi Strap" black Read more Read less Article number: 07387046 Original number: 2278	Quantity
Select article	QiO Lock Set "One Key Solution" black, AZ Standard, removable keys, with Battery Lock for PowerPack BES 3 Read more Read less Article number: 03528000 Original number: 8006219	Quantity
Select article	QiO Mud Flap "Mud Flap" black Read more Read less Article number: 03431004 Original number: 2116	Quantity
Select article	QiO Motor Protection black Read more Read less Article number: 03295029 Original number: 2111	Quantity
Select article	QiO Shoulder Bag "Pocket Bag Tom" black Read more Read less Article number: 07292080 Original number: 2276	Quantity
Select article	QiO Bag "Universal Bag Kurt" black Read more Read less Article number: 07292063 Original number: 2274	Quantity
Select article	QiO Carrier Adapter anodized black Read more Read less Article number: 07387070	Quantity
Select article	QiO Reflective Sticker "Reflective Sticker" for ice blue matt frame colour Read more Read less Article number: 08198312 Original number: ICE BLUE MATT	Quantity

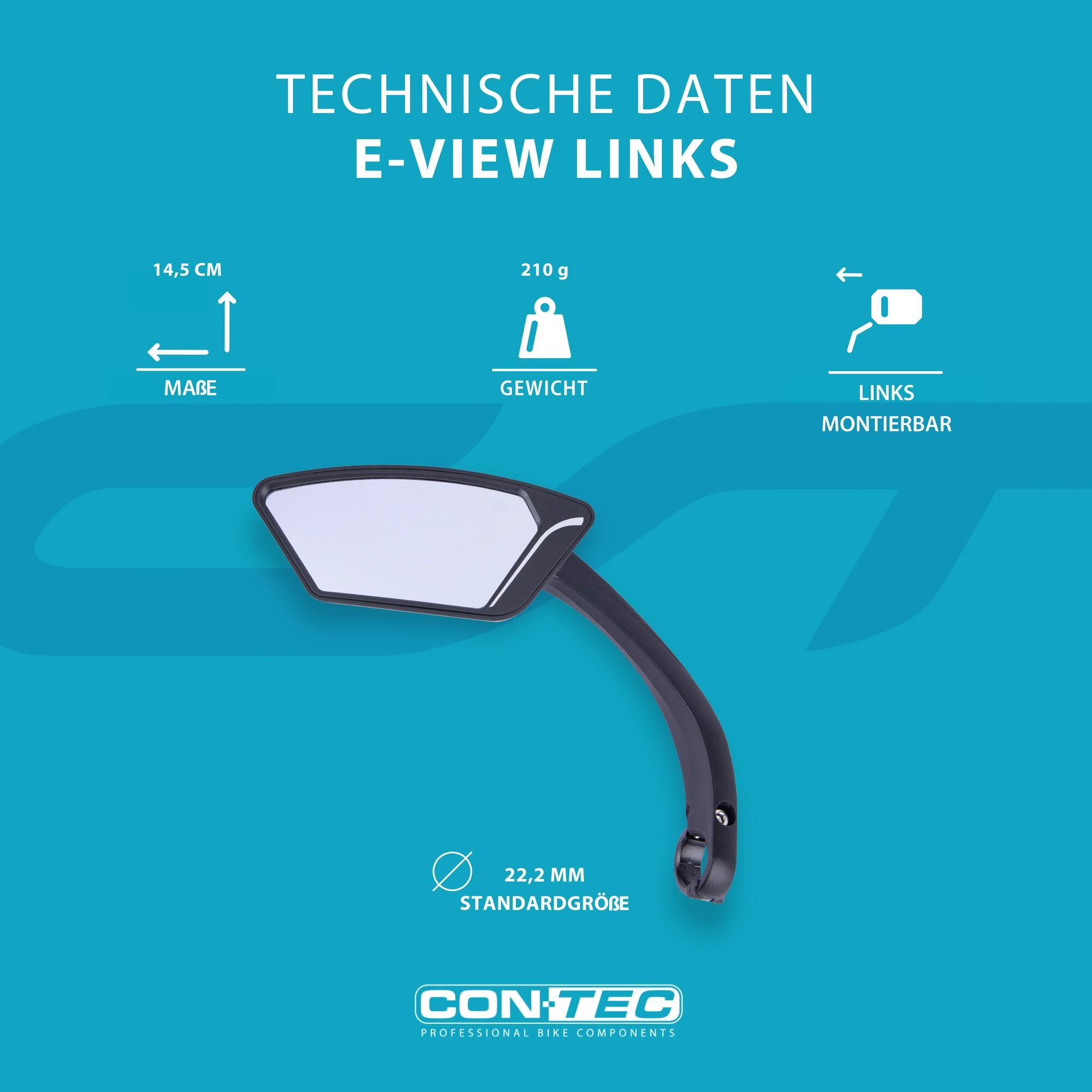

Select article	CONTEC Rearview Mirror "E-View" left Read more Read less Article number: 03229135 Original number: ME002 LEFT	Quantity
Select article	QiO Saddle Bag "Lilly" black Read more Read less Article number: 07292110 Original number: 2415	Quantity
Select article	BASIL Animal Basket "Buddy MIK 2.0" faded denim Read more Read less Article number: 07380641 Original number: 20029	Quantity
Select article	QiO Fixture Strap "Mini Strap" black Read more Read less Article number: 07387080 Original number: 2285	Quantity
Select article	QiO Adapter workshop package with 10 pcs. Read more Read less Article number: 08199788 Original number: ***	Quantity
Select article	QiO Double Leg Kickstand "Finn" 20", 260mm long Read more Read less Article number: 03400000 Original number: 1251-4120-260E-CT	Quantity
Select article	QiO Reflective Sticker "Reflective Sticker" for forest green frame colour Read more Read less Article number: 08198311 Original number: FOREST GREEN	Quantity
Select article	QiO Reflective Sticker "Reflective Sticker" for crystal white frame colour Read more Read less Article number: 08198310 Original number: CRYSTAL WHITE	Quantity
Select article	QiO Backpack "Mika" black Read more Read less Article number: 07292055 Original number: 18024	Quantity
Select article	QiO Reflective Sticker "Reflective Sticker" for night black matt frame colour Read more Read less Article number: 08198316 Original number: NIGHT BLACK MATT	Quantity

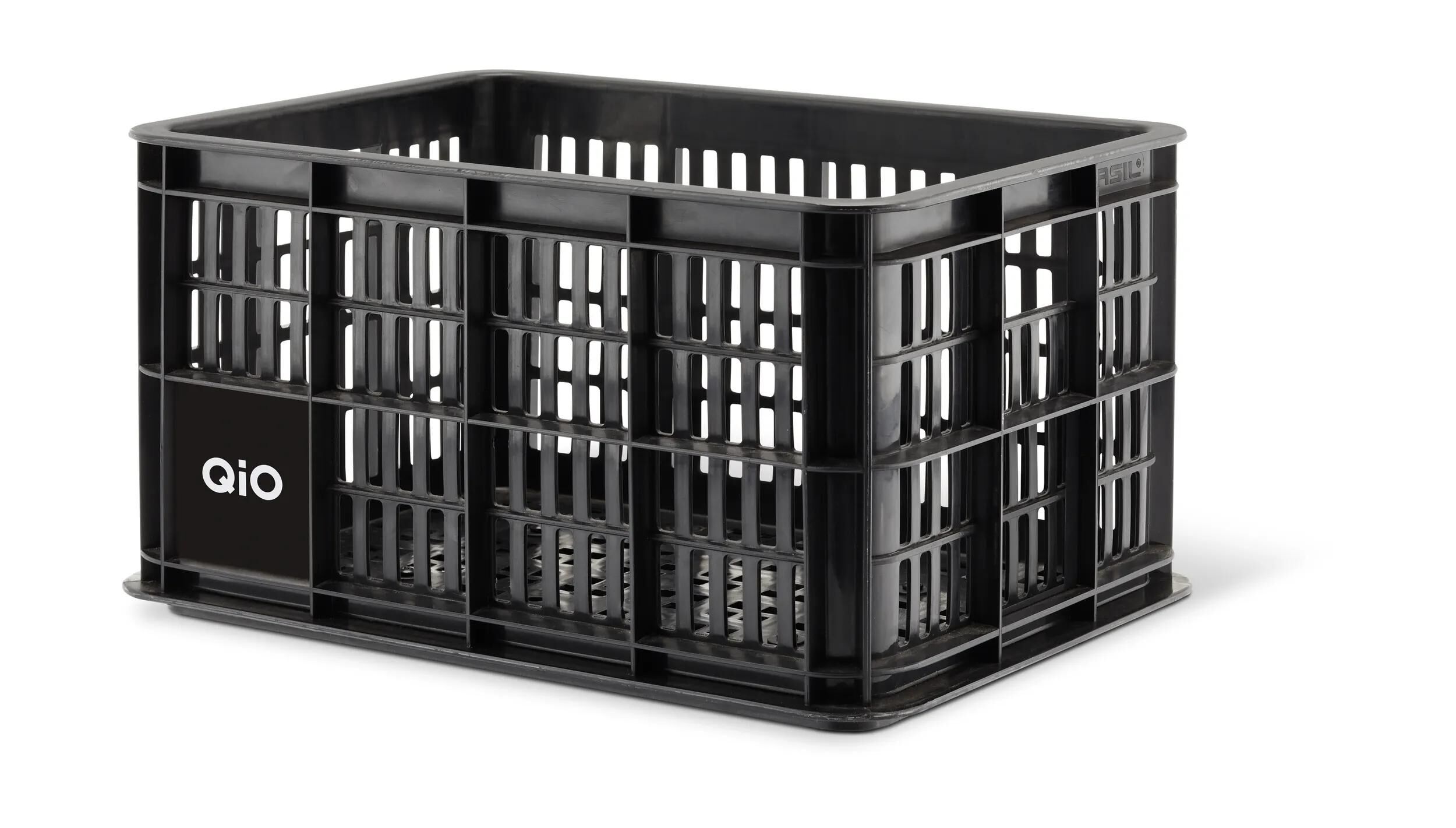

Select article	QiO Transport box "Crate Box Fred" black Read more Read less Article number: 07386981 Original number: 21189	Quantity
