Product information

  • Battery capacity: 500.0 Wh
  • Bosch Smart System: no
  • Brake system: hydraulic disc brake
  • Category: compact bike
  • Chainstay: 455 mm
  • Colour designation: beryl blue matt
  • Drive: belt drive
  • Drive system: BOSCH
  • Drive version: middle motor
  • E-bike: yes
  • Engine power: 250 W
  • Features: fender
  • Frame height: 47 cm
  • Frame shape: unisex
  • Gears: 5-speed
  • Gender: unisex
  • Main colour: blue
  • Material 1: aluminium
  • Permissible total weight: 140 kg
  • Reach: 408 mm
  • Seat angle: 70.5 °
  • Seat tube: 460 mm
  • Shifting name: 5-Gang SHIMANO "Nexus" Leerlauf
  • Shifting type: internal gear shifting
  • Stack: 540 mm
  • Steering tube: 220 mm
  • Steering tube angle: 71.0 °
  • Support: up to 25km/h
  • Toptube: 600 mm
  • Wheel distance: 1103 mm
  • Wheel size: 20 "

  • Battery: BOSCH "Powerpack 500", Lithium-Ionen mit BMS, 500 Wh
  • Bottom bracket: BOSCH
  • Brake: TRP HD-EU817
  • Brake lever: TRP HD-EU817
  • Chain / belt: GATES "CDX", 125Z.
  • Chain guard: CURANA "C+" zweiteilig
  • Chain ring / pulley: GATES, "CDX", 46Z.
  • Charger: Bosch 4 Ah
  • Crank: STRONGLIGHT "Magan"
  • Derailleur hanger: Slider Dropout
  • Display: BOSCH, "Intuvia " 4-Stufen, Remote Control, Schiebehilfe
  • Engine: BOSCH Mittelmotor Gen.3 "Performance", 36 V, 250 W
  • Fender: SKS "A69 R" matt schw.
  • Fork: Alu
  • Frame: QIO Bosch, Alu
  • Front hub: SHIMANO "Deore HB-M6000"
  • Front light: CONTEC "DLUX 80E+" DC 60cm Kabel
  • Front rotor: 180mm Centerlock
  • Front tire: CONTINENTAL "E Contact" Plus 62-406
  • Grips: HERRMANS "Clik Ergo"
  • Handlebar: ERGOTEC Lady Town, Ø 31,8 mm
  • Handlepost: BYSCHULZ "SDS Twist Pro", 220 mm Auszug, 1,1/4
  • Headset: TOKEN "TK1566E-CU01"
  • Pedals: UNION "SP-153" Faltpedal
  • Rear carrier: QIO "MIK-HD" Systemträger
  • Rear hub: SHIMANO "Nexus" 5-Gg. LL
  • Rear light: CONTEC "TL-335" Stop 50mm 6-12V
  • Rear rotor: 160mm centerlock
  • Rear tire: CONTINENTAL "E Contact" Plus 62-406
  • Rims: SCHÜRMANN "YAK 25" , 36 Loch Disc ungeöst
  • Saddle: SELLE ROYAL "Nuvola 5060"
  • Seatpost: BYSCHULZ "G2" Federsattelstütze, antitheft 34,9mm x 400mm
  • Sensor: Pedal pressure measuring im Motor + speed sensor
  • Shifting lever: SHIMANO "Nexus", 5-Gg.
  • Spokes: Niro
  • Sprocket / pulley: GATES, "CDX", 28Z.
  • Stands: URSUS "King-EVO" 40mm schwarz
  • Stem: BYSCHULZ "SDS" 70mm, 7°, 31,8mm

  • Supplier Article Number: 01720358
  • EAN: 4251507974363
  • MSRP: €3,799.00
  • Brand/Supplier QiO
  • Unit of measure: PIECE
  • Weight: 26.9 kg

  Article Price
Elektro-Kompakträder,Kompakträder,Elektroräder,Fahrräder,Kompaktrad
unisex, 20", beryl blue matt, 5-speed SHIMANO "Nexus" freewheel, 47 cm
  • Article number: 02650919
  • Original number: 01721358

High comfort on short distancesA quick ride to get fresh bread and the daily newspaper for breakfast: A typical scenario at a campsite. But the way there can be far and uncomfortable. In order to get to and back from the corner store as comfortably as possible, QiO's "EINS P-5" is exactly your thing. The e-mini-velo can be nimbly manoeuvred with its 20" wheels, while the parallelogram suspension seatpost ensures a high level of comfort on the campground’s bumpy gravel roads.But this new bike is compact not by chance. Thanks to its size, the folding pedals and the 90° rotatable handlebars, the "EINS P-5" is ideal for packing it on a camping van. Or even for home and daily routes through the city. The bike can be parked in small spaces or in narrow basement rooms. Thanks to the handle, you can also carry it up and down the stairs very easily.The BOSCH "Performance" motor, which gets you up to 25 km/h with a powerful thrust, is always there. It draws its energy from the 500Wh "PowerPack". The battery can be easily removed and plugged in for charging thanks to the favourable seatstay position. For fine adjustment of the drivetrain, the 5-speed SHIMANO "Nexus" internally geared hub is there, transferring its power to the low-maintenance GATES belt.The combination of internally geared hub and belt makes QiO’s "EINS P-5" almost maintenance-free. The belt runs without grease and can be cleaned with water, the internally geared hub is from the ground up less susceptible to defects - ideal for commuters or even holidays at a campsite, because even then you just want to sit on the bike and start riding.

Product variants

  Article Price
Elektro-Kompakträder,Kompakträder,Elektroräder,Fahrräder,Kompaktrad
unisex, 20", light olive matt, 5-speed SHIMANO "Nexus" freewheel, 47 cm
  • Article number: 02650372
  • Original number: 01720374
Elektro-Kompakträder,Kompakträder,Elektroräder,Fahrräder,Kompaktrad
unisex, 20", imola red matt, 5-speed SHIMANO "Nexus" freewheel, 47 cm
  • Article number: 02650398
  • Original number: 01720390
Elektro-Kompakträder,Kompakträder,Elektroräder,Fahrräder,Kompaktrad
unisex, 20", lead metal, 5-speed SHIMANO "Nexus" freewheel, 47 cm
  • Article number: 02650331
  • Original number: 01720333
Elektro-Kompakträder,Kompakträder,Elektroräder,Fahrräder,Kompaktrad
unisex, 20", crystal white matt, 5-speed SHIMANO "Nexus" freewheel, 47 cm
  • Article number: 02650349
  • Original number: 01720341
Elektro-Kompakträder,Kompakträder,Elektroräder,Fahrräder,Kompaktrad
unisex, 20", beryl blue matt, 5-speed SHIMANO "Nexus" freewheel, 47 cm
  • Article number: 02650356
  • Original number: 01720358
Elektro-Kompakträder,Kompakträder,Elektroräder,Fahrräder,Kompaktrad
unisex, 20", soft mint, 5-speed SHIMANO "Nexus" freewheel, 47 cm
  • Article number: 02650364
  • Original number: 01720366
Elektro-Kompakträder,Kompakträder,Elektroräder,Fahrräder,Kompaktrad
unisex, 20", dark violet matt, 5-speed SHIMANO "Nexus" freewheel, 47 cm
  • Article number: 02650406
  • Original number: 01720408
Elektro-Kompakträder,Kompakträder,Elektroräder,Fahrräder,Kompaktrad
unisex, 20", lead metal, 5-speed SHIMANO "Nexus" coaster brake, 47 cm
  • Article number: 02650414
  • Original number: 01720416
Elektro-Kompakträder,Kompakträder,Elektroräder,Fahrräder,Kompaktrad
unisex, 20", crystal white matt, 5-speed SHIMANO "Nexus" coaster brake, 47 cm
  • Article number: 02650422
  • Original number: 01720424
Elektro-Kompakträder,Kompakträder,Elektroräder,Fahrräder,Kompaktrad
unisex, 20", beryl blue matt, 5-speed SHIMANO "Nexus" coaster brake, 47 cm
  • Article number: 02650430
  • Original number: 01720432
Elektro-Kompakträder,Kompakträder,Elektroräder,Fahrräder,Kompaktrad

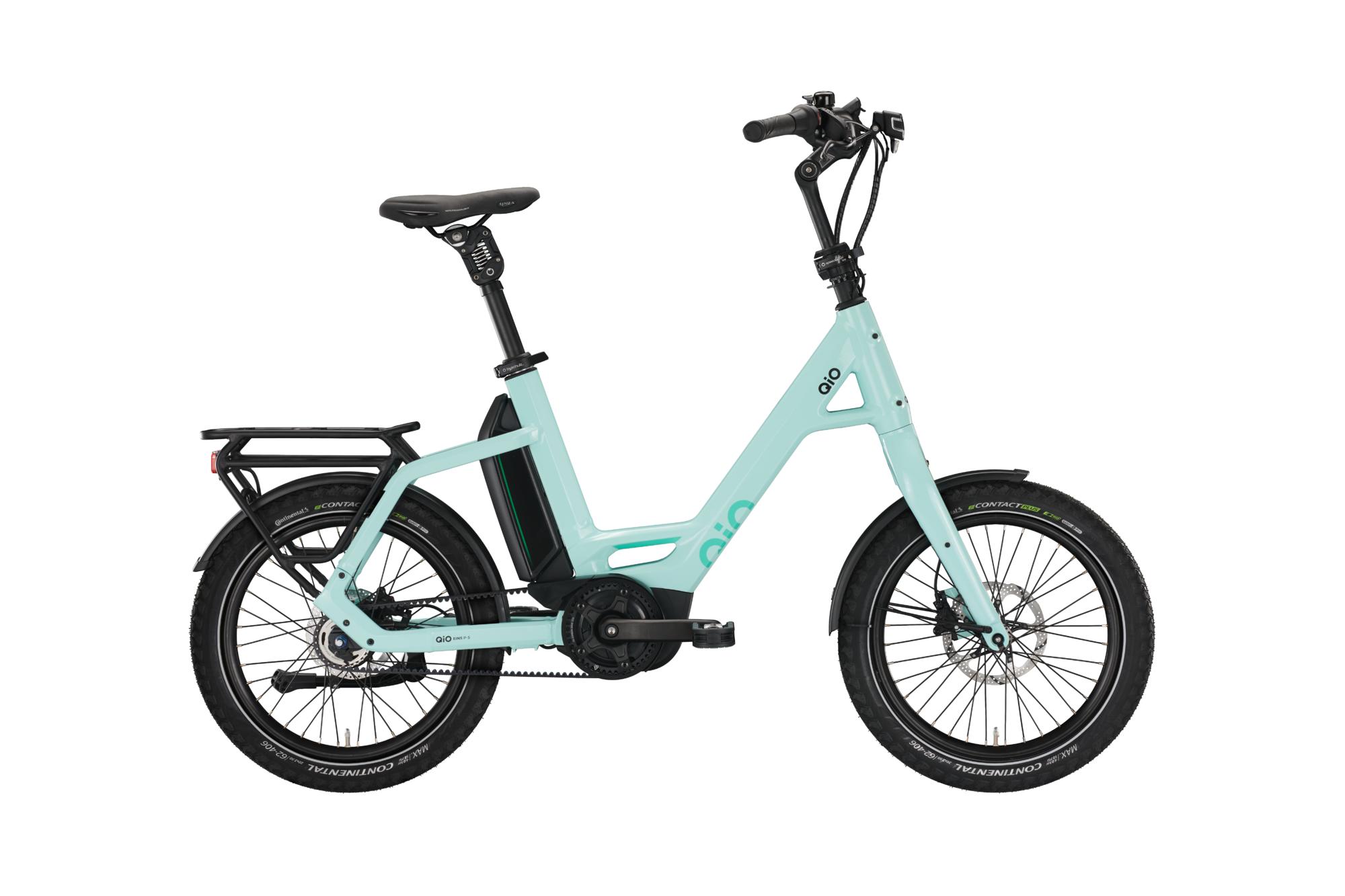

unisex, 20", soft mint, 5-speed SHIMANO "Nexus" coaster brake, 47 cm
  • Article number: 02650448
  • Original number: 01720440
Elektro-Kompakträder,Kompakträder,Elektroräder,Fahrräder,Kompaktrad
unisex, 20", light olive matt, 5-speed SHIMANO "Nexus" coaster brake, 47 cm
  • Article number: 02650455
  • Original number: 01720457
Elektro-Kompakträder,Kompakträder,Elektroräder,Fahrräder,Kompaktrad
unisex, 20", ice blue, 5-speed SHIMANO "Nexus" coaster brake, 47 cm
  • Article number: 02650463
  • Original number: 01720465
Elektro-Kompakträder,Kompakträder,Elektroräder,Fahrräder,Kompaktrad
unisex, 20", imola red matt, 5-speed SHIMANO "Nexus" coaster brake, 47 cm
  • Article number: 02650471
  • Original number: 01720473
Elektro-Kompakträder,Kompakträder,Elektroräder,Fahrräder,Kompaktrad

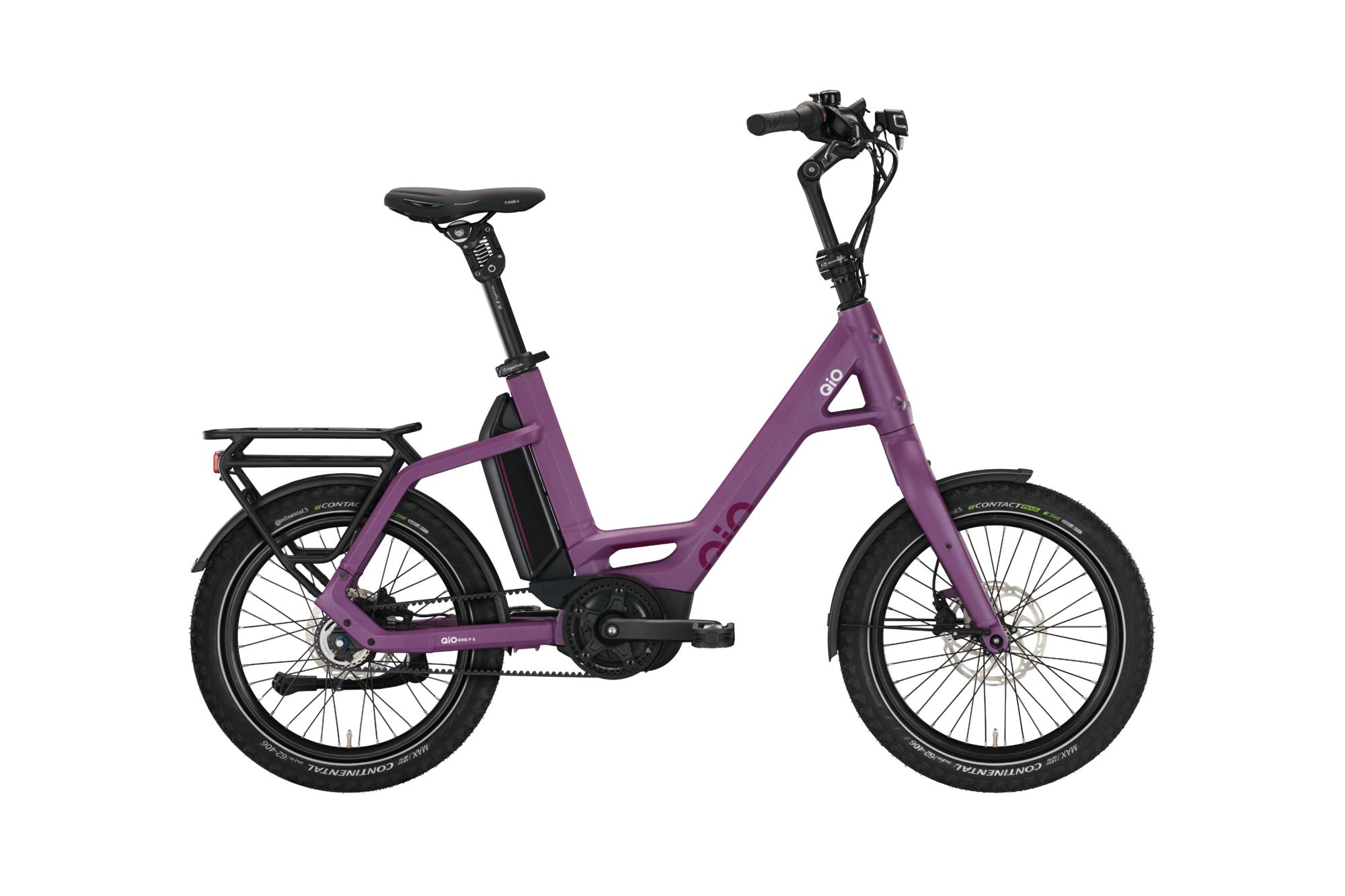

unisex, 20", dark violet matt, 5-speed SHIMANO "Nexus" coaster brake, 47 cm
  • Article number: 02650489
  • Original number: 01720481
Elektro-Kompakträder,Kompakträder,Elektroräder,Fahrräder,Kompaktrad
unisex, 20", ice blue, 5-speed SHIMANO "Nexus" freewheel, 47 cm
  • Article number: 02650380
  • Original number: 01720382
