Product information

  • Battery capacity: 500.0 Wh
  • Bosch Smart System: no
  • Brake system: hydraulic disc brake
  • Category: compact bike
  • Colour designation: creme alabaster
  • Drive: belt drive
  • Drive system: BOSCH
  • Drive version: middle motor
  • E-bike: yes
  • Engine power: 250 W
  • Features: fender
  • Frame height: 47 cm
  • Frame shape: unisex
  • Gears: stepless
  • Gender: unisex
  • Main colour: beige
  • Material 1: aluminium
  • Permissible total weight: 180 kg
  • Shifting name: enviolo "TR"
  • Shifting type: internal gear shifting
  • Support: up to 25km/h
  • Wheel size: 20 "

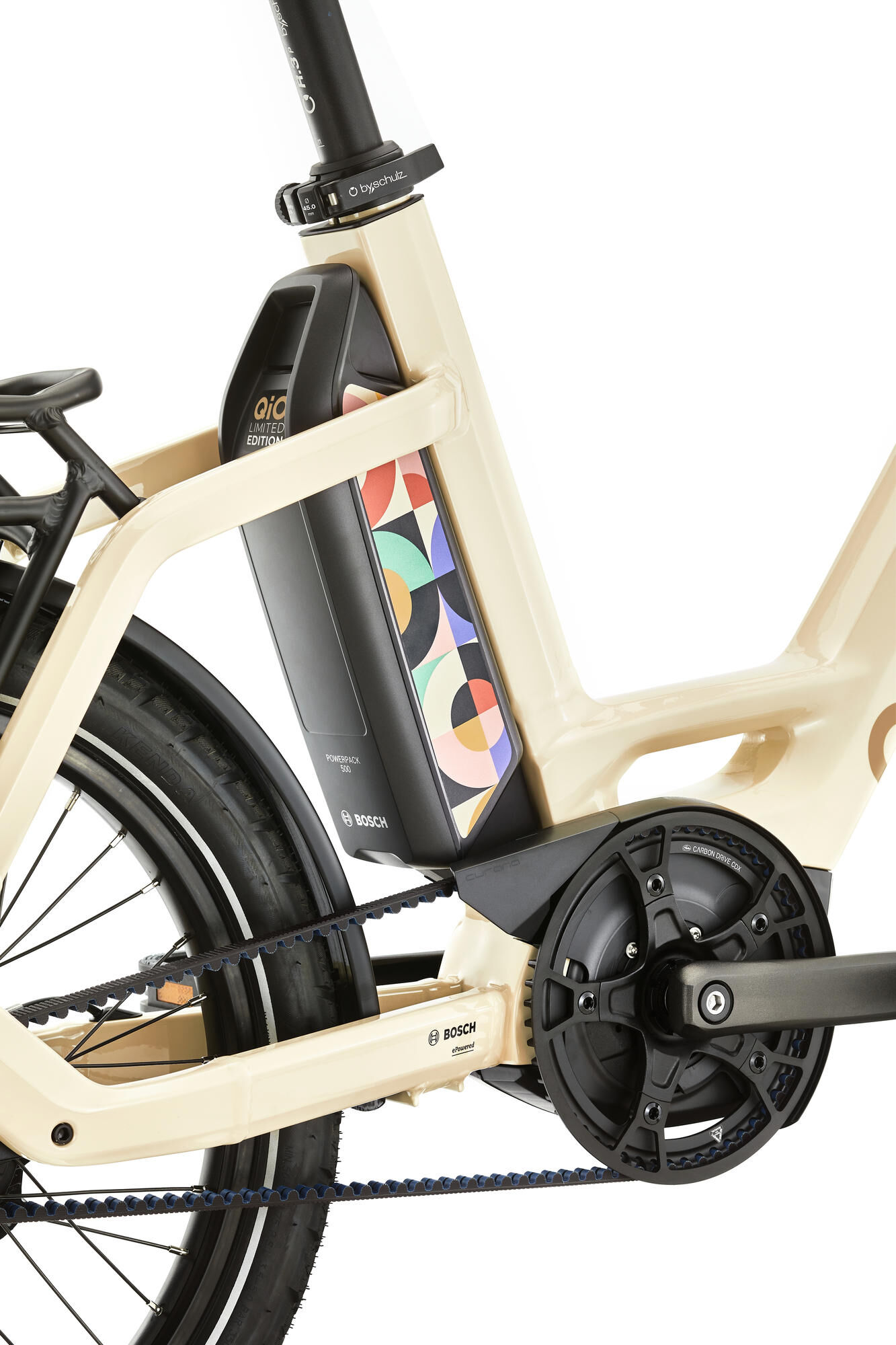

  • Battery: BOSCH "PowerPack 500", 500 Wh, BES2
  • Battery Lock: CONTEC "PowerLoc", BES2
  • Bremse H.R.: MAGURA disc brake "MT4", hydraulic, 2 pistons
  • Bremse V.R.: MAGURA disc brake "MT4", hydraulic, 2 pistons, post mount
  • Chain / belt: GATES "CDX", 122 teeth
  • Chain guard: CURANA "C+", 55 teeth, Bosch Gen.3, plastic, 2 pieces, black
  • Chain ring / pulley: GATES "CDX", 55 teeth, Bosch Gen.3, 5-arm, incl. spider and protection
  • Charger: BOSCH 4A, BES2
  • Derailleur hanger: QIO slider dropout
  • Display: BOSCH "Intuvia", 4 levels, remote control, push aid
  • Engine: BOSCH "Performance Line", Gen. 3, BES2
  • Felge H.R.: SCHÜRMANN "YAK DISC 25", 25-406, 36 holes, disc brake, black
  • Felge V.R.: SCHÜRMANN "YAK DISC 25", 25-406, 32 holes, disc brake, no eyelets, black
  • Fender: SKS "A 69 R", plastic, 65 mm, black matt

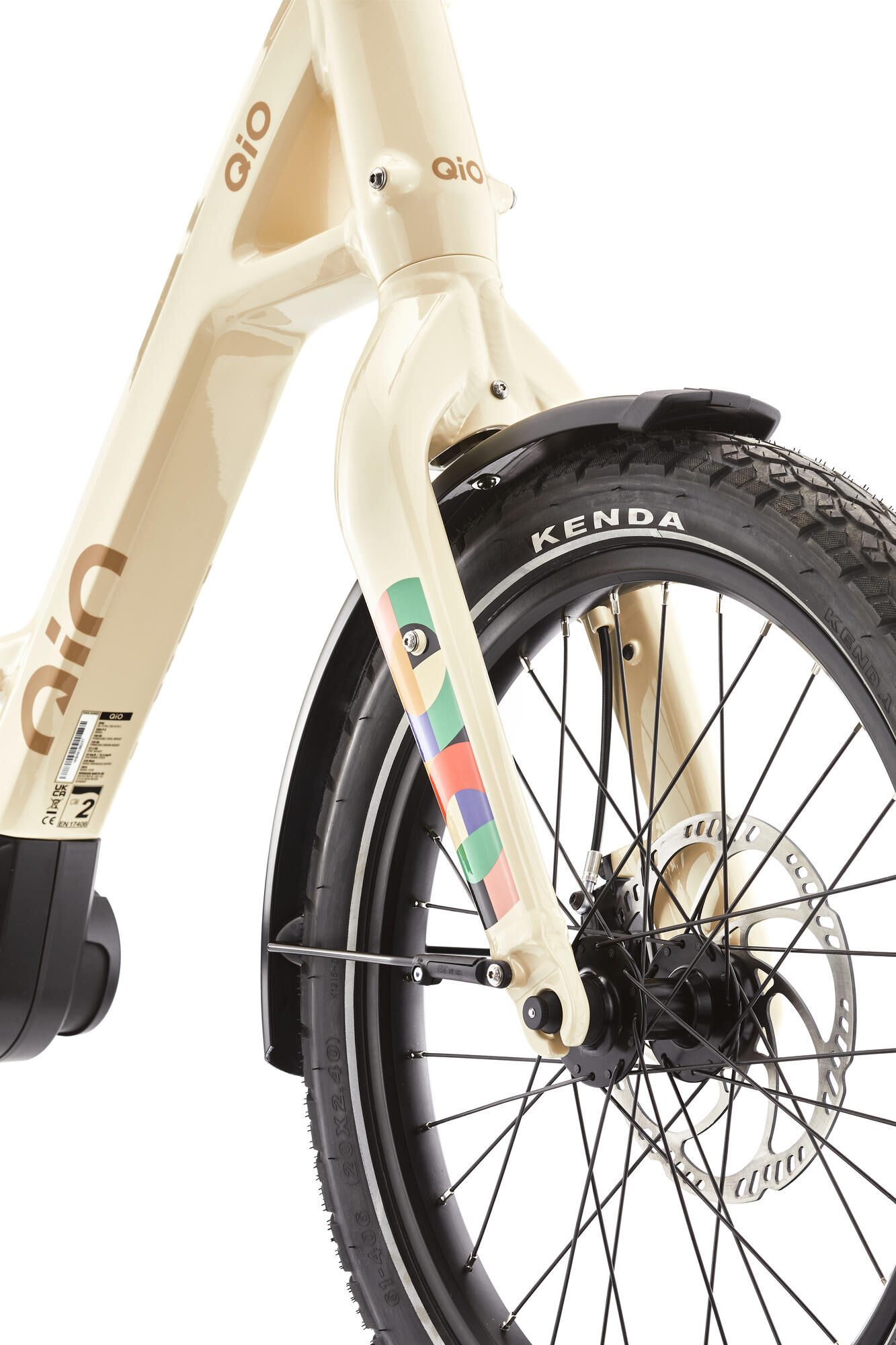

  • Fork: QIO EINS 20", aluminum, tapered 1 1/4" - 1.5", 313.5 mm stem, post mount, cream alabaster glossy
  • Frame: QIO EINS, Bosch Gen. 3, BES2, aluminum, 48 cm, cream alabaster glossy
  • Front hub: FORMULA "DC-20", 6-hole, 32 holes, QR, black
  • Front light: CONTEC "DLUX 80 E+", 80 Lux, DC 12 V, SDS-Link
  • Front rotor: MAGURA "STORM HC", Ø 180mm, Center Lock
  • Front tire: KENDA "Kwick Drumlin Cargo", 62-406, K1216, K-Shield, 60 TPI, E-25, Reflex
  • Grips: HERRMANS "Clik Original DD37", 90/123 mm, handlebar clamps, black
  • Handlebar: ERGOTEC "Lady Town", 620mm, Ø 31,8mm, 30° backsweep, rise 16mm, Level 4, black
  • Handlepost: BY.SCHULZ "Twist", Ø 28.6 mm, 1 1/4", T17
  • Pedals: UNION "SP-153", foldable
  • Rear carrier: QIO "MIK HD", integrated, black
  • Rear hub: ENVIOLO "TR", 6-hole, 36 hole, black
  • Rear light: CONTEC "TL-335 E-Stop", distance between screws: 50mm, stoplight function
  • Rear rotor: MAGURA "STORM HC", Ø 160mm, Center Lock, incl. 6-hole adapter
  • Rear tire: KENDA "Kwick Drumlin Cargo", 62-406, K1216, K-Shield, 60 TPI, E-25, Reflex
  • Saddle: SELLE ROYAL "Nuvola 5060", Unisex, Relaxed, black
  • Sensor: Pedal pressure measuring im Motor + speed sensor
  • Shifting lever: ENVIOLO "Twist Pure Display", for TR hub, grey, stepless
  • Spokes: Niro, schwarz
  • Sprocket / pulley: GATES "CDX", for Enviolo, 22 teeth
  • Stands: URSUS "R78 - King Mini", adjustable, 40 mm hole spacing, black
  • Stem: BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black

  • Supplier Article Number:: 01721566
  • EAN: 4251971146525
  • MSRP: €3,799.00
  • Brand/Supplier QiO
  • Unit of measure: PIECE

In a world where art and mobility merge, the QiO "Art Line" is a true masterpiece. With its subtle colours and vibrant decors on the fork and battery, it brings art to everyday life.Every pattern, every bike and every person have their own unique stories to tell. Its your adventure buddy, a loyal companion for commuting or as a car replacement in the city - your life, your bike, your work of art.The solid basic equipment provides a reliable source for getting creative. The compact bike is suitable for people of different sizes or houses with specific challenges. No space, no problem: handlebars, pedals and seatposts can be folded or compacted.A Bosch mid-engine paired with a battery, a well-regarded all-encompassing lighting system, and practical additions like a rack offer essential support for both travel and daily activities.

Product variants

  Article Price
Elektro-Kompakträder,Kompakträder,Elektroräder,Fahrräder,Kompaktrad

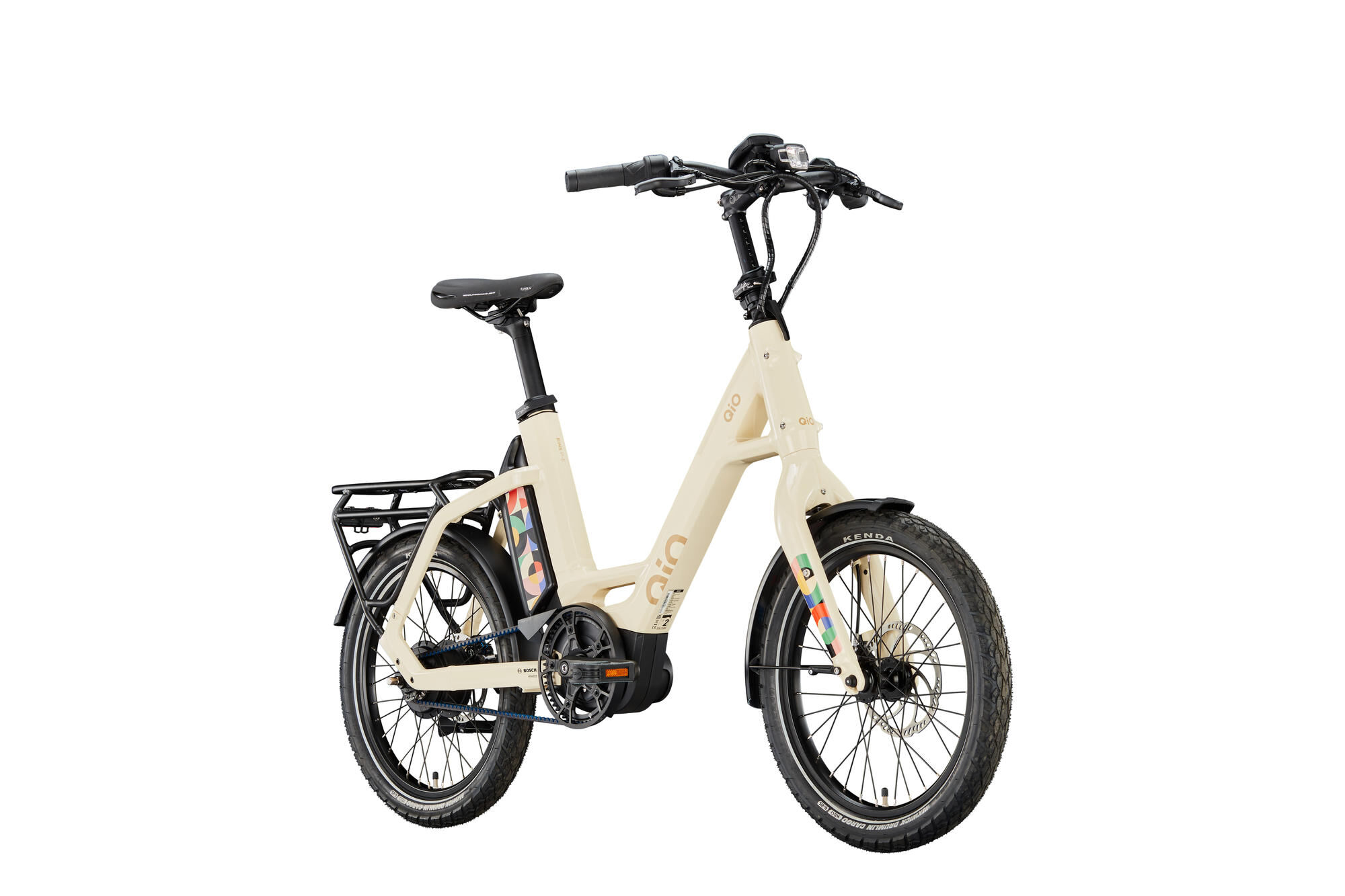

QiO Electric compact bike "EINS P-E Art Line" Mod. 24
unisex, 20", creme alabaster, enviolo "TR", 47 cm
  • Article number: 02651901
  • Original number: 01721566
