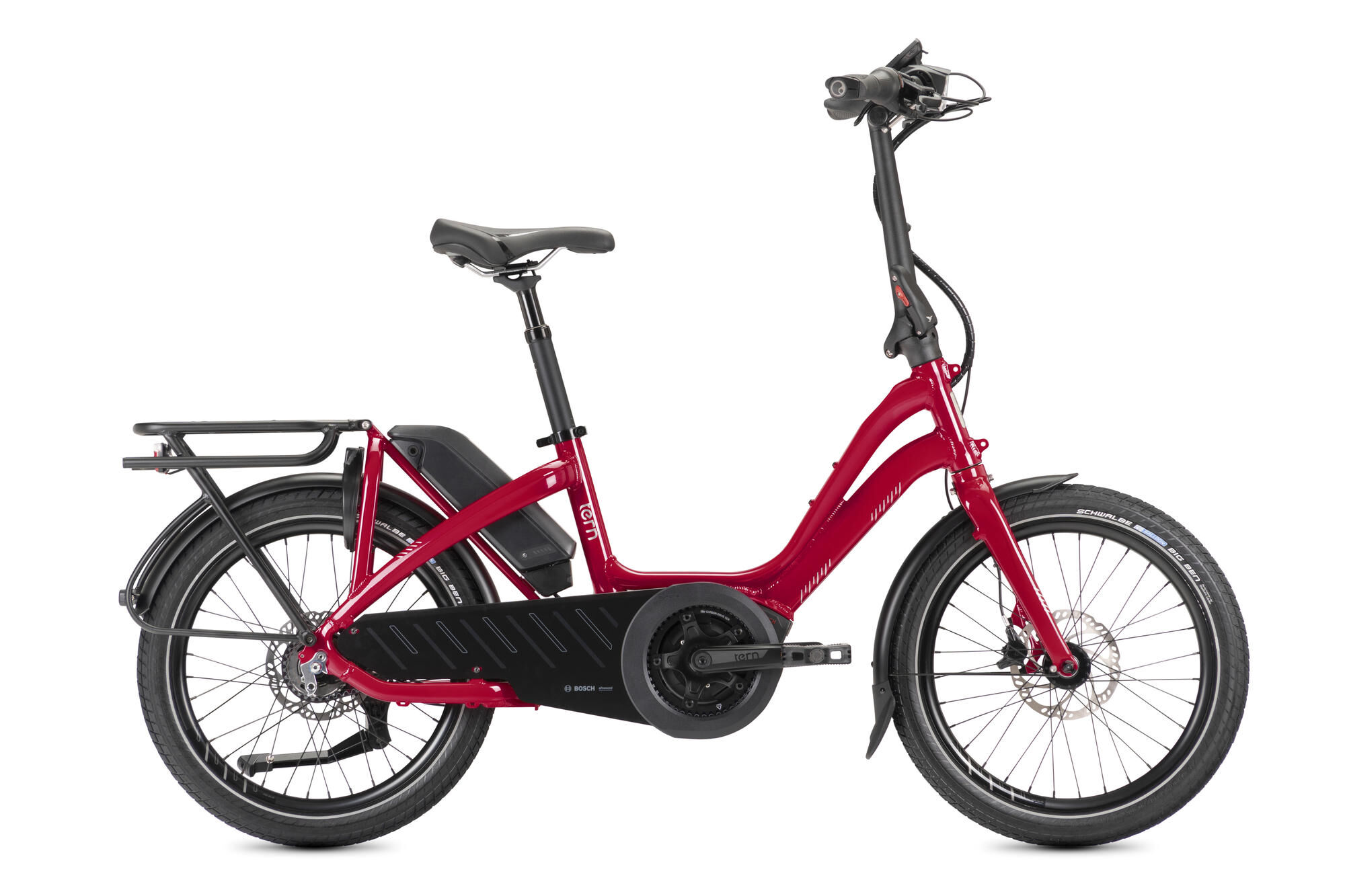

tern Electric compact bike "NBD S5i LL" Mod. 24
unisex, 20", gloss metallic red / silver, 5-speed SHIMANO "Nexus" neutral gear,
Read more Read less - Article number: 02122620
The electric compact bike is equipped with a BOSCH Performance Line mid-motor, which offers a motor power of 250 W. The Battery has a capacity of 500.0 Wh, which ensures a sufficient energy supply. The 5-speed SHIMANO "Nexus" idle gear system enables gear selection. Drives are provided by a belt drive. The braking system consists of hydraulic disc brakes. The bike is equipped with Fenders, Chain Guard, Electronic Pushing Help and a suspension seatposts. The permissible system weight is 140 kg. The frame is made of aluminum. The wheel size is 20". The fork suspension travel is 70 mm.
Product information
- Battery capacity 500.0 Wh
- Bosch Smart System no
- Brake system hydraulic disc brake
- Colour designation gloss metallic red / silver
- Drive belt drive
- Drive system BOSCH Performance Line
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features fender
- Frame shape unisex
- Gears 5-speed
- Gender unisex
- Main colour red
- Material 1 aluminium
- Permissible system weight 140 kg
- Secondary colour silver
- Shifting name 5-Gang SHIMANO "Nexus" Leerlauf
- Shifting type internal gear shifting
- Support up to 25km/h
- Travel 70 mm
- Type compact bike
- Wheel size 20 "
- Battery: BOSCH "Powerpack 500", Lithium-Ionen mit BMS, 500 Wh
- Bottom bracket: BOSCH
- Brake: MAGURA "MT4"
- Brake lever: MAGURA "MT4"
- Chain / belt: Gates Carbon Drive CDX belt
- Chain guard: TERN Custom
- Chain ring / pulley: 48 Z.
- Charger: Bosch 4 Ah
- Crankset: TERN "HSD custom"
- Display: BOSCH, "Intuvia " 4-Stufen, Remote Control, Schiebehilfe
- Engine: BOSCH Mittelmotor Gen.3 "Performance Line", 36 V, 250 W
- Fender: SPLASHGUARD
- Fork: SR SUNTOUR "Custom"
- Frame: Alu 6061
- Frame Lock: ABUS, keyed-alike
- Front hub: Shimano Disc
- Front light: TERN Valo Direct, 190 Lumen
- Front rotor: 180
- Front tire: SCHWALBE "Big Apple" 55-406
- Grips: ERGON
- Handlebar: TERN Sweep, 6061-AL, Tern Andros passend
- Headset: Tern "Flux Pro Taper", 1.5"
- Other: Gewicht: 23,4 kg
- Pedals: MKS Platform, Tern custom design
- Rear carrier: NBD rack, 27 kg
- Rear hub: SHIMANO "Nexus Inter 5E" LL
- Rear light: HERRMANS
- Rear rotor: 160
- Rear tire: SCHWALBE "Big Apple" 55-406
- Rims: KINETIX Comp Disc
- Saddle: TERN "HSD"
- Seatpost: TERN Suspension, 34.9 mm, 6061-AL
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: SHIMANO "Inter5"
- Spokes: Niro
- Sprocket / pulley: Gates CDX
- Stands: URSUS
- Stem: TERN "Andros", verstellbar, 65 mm
- EAN: 810067160261
- MSRP: €3,999.00
- Fedas-Code: 159021
- DST-Code: 1A01
- WEEE registration number: DE92509320
- SB-Article: No
- Bidex-Code: 123040
- Brand/Supplier tern
- Unit of measure: PIECE
- Weight: 23.4 kg
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|

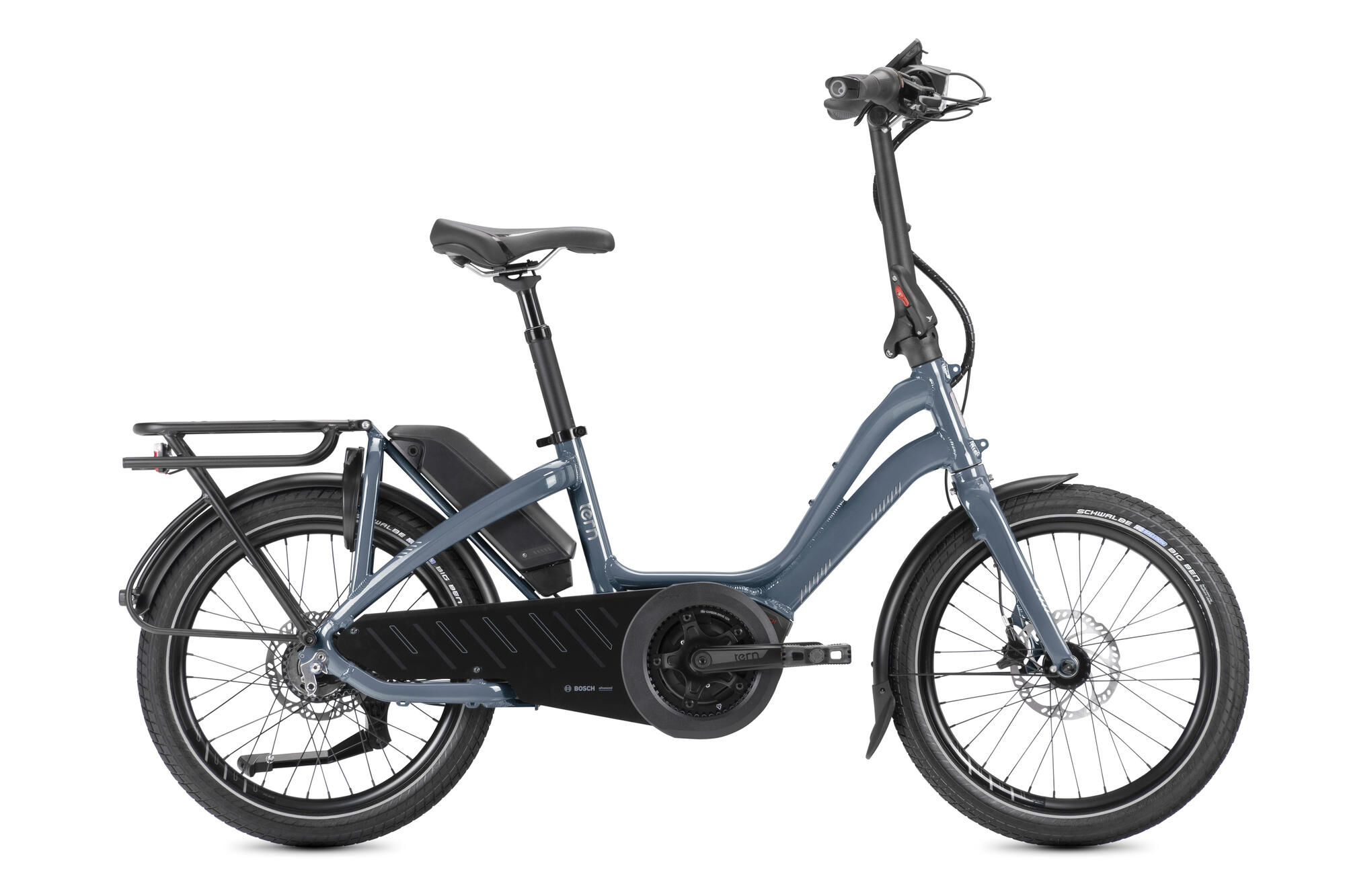

 unisex, 20", gloss metallic blue / grey, 5-speed SHIMANO "Nexus" neutral gear, Read more Read less
| ||
 unisex, 20", gloss metallic red / silver, 5-speed SHIMANO "Nexus" neutral gear, Read more Read less
|
