battery and start/charging system tester for start-stop EFB / AGM batteries, battery size: 25 - 3000 CCA
Can tests 12V start/stop/recuperation start batteries EFB (Enhanced Flooded Battery), AGM (Absorbent Glass Mat) and 6/12V starter batteries (lead-acid, gel and fleece batteries/AGM). Other options are start/charge system tests for 12/24V systems. The optional application of the current clamp #100653 is supported by the tester and improves, in addition, the test results. Other important functions are volt and temperature measurement. An integrated thermal printer presents all measurement results as text and graphical form in selected menu language. Custom data (customer's name, car signs, vehicle) can be entered separately.
Test norm: JIS, EN, DIN, SAE, IEC

battery and start/charging sytem tester for start-stop EFB / AGM batteries, battery size: 25 - 2400 CCA
Can tests 12V start/stop/recuperation starter batteries EFB (Enhanced Flooded Battery), AGM (Absorbent Glass Mat) and 12V starter batteries (lead-acid, gel and fleece batteries/AGM). Other options are start/charge system tests for 12/24V systems.An integrated thermal printer presents all measurement results as text and graphical form in selected menu language.
Test norm: JIS, EN, DIN, SAE, IEC

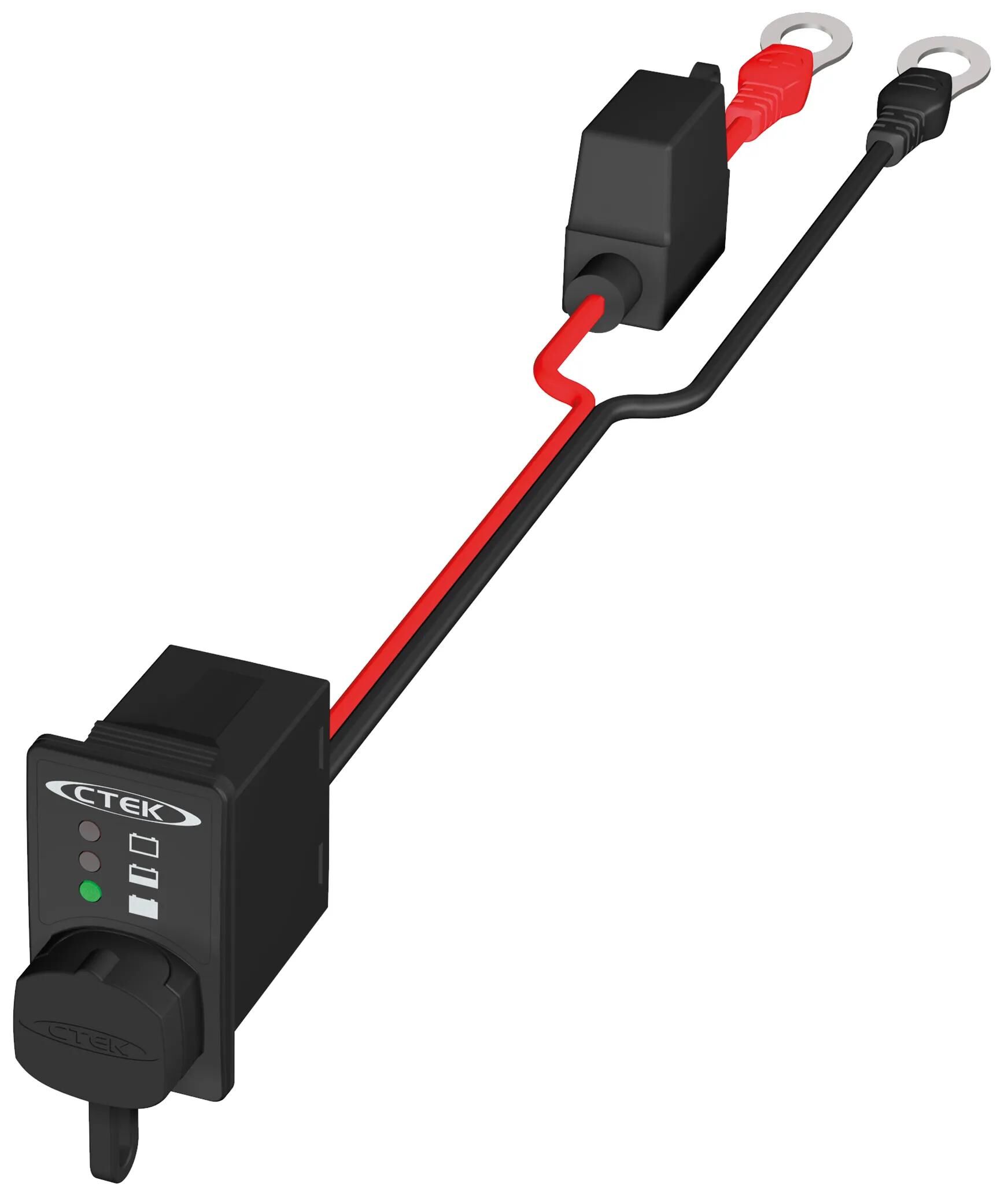

for 12V batteries, with 15A fuse
For a permanent check of the charge state of batteries. Can be firmly connected to the battery. Display of the charging state via the LED indicator function.
red: The battery voltage is below 12,4 V.
yellow: The battery voltage is between 12,4 and 12,65 V.
green: The battery voltage is above 12,65 V.

Suitable for: XS 0.8, MXS 3.8, MXS 5.0, MXS 7.0, MXS 10

accessory for battery tester "S 500 D"

battery, starter and generator tester, incl. printer and thermal paper roll
Multifunctional, electronic, for 6 - 12V batteries (liquid, VRLA / GEL MTF, AGM / SPIRAL, EFB / AGM Start & Stop), 12 - 24V starter and 12 - 24V generators. Test possible on removed, connected, or deep-discharged batteries (from 1,5V)
Note: Meets the standards SAE 40 - 3000 CCA, DIN 25 - 1635 CCA, IEC 30 - 1985 CCA, EN 40 - 2830 CCA and JIS acc. to the number of the Japanese battery type.

individual use, or as extension for mega macs 66 or mega macs PC, with bluetooth function
Mobile device for testing batteries up to 12V of all current types and manufacturers. Is connected with the help of the connecting cable directly to the battery. Through the wireless connection ability via Bluetooth to a specific diagnostic equipment from Hella Gutmann, the measurement data can be transferred in the car history. In addition, the battery can be tested via the diagnostic device.
Note: The BPC tool can only be connected to certain Hella Gutmann diagnostic devices. Diagnostic devices from other manufacturers are not supported. It cannot be used to test high-voltage batteries in hybrid or electric vehicles.

Technical data:
Possible testing without removing the battery, applicable for acid, EFB, AGM and gel batteries, with polarity protection, permissible ambient temperature from -10 to 50°C, splashproof (IP 54), illuminated display, available in different languages, bluetooth interface, applicable with mega macs 66 and mega macs PC, battery voltage in V, cold start measurement, current in Ampere from 0,01 to 700A* (* only available with optional ampere pliers), state of charge in %

crocodile clamp, for testers, current till 5A, length: 49 mm², cable cross-section till 4mm²

for battery tester "CrankPrint"

conductibility tester for batteries and electric systems
Suitable for lead acid, AGM-, EFB and GEL batteries in cars and trucks. With integrated printer (Workshop address on the printout), reverse polarity protection, servo technology, battery diagnosis SOH (battery state), starter and generator test, procedure for surface tension distance, temperature compensation, voltmeter mode (start and menu) and 5-dogit display (backlight). Voltage range at 12V batteries from 1V, CCA test area up to max. 900A

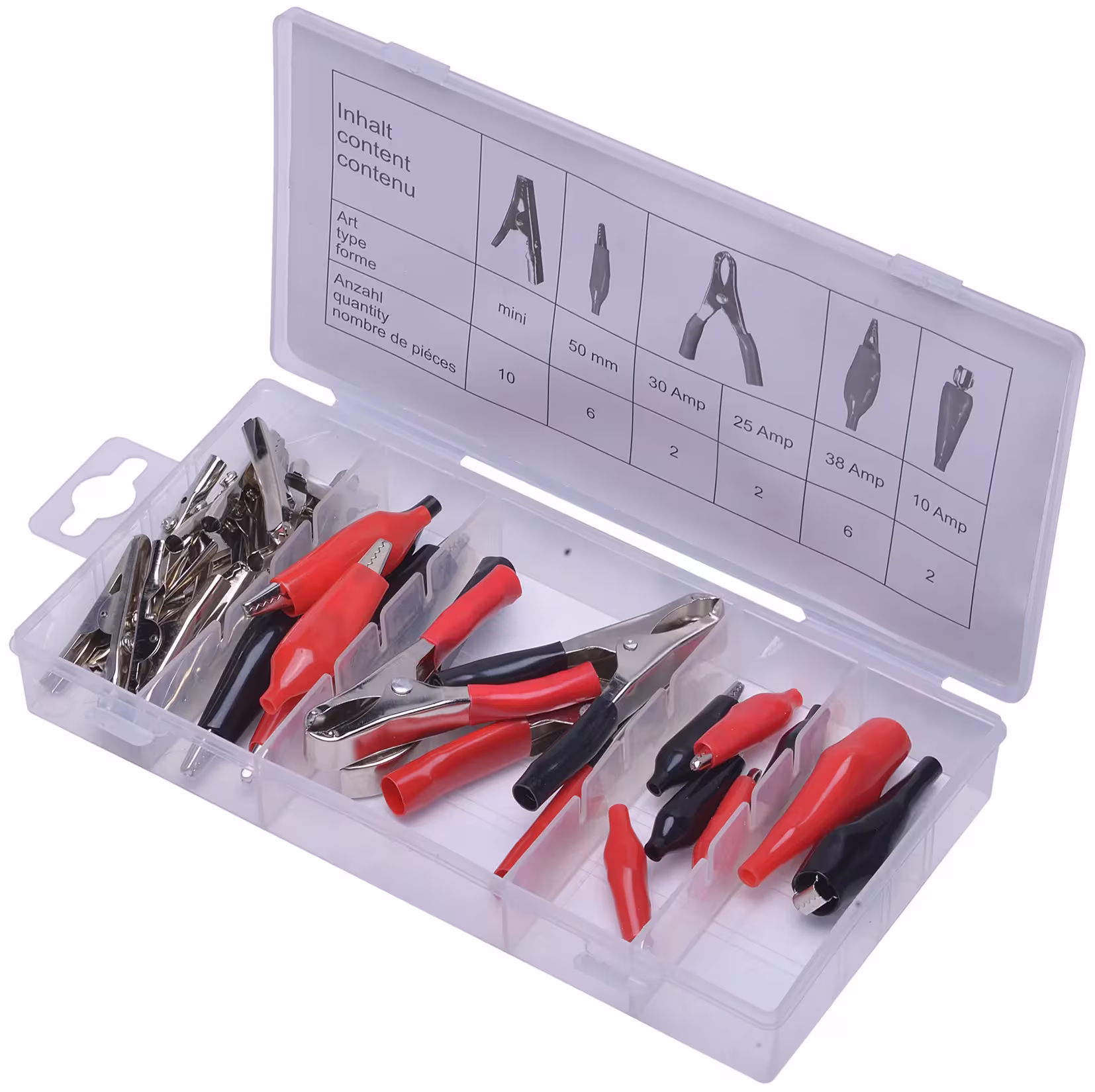

crocodile clips with and without isolation, 28 pieces
for hobby and workshop, for almost all vehicles
Content: 10x mini 50mm, 6x 65mm, 2x 80mm, 2x 70mm, 6x 55mm, 2x 60mm
