plus fastening material, assembly and initial inspection

adjustable height: 416,5cm

adjustable height: 397,5cm

adjustable height: 372,5cm

adjustable height: 485,0cm

lifting height: max. 201,0cm

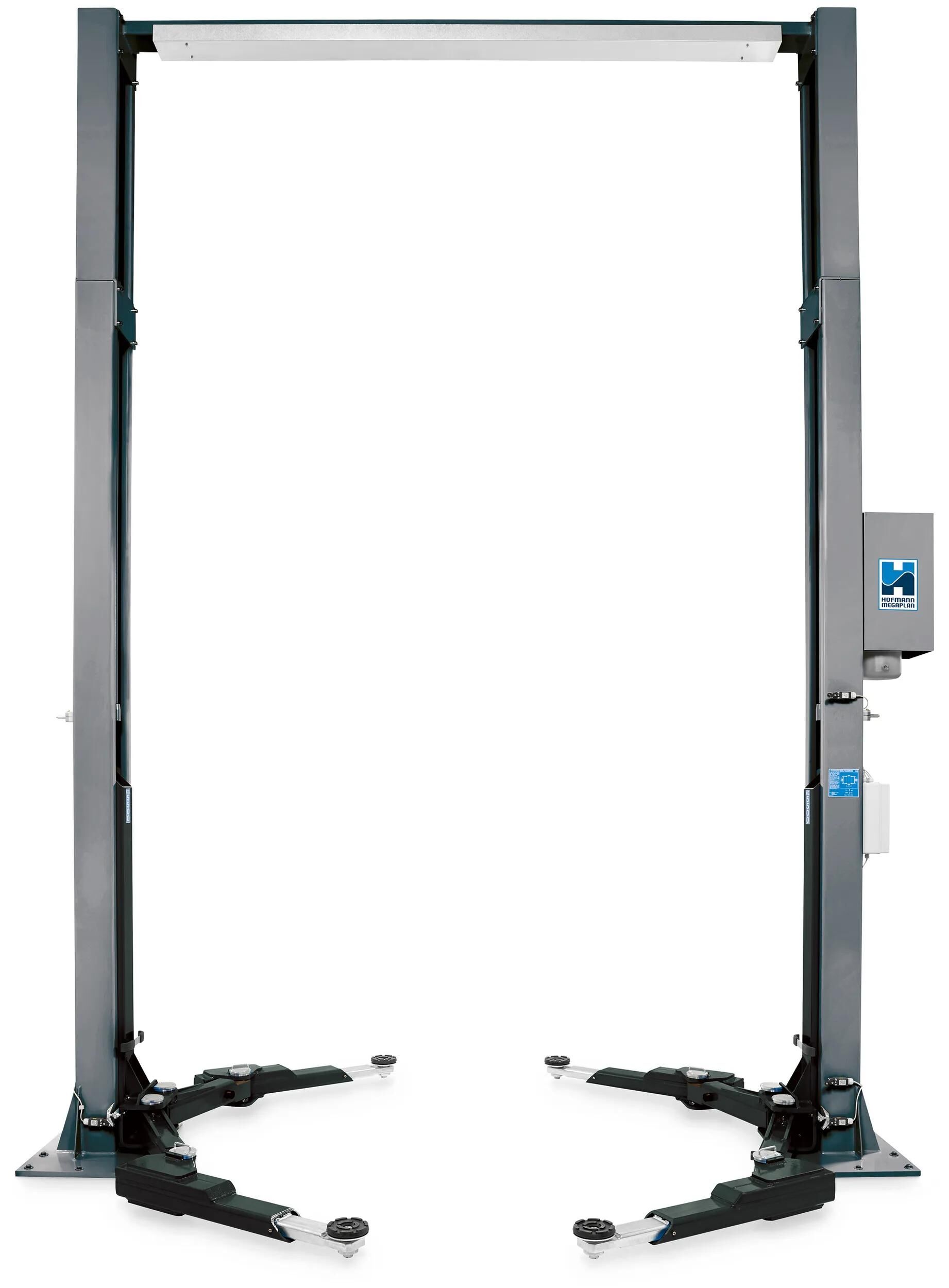

"SPO40E-EH4"load capacity: 4500kg, total height: 478,0cm, installation: symmetricTechnical data:stroke: 195,9cm lifting time: 29scolumn distance: 290,8cmdrive-through width: 259,0cmtotal width: 349,6cmdrive power: 4,0kWdrive voltage: 400V / 50Hztotal height EH 4: 478,0cmturn-off level EH 4: 4.67,5cmfront support arm length min./max.: 70,0 / 150,0cmrear support arm length min./max.: 70,0 / 150,0cmturning plate height min./max.: 10,9 / 17,9cm

"SPO54E-EH2"load capacity: 5000kg, total height: 478,0cm, installation: symmetricTechnical data:stroke: 198,9cm lifting time: 60scolumn distance: 291,5cmdrive-through width: 261,3mtotal width: 349,6cmdrive power: 3,0kWdrive voltage: 400V / 50Hztotal height EH 2: 478,0cmturn-off levelEH 2: 467,5cmfront support arm length min./max.: 70,0 / 150,0cmrear support arm length min./max.: 70,0 / 150,0cmturning plate height min./max.: 10,9 / 18,9cm

"SPO65E-LWB"load capacity: 6500kg, total height: 454,6 - 500,4cm, installation: symmetricTechnical data:stroke: 200,5cm lifting timet: 60scolumn distance: 305,8cmdrive-through width: 268,7cmtotal width: 393,7cmdrive power: 3,0kWdrive voltage: 400V / 50Hztotal height EH 2: 454,6 - 500,4cmturn-off level EH 2: 443,6 - 489,4mmfront support arm length min./max.: 93,5 / 190,1cmrear support arm length min./max.: 93,5 / 190,1cmturning plate height min./max.: 11,5 / 17,5cm

"SPOA3TS-5SC-EH2"Tragkraft: 3500 kg, Gesamthöhe: 408,0 cm, Aufbau: asymmetrisch, Bedienung: manuellTechnical data:lifting height: 194,0cmlifting time: 30scolumn distance: 290,8cmpassage with: 252,0cmtotal width: 349,6cmdrive power: 4,0 kWdrive voltage: 400 V / 50 Hztotal height EH 4: 408,0cmswitch-off height EH 4: 397,5cmsupport arm length front min./max.: 58,5 / 119,5cmsupport arm length rear min./max.: 58,5 / 119,5cmturntable height min./max.: 8,5 / 13,0cm

"SPOA3TS-5-EH2"Tragkraft: 3500 kg, Gesamthöhe: 417,0 cm, Aufbau: asymmetrisch, Bedienung: elektrischTechnical data:lifting height: 195,7cmlifting time: 30scolumn distance: 256,0cmpassage width: 233,6cmtotal width: 300,0cmdrive power: 4,0 kWdrive voltage: 400 V / 50 Hztotal height EH 4: 417,0cmswitch-off height EH 4: 406,5cmsupport arm length front min./max.: 55,0 / 110,6cmsupport arm length rear min./max.: 87,6 / 147,2 cmturntable height min./max.: 9,4 / 15,4cm

"SPO40E-5-EH2GR"Load capacity: 4500 kg, total height: 417.0 cm, superstructure: symmetrical, telescopic support arms (3-fold), operation: electricTechnical data:Lifting height: 197.9 cmLifting time: 30 sColumn spacing: 291.6 cmDrive-through width: 260.2 cmTotal width: 349.6 cmDrive power: 4.0 kWDrive voltage: 400 V / 50 HzTotal height EH 4: 423.0 cmCut-off height EH 4: 406.5 cmSupport arm length front min./max.: 70.0 / 150.0 cmSupport arm length hi. min./max.: 70.0 / 150.0 cmTurntable height min./max.: 11.5 / 17.5 cm

"SPO55E-EH4GR"Load capacity: 5500 kg, total height: 543.2 cm, Structure: symmetrical, telescopic support arms (3-stage), Operation: electricTechnical data:Lifting height: 198.1 cmLifting time: 60 sColumn spacing: 291.6 cmDrive-through width: 260.7 cmTotal width: 349.6 cmDrive power: 3.0 kWDrive voltage: 400 V / 50 HzTotal height EH 4: 543.2 cmCut-off height EH 4: 532.7 cmSupport arm length front min./max.: 79.0 / 170.0 cmSupport arm length hi. min./max.: 79.0 / 170.0 cmTurntable height min./max.: 11.8 / 17.8 cm

"SPOA3TS-5-EH2", incl. 2nd Operating Unit "CONTROL - SPOA3TC-NC" Load capacity: 3500 kg, total height: 4170 mm, Structure: asymmetrical, Operation: electricTechnical data:Lifting height: 1957 mmLifting time: 30 sColumn spacing: 2544 mmDrive-through width: 2336 mmTotal width: 3000 mmDrive power: 4.0 kWDrive voltage: 400 V / 50 HzTotal height EH 2: 4170 mmCut-off height EH 2: 4026 mmSupport arm length front min. / max.: 857 / 1143 mmSupport arm length hi. min. / max.: 876 / 1474 mmTurntable height min. / max.: 100 / 160 mm

adjustable height: 416,5cm

adjustable height: 500cm

base frame-free

raises, #A199/R, suitable for Megalift 199/WRX

lifting height max. 202,0cm

plus freight and assembly
