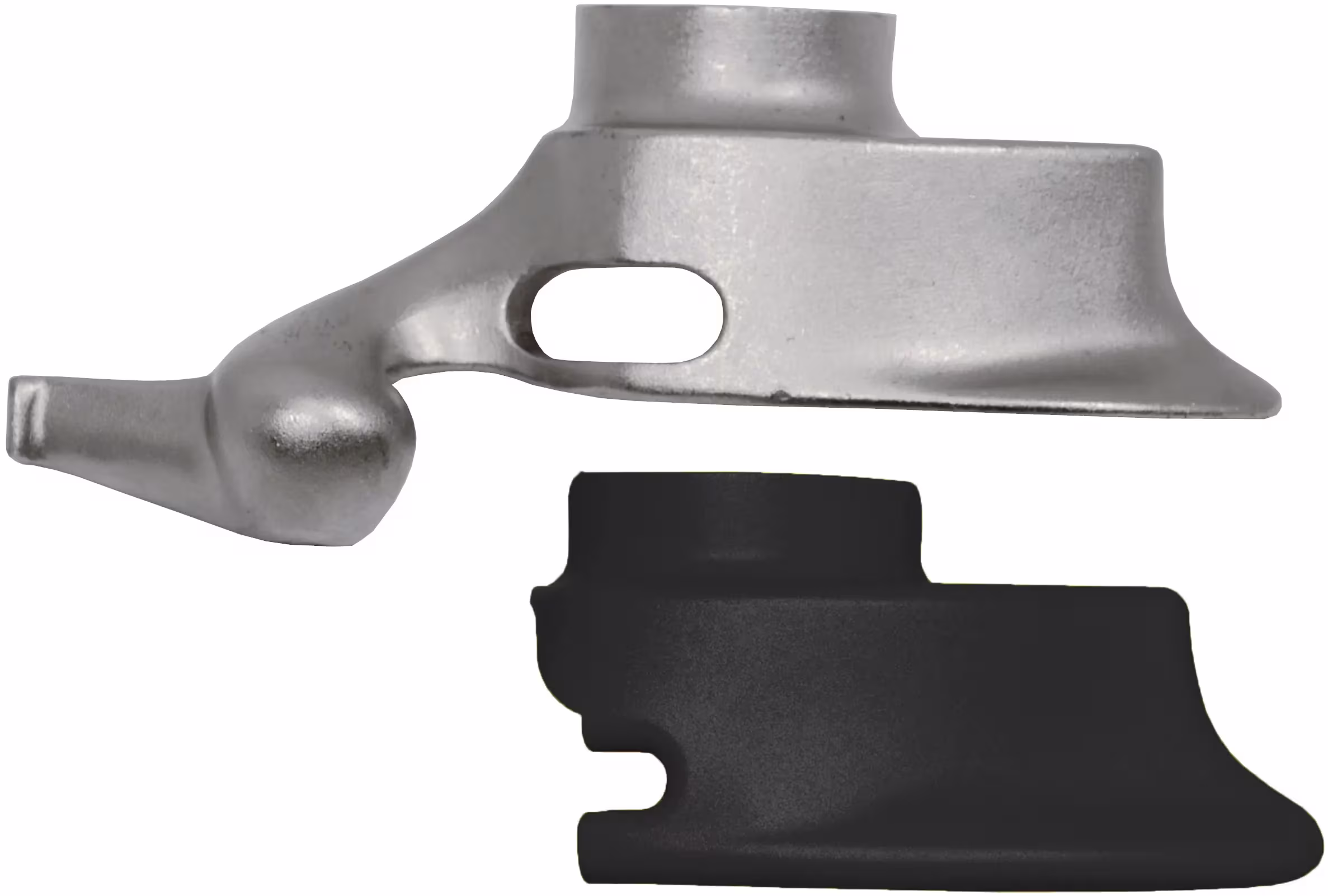

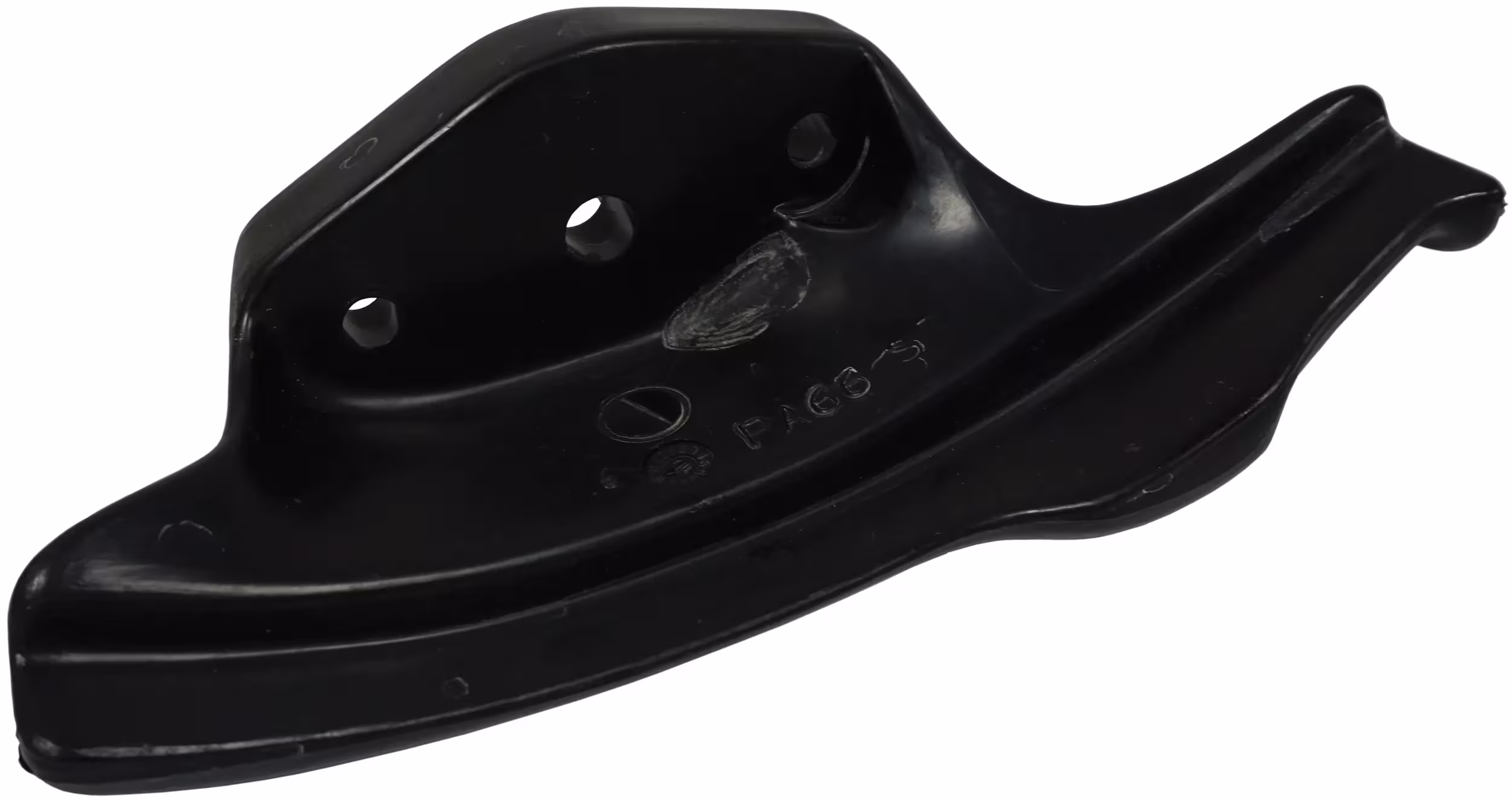

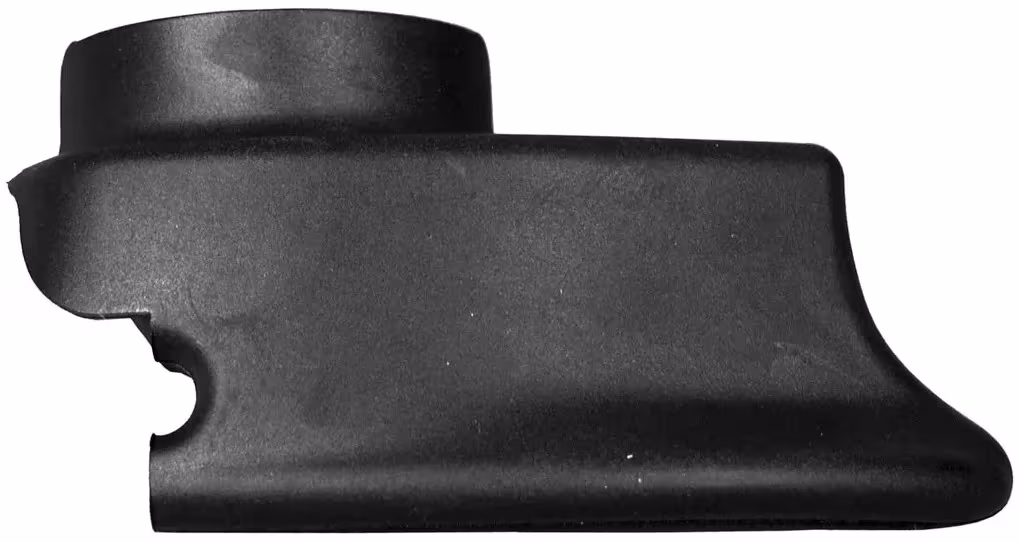

accessory for tire changers

accessory for tire changers

special designed for motorcycle tires, max. tire diameter: 990mm, max. rim width: 12"
Chucking table with fixed clamping claws guaratnees maximum rigidity during assembly. With self-centering locking, internal clamping 12 - 19,5" and external clamping 5 - 24".
Technical data: pressure force: 3000kg, max. locking device turning moment: 1200 Nm, locking device turning speed: 6,5 rpm, three-phase motor: 400V / 50Hz / 0,55KW, working pressure: 8 - 10 bar, colour: anthracite / RAL 7016

max. tire diameter: 1050mm (41"), max. rim width: 12", tiltable
with double-acting bead break pistons from light metal, assembly paste holder, FS unit, self-centering clamping device and pedal operating. Assembly head working area 8 - 24", bead break shovel flexible and shaped, assembly head with aluminium rim protection, control of assembly head with automatic removal of the rim, metal side cover
Technical data: external clamping: 10 - 20", internal clamping: 12 - 22,5", bead break strength: 3600kg, motor power: 0,75 kW, turning speed: 7,3 rpm, max. torque: 1200 Nm, electro connection: 230 - 400 V / 50 - 60 Hz, colour: anthracite / RAL 7016

Note: plus freight and discharge costs

accessory for tire balancing machine

max. wheel diameter 41", automatic cycle / program sequence
graphic LCD display 132 x 40mm with backlight, automatic testarm up to wheel diameter 26", with wheel hood and car cones, without pneumatic radar lock, with quick release nut, colour: anthracie / RAL 7016


Note: plus freight and discharge costs

car, laser-assisted, pinpoint weight position, 17" TFT monitor, automatic width measurement with sonar
Balancing without control run! Two laser spots each indicate the correct position for attaching adhesive weights and impact weights. The measurement time for a wheel of medium size is less than 5s. The pneumatic clamping device enables quick clamping of the wheel onto the machine and the LED light illuminates the position where the adhesive weights are applied. The wheel data input for distance, diameter and width is automatic. With OWB feature to optimize time and weight, as well as electric brake and wheel guard.

Technical data:
rim width: 1,5 - 20"
rim diameter: 10 - 28" (30" manual)
wheel diameter (max.): 1016mm
wheel width (max.): 480mm
wheel weight (max.): 75kg
speed: 100 rpm
dimensions (packed - WxDxH): 1130 x 1450 x 1150mm
weight (packed): 175kg
electrical connection: 115 - 230 V / 50/60 Hz
compressed air connection: 8 - 10 bar

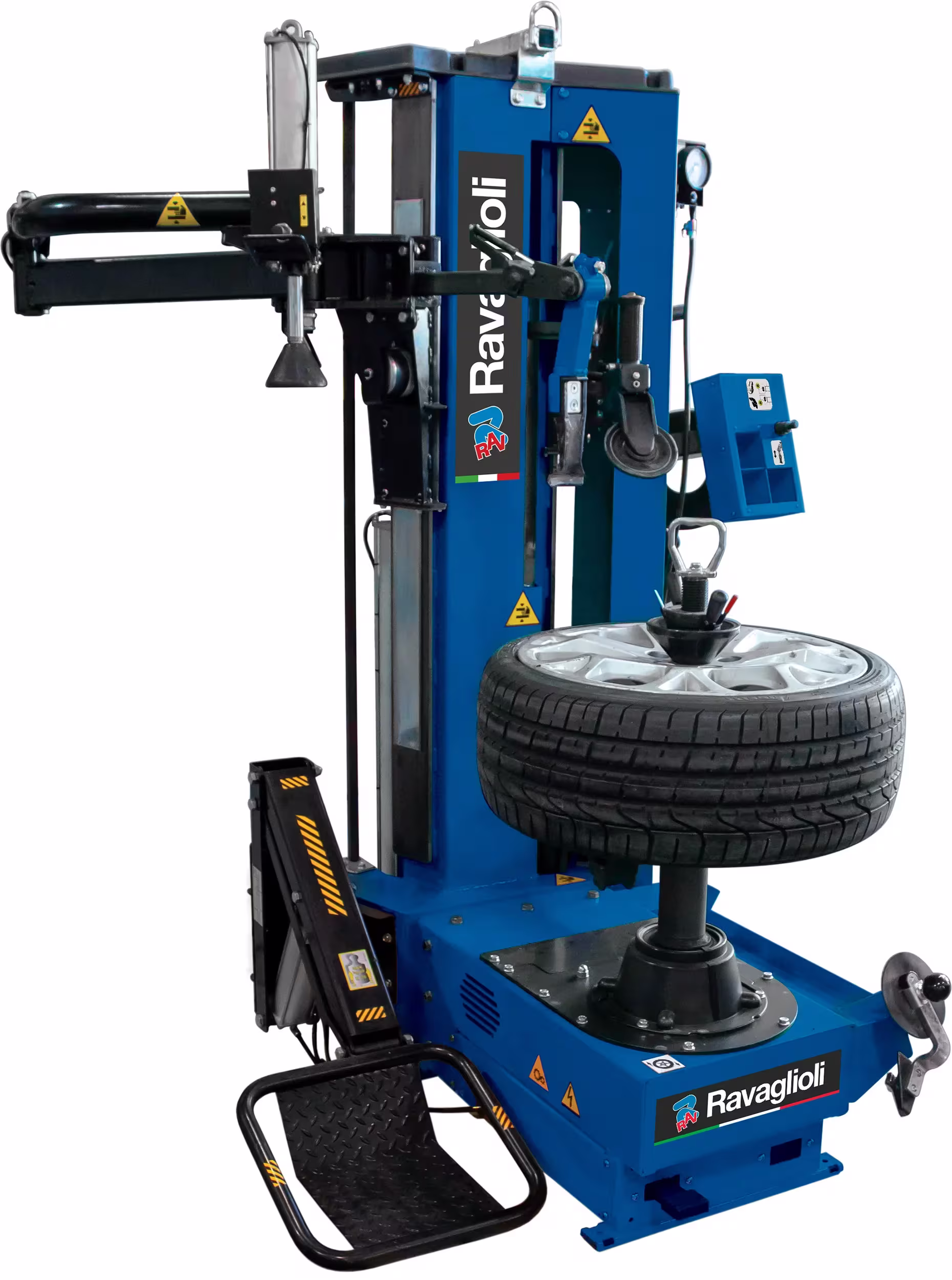

automatic, without tire lever, with pneumatic bead retractor, for tires Ø from 10-30", max. tire width: 15"
The leverless tire changer is equipped with a patented tool that allows fast and effortless work, even with new types of tires (ultra-low profile / RUN-FLAT tires). The central fixture with swivel plate, which is also suitable for drop-center rims, has a self-locking mechanism that makes the operator's work easier. The rotation speed can be adjusted at any time (0-15 rpm) thanks to an inverter motor (1.5 kW) with a speed limiter to protect the tire from excessive forces, colour: anthracie / RAL 7016
Scope of delivery: tire changer, incl. quick-release nut, auxiliary mounting arm, wheel lift and WDK-KIT

rim Ø: 10" - 30", wheel width 15", total wheel Ø 47"
Leverless tire mounting technology for work even with difficult wheel-tire combinations. A stepless inverter motor enables dynamic screwing in. This gives the bead enough time to slide into the drop center and reduces stress at the traction point to a minimum. No cables, chains or Bowden cables are required to adjust the tool. Already included in the scope of delivery: pneumatic auxiliary arm, bead chain, pedal controlled tire inflator, protection for aluminum rims / reverse mounting, stepless inverter motor (0 - 18 rpm)

Technical data:
wheel clamping diameter: 10" - 30"
max. wheel diameter: 1200mm / 47"
max. wheel width: 380mm / 15"
motor power: 1,5 kW - inverter
max. torque: 1200 Nm
speed: 0 - 18 rpm
max. opening bead breaker: 35"
bead pressure force on blade (10 bar): 12000 N
working pressure (recom.): 8 - 10 bar

automatic, without assembly lever, for tire Ø from 10 - 30", max. wheel width 15"
The leverless tire changer is equipped with a patented tool that allows fast and effortless work, even with new types of tires (ultra-low profile / RUN-FLAT tires). The central fixture with swivel plate, which is also suitable for drop-center rims, has a self-locking mechanism that makes the operator's work easier. The rotation speed can be adjusted, thanks to an inverter motor (1.5 kW) with speed limiter to protect the tire in case of excessive forces (0-15 rpm), colour: anthracie / RAL 7016
Scope of delivery: tire changer
