VICTORIA Electric full suspension "eParcours 12.8" Mod. 22
wave, 27,5", macaron mint matt, 1x10-speed SHIMANO "Deore", 56 cm / L
Read more Read less - Article number: 02977452
- Original number: KHA22238
The bike is equipped with an aluminum frame and has a Suspension Fork with 100 mm fork travel. Drives are provided by a BOSCH Performance Line CX mid-motor with a power output of 250 W and a chain drive. A 1x10-speed SHIMANO "Deore" derailleur enables gear selection. The hydraulic Disc Brakes provide reliable braking power. The permissible system weight is 140 kg. The model includes an electronic Pushing Help, a chain guard, Fenders and a system luggage carrier. The battery capacity is 625.0 Wh. The wheel size is 27.5 ''.
Product information
- Access height 439 mm
- Battery capacity 625.0 Wh
- Bosch Smart System no
- Brake system hydraulic disc brake
- Chainstay 500 mm
- Colour designation macaron mint matt
- Drive chain
- Drive system BOSCH Performance Line CX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features fender
- Frame height 56 cm
- Frame shape wave
- Frame size L
- Frame travel 100 mm
- Gears 10-speed
- Gender ladies
- Length 1958 mm
- Main colour green
- Material 1 aluminium
- Passage width 137 mm
- Permissible system weight 140 kg
- Reach 425 mm
- Seat angle 73.0 °
- Seat tube 560 mm
- Secondary colour black
- Shifting name 1x10-Gang SHIMANO "Deore"
- Shifting type derailleur shifting
- Stack 635 mm
- Standover height 12 mm
- Steering tube 175 mm
- Steering tube angle 68.0 °
- Support up to 25km/h
- Toptube 619 mm
- Transmission 1x 10-speed
- Travel 100 mm
- Type trekking bike
- Wheel distance 1218 mm
- Wheel size 27,5 "
- Battery: BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh
- Bottom bracket: BOSCH
- Brake: SHIMANO "BR-MT420/410"
- Brake lever: SHIMANO "BL-M4100"
- Chain / belt: SHIMANO "CN-LG500"
- Chain guard: CURANA "Chainguard"
- Chain ring / pulley: FSA, 38T, megatooth
- Charger: BOSCH 4 Ah
- Crank: FSA "CK-745", Gen.4
- Damper: SUNTOUR"RS19 EDGE LOR8", 80% Lockout
- Display: BOSCH, "SmartHub " 4-Stufen, Remote Control, Schiebehilfe
- Engine: BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
- Fender: CURANA "Apollo", 70mm, schwarz matt, Spoiler
- Fork: SUNTOUR "SF21-MOBIE34 AIR", einstellbar, Lockout, 100mm
- Frame: Bosch-Intube-SUV-Full-Suspension-Frame, Aluminium 6061

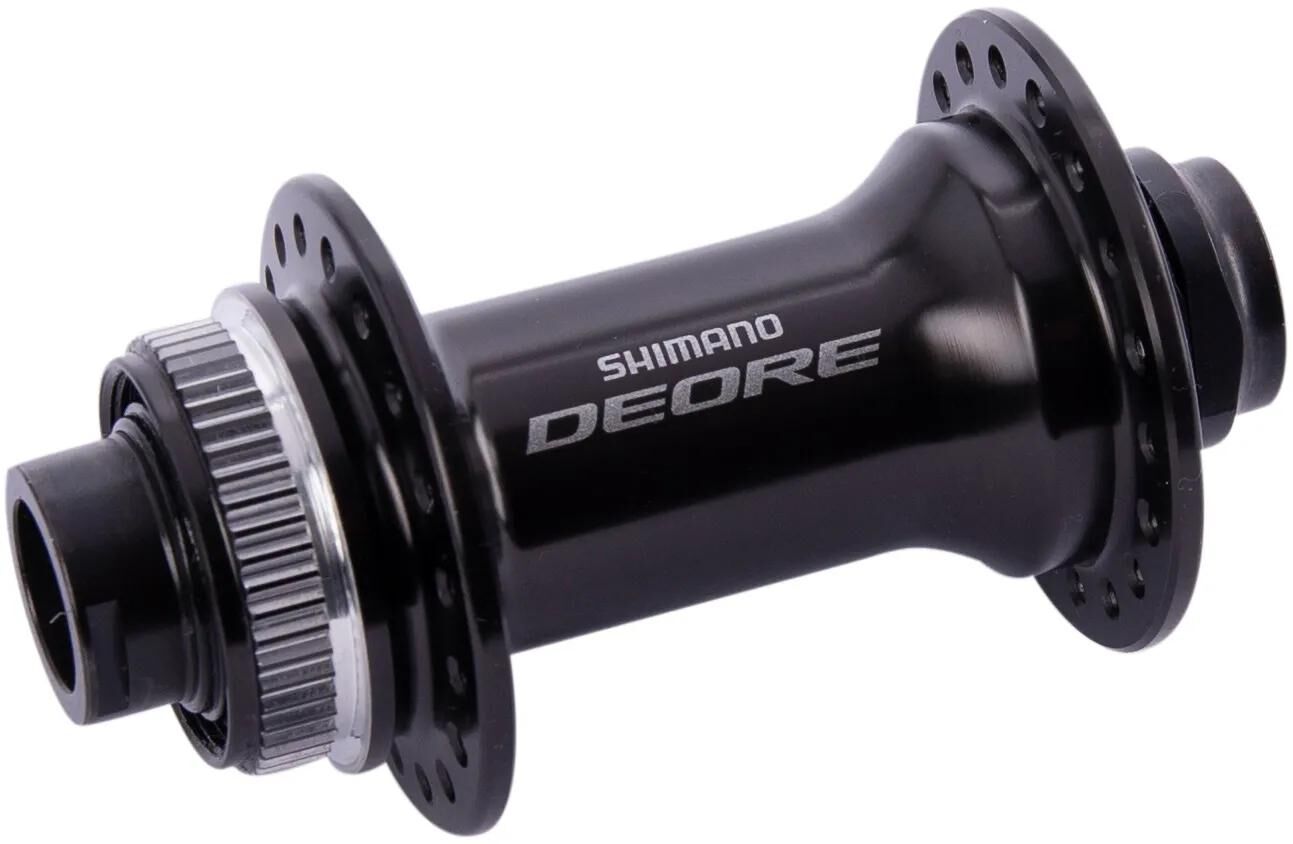

- Front hub: SHIMANO "HB-M6010 ", QR 15, Disc, Center Lock
- Front light: CONTEC "Dlux 120 E+" 120 Lux
- Front rotor: SHIMANO "SM-RT30", 203mm, Center-Lock
- Front tire: SCHWALBE "Johnny Watts", 60-584, Reflex
- Grips: CONTEC "Tour Wing"
- Handlebar: ERGOTEC "Riser Bar 50", 720 mm, Ø 31,8 mm, schwarz
- Pedals: VP "VP-531E", Alu,
- Rear carrier: MIK-ALU-GEPÄCKTRÄGER "TA78552C" MIK-System
- Rear derailleur: SHIMANO "Deore RD-M5130-GS"
- Rear hub: SHIMANO "FH-M6010-B", 32 L., QR, Disc, Center-Lock
- Rear light: CONTEC „TL-335 E-Stop“, mit Stoplicht
- Rear rotor: SHIMANO "SM-RT30", 180mm, Center-Lock
- Rear tire: SCHWALBE "Johnny Watts", 60-584, Reflex
- Rims: MACH 1 "MAXX"
- Saddle: SELLE ROYAL "Lift" Italy, Moderate Female
- Seatpost: LIMOTEC "A1 + RM07", Suspesion-Dropper-Post, 75mm
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: SHIMANO "Deore" SL-M5130-R10"
- Spokes: 2,0 mm, Niro, black
- Sprocket / pulley: SHIMANO "CS-LG600-10 " 11-43 Z. silver
- Stands: URSUS "King2", für Victoria Hinterbau, 40 mm, verstellbar
- Stem: Victoria "Intigrated Stem", Ø31,8 mm, schwarz
- Supplier Article Number: KHA22238
- EAN: 4251507987332
- MSRP: €3,999.95
- WEEE registration number: DE92509320
- DST-Code: 1B01
- SB-Article: No
- Bidex-Code: 122010
- Fedas-Code: 155021
- Brand/Supplier VICTORIA
- Unit of measure: PIECE
- Weight: 30 kg
| Article | Price | |
|---|---|---|
 | ||
 bracket for 31,8mm handlebar clamp Read more Read less
| ||
 | ||
 | ||
 suitable for eTrekking 6/7/8/10/11/12 mod.20 and eManufakur 11/12 mod.20 Read more Read less
| ||
 | ||
 carrier attachment 50mm, self-service package Read more Read less
| ||
 | ||
 horizontalincl. mounting plate 0.299.931/6 Read more Read less
| ||
 10-speed, right, with gear display Read more Read less
| ||
 11-13-15-17-20-23-26-30-36-43 teeth Read more Read less
| ||
 rear, 1700mm line, right lever, resin pads, black lever, J-kit Read more Read less
| ||
 front, 1000mm line, left lever, resin pads, black lever, J-kit Read more Read less
| ||
 Level 6, wall thickness 1,9-2,7-1,9mm Read more Read less
| ||
 | ||
 | ||
 suitable for all Bosch chargers Read more Read less
| ||
medium cage (GS), self-service package Read more Read less
| ||
 display, 4 levels, remote control, sliding aid, please order the bracket (0.299.943/1) separately Read more Read less
| ||
 | ||
60-584 (27,5" x 2,40), black /reflex, E-50, 940g Read more Read less
| ||
 100mm thru axle, 36 holes, without lockring Read more Read less
| ||
 "Active/ Performance Line", from 2014, oval, incl. power cable Read more Read less
| ||
 |
| Article | Price | |
|---|---|---|
 wave, 27,5", good grey metallic matt, 1x10-speed SHIMANO "Deore", 56 cm / L Read more Read less
|
Full suspension cross-countryWith "eParcours", VICTORIA is offering a completely new cross-over series which, compared to the "eAdventure" series, has air-sprung front and rear suspension and thus takes comfort even further. The "eParcours 12.8" is the entry-level model. This already manages the perfect balancing act between trekking bike and MTBs and is rightly considered to be the most dynamic of all VICTORIA pedelecs to date.Comfort, for which the brand stands, also plays a major role in the "eParcours 12.8". The suspension Fork and Seatposts in combination with the 60 mm wide SCHWALBE "AL Ground" tires provide optimum grip even on unpaved paths. The sporty BOSCH "Performance CX" mid-motor guarantees full support with 85 Nm torque. Even on steep uphill stretches, it motivates you up to 25 km/h. It is powered by the BOSCH "PowerTube" Battery with 625 Wh, which is fully integrated into the frame. The SHIMANO ten-speed "Deore" derailleur gears round off the drive package of the "eParcours 12.8". The gear ratios and gear steps are designed for steep climbs and fast descents on varied terrain. Large hydraulic disc brakes (203/180 mm), also from SHIMANO, ensure the right level of safety.
