Out of Stock
VICTORIA Electric trekking bike "eManufaktur 11.7" Mod. 22
diamond, 28", dark night metallic, 5-speed SHIMANO "Nexus" freewheel, 58 cm / L
Read more Read less - Article number: 02974020
- Original number: BK22HV0030
(Final Edition, will be replaced by MANOC 3) The revised eManufaktur series offers a total permissible vehicle weight of 149 kg (including rider and additional load). The eManufaktur 11.7 with BOSCH Performance drive and PowerTube 500 (including adapter for subsequent conversion to PowerTube 625) is available with either coaster or freewheel (only applies to Wave).
PU 1
Product information
- Battery capacity 500.0 Wh
- Bosch Smart System no
- Brake system hydraulic disc brake
- Chainstay 460 mm
- Colour designation dark night metallic
- Drive chain
- Drive system BOSCH Performance Line
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , electronic sliding aid , frame lock , suspension fork
- Frame height 58 cm
- Frame shape diamond
- Frame size L
- Gears 5-speed
- Gender gents
- Length 1978 mm
- Main colour blue
- Material 1 aluminium
- Model series eManufaktur
- Permissible system weight 149 kg
- Reach 458 mm
- Seat angle 73.0 °
- Seat tube 580 mm
- Secondary colour black
- Shifting name 5-Gang SHIMANO "Nexus" Leerlauf
- Shifting type internal gear shifting
- Stack 660 mm
- Standover height 920 mm
- Steering tube 170 mm
- Steering tube angle 68.0 °
- Support up to 25km/h
- Toptube 660 mm
- Travel 80 mm
- Type trekking bike
- Wheel distance 1227 mm
- Wheel size 28 "

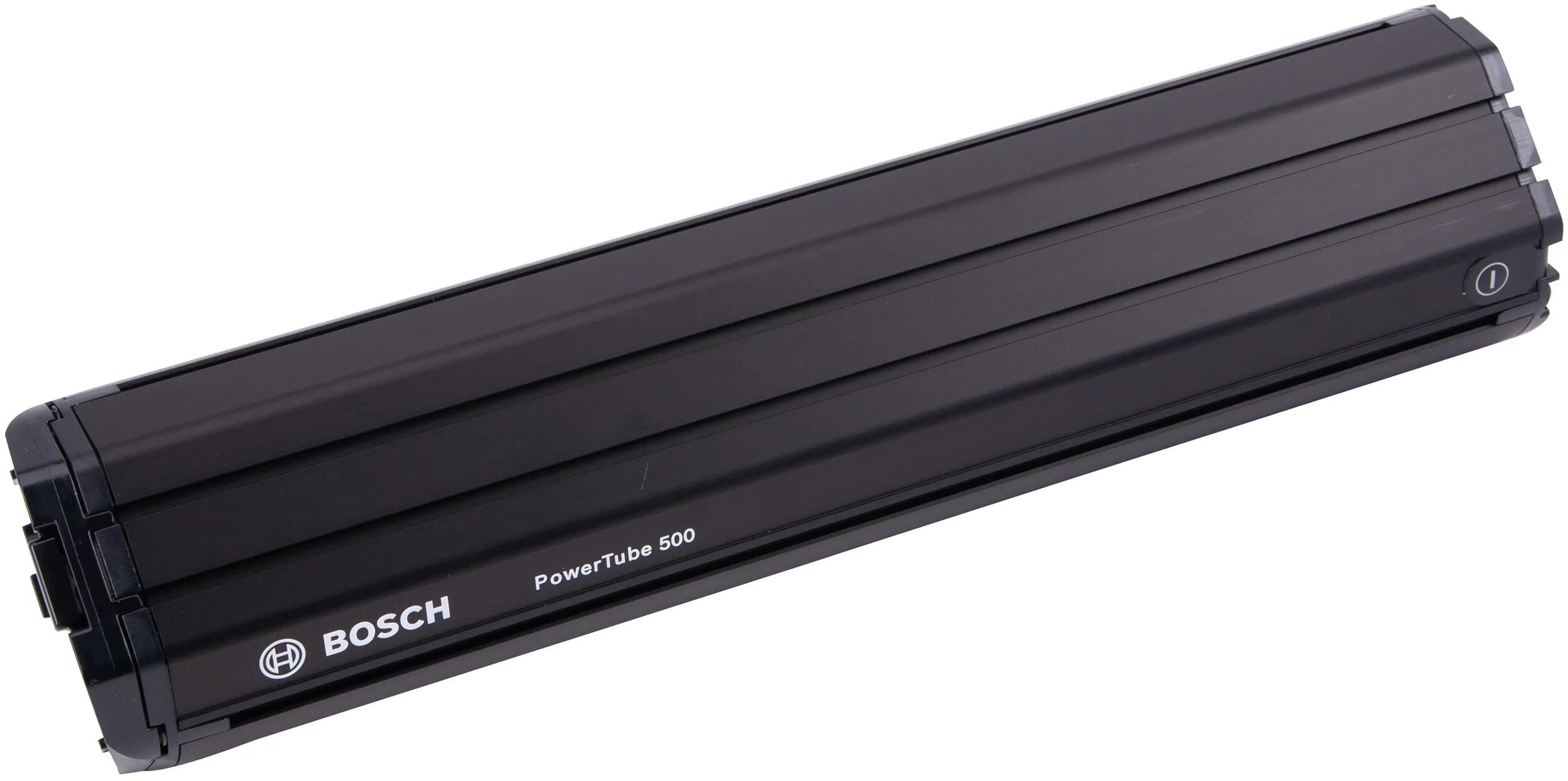

- Battery BOSCH "PowerTube 500", Lithium-Ionen mit BMS, 500 Wh
- Bottom bracket BOSCH
- Brake TEKTRO "HD-T390"
- Brake lever TEKTRO "HD-T390"
- Chain / belt KMC "Z1eHX narrow EPT", 1/2x3/32", 116 Glieder
- Chain guard HESLING "Velo" Bosch Gen.3 schwarz matt
- Chain ring / pulley FSA "W0120", für BOSCH Gen.3

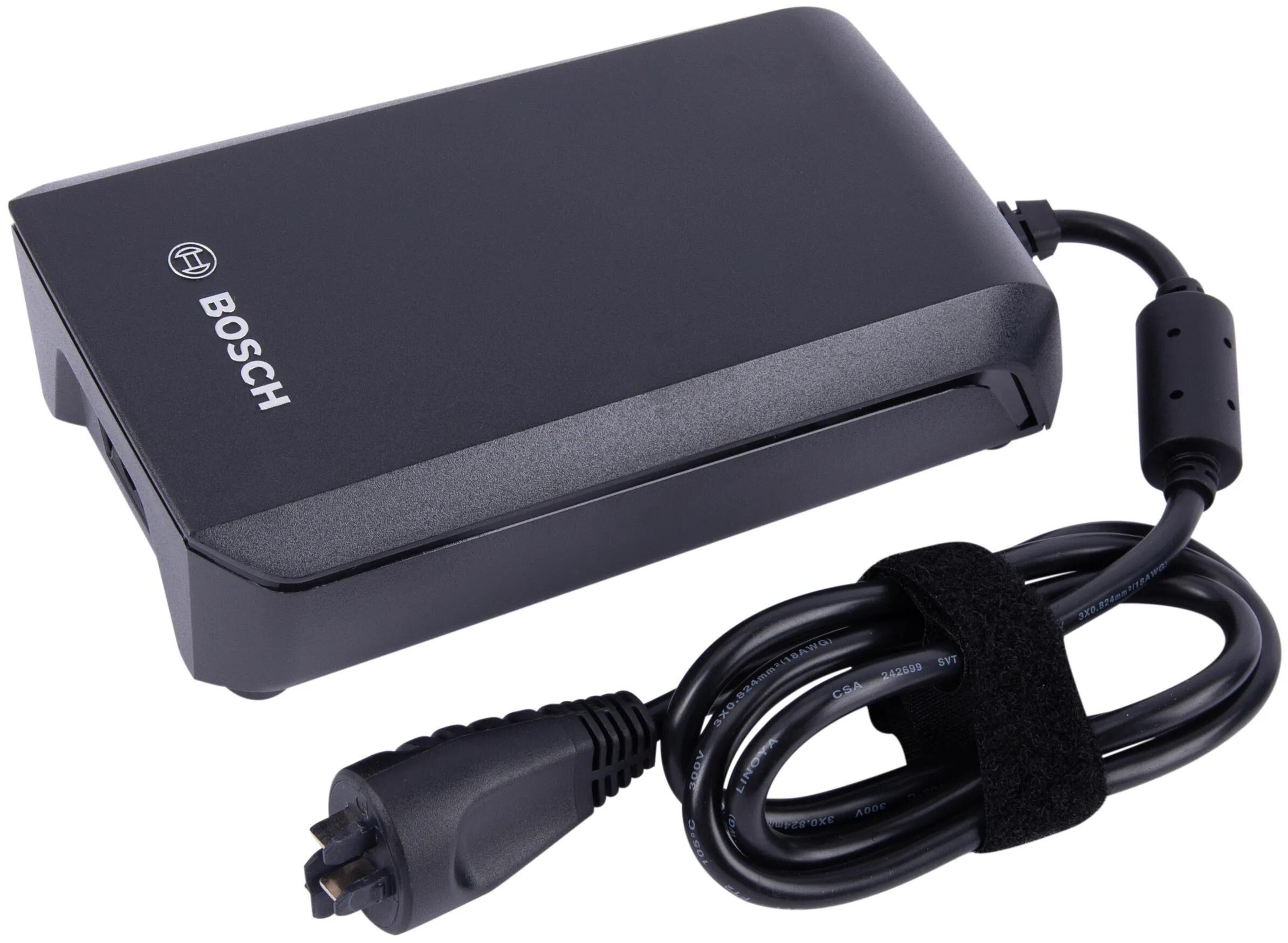

- Charger BOSCH, 4A
- Crank FSA "CK-602", Gen.3,Alu, 170 mm, schwarz
- Derailleur hanger Slider Dropout

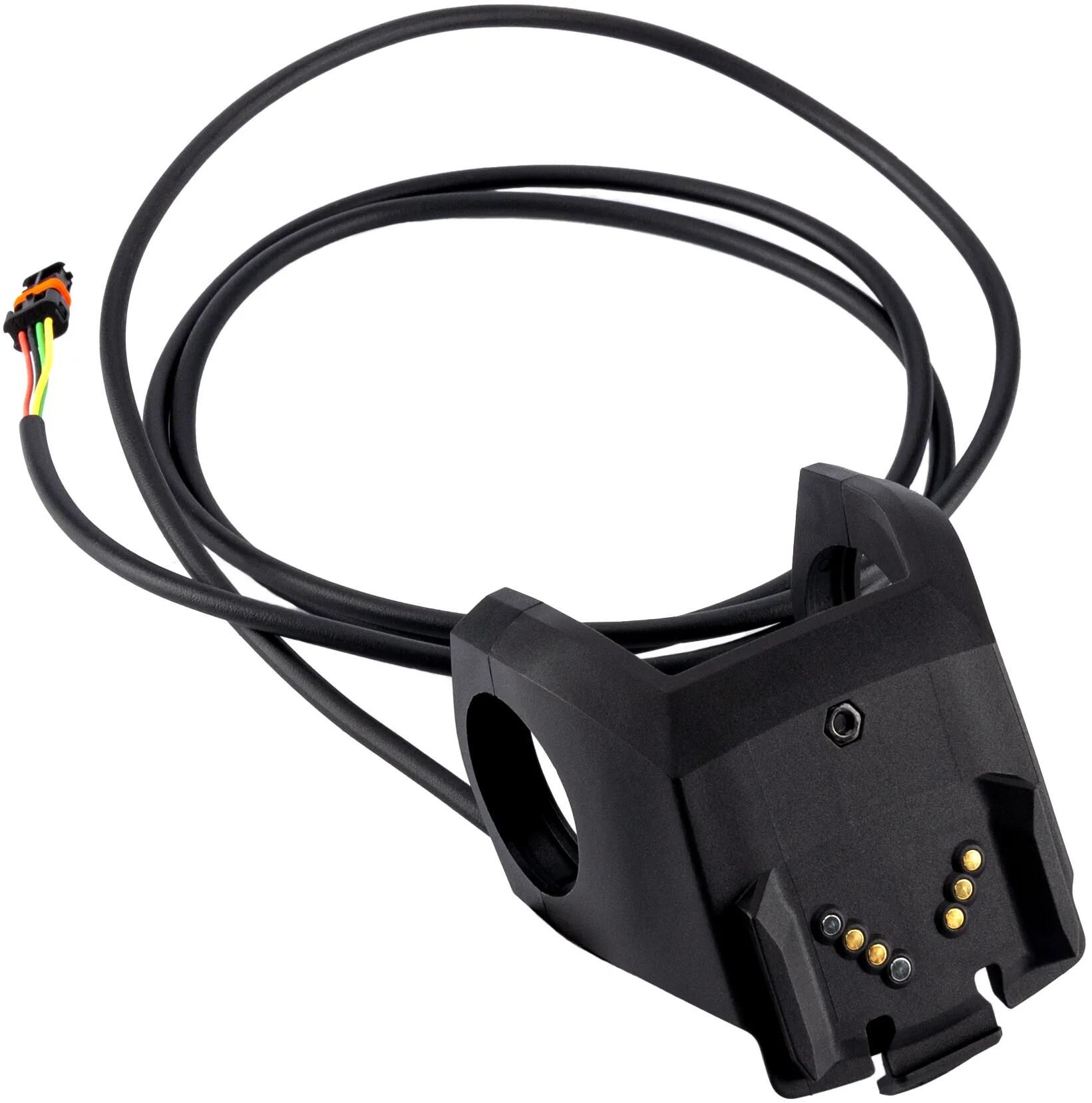

- Display BOSCH, "Intuvia " 4-Stufen, Remote Control, Schiebehilfe
- Engine BOSCH Mittelmotor Gen.3 "Performance", 36 V, 250 W
- Fender CURANA "Apollo", 60mm, schwarz matt, Spoiler
- Fork RST "Aerial 29-15", einstellbar, Lockout, 80mm,Disc, Tapered
- Frame Aluminium
- Frame Lock CONTEC "Powerloc" M
- Front hub SHIMANO "HB-MT400", QR 15, Disc, Center Lock
- Front light CONTEC "Luna 120 E+" 120 Lux
- Front rotor TEKTRO "TR180-45", 180mm, Center-Lock
- Front tire CONTINENTAL "Contact Plus" 50-622
- Grips HERRMANS "LineTec"
- Handlebar ERGOTEC "Riser Bar 50", 720 mm, Ø31,8 mm, schwarz
- Pedals UNION "SP-828", Alu, Antislip
- Rear carrier MIK-ALU-GEPÄCKTRÄGER MIK-System
- Rear hub SHIMANO "Nexus" 5-Gg. LL
- Rear light CONTEC „TL-328 E-Stop“, mit Stoplicht
- Rear rotor TEKTRO "TR180-45", 160mm, Center-Lock
- Rear tire CONTINENTAL "Contact Plus" 50-622
- Rims MACH "630 KARMA Disc"
- Saddle SELLE ROYAL "Orbis" Moderate
- Seatpost ERGOTEC Patent "Skalar", Ø 31,6 mm, 15mm Setback, Alu, black

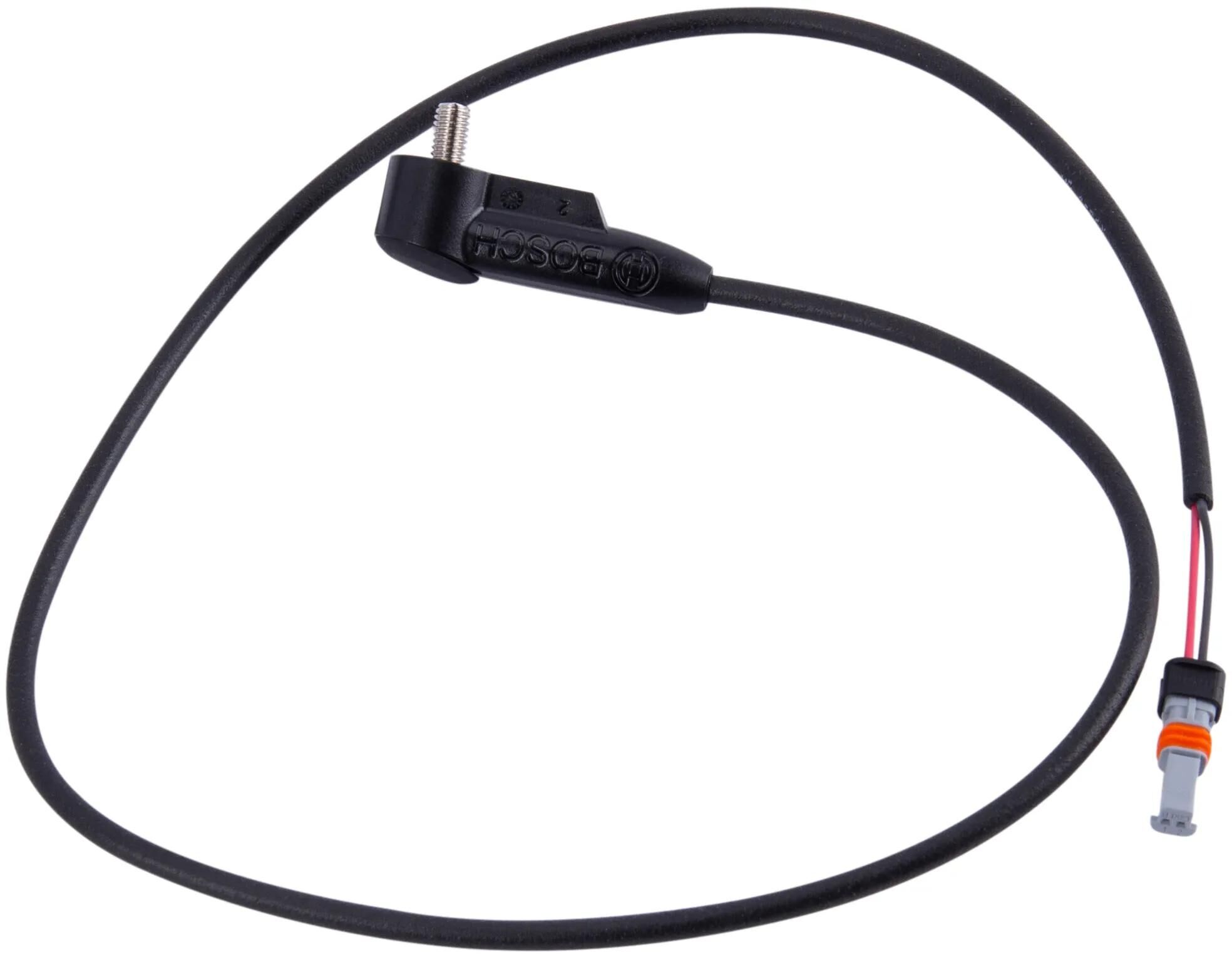

- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever SHIMANO "Nexus", 5-Gg.
- Spokes 2,0 mm, Niro, schwarz
- Sprocket / pulley ESJOT "Single Sprockt", für Shimano Nexus 5E5-Gang, 24 Zähne, schwarz

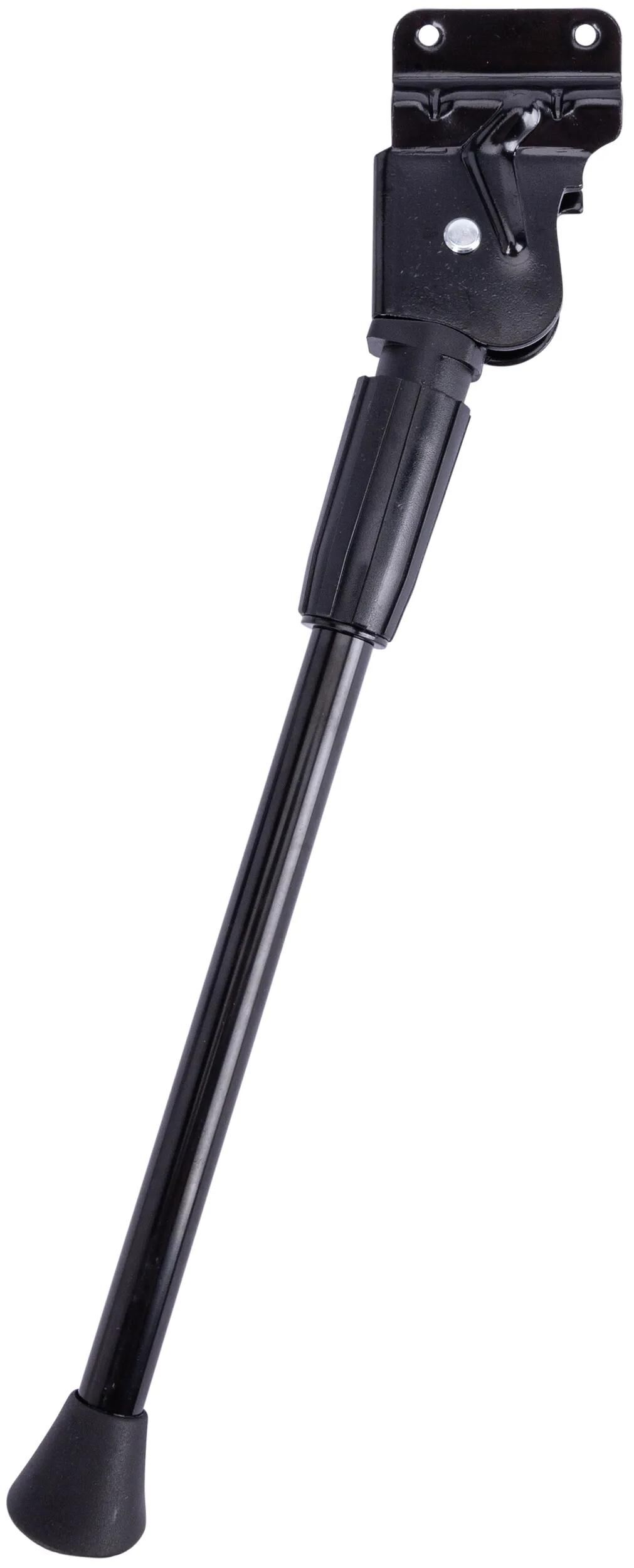

- Stands URSUS "King2", Hinterbau, 40 mm, verstellbar
- Stem ERGOTEC "Octopus XL Ahead 50", Ø31,8 mm, 115mm, verstellbar, schwarz
- Supplier Article Number: BK22HV0030
- EAN 4251507984034
- MSRP: €3,599.00
- WEEE registration number DE92509320
- DST-Code 1B01
- SB-Article No
- Bidex-Code 122010
- Fedas-Code 155021
- Brand/Supplier VICTORIA
- Unit of measure: PIECE
- Weight 28.9 kg
| Article | Price | |
|---|---|---|
 diamond, 28", quartz grey, Enviolo HD, 58 cm / L Read more Read less
| PU 1 |
| Article | Price | |
|---|---|---|
 | PU 1 | |
 | PU 50 | |
 Out of Stock "630 Karma", 28", 36 holes, black, disc Read more Read less
| PU 1 | |
 for hub gears, suitable for eManufaktur 11 series from mod. 20 and Excelsior Pearl mod. 20/21 Read more Read less
| PU 1 | |
 | PU 1 | |
 Out of Stock 36 holes, black, 110mm installation width Read more Read less
| PU 20 | |
 Level 6, Wall thickness 1.9-2.7-1.9 mm Read more Read less
| PU 10 | |
 lateral left, Gen.3, suitable for eManufaktur 11.7, 11.8, 12.8 from mod.20 Read more Read less
| PU 1 | |
 | PU 20 | |
 extension for 500 Wh battery to 625 Wh battery bracketMounting material must be ordered separately:2x 0.281.163/02x 0.281.163/2 Read more Read less
| PU 1 | |
 | PU 1 | |
 Out of Stock Ø 180 mm, old packaging Read more Read less
| PU 20 | |
 | PU 1 | |
 | PU 1 | |
 suitable for eManufaktur 11/12 from mod. 20 and e-Urban mod. 21 / 22 Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 Out of Stock Ø 160 mm, old packaging Read more Read less
| PU 20 | |
 "Active/ Performance Line", from 2014, oval, incl. power cable Read more Read less
| PU 10 | |
 | PU 10 | |
 EPT, self-service package, 128 links Read more Read less
| PU 60 | |
 carrier attachment 50mm, bulk Read more Read less
| PU 100 | |
 Performance, from 2014, colour anthracite Read more Read less
| PU 1 | |
 | PU 36 | |
 suitable for all Bosch chargers Read more Read less
| PU 1 | |
 | PU 10 | |
 Performance, from 2014, colour anthracite Read more Read less
| PU 1 | |
 suitable for eManufaktur 11er/12er from mod.20 Read more Read less
| PU 1 | |
 lateral right, Gen.3, suitable for eManufaktur 11.7, 11.8, 12.8 from mod.20 Read more Read less
| PU 1 | |
 | PU 44 | |
 | PU 1 | |
 suitable for eTrekking 6/7/8/10/11/12 mod.20 and eManufakur 11/12 mod.20 Read more Read less
| PU 50 | |
 below, Gen.3, suitable for eManufaktur 11.7, 11.8, 12.8 from mod.20 Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 100 |
Sporty & powerful touring companionThe VICTORIA "eManufaktur" series offers everyday and touring pedelecs with a particularly attractive frame shape. New for this season is the "eManufaktur 11.7" as an entry-level model with hub gears, in which the BOSCH "PowerTube 500" Battery is fully integrated in the down tube of the hydroformed aluminum frame and thus ensures a sporty, tidy appearance. Thanks to the length adapter, it can also be converted to the more powerful "PowerTube 625".The high-torque BOSCH "Performance" engine is installed for a balanced and natural riding experience. It offers optimum support for every situation and does not falter even in hilly terrain. Shifters are provided by the 5-speed "Nexus" hub gears from SHIMANO.The SUNTOUR Suspension Fork with 75 mm travel ensures comfort. It compensates for bumpy forest and field paths as well as cobblestone passages with ease. It can also be adjusted to the rider's weight or even locked. The hydraulic Disc Brakes from TEKTRO ensure stability and safety. When going downhill, the braking force can be regulated with foresight, but when the going gets tough, it can be just as powerful.The robust, 50 mm wide SCHWALBE "Marathon Plus" tires, the extremely bright 120 lux Front Light and the Rear Light including stop light function round off the overall touring package. The RACKTIME Carrier is compatible with all standard bags and baskets that have this click system. The panniers can also be mounted on the second, lower Stay on the carrier for a better center of gravity and therefore more agile handling.
