VICTORIA Electric trekking bike "eTrekking 7.8" Mod. 22
- Article number: 02975886
- Original number: 87116010000
The eTrekking 7.8 will be based on a new frame platform in which the BOSCH PowerPack 500 is integrated into the design language of the frame via a plastic cover. The BOSCH Performance engine provides high-torque support, with 5-speed Nexus gears - optionally with coaster or freewheel. Also available in large sizes (men's 63, Wave 61).
Product information
- Battery capacity 500.0 Wh
- Bosch Smart System no
- Brake system hydraulic disc brake
- Category trekking bike
- Chainstay 515 mm
- Colour designation agate grey
- Drive belt drive
- Drive system BOSCH Performance Line
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features fender
- Frame height 48 cm
- Frame shape diamond
- Frame size S
- Gears 5-speed
- Gender gents
- Length 1907 mm
- Main colour grey
- Material 1 aluminium
- Reach 404 mm
- Seat angle 74.0 °
- Seat tube 480 mm
- Shifting name 5-Gang SHIMANO "Nexus" Leerlauf
- Shifting type internal gear shifting
- Stack 642 mm
- Standover height 797 mm
- Steering tube 160 mm
- Steering tube angle 71.0 °
- Support up to 25km/h
- Toptube 585 mm
- Travel 63 mm
- Wheel distance 1156 mm
- Wheel size 28 "
- Battery: BOSCH "Powerpack 500", Lithium-Ionen mit BMS, 500 Wh
- Bottom bracket: BOSCH
- Brake: TEKTRO "HD-T280"
- Brake lever: TEKTRO "HD-T280"
- Chain / belt: GATES "CDX", Belt, 130 Z., 1430 mm
- Chain guard: CURANA Kettenschützer "C+"
- Chain ring / pulley: GATES "CDX", 46 Z.
- Charger: BOSCH 4 Ah
- Crank: FSA "CK-602", Gen.3
- Derailleur hanger: Slider Dropout
- Display: BOSCH, "Intuvia " 4-Stufen, Remote Control, Schiebehilfe
- Engine: BOSCH Mittelmotor Gen.3 "Performance", 36 V, 250 W
- Fender: CURANA "Apollo", 60mm, schwarz matt, Spoiler
- Fork: SUNTOUR "SF19-NEX E25 NLO", einstellbar, Lockout, 63mm
- Frame: Alu 6061
- Frame Lock: CONTEC "Powerloc M AZ"
- Front hub: SHIMANO "HB-TX505" QR
- Front light: CONTEC "Dlux 80 E+" 80 Lux
- Front rotor: TEKTRO "TR180-35" 180mm, Center-Lock
- Front tire: SCHWALBE "Marathon", 50-622, Reflex
- Grips: CONTEC "Tour Wing"
- Handlebar: ERGOTEC "Riser Bar 50", 720 mm, Ø 31,8 mm, schwarz
- Pedals: UNION "SP-828", Alu, Antislip
- Rear carrier: MIK-ALU-GEPÄCKTRÄGER "TA7653A" MIK-System

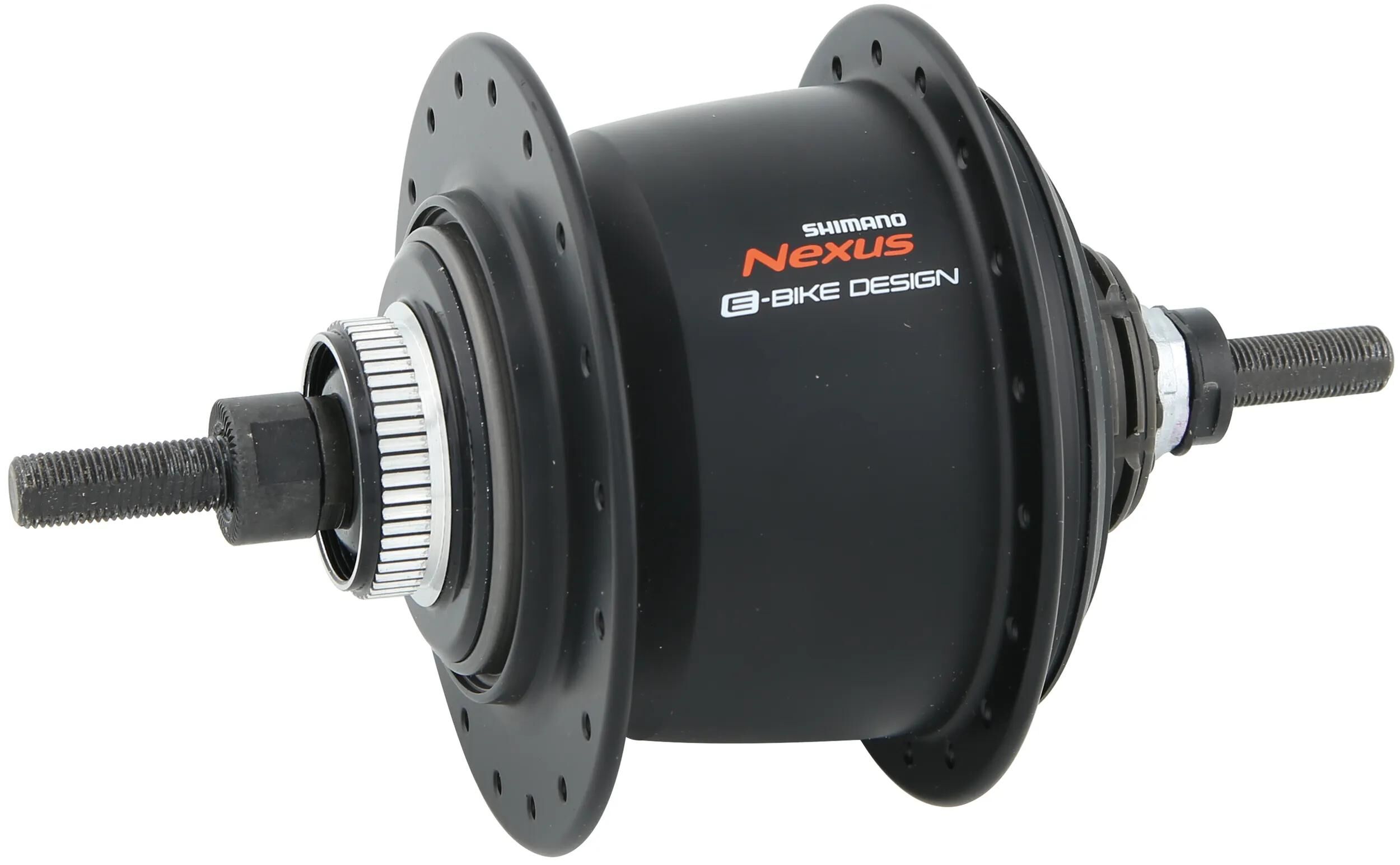

- Rear hub: SHIMANO "Nexus" 5-Gg. LL
- Rear light: CONTEC „TL-335 E-Stop“, mit Stoplicht
- Rear rotor: TEKTRO "TR180-35" 160mm, Center-Lock
- Rear tire: SCHWALBE "Marathon", 50-622, Reflex
- Rims: MACH "630 KARMA Disc"
- Saddle: SELLE ROYAL "ESSENZA" Italy, Relaxed
- Seatpost: ERGOTEC Patent "SP10", gefedert, Ø 27,2 mm, Alu
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: SHIMANO "Nexus", 5-Gg.
- Spokes: 2,0 mm, Niro
- Sprocket / pulley: GATES "CDX", 28 Z.
- Stands: URSUS "King2", für Victoria Hinterbau, 40 mm, verstellbar
- Stem: ERGOTEC "Sepia 50", Ø31,8 mm, verstellbar, schwarz, 90mm
- Supplier Article Number: 87116010000
- EAN: 4251507985765
- MSRP: €2,899.95
- DST-Code: 1B01
- Bidex-Code: 122010
- Brand/Supplier VICTORIA
- Unit of measure: PIECE
- Weight: 28.3 kg
