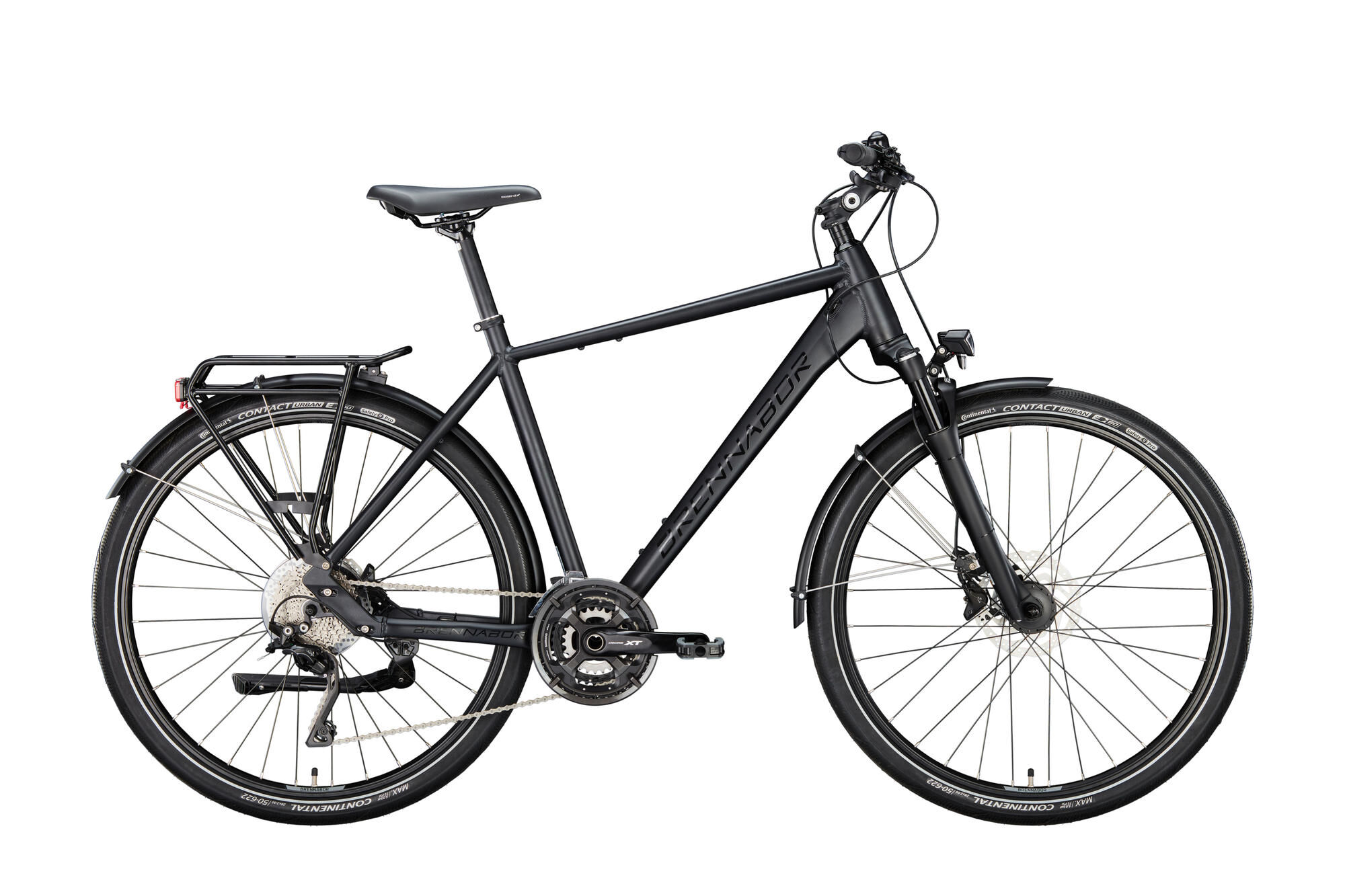

BRENNABOR Trekking bike "T-66" Mod. 24
trapeze, 28", black matt / black glossy, 3x10-speed SHIMANO "Deore XT", 45 cm / S
Read more Read less - Article number: 02507564
- Original number: 12316518-2301
Product information
- Brake system hydraulic disc brake
- Category trekking bike
- Colour designation black matt / black glossy
- Drive chain drive
- E-bike no
- Features chain guard , fender , hub dynamo , suspension fork , system carrier
- Frame height 45 cm
- Frame shape trapeze
- Frame size S
- Gears 30-speed
- Gender ladies
- Main colour black
- Material 1 aluminium
- Permissible system weight 130 kg
- Seat angle 73.0 °
- Seat tube 450 mm
- Secondary colour black
- Shifting name 3x10-Gang SHIMANO "Deore XT"
- Shifting type derailleur shifting
- Steering tube 140 mm
- Steering tube angle 69.0 °
- Stem length 75.0 mm
- Toptube 580 mm
- Transmission 3x 10-speed
- Travel 65 mm
- Wheel distance 1111 mm
- Wheel size 28 "
- Bottom bracket: SHIMANO "BB-MT800", BSA, 68 mm / 73 mm housing width
- Brake: SHIMANO "BR-MT400"
- Brake lever: SHIMANO "BL-MT400"
- Chain / belt: SHIMANO "Deore XT CN-HG95"
- Chain ring / pulley: 26/36/48 Z.
- Crankset: SHIMANO "Deore XT FC-T8000", 170 mm, 26/36/48 teeth
- Derailleur hanger: BRENNABOR for T-40, T-44, T-60, T-62, T-66, from mod. 2022
- Dynamo: SHIMANO Nabendynamo "DH3D37"
- Fender: SKS "A 60 S"
- Fork: SR SUNTOUR "SF21-NCX32-E Air LO-DS", 75 mm travel, QR
- Frame: Aluminuim, trapezoid, 45 cm
- Front derailleur: SHIMANO "Deore XT FD-T8000", Top Swing
- Front hub: SHIMANO "DH-3D37-QR"
- Front light: CONTEC "DLUX 30 N++", 30 lux
- Front rotor: SHIMANO "SM-RT10", Ø 180 mm, Center Lock
- Front tire: CONTINENTAL "Contact Urban", 50-622, Reflex
- Grips: CONTEC "Tour Wing Eco", 130 mm, black
- Handlebar: 680 mm, Ø 31.8 mm
- Headset: ZS44/28.6 / ZS56/40
- Pedals: UNION "SP-822"
- Rear carrier: Aluminum
- Rear derailleur: SHIMANO "Deore XT RD-T8000", long cage
- Rear hub: SHIMANO "Acera FH-M3050", Center Lock, QR
- Rear light: CONTEC "TL-135"
- Rear rotor: SHIMANO "SM-RT10", Ø 180 mm, Center Lock
- Rear tire: CONTINENTAL "Contact Urban", 50-622, Reflex
- Rims: SCHÜRMANN "YAK DISC 21", 21-622, 32 holes, disc brake, with eyelets, black
- Saddle: Selle Royal "Essenza Plus", Moderate
- Spokes: Niro, black
- Stands: URSUS "R81 - Wave Rear"
- Stem: ZOOM "TDS-D299N-8/FOV", 1 1/8", 31,8mm handlebar clamp, 75mm long, adjustable, black
- Supplier Article Number: 12316518-2301
- EAN: 4251507999922
- MSRP: €1,799.00
- Bidex-Code: 102010
- Fedas-Code: 155011
- SB-Article: No
- DST-Code: 1B00
- Brand/Supplier BRENNABOR
- Unit of measure: PIECE
- Weight: 16.4 kg
| Article | Price | |
|---|---|---|

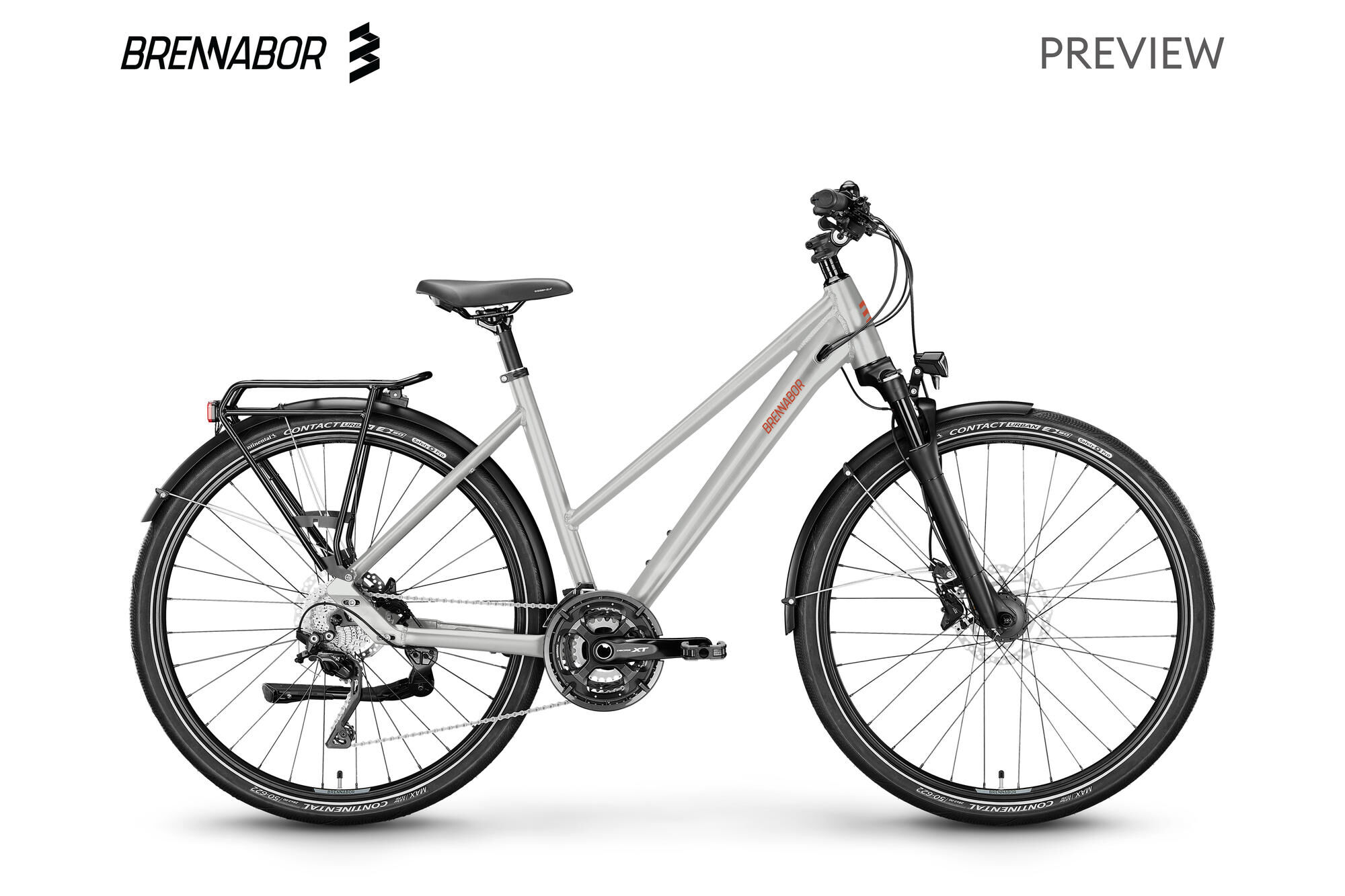

 trapeze, 28", tele grey / copper, 3x10-speed SHIMANO "Deore XT", 45 cm / S Read more Read less
|
