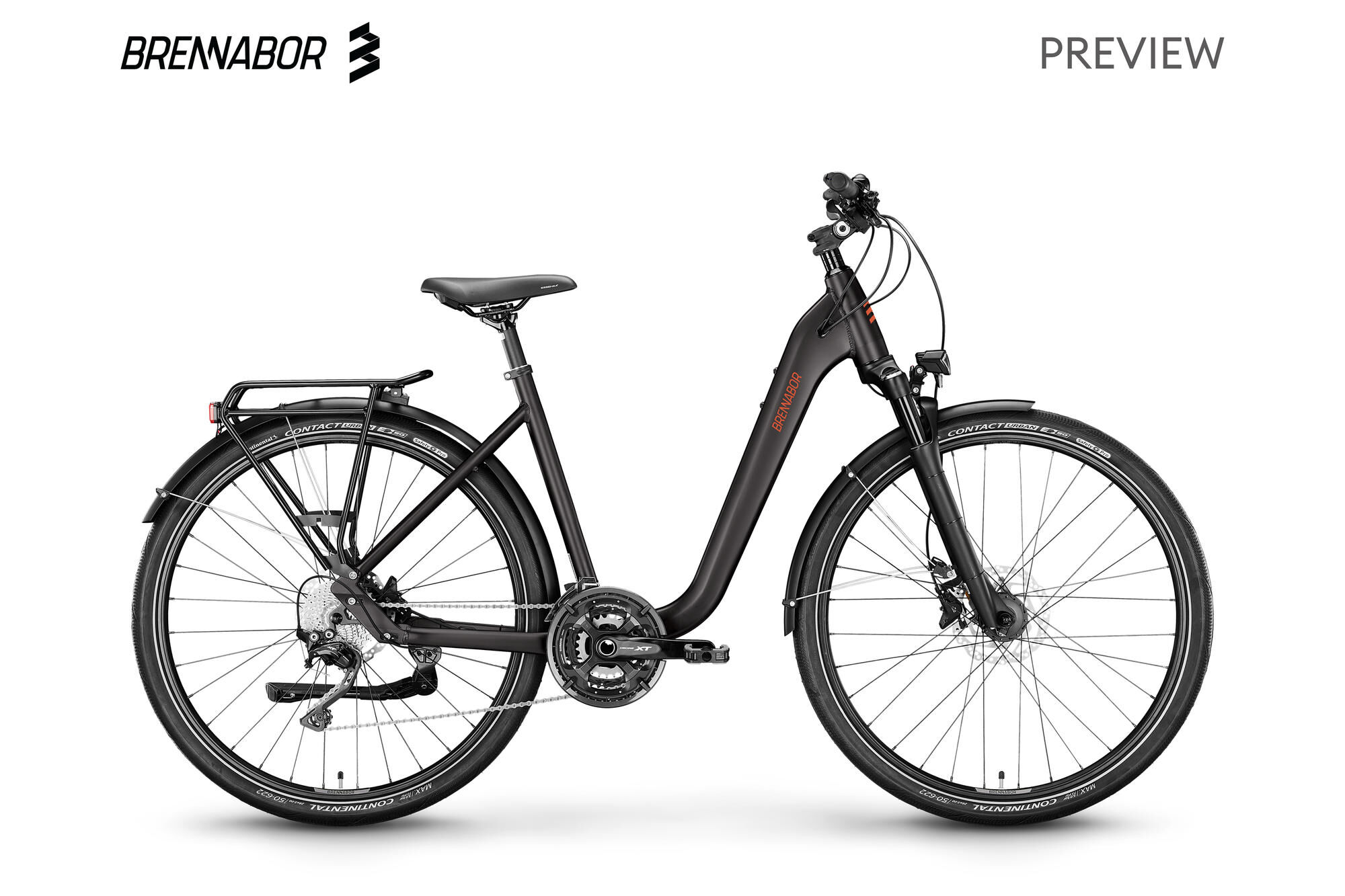

BRENNABOR Trekking bike "T-66" Mod. 24
wave, 28", black matt / black glossy, 3x10-speed SHIMANO "Deore XT", 45 cm / S
Read more Read less - Article number: 02507598
- Original number: 12316519-2301
The trekking bike consists of an aluminum frame and is equipped with a 3x10-speed SHIMANO Deore XT derailleur system. The drives are provided by a chain. The Suspension Fork has a fork travel of 65 mm and offers stability on uneven roads. Hydraulic disc brakes ensure effective brakes. The bike has a Hub Dynamo and is equipped with a chain guard, a system carrier and Fenders. The wheel size is 28". The permissible system weight is 130 kg.
PU 1
Product information
- Brake system hydraulic disc brake
- Colour designation black matt / black glossy
- Drive chain
- E-bike no
- Features chain guard , fender , hub dynamo , suspension fork , system carrier
- Frame height 45 cm
- Frame shape wave
- Frame size S
- Gears 30-speed
- Gender ladies
- Main colour black
- Material 1 aluminium
- Model series T-66
- Permissible system weight 130 kg
- Seat angle 73.0 °
- Seat tube 450 mm
- Secondary colour black
- Shifting name 3x10-Gang SHIMANO "Deore XT"
- Shifting type derailleur shifting
- Steering tube 150 mm
- Steering tube angle 69.0 °
- Stem length 75.0 mm
- Toptube 580 mm
- Transmission 3x 10-speed
- Travel 65 mm
- Type trekking bike
- Wheel distance 1111 mm
- Wheel size 28 "
- Bottom bracket SHIMANO "BB-MT800", BSA, 68 mm / 73 mm housing width
- Brake SHIMANO "BR-MT400"
- Brake lever SHIMANO "BL-MT400"
- Chain / belt SHIMANO "Deore XT CN-HG95"
- Chain ring / pulley 26/36/48 Z.
- Crankset SHIMANO "Deore XT FC-T8000", 170 mm, 26/36/48 teeth
- Derailleur hanger BRENNABOR for T-40, T-44, T-60, T-62, T-66, from mod. 2022
- Dynamo SHIMANO Nabendynamo "DH3D37"
- Fender SKS "A 60 S"
- Fork SR SUNTOUR "SF21-NCX32-E Air LO-DS", 75 mm travel, QR
- Frame aluminium, wave, 45cm
- Front derailleur SHIMANO "Deore XT FD-T8000", Top Swing
- Front hub SHIMANO "DH-3D37-QR"
- Front light CONTEC "DLUX 30 N++", 30 lux
- Front rotor SHIMANO "SM-RT10", Ø 180 mm, Center Lock
- Front tire CONTINENTAL "Contact Urban", 50-622, Reflex
- Grips CONTEC "Tour Wing Eco", 90/130 mm, black
- Handlebar 680 mm, Ø 31.8 mm
- Headset ZS44/28.6 / ZS56/40
- Pedals UNION "SP-822"
- Rear carrier Aluminum
- Rear derailleur SHIMANO "Deore XT RD-T8000", long cage
- Rear hub SHIMANO "Acera FH-M3050", Center Lock, QR
- Rear light CONTEC "TL-135"
- Rear rotor SHIMANO "SM-RT10", Ø 180 mm, Center Lock
- Rear tire CONTINENTAL "Contact Urban", 50-622, Reflex
- Rims SCHÜRMANN "YAK DISC 21", 21-622, 32 holes, disc brake, with eyelets, black
- Saddle Selle Royal "Essenza Plus", Moderate
- Seatpost ZOOM "SP-C255/ISO-M", Ø 30.4 mm, 350 mm long
- Spokes Niro, black
- Stands URSUS "R81 - Wave Rear"
- Stem ZOOM "TDS-D299N-8/FOV", 1 1/8", 31,8mm handlebar clamp, 75mm long, adjustable, black
- Supplier Article Number: 12316519-2301
- EAN 4251507999953
- MSRP: €1,799.00
- Bidex-Code 102010
- Fedas-Code 155011
- SB-Article No
- DST-Code 1B00
- Brand/Supplier BRENNABOR
- Unit of measure: PIECE
- Weight 16.4 kg
| Article | Price | |
|---|---|---|
 Out of Stock wave, 28", anthracite / copper matt, 3x10-speed SHIMANO "Deore XT", 45 cm / S Read more Read less
| PU 1 |
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|

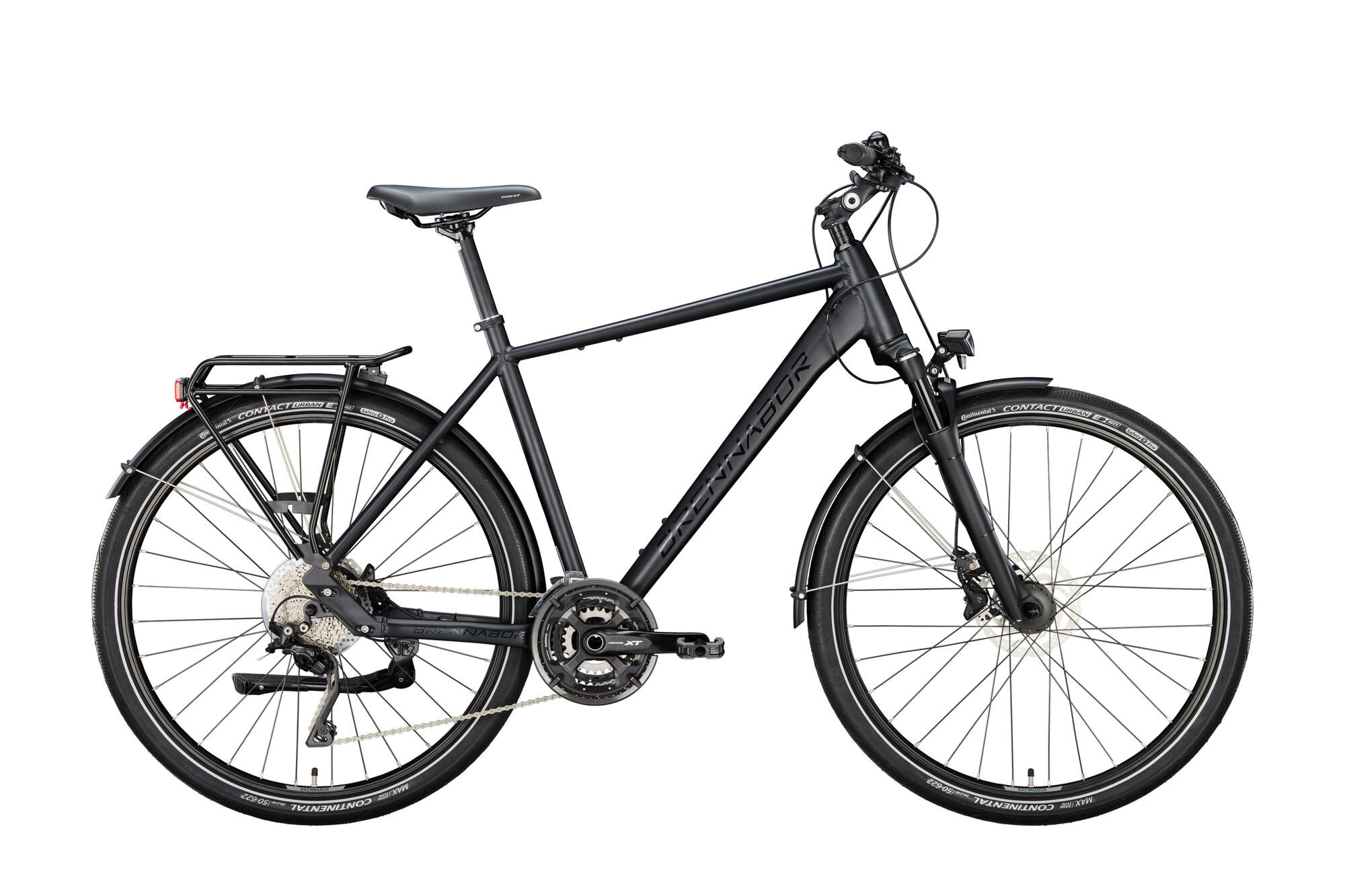

 diamond, 28", black matt / black glossy, 3x10-speed SHIMANO "Deore XT", 50 cm / M Read more Read less
