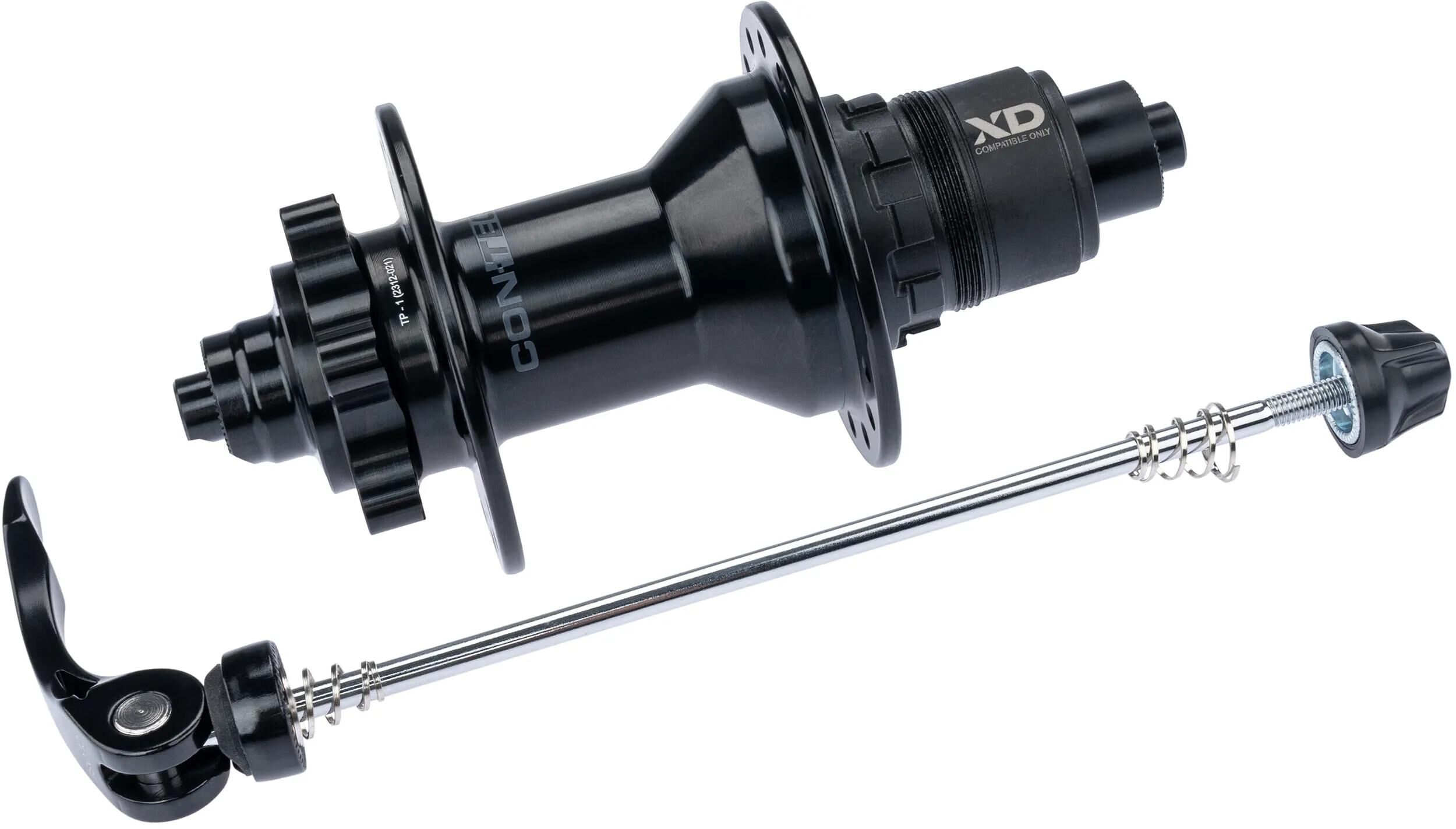

CONTEC Kassetten-Hinterradnabe "Eroq DB"
11-/12-speed SRAM XD, installation width 135 mm
- Article number: 07476246
- Original number: RTP XD DB
32 hole, hollow axle for quick release, 6-hole disc brake mount, suitable for E-bikes, incl. quick release CONTEC "Eroq.r", black
Aluminum hub body, ball bearings, robust steel Freewheel Body, 27-tooth ratchet freehub system, 3 pawl arrangement
PU 25
Product information
- Axle hollow axle 9 mm
- Bearing type ball bearing
- Brake mounting disc - 6-hole
- Brake track no , yes
- Chainline 41.5 mm
- Flange diameter 68 mm
- For wheel standard
- Freewheel body XD
- Freewheel body material steel
- Freewheel system 27
- Gears 11-fach , 12-fach
- Hub body material Aluminium
- Installation width 135 mm
- Main colour black
- Mounting rear wheel
- Number of pawls 3 pcs.
- Number of spoke holes 32 holes
- Quick release inkl. 153 mm Schnellspanner
- Spoke hole diameter für 2,00 und 2,34 mm
- Spoke type J-Bend
- Text wheel configurator suitable for E-bike
- Type cassette
- Variant Article
- Supplier Article Number: RTP XD DB
- EAN: 4251971146358
- MSRP: €79.95
- Fedas-Code: 160452
- SB-Article: No
- Bidex-Code: 204030
- DST-Code: 2P04
- Brand/Supplier CONTEC
- Unit of measure: PIECE
- Weight: 0.369 kg
| Article | Price | |
|---|---|---|
 for 135mm installation width, total length: 153mm Read more Read less
| PU 25 | |

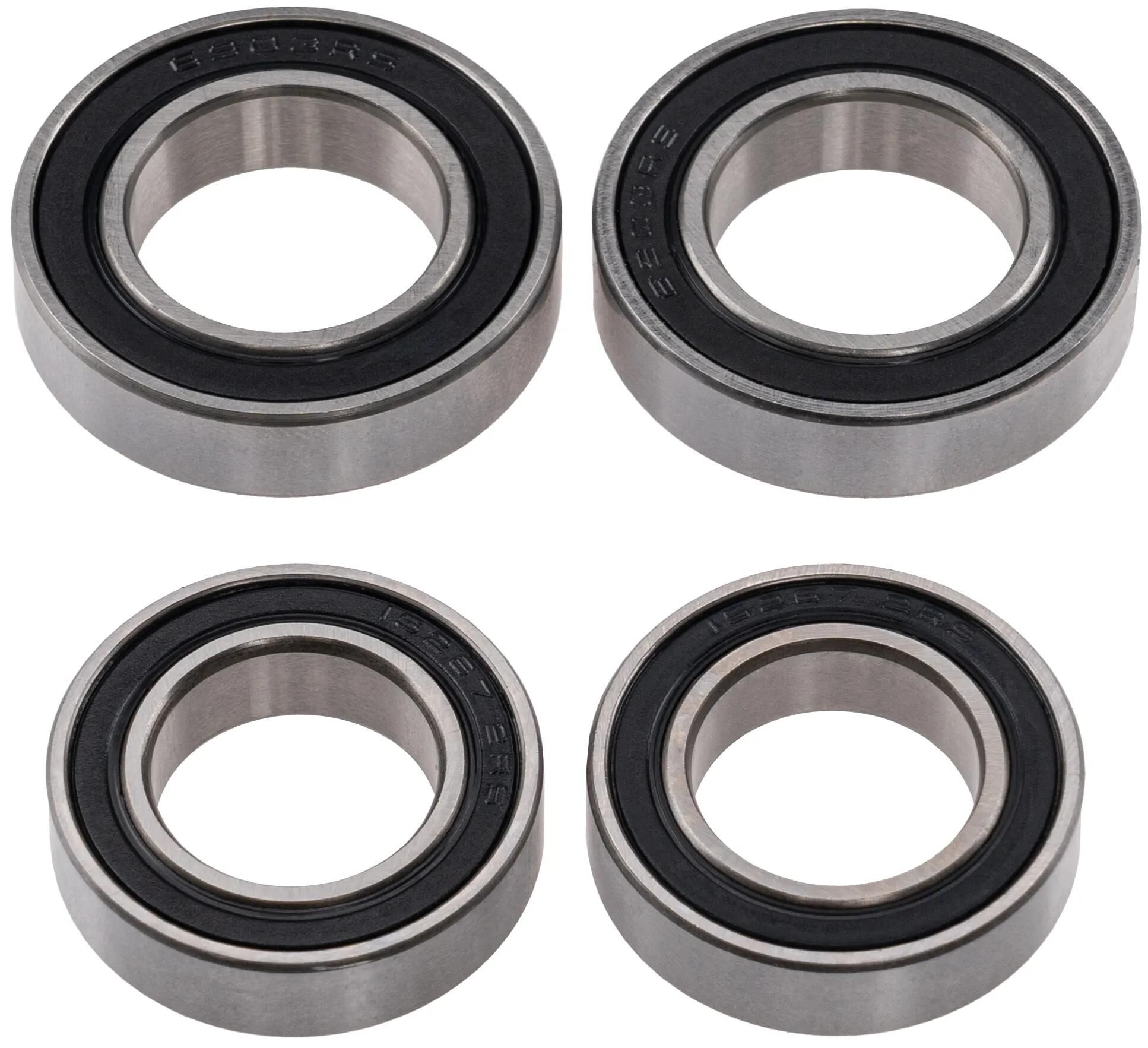

 suitable for "Eroq DB" and "Core DB" rear hubs with XD freehub, Set of 4 industrial bearings (2x 17 x 30 x 7, 2x 15 x 26 x 7L), for 0.747.624/6, 0.747.624/9, 0.747.623/2, 0.747.623/6 Read more Read less
| PU 1 | |
 suitable for articles: 0.747.624/4, 0.747.624/6, 0.747.624/8, 0.747.624/9 Read more Read less
| PU 1 | |
 11-/12-speed SRAM XD, approx. 157 g Read more Read less
| PU 25 |
A Hub is like the heart of a Wheel - it forms the stable core that leads to a smooth riding experience. A rear wheel hub has the additional task of keeping a firm grip on the cassette in order to promote both optimum power transmission of the chains and trip-free shifting. Our CONTEC EROQ cassette rear hub is particularly robust and can therefore withstand the high torque and weight of an e-bike. The Hub has an aluminum body with a hollow axle and is attached to your bike using a suitable QR (e.g. CONTEC EROQ.R Rear). The matching QR is included with the hub. The standard installation width of the CONTEC EROQ cassette rear hub is 135 mm. It is also suitable for 6-hole brake rotors and has 32 spoke holes. The EROQ rear hub has a robust SRAM XD Freewheel Body made of sturdy steel with high-quality ball bearings. The ratchet freehub system with 27 teeth and 3 Pawls offers fast interaction between the freehub and hub body, so that your pedal stroke is quickly converted into propulsion.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 11-/12-speed SRAM XD, installation width 135 mm Read more Read less
| PU 25 | |
 11-/12-speed SRAM XD, mounting width 141 mm (booster) Read more Read less
| PU 25 | |
 Out of Stock 12-speed Shimano Micro Spline, installation width 135 mm Read more Read less
| PU 25 | |
Out of Stock 12-speed Shimano Micro Spline, mounting width 141 mm (booster) Read more Read less
| PU 25 | |
 12-speed Shimano Micro Spline, mounting width 141 mm (booster) Read more Read less
| PU 25 | |
 8-/9-/10-/11-speed Shimano HG-M, MTB freewheel body (34.9 mm), installation width 135 mm Read more Read less
| PU 25 | |
 8-/9-/10-/11-speed Shimano HG-M, MTB Freewheel Body (34.9 mm), mounting width 141 mm (Boost) Read more Read less
| PU 25 | |
 Out of Stock 8-/9-/10-/11-speed Shimano HG, MTB freewheel body (34.9 mm), installation width 135 mm (special item, loose) Read more Read less
| PU 25 |
