Out of Stock

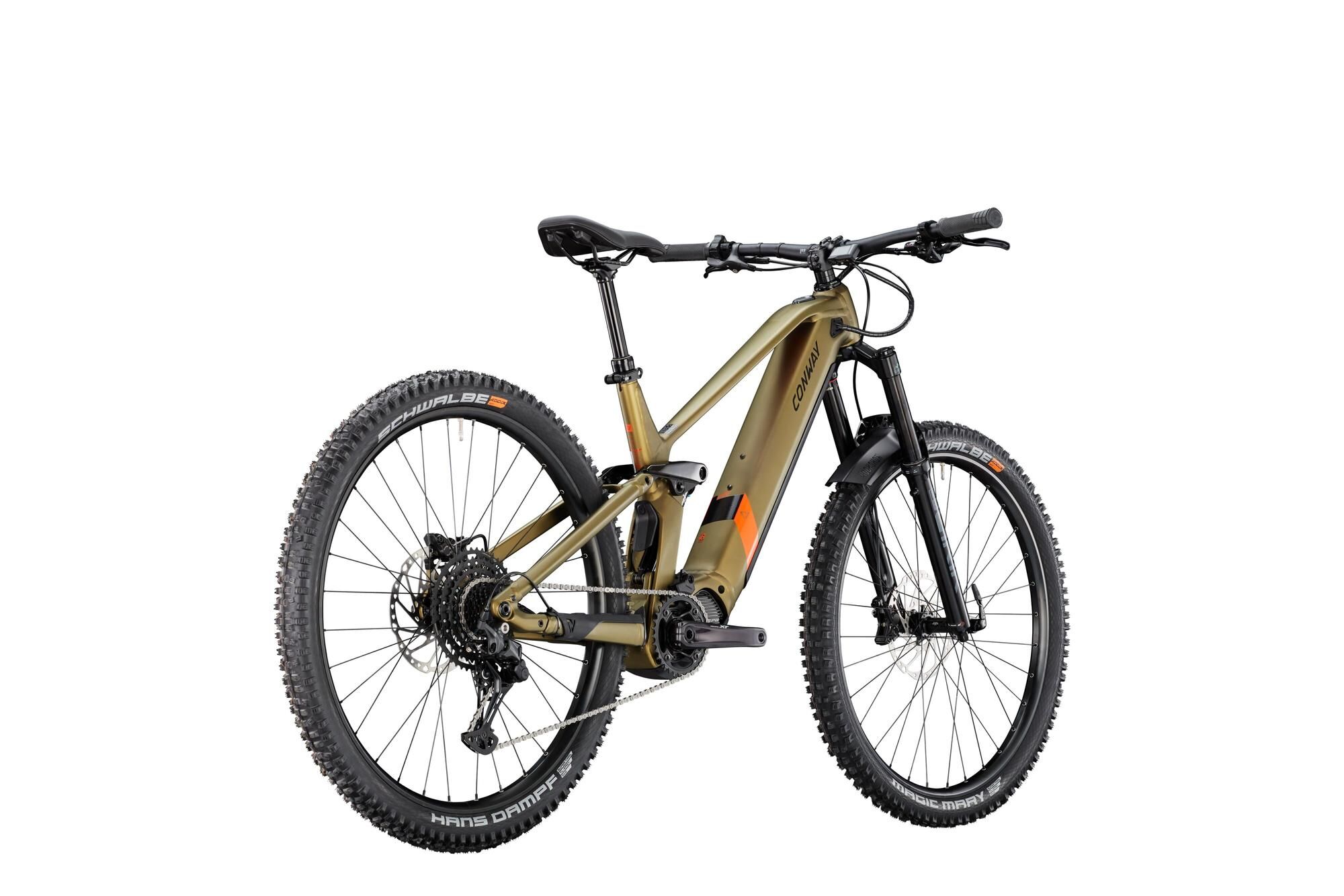

CONWAY Electric MTB full suspension "eWME 2.0" (#1)
full suspension, 29", bronze matt, 10-speed SHIMANO "Cues", 41 cm / S
Read more Read less - Article number: 02810463
- Original number: BK25HA0080
The electric MTB full suspension consists of an aluminum frame and is equipped with a Suspension Fork that offers a fork travel of 160 mm. Drives are provided by a chain drive and use the SHIMANO STEPS EP8 mid-motor with a motor output of 250 W. The capacity of the batteries is 720.0 Wh. The 10-speed SHIMANO "Cues" derailleur allows gear selection. The braking system consists of hydraulic disc brakes. The frame has a suspension travel of 155 mm. The permissible system weight is 130 kg. The wheel size is 29".
PU 1
Product information
- Battery capacity 720.0 Wh
- Brake system hydraulic disc brake
- Category E-bike 3
- Chainstay 456 mm
- Colour designation bronze matt
- Drive chain
- Drive system SHIMANO STEPS EP8
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features damper , electronic sliding aid , suspension fork
- Frame height 41 cm
- Frame shape full suspension
- Frame size S
- Frame travel 155 mm
- Gears 10-speed
- Gender gents
- Main colour gold
- Material 1 aluminium
- Model series eWME
- Permissible system weight 130 kg
- Reach 432 mm
- Seat angle 75.5 °
- Seat tube 410 mm
- Shifting name 10-Gang SHIMANO "Cues"
- Shifting type derailleur shifting
- Stack 628 mm
- Steering tube 105 mm
- Steering tube angle 65.0 °
- Stem length 35.0 mm
- Support up to 25km/h
- Toptube 585 mm
- Transmission 1x 10-speed
- Travel 160 mm
- Type full suspension
- Wheel distance 1212 mm
- Wheel size 29 "
- Battery DARFON "Intube 720", 720 Wh
- Battery Lock DARFON
- Bottom bracket SHIMANO
- Brake SHIMANO "BR-MT420", 4-Kolben
- Brake lever SHIMANO "BL-M4100"
- Chain ring / pulley SHIMANO "SM-CRE70", 34 teeth
- Charger DARFON 4-5.6 A
- Crank SHIMANO "Deore XT FC-M8150", 165 mm
- Damper FOX "Float DPS", 205 mm x 60 mm
- Derailleur hanger SRAM "UDH", for Thru Axle, 1 mm thread pitch
- Display SHIMANO "SC-EM800", 3-levels, remote control, push aid
- Engine SHIMANO "EP800"
- Fork ROCKSHOX "Lyrik", 160 mm travel, DebonAir+, Rush RC, Maxle Ultimate Thru Axle
- Frame Intube EP8, aluminum, full suspension, 41 cm
- Front hub SHIMANO "HB-TC500-15-B", 15 x 110 mm Boost, Thru Axle, Center Lock
- Front rotor SHIMANO "SM-RT64", Ø 203 mm, Center Lock
- Front tire SCHWALBE "Magic Mary", 62-622
- Grips SQlab "70X"
- Handlebar LEVELNINE "Race Riser", 780 mm, Ø 31.8 mm, Backsweep 9°, Rise 15 mm
- Headset ACROS ZS56/28.6 / ZS56/40, 135° blocklock
- Rear derailleur SHIMANO "Cues RD-U6000"
- Rear hub SHIMANO "FH-TC500-HM-B", 12 x 148 mm Boost, Center Lock, Thru Axle
- Rear rotor SHIMANO "SM-RT64", Ø 203 mm, Center Lock
- Rear tire SCHWALBE "Hans Damper", 60-622
- Rear wheel brake SHIMANO Disc Brakes "Deore BL-M4100 / BR-MT420", hydraulic, Adapter for 203 mm
- Remote SHIMANO "SW-EM800"
- Rims VELOTEC "VR23", 32 Loch, geöst, Tubeless Ready
- Saddle Selle Royal "2315HRN", Athletic
- Seatpost LIMOTEC "D1", Ø 31.6 mm, 295 mm long, 100 mm adjustment range, 0 mm offset
- Sensor SHIMANO "EW-SS301", for rotor, without spoke magnet, cable length: 760mm
- Shifting lever SHIMANO "Cues SL-U6000"
- Spokes MACH 1 "PRO"
- Sprocket / pulley SHIMANO "Cues CS-LG300", LINKGLIDE, 11-48 teeth
- Stem LEVELNINE "Race A-Head", 1 1/8", 31.8 mm handlebar clamps, 35 mm long, 0° angle, black
- Supplier Article Number: BK25HA0080
- EAN 4251971168329
- MSRP: €3,999.95
- Fedas-Code 154050
- WEEE registration number DE92509320
- DST-Code 1E01
- SB-Article No
- Bidex-Code 121020
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight 25.8 kg
- instruction manual
- declaration of conformity DE
- declaration of conformity DK
- declaration of conformity EN
- declaration of conformity ES
- declaration of conformity FR
- declaration of conformity IT
- declaration of conformity NL
- exploded view Grease
- exploded view Kunststoff & Gummi
- exploded view Metall
- exploded view Torque
| Article | Price | |
|---|---|---|
 | PU 25 | |
 | PU 1 | |
 suitable for eWME with Darfon battery (Z10) Read more Read less
| PU 1 | |
 black, fits Conway eWME from 2021 and Victoria eParcour, among others Read more Read less
| PU 100 | |
 34 and 36 teeth, chainline 53 and 56,5 Read more Read less
| PU 25 | |
 for Damper, suitable for eWME from 2021 (Z10), Xyron 27.5" (Z6) and Xyron 29" (Z11), for Xyron 29" SUV fits 0.281.780/7 (long version). Read more Read less
| PU 1 | |
 industrial bearing with aluminium shells, integrated cover (BlockLock from company Acros), ZS44-ZS56, for Cairon SUV FS BES2 (Z9) Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 20 | |
 | PU 36 | |
 4cm (1,6 inch) LCD colur display, mod.22 Read more Read less
| PU 40 | |
 | PU 1 | |
 32 hole, 110 mm, 15 mm Thru Axle Read more Read less
| PU 25 | |
 only suitable for eWME from mod. 21 (Z10) Read more Read less
| PU 1 | |
 | PU 20 | |
 | PU 1 | |
 suitable for eWME Darfon (Z10) Read more Read less
| PU 1 | |
 12 x 148mm, 180mm long, 1mm thread pitch, 13m thread length, suitable for UDH derailleur hanger Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 suitable for eWME (Z10), Ryvon (Z18), matching thru axle 0.281.502/5 and Nyvon (Z17), matching thru axle 0.747.383/0 Read more Read less
| PU 1 | |
 suitable for eWME Shimano EP8 and Darfon (Z10) Read more Read less
| PU 1 | |
 suitable for eWME 6.9, black metallic / silver MY22 (Z10) Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 20 | |
 suitable for eWME (Z10), without mounting screws (M3 x 9mm) Read more Read less
| PU 1 | |
 10-speed, right, without gear display Read more Read less
| PU 20 | |
 | PU 50 | |
 "U6000", for 10-/11-speed, up to 50 teeth, black Read more Read less
| PU 20 | |
 suitable for Conway EWME Darfon Z10 Read more Read less
| PU 1 | |
 UDH, suitable for eWME (Z10), Nyvon (Z17), Ryvon (Z18) and Xyron ST / LT (Z20)(equivalent substitute: 0.347.028/3) Read more Read less
| PU 1 | |
 | PU 10 | |
 11-13-15-17-20-23-28-34-41-48 teeth Read more Read less
| PU 12 | |
 | PU 30 | |
 | PU 20 | |
 | PU 1 | |
 suitable for eWME (Z10), 180 mm / M12 x P1.0 x 14.5 mm Read more Read less
| PU 1 | |
 Out of Stock Ø 31.6 mm, 340 mm long, 100 mm adjustment range Read more Read less
| PU 10 | |
 | PU 20 | |
 sandblasted black, 35mm long, eff. length:35mm, eff. height: 0mm, angle 0° Read more Read less
| PU 10 | |
 | PU 1 | |
 | PU 1 | |
 | PU 30 |
The Conway "eWME 2.0" is your new partner for exciting trails and challenging drives, providing plenty of riding fun with its powerful e-drive and well thought-out geometry. With a stable 29" Wheel and a weight of 25.8 kg, it is ready to master any trail adventure.Driven by the Shimano "Steps" mid-motor, the bike offers support up to 25 km/h and with its 720 Wh Battery, you are well equipped for long tours. The 1x10 chain drive with Shimano gears ensures that you always find the right gear, whether on steep climbs or fast descents. The hydraulic Disc Brakes bring you safely to a stop even on the steepest downhill. With a fork travel of 160 mm and a frame travel of 155 mm, the "eWME 2.0" is ideally equipped to enjoy all-mountain trails and single tracks and offer you a smooth riding experience.The head tube angle of 65° and the seat angle of 76° ensure a relaxed but aggressive riding position, while the chainstay length and wheelbase provide stability and maneuverability.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 full suspension, 29", alu raw matt, 10-speed SHIMANO "Cues", 41 cm / S Read more Read less
| PU 1 | |
 Out of Stock full suspension, 29", alu raw matt, 10-speed SHIMANO "Cues", 44 cm / M Read more Read less
| PU 1 | |
 Out of Stock full suspension, 29", alu raw matt, 10-speed SHIMANO "Cues", 47 cm / L Read more Read less
| PU 1 | |
 full suspension, 29", alu raw matt, 10-speed SHIMANO "Cues", 50 cm / XL Read more Read less
| PU 1 | |
 Out of Stock full suspension, 29", bronze matt, 10-speed SHIMANO "Cues", 41 cm / S Read more Read less
| PU 1 | |
 full suspension, 29", bronze matt, 10-speed SHIMANO "Cues", 44 cm / M Read more Read less
| PU 1 | |
 full suspension, 29", bronze matt, 10-speed SHIMANO "Cues", 47 cm / L Read more Read less
| PU 1 | |
 full suspension, 29", bronze matt, 10-speed SHIMANO "Cues", 50 cm / XL Read more Read less
| PU 1 |
