CONWAY Electric MTB full suspension "eWME 2.0" (#1)
full suspension, 29", bronze matt, 10-speed SHIMANO "Cues", 50 cm / XL
Read more Read less - Article number: 02810466
- Original number: BK25HA0086
Das Fahrrad hat einen Rahmenfederweg von 155 mm. Es ist ausgestattet mit einer Federgabel und besitzt einen Gabelfederweg von 160 mm. Der Antrieb erfolgt über eine Kette und basiert auf dem Antriebssystem SHIMANO STEPS mit einem Mittelmotor und einer Motorleistung von 250 W. Die Schaltung ist eine 10-Gang SHIMANO "Cues". Das Bremssystem besteht aus hydraulischen Scheibenbremsen. Die Laufradgröße beträgt 29 ". Das zulässige Gesamtgewicht beträgt 130 kg. Die Akkukapazität liegt bei 720,0 Wh.
Product information
- Battery capacity 720.0 Wh
- Brake system hydraulic disc brake
- Category full suspension
- Category E-bike 3
- Chainstay 456 mm
- Colour designation bronze matt
- Drive chain drive
- Drive system SHIMANO STEPS EP8
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features electronic sliding aid
- Frame height 50 cm
- Frame shape full suspension
- Frame size XL
- Frame travel 155 mm
- Gears 10-speed
- Gender gents
- Main colour gold
- Material 1 aluminium
- Reach 492 mm
- Seat angle 75.5 °
- Seat tube 500 mm
- Shifting name 10-Gang SHIMANO "Cues"
- Shifting type derailleur shifting
- Stack 648 mm
- Steering tube 125 mm
- Steering tube angle 65.0 °
- Stem length 35.0 mm
- Support up to 25km/h
- Toptube 645 mm
- Transmission 1x 10-speed
- Travel 160 mm
- Wheel distance 1272 mm
- Wheel size 29 "
- Battery: DARFON "Intube 720", 720 Wh
- Battery Lock: DARFON
- Bottom bracket: SHIMANO
- Brake: SHIMANO "BR-MT420", 4-Kolben
- Brake lever: SHIMANO "BL-M4100"
- Bremse H.R.: SHIMANO Disc Brakes "Deore BL-M4100 / BR-MT420", hydraulic, Adapter for 203 mm

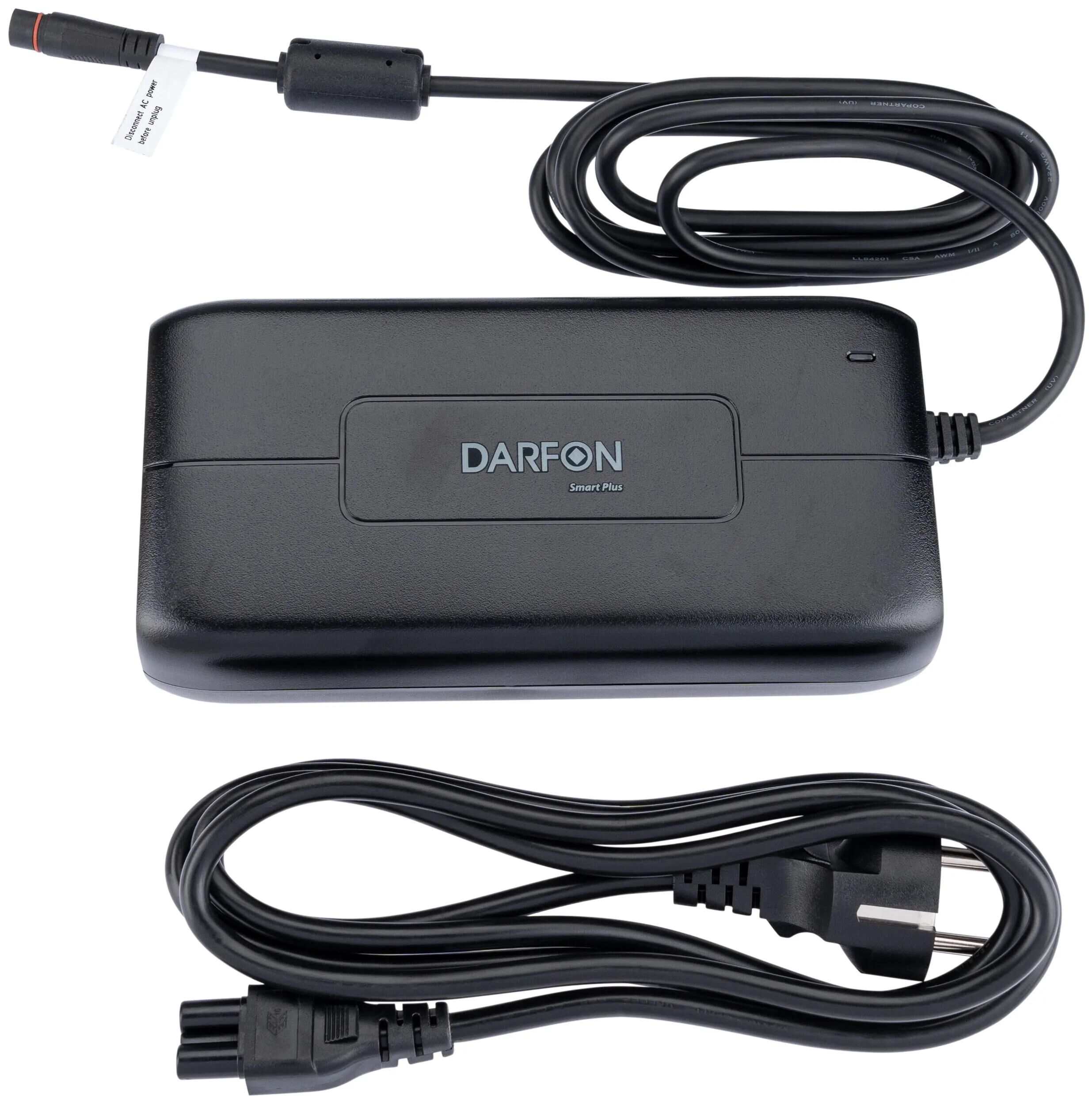

- Charger: DARFON 4-5.6 A
- Derailleur hanger: SRAM "UDH", for Thru Axle, 1 mm thread pitch
- Display: SHIMANO "SC-EM800", 3-levels, remote control, push aid
- Engine: SHIMANO "EP800"
- Frame: Intube EP8, aluminum, full suspension, 50 cm
- Front hub: SHIMANO "HB-TC500-15-B", 15 x 110 mm Boost, Thru Axle
- Front tire: SCHWALBE "Magic Mary", Evolution Line 62-622, Super Trail, Addix Soft, TLE, foldable, 67 TPI, E-50
- Grips: SQLAB "70X", size M, 135 mm, black
- Handlebar: LEVELNINE "Race Riser", 780mm, Ø 31,8mm, backsweep 9°, rise 15mm, black
- Rear hub: SHIMANO "FH-TC500-HM-B", 12 x 148 mm Boost, Center Lock, 8/9/10/11-speed HG, 32 hole, Thru Axle, black
- Rear tire: SCHWALBE "Hans Dampf" Evolution Line, 60-622, Super Trail, Addix Soft, TLE, foldable, 67 TPI, E-25
- Remote: SHIMANO "SW-EM800"
- Saddle: SELLE ROYAL "2315HRN", Unisex, Athletic, black
- Seatpost: LIMOTEC Variosattelstütze "D1", Ø 31,6 mm, 465 mm lang, 170 mm Verstellbereich, 0 mm Offset, schwarz sandgestrahlt
- Spokes: MACH 1 "PRO"
- Supplier Article Number: BK25HA0086
- EAN: 4251971168350
- MSRP: €3,999.95
- DST-Code: 1E01
- Bidex-Code: 121020
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight: 25.8 kg
- Explosionszeichnung Metall
- Explosionszeichnung Torque
- Konformitätserklärung DK
- Explosionszeichnung Kunststoff & Gummi
- Konformitätserklärung NL
- Konformitätserklärung ES
- Konformitätserklärung EN
- Konformitätserklärung FR
- Explosionszeichnung Grease
- Konformitätserklärung IT
- Konformitätserklärung DE
- Bedienungsanleitung
| Article | Price | |
|---|---|---|
 | ||
 | ||
 | ||
 suitable for eWME (Z10), Ryvon (Z18), matching thru axle 0.281.502/5 and Nyvon (Z17), matching thru axle 0.747.383/0 Read more Read less
| ||
 | ||
 34 and 36 teeth, chainline 53 and 56,5 Read more Read less
| ||
 | ||
 | ||
 black, fits Conway eWME from 2021 and Victoria eParcour, among others Read more Read less
| ||
 | ||
 | ||
 32 holes, 110mm, 15mm thru axle Read more Read less
| ||
 | ||
 | ||
 | ||
 | ||
 | ||
 | ||

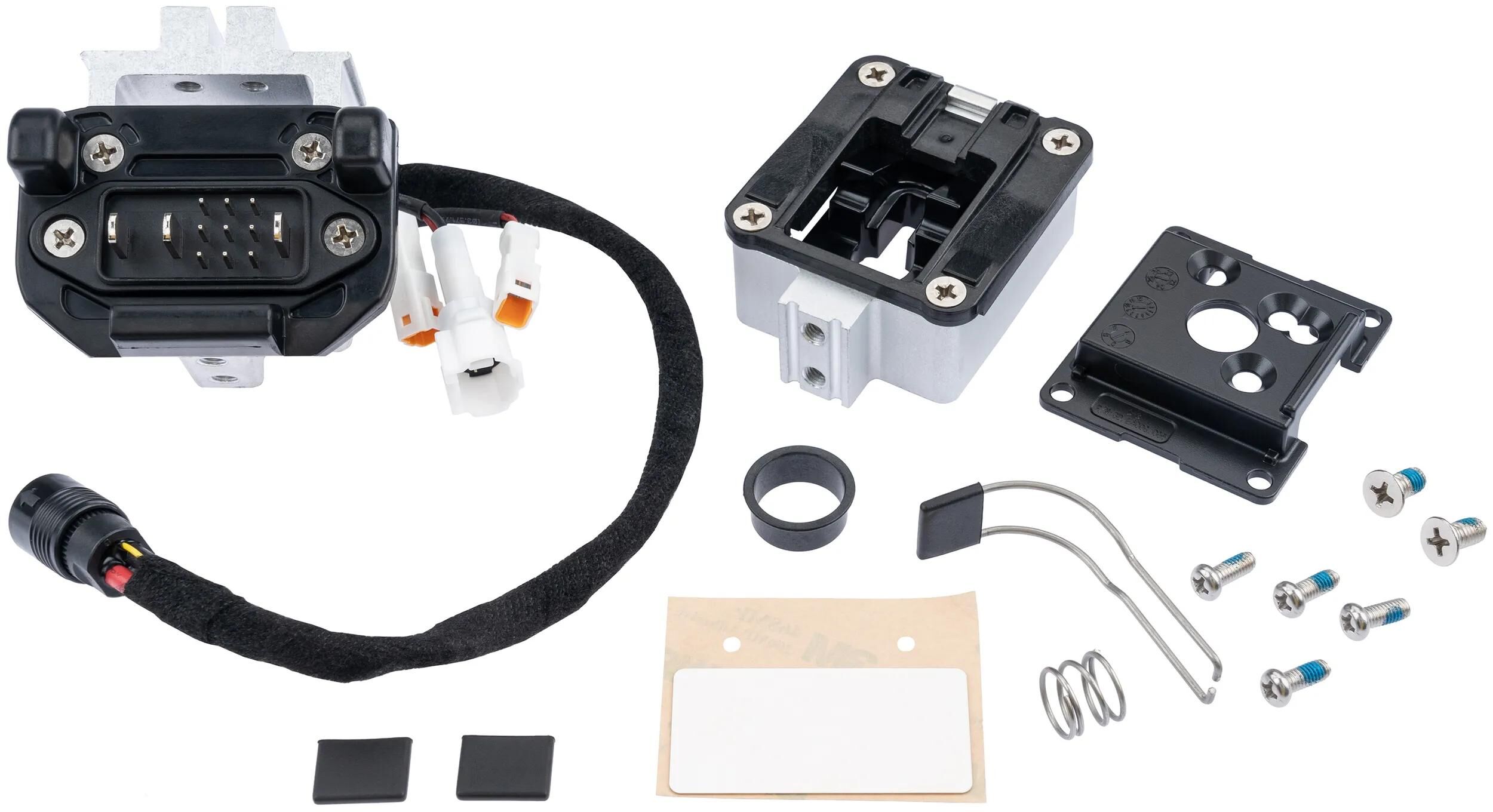

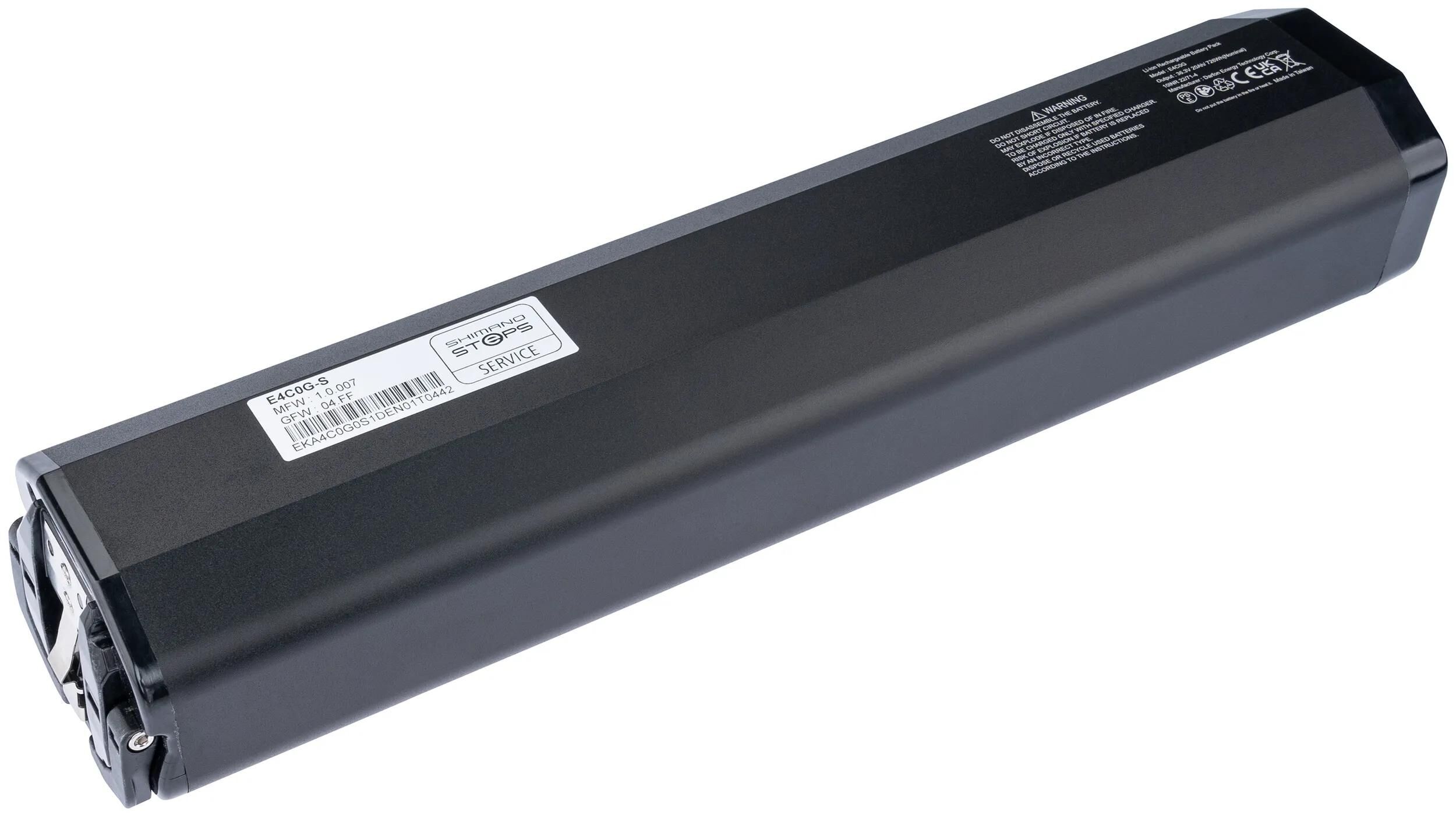

 suitable for eWME with Darfon battery (Z10) Read more Read less
| ||
 UDH, suitable for eWME (Z10), Nyvon (Z17), Ryvon (Z18) and Xyron ST / LT (Z20)(equivalent substitute: 0.347.028/3) Read more Read less
| ||
 | ||
 suitable for eWME 6.9, black metallic / silver MY22 (Z10) Read more Read less
| ||
 suitable for Conway EWME Darfon Z10 Read more Read less
| ||
 "U6000", for 10-/11-speed, up to 50 teeth, black Read more Read less
| ||
 suitable for eWME (Z10), 180 mm / M12 x P1.0 x 14.5 mm Read more Read less
| ||
 industrial bearing with aluminium shells, integrated cover (BlockLock from company Acros), ZS44-ZS56, for Cairon SUV FS BES2 (Z9) Read more Read less
| ||
 | ||
 | ||
 | ||
 | ||
 | ||
 11-13-15-17-20-23-28-34-41-48 teeth Read more Read less
| ||
 10-speed, right, without gear display Read more Read less
| ||
 suitable for eWME (Z10), without mounting screws (M3 x 9mm) Read more Read less
| ||
 | ||

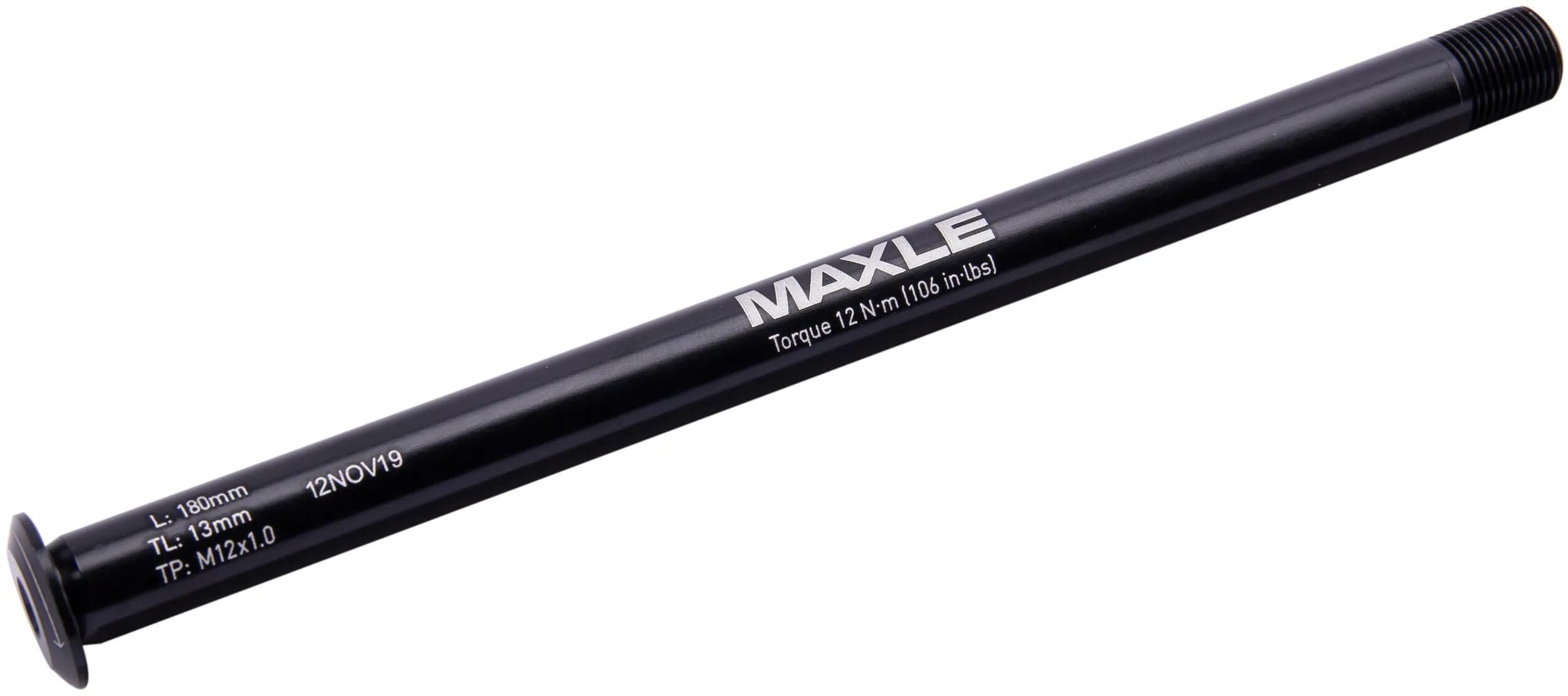

 12 x 148mm, 180mm long, 1mm thread pitch, 13m thread length, suitable for UDH derailleur hanger Read more Read less
| ||
 | ||
 sandblasted black, 35mm long, eff. length:35mm, eff. height: 0mm, angle 0° Read more Read less
| ||
 for Damper, suitable for eWME from 2021 (Z10), Xyron 27.5" (Z6) and Xyron 29" (Z11), for Xyron 29" SUV fits 0.281.780/7 (long version). Read more Read less
| ||
 only suitable for eWME from mod. 21 (Z10) Read more Read less
| ||
 | ||

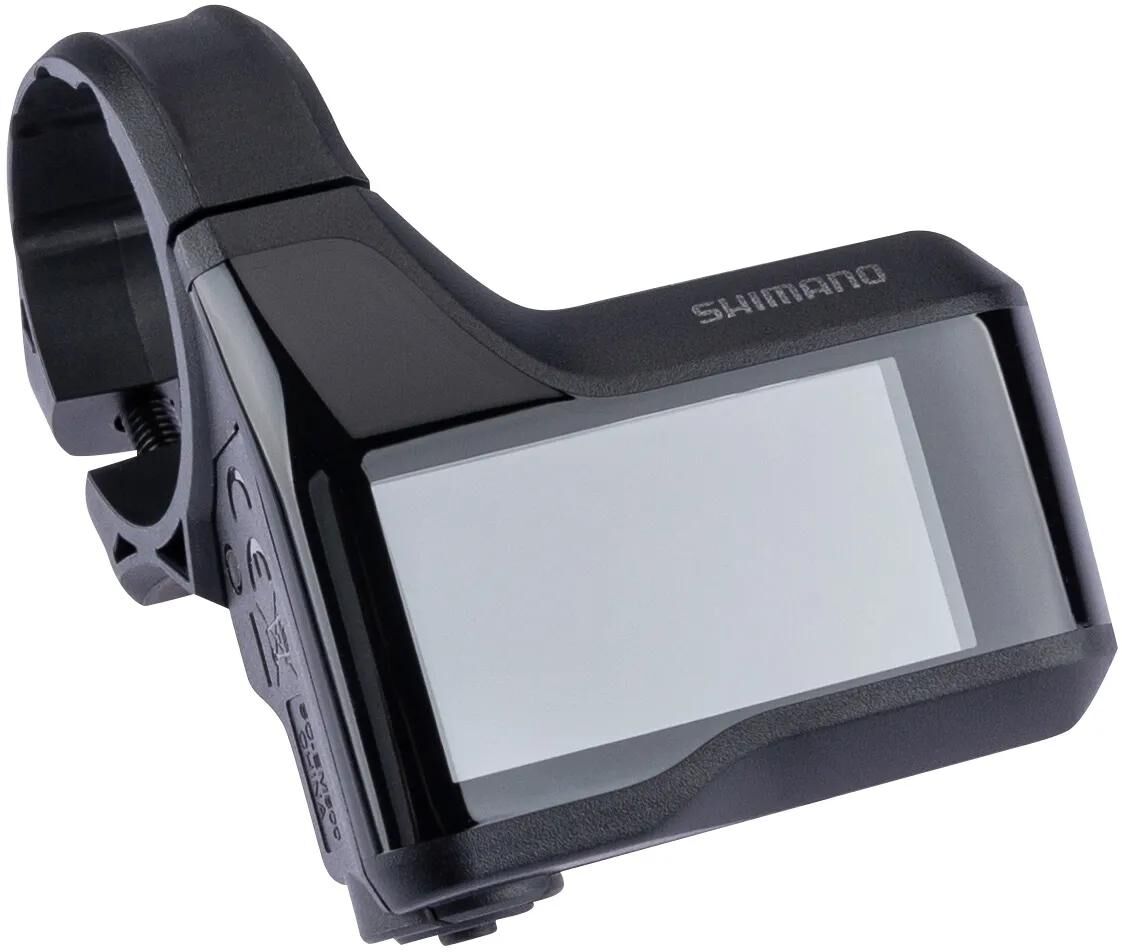

 4cm (1,6 inch) LCD colur display, mod.22 Read more Read less
| ||
 | ||
 suitable for eWME Shimano EP8 and Darfon (Z10) Read more Read less
| ||
 suitable for eWME Darfon (Z10) Read more Read less
| ||
 |
The Conway "eWME 2.0" is your new partner for exciting trails and challenging descents, providing plenty of riding fun with its powerful e-drive and well thought-out geometry. With a stable 29" wheel and a weight of 25.8 kg, it is ready to master any trail adventure.Powered by the Shimano "Steps" mid-motor, the bike offers support up to 25 km/h and with its 720 Wh battery, you are perfectly equipped for long tours. The 1x10 chain drive with Shimano gears ensures that you always find the right gear, whether on steep climbs or fast descents. The hydraulic disc brakes bring you safely to a halt even on the steepest descents. With a fork travel of 160 mm and a frame travel of 155 mm, the "eWME 2.0" is ideally equipped to enjoy all-mountain trails and single tracks and offer you a smooth riding experience.The head tube angle of 65° and the seat angle of 76° ensure a relaxed but aggressive riding position, while the chainstay length and wheelbase provide stability and maneuverability.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 full suspension, 29", bronze matt, 10-speed SHIMANO "Cues", 44 cm / M Read more Read less
| ||
 full suspension, 29", bronze matt, 10-speed SHIMANO "Cues", 47 cm / L Read more Read less
| ||
 full suspension, 29", alu raw matt, 10-speed SHIMANO "Cues", 44 cm / M Read more Read less
| ||
 full suspension, 29", alu raw matt, 10-speed SHIMANO "Cues", 47 cm / L Read more Read less
| ||
 full suspension, 29", bronze matt, 10-speed SHIMANO "Cues", 50 cm / XL Read more Read less
| ||
 full suspension, 29", bronze matt, 10-speed SHIMANO "Cues", 41 cm / S Read more Read less
| ||
 full suspension, 29", alu raw matt, 10-speed SHIMANO "Cues", 41 cm / S Read more Read less
| ||
 full suspension, 29", alu raw matt, 10-speed SHIMANO "Cues", 50 cm / XL Read more Read less
|
