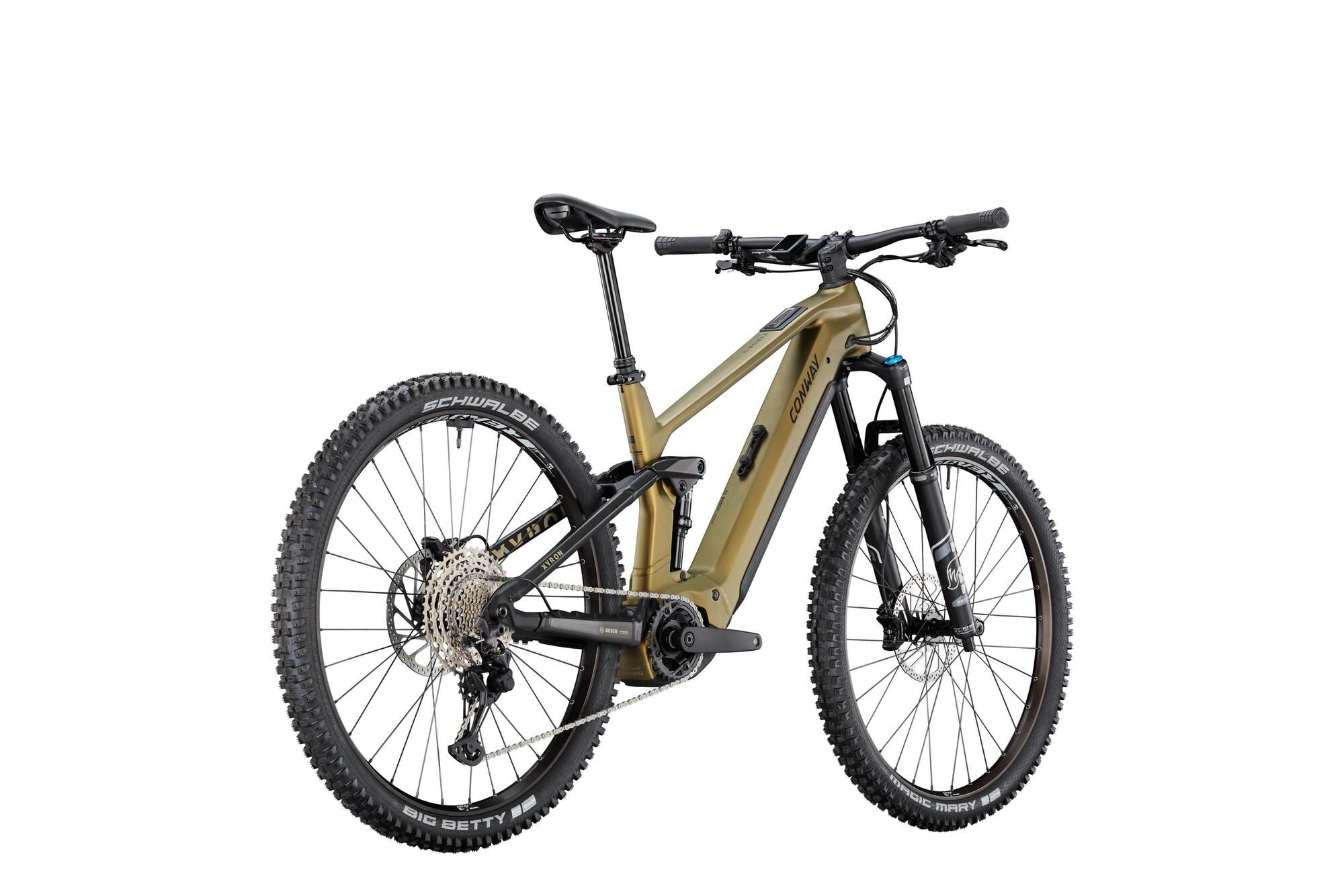

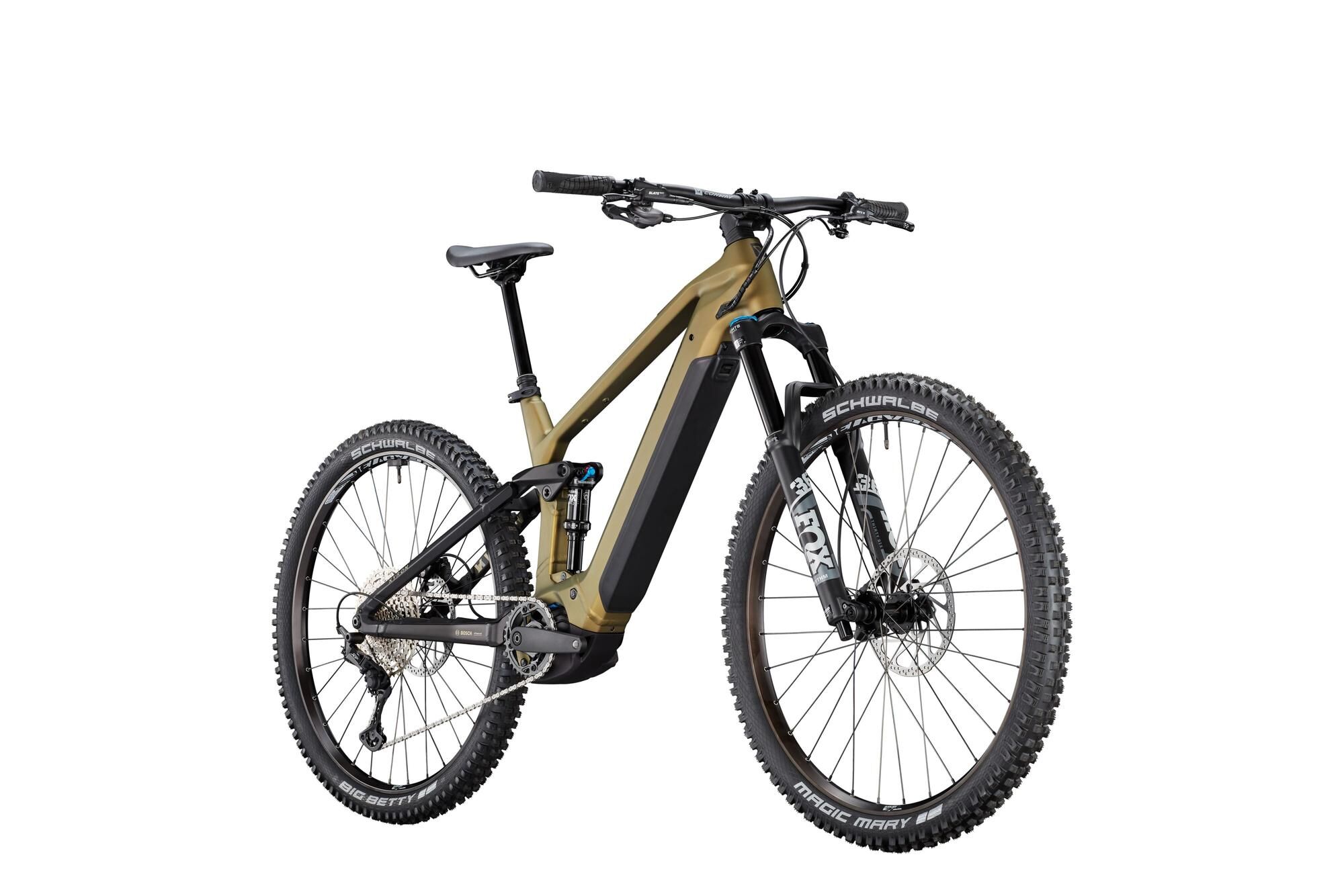

CONWAY Electric MTB full suspension "Xyron ST 5.0" (#1)
full suspension, 29", bronze matt / black matt, 12-speed SHIMANO "XT" Blender, 39 cm / S
Read more Read less - Article number: 02810162
- Original number: 01025758

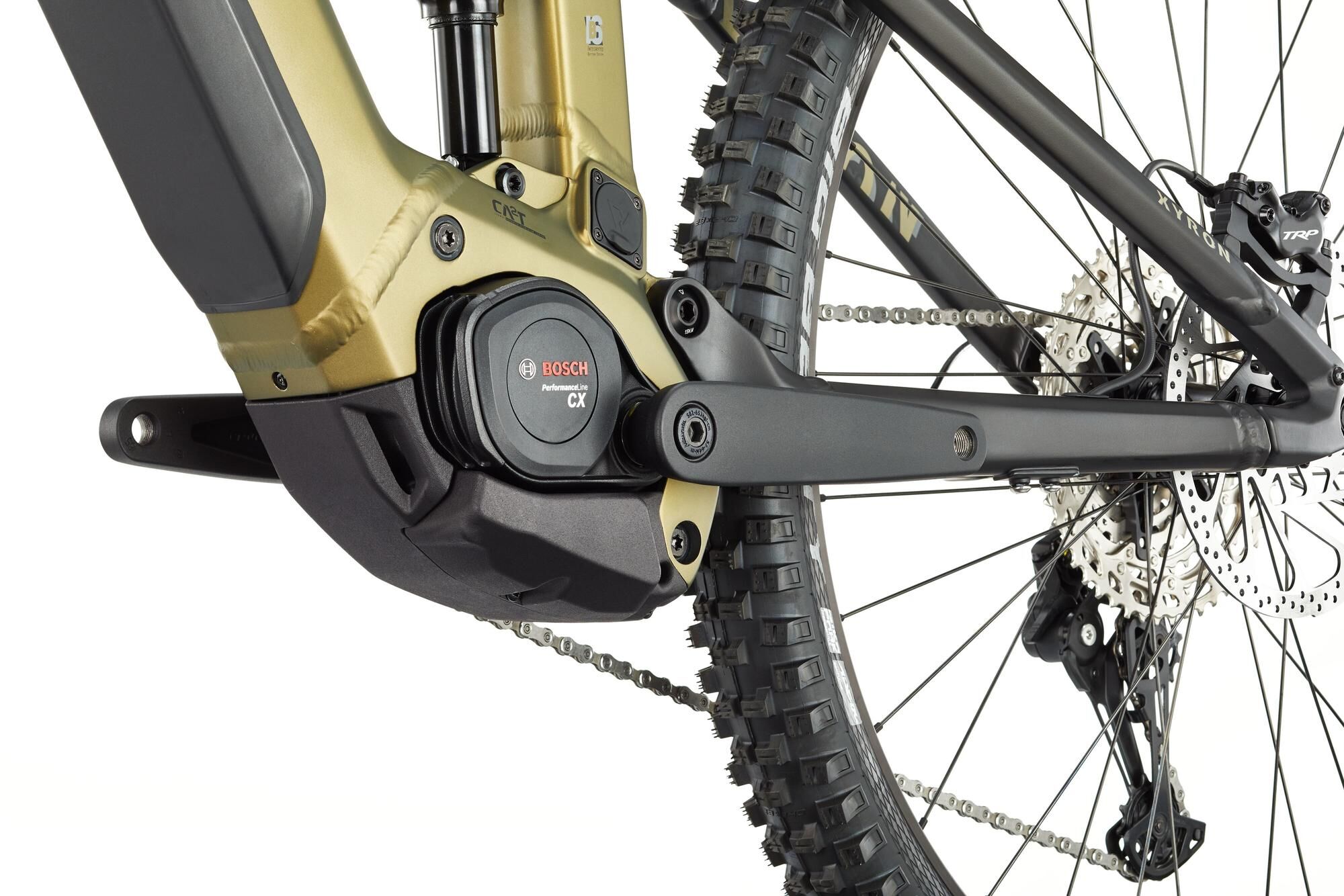

The electric MTB full suspension consists of an aluminum frame with a frame travel of 150 mm. Drives are provided by a chain drive, which is supported by a BOSCH Performance Line CX mid-motor with a motor output of 250 W. The battery capacity is 800.0 Wh. A 12-speed SHIMANO "XT" Blender derailleur is installed for gear selection. The hydraulic disc brakes ensure reliable deceleration. Equipped with a Suspension Fork, electronic push assist and Damper, the bike has 29" wheels. The permissible system weight is 140 kg.
Product information
- Battery capacity 800.0 Wh
- Brake system hydraulic disc brake
- Category E-bike 3
- Chainstay 452 mm
- Colour designation bronze matt / black matt
- Drive chain
- Drive system BOSCH Performance Line CX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features electronic sliding aid
- Frame height 39 cm
- Frame shape full suspension
- Frame size S
- Frame travel 150 mm
- Gears 12-speed
- Gender gents
- Main colour gold
- Material 1 aluminium
- Permissible system weight 140 kg
- Reach 445 mm
- Seat angle 77.6 °
- Seat tube 390 mm
- Secondary colour black
- Shifting name 12-Gang SHIMANO "XT" Mix
- Shifting type derailleur shifting
- Stack 614 mm
- Steering tube 105 mm
- Steering tube angle 64.5 °
- Stem length 40.0 mm
- Support up to 25km/h
- Toptube 570 mm
- Transmission 1x 12-speed
- Travel 150 mm
- Type full suspension
- Wheel distance 1229 mm
- Wheel size 29 "
- Battery: BOSCH "PowerTube 800", 800 Wh
- Battery Lock: ABUS "XPlus"
- Bottom bracket: BOSCH
- Brake: TEKTRO "SLATE EVO HD-M807"
- Brake lever: TEKTRO "SLATE EVO HD-M807"
- Chain / belt: SHIMANO "Deore CN-M6100"
- Chain ring / pulley: e*thirteen "Helix Core e*spec", 34 teeth
- Charger: BOSCH 4 A
- Crank: MIRANDA "Mythos" 165 mm, for Bosch Gen. 4, ISIS, Q:8, black
- Damper: FOX "Float Rhythm", 185 mm x 52.5 mm
- Derailleur hanger: SRAM "UDH", for Thru Axle, 1 mm thread pitch
- Display: BOSCH "Kiox 300", 4-stages, remote control, push aid
- Engine: BOSCH "Performance Line CX", BDU38, max. 100 Nm
- Fork: FOX "36 Float Rhythm E", 150 mm travel, Float Evol, Grip, Thru Axle
- Frame: Intube Bosch, Gen. 4, BES3, Aluminium, Fullsuspension, 39 cm
- Front hub: NEWMEN "Basic", 15 x 110 mm booster, Thru Axle, 6-hole
- Front rotor: TRP "RS01E", Ø 203 mm, 6-hole, 2.3 mm thickness
- Front tire: SCHWALBE "Magic Mary", 62-622
- Grips: SQlab "70X"
- Handlebar: LEVELNINE "Race Riser", 780 mm, Ø 31.8 mm, Backsweep 9°, Rise 15 mm
- Headset: ACROS ZS56/28.6/OD62 / ZS56/40, 150° blocklock
- Rear derailleur: SHIMANO "Deore XT RD-M8100"
- Rear hub: NEWMEN "Basic", 12 x 148 mm booster, Thru Axle, 6-hole
- Rear rotor: TRP "RS01E", Ø 203 mm, 6-hole, 2.3 mm thickness
- Rear tire: SCHWALBE "Big Betty", 62-622
- Remote: BOSCH "BRC3300", mini remote
- Rims: NEWMEN "Performance 30 Base", 28 Loch, geöst, Tubeless Ready
- Saddle: FIZIK "Terra Aidon X5"
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Spokes: SAPIM "black"
- Stem: LEVELNINE "Team A-Head", 1 1/8", 31,8mm handlebar clamp, 40mm long, black
- System Interface: BOSCH "BRC3100"
- Supplier Article Number: 01025758
- EAN: 4251971155251
- MSRP: €4,999.95
- Fedas-Code: 154050
- WEEE registration number: DE92509320
- DST-Code: 1E01
- SB-Article: No
- Bidex-Code: 121020
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight: 25.9 kg
- Bedienungsanleitung
- Explosionszeichnung grease
- Explosionszeichnung metal
- Explosionszeichnung plastic
- Explosionszeichnung torque
- Konformitätserklärung DE
- Konformitätserklärung DK
- Konformitätserklärung EN
- Konformitätserklärung ES
- Konformitätserklärung FR
- Konformitätserklärung IT
- Konformitätserklärung NL
| Article | Price | |
|---|---|---|
 suitable for Xyron (Z20), with Bosch Performance CX 2 bolts Read more Read less
| ||
 suitable for Xyron LT / ST (Z20) Read more Read less
| ||
 for Cairon BES3 (Z11 / Z12), Xyron BES3 aluminium and carbon (Z11), Cairon SUV FS BES3 (Z14) and Nyvon (Z17) Read more Read less
| ||
 suitable for Ryvon (Z18) and Xyron Carbon LT / ST (Z20) Read more Read less
| ||
 suitable for Xyron Aluminum LT / ST (Z20) Read more Read less
| ||
 for 1 x 12-speed, max. 51 teeth, SGS Read more Read less
| ||
 suitable for eWME (Z10), Ryvon (Z18), matching thru axle 0.281.502/5 and Nyvon (Z17), matching thru axle 0.747.383/0 Read more Read less
| ||
 | ||
 suitable for Cairon Wave / Trapeze / Men (Z11 and Z12), Xyron Aluminum and Xyron Carbon / Aluminum, smart system, BES3 (Z11) and Xyron LT / ST (Z20) Read more Read less
| ||
 for Horst-Link (Dropout) Important note: only suitable for Xyron aluminum LT / ST (Z20), M12 x 1.0 mm, shaft length 28.5 mm Read more Read less
| ||
 Suitable for the smart system (BES3)Note: only for battery sizes PT600 and PT800 Read more Read less
| ||
 | ||
 for down tube, suitable for Cairon gents, trapeze and wave und Xyron with 500 / 625 Wh PT battery, BES2 (Z6) Read more Read less
| ||
suitable for Xyron LT / ST (Z20) Read more Read less
| ||
 | ||
 regular, (LxW): 255 x 145mm, 262g Read more Read less
| ||
 for Rocker, suitable for WME (Z7), eWME E8000 (Z4/Z5), eWME EP8 (Z10), Xyron Aluminum and Carbon BES2 (Z6) and BES3 (Z11) and Xyron LT / ST (Z20), M15x1.0 mm Read more Read less
| ||
for complete rear triangle. Important note: only suitable for Xyron aluminum ST 4.0 + 5.0 with 1.5 mm thread pitch (Z20) Read more Read less
| ||
 suitable for all Xyron LT / ST (Z20) Read more Read less
| ||
 Top part, suitable for Conway Xyron aluminum LT / ST (Z20) Read more Read less
| ||
 | ||
 suitable for all Xyron LT / ST (Z20) Read more Read less
| ||
 for Frame main bearing, suitable for Xyron aluminum and carbon with BES3 and smart system (Z11), Ryvon (Z18) and all Xyron LT / ST, (Z20), M15x1.0 mm Read more Read less
| ||
suitable for Xyron LT / ST aluminum (Z20), M8 x 1.25 mm Read more Read less
| ||
 10-12-14-16-18-21-24-28-33-39-45-51Teeth Read more Read less
| ||
 Plastic with rubber rim, suitable for all Xyron LT / ST (Z20) Read more Read less
| ||
 | ||
 Lower part, suitable for Conway Xyron aluminum LT / ST (Z20) Read more Read less
| ||
 | ||
 suitable for all Bosch chargers Read more Read less
| ||
 | ||
suitable for Xyron LT / ST aluminum (Z20) Read more Read less
| ||
 without stickers / decals!suitable for Xyron ST 4.0, alu raw matt / black matt and Xyron ST 5.0, bronze matt / black matt and graphite gray matt / black matt, from mod. 2025 (Z20) Read more Read less
| ||
 Without stickers / decals!suitable for Xyron ST 4.0, alu raw matt / black matt and Xyron ST 5.0, bronze matt / black matt and graphite gray matt / black matt, from mod. 2025 (Z20)incl. ball bearings Read more Read less
| ||
 | ||
 | ||
 | ||
 black, fits Conway eWME from 2021 and Victoria eParcour, among others Read more Read less
| ||
 suitable for eWME (Z10), 180 mm / M12 x P1.0 x 14.5 mm Read more Read less
| ||
 | ||
 | ||
 UDH, suitable for eWME (Z10), Nyvon (Z17), Ryvon (Z18) and Xyron ST / LT (Z20)(equivalent substitute: 0.347.028/3) Read more Read less
| ||
 | ||
 suitable for Ryvon (Z18) and all Xyron LT / ST (Z20) Read more Read less
| ||
 SB-packed, e.g. suitable for Conway Xyron ST Alu, application range from 280 mm to 330 mm, kickstand rubbers extendable up to a maximum of 42 mm Read more Read less
| ||
 | ||
 for Xyron ST, black matt, from mod. 2025 (Z20), incl. ball bearings Read more Read less
|
| Article | Price | |
|---|---|---|
 full suspension, 29", desert matt / black matt, 12-speed SHIMANO "XT" Blender, 39 cm / S Read more Read less
| ||
 full suspension, 29", graphit grey matt, 12-speed SHIMANO "XT" Blender, 39 cm / S Read more Read less
| ||
 full suspension, 29", alu raw matt / deepblue matt, 12-speed SHIMANO "XT" Blender, 39 cm / S Read more Read less
|
The "Xyron ST 5.0" is your new partner for the trails - a real full suspension e-bike that gives you the ultimate kick with its Bosch mid-motor and a whopping 800 Wh battery capacity. With support up to 25 km/h and 29" wheels, you are always fast on the road, whether on steep climbs or rapid descents.With the Shimano "XT" 12-speed derailleur gears, you always have the right gear to hand, whether you want to speed up a steep slope or maintain your speed on the descent. The precise gear changes allow you to shift between gears at lightning speed so that you never fall behind. The hydraulic disc brake system ensures that you are always in control. With 150 mm fork travel and 150 mm frame travel, the "Xyron ST 5.0" absorbs every bump and gives you a great riding experience.
