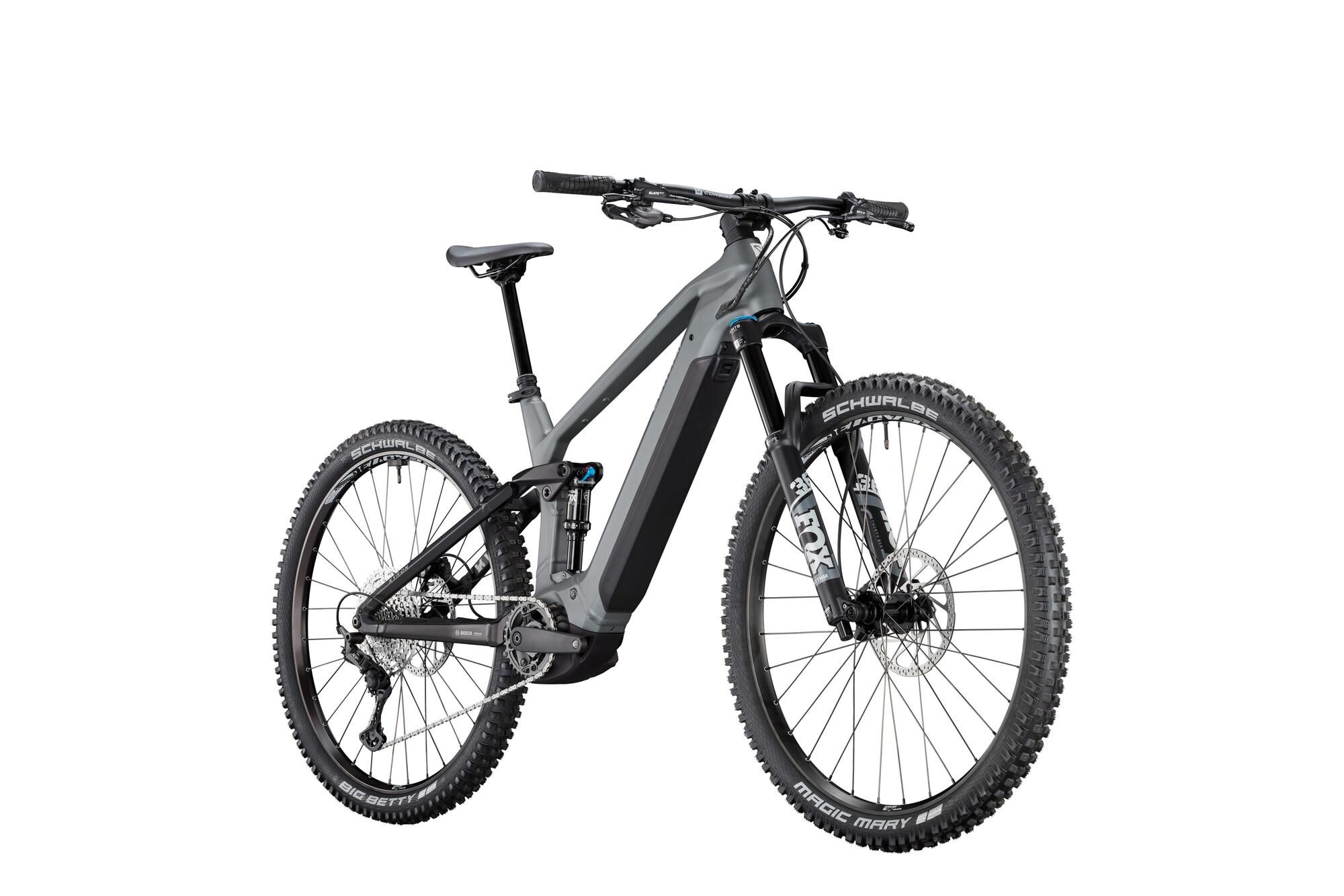

CONWAY Electric MTB full suspension "Xyron ST 5.0" (#1)
full suspension, 29", graphit grey matt / black matt, 12-speed SHIMANO "XT" Blender, 39 cm / S
Read more Read less - Article number: 02810427
- Original number: 01025790
The electric MTB full suspension consists of an aluminum frame with a frame travel of 150 mm. Drives are provided by a chain drive, which is supported by a BOSCH Performance Line CX mid-motor with a motor output of 250 W. The battery capacity is 800.0 Wh. A 12-speed SHIMANO "XT" Blender derailleur is installed for gear selection. The hydraulic disc brakes ensure reliable deceleration. Equipped with a Suspension Fork, electronic push assist and Damper, the bike has 29" wheels. The permissible system weight is 140 kg.
PU 1
Product information
- Battery capacity 800.0 Wh
- Brake system hydraulic disc brake
- Category E-bike 3
- Colour designation graphit grey matt / black matt
- Drive chain
- Drive system BOSCH Performance Line CX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features damper , electronic sliding aid , suspension fork
- Frame height 39 cm
- Frame shape full suspension
- Frame size S
- Frame travel 150 mm
- Gears 12-speed
- Gender gents
- Main colour grey
- Material 1 aluminium
- Model range Xyron
- Permissible system weight 140 kg
- Secondary colour black
- Shifting name 12-Gang SHIMANO "XT" Mix
- Shifting type derailleur shifting
- Support up to 25km/h
- Transmission 1x 12-speed
- Travel 150 mm
- Type full suspension
- Wheel size 29 "
- Battery BOSCH "PowerTube 800", 800 Wh
- Battery Lock ABUS "XPlus"
- Bottom bracket BOSCH
- Chain / belt SHIMANO "Deore CN-M6100"
- Chain ring / pulley e*thirteen "Helix Core e*spec", 34 teeth
- Charger BOSCH 4 A
- Crank MIRANDA "Mythos" 165 mm, for Bosch Gen. 4, ISIS, Q:8, black
- Damper FOX "Float Rhythm", 185 mm x 52.5 mm
- Derailleur hanger SRAM "UDH", for Thru Axle, 1 mm thread pitch
- Display BOSCH "Kiox 300", 4-stages, remote control, push aid

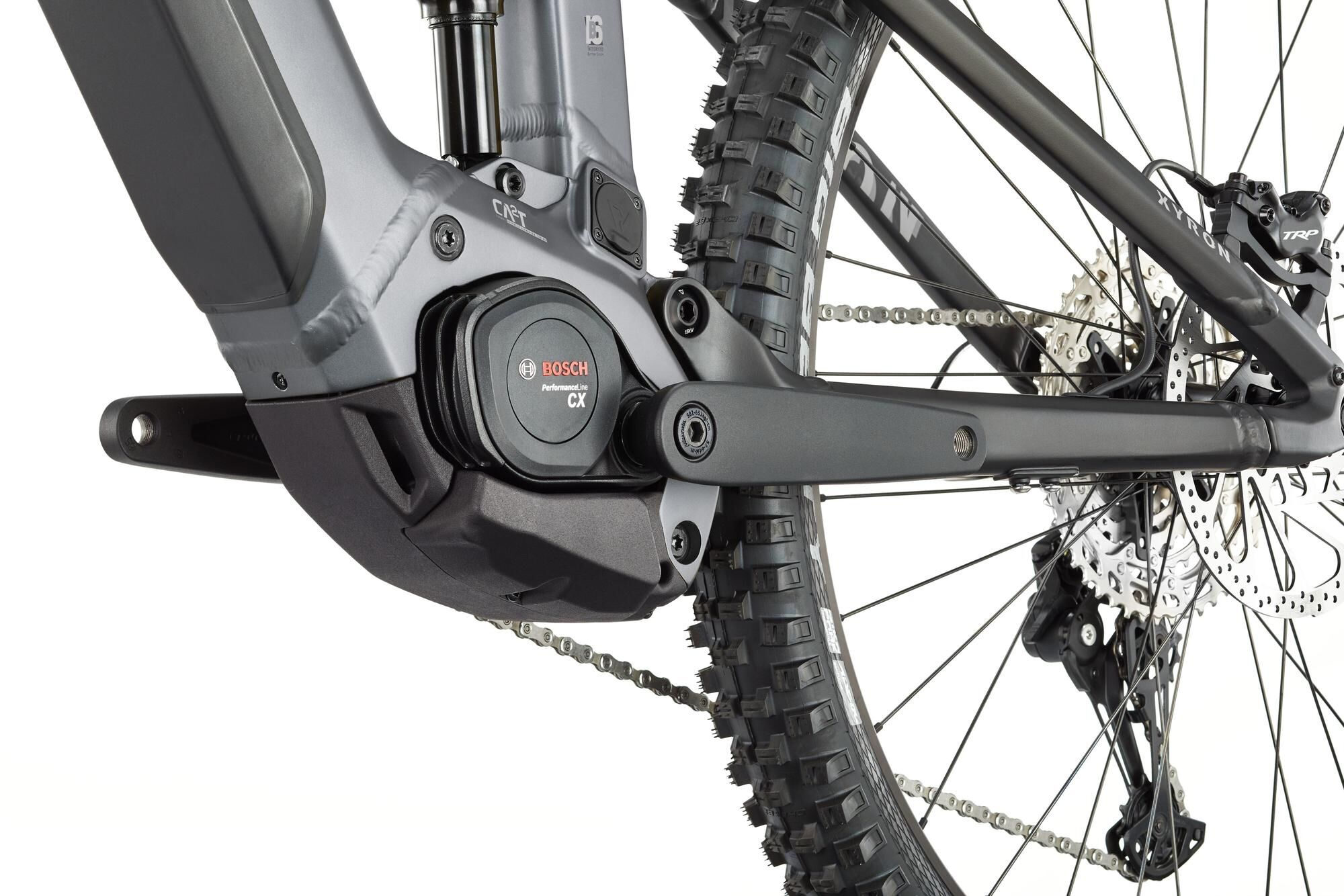

- Engine BOSCH "Performance Line CX", BDU38, max. 100 Nm
- Fork FOX "36 Float Rhythm E", 150 mm travel, Float Evol, Grip, Thru Axle
- Frame Intube Bosch, Gen. 4, BES3, aluminum, full suspension, 39 cm
- Front brake TRP "SLATE EVO HD-M807", Post Mount
- Front hub NEWMEN "Basic", 15 x 110 mm booster, Thru Axle, 6-hole
- Front rotor TRP "RS01E", Ø 203 mm, 6-hole, 2.3 mm thickness
- Front tire SCHWALBE "Magic Mary", 62-622
- Grips SQlab "70X"
- Handlebar LEVELNINE "Race Riser", 780 mm, Ø 31.8 mm, Backsweep 9°, Rise 15 mm
- Headset ACROS ZS56/28.6/OD62 / ZS56/40, 150° blocklock
- Rear brake TRP "SLATE EVO HD-M807"
- Rear derailleur SHIMANO "Deore XT RD-M8100"
- Rear hub NEWMEN "Basic", 12 x 148 mm booster, Thru Axle, 6-hole
- Rear rotor TRP "RS01E", Ø 203 mm, 6-hole, 2.3 mm thickness
- Rear tire SCHWALBE "Big Betty", 62-622
- Remote BOSCH "BRC3300", Mini Remote
- Rims NEWMEN "Performance 30 Base", 28 Loch, geöst, Tubeless Ready
- Saddle FIZIK "Terra Aidon X5"
- Seatpost LIMOTEC "D1", Ø 31.6 mm, 395 mm long, 125 mm adjustment range, 0 mm offset
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever SHIMANO "Deore XT SL-M8100"
- Spokes SAPIM "black"
- Sprocket / pulley SHIMANO "Deore CS-M6100", 10-51 teeth
- Stem LEVELNINE "Team A-Head", 1 1/8", 31,8mm handlebar clamp, 40mm long, black
- System Interface BOSCH "BRC3100"
- Supplier Article Number: 01025790
- EAN 4251971167865
- MSRP: €4,999.95
- Fedas-Code 154050
- WEEE registration number DE92509320
- DST-Code 1E01
- SB-Article No
- Bidex-Code 121020
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight 25.9 kg
- instruction manual
- exploded view grease
- exploded view metal
- exploded view plastic
- exploded view torque
- declaration of conformity DE
- declaration of conformity DK
- declaration of conformity EN
- declaration of conformity ES
- declaration of conformity FR
- declaration of conformity IT
- declaration of conformity NL
| Article | Price | |
|---|---|---|
 suitable for all Bosch chargers Read more Read less
| PU 1 | |
 for down tube, suitable for Cairon gents, trapeze and wave und Xyron with 500 / 625 Wh PT battery, BES2 (Z6) Read more Read less
| PU 1 | |
 | PU 36 | |
 | PU 25 | |
 for 1 x 12-speed, max. 51 teeth, SGS Read more Read less
| PU 25 | |
 10-12-14-16-18-21-24-28-33-39-45-51Teeth Read more Read less
| PU 10 | |
 | PU 50 | |
 black, fits Conway eWME from 2021 and Victoria eParcour, among others Read more Read less
| PU 100 | |
 regular, (LxW): 255 x 145mm, 262g Read more Read less
| PU 8 | |
 | PU 5 | |
 Successor: 07079514 Ø 203 mm Read more Read less
| PU 20 | |
 for Cairon BES3 (Z11 / Z12), Xyron BES3 aluminium and carbon (Z11), Cairon SUV FS BES3 (Z14) and Nyvon (Z17) Read more Read less
| PU 1 | |
 suitable for Cairon Wave / Trapeze / Men (Z11 and Z12), Xyron Aluminum and Xyron Carbon / Aluminum, smart system, BES3 (Z11) and Xyron LT / ST (Z20) Read more Read less
| PU 1 | |
 for Rocker, suitable for WME (Z7), eWME E8000 (Z4/Z5), eWME EP8 (Z10), Xyron Aluminum and Carbon BES2 (Z6) and BES3 (Z11) and Xyron LT / ST (Z20), M15x1.0 mm Read more Read less
| PU 1 | |
 for Frame main bearing, suitable for Xyron aluminum and carbon with BES3 and smart system (Z11), Ryvon (Z18) and all Xyron LT / ST, (Z20), M15x1.0 mm Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 Out of Stock UDH, suitable for eWME (Z10), Nyvon (Z17), Ryvon (Z18) and Xyron ST / LT (Z20)(equivalent substitute: 0.347.028/3) Read more Read less
| PU 1 | |
 suitable for eWME (Z10), 180 mm / M12 x P1.0 x 14.5 mm Read more Read less
| PU 1 | |
 suitable for eWME (Z10), Ryvon (Z18), matching thru axle 0.281.502/5 and Nyvon (Z17), matching thru axle 0.747.383/0 Read more Read less
| PU 1 | |
 suitable for Ryvon (Z18) and all Xyron LT / ST (Z20) Read more Read less
| PU 1 | |
 suitable for Ryvon (Z18) and Xyron Carbon LT / ST (Z20) Read more Read less
| PU 1 | |
 Plastic with rubber rim, suitable for all Xyron LT / ST (Z20) Read more Read less
| PU 1 | |
 suitable for Xyron (Z20), with Bosch Performance CX 2 bolts Read more Read less
| PU 1 | |
 suitable for Xyron Aluminum LT / ST (Z20) Read more Read less
| PU 1 | |
 suitable for Xyron LT / ST (Z20) Read more Read less
| PU 1 | |
 | PU 1 | |
 Top part, suitable for Conway Xyron aluminum LT / ST (Z20) Read more Read less
| PU 1 | |
 Lower part, suitable for Conway Xyron aluminum LT / ST (Z20) Read more Read less
| PU 1 | |
 | PU 1 | |
 suitable for Xyron LT / ST aluminum (Z20) Read more Read less
| PU 1 | |
 suitable for all Xyron LT / ST (Z20) Read more Read less
| PU 1 | |
 suitable for all Xyron LT / ST (Z20) Read more Read less
| PU 1 | |
 for Horst-Link (Dropout) Important note: only suitable for Xyron aluminum LT / ST (Z20), M12 x 1.0 mm, shaft length 28.5 mm Read more Read less
| PU 1 | |
| PU 36 | |
 Suitable for the smart system (BES3)Note: only for battery sizes PT600 and PT800 Read more Read less
| PU 1 | |
for complete rear triangle. Important note: only suitable for Xyron aluminum ST 4.0 + 5.0 with 1.5 mm thread pitch (Z20) Read more Read less
| PU 1 | |
suitable for Xyron LT / ST aluminum (Z20), M8 x 1.25 mm Read more Read less
| PU 1 | |
suitable for Xyron LT / ST (Z20) Read more Read less
| PU 1 | |
 Out of Stock Successor: 03402911 in a polybag Read more Read less
| PU 15 | |
 Self-service packaged, Operating range from 280 mm to 330 mm; kickstand rubbers extend up to a maximum of 42 mm Read more Read less
| PU 20 | |
 for Xyron ST, black matt, from mod. 2025 (Z20), incl. ball bearings Read more Read less
| PU 1 | |
 Without stickers / decals!suitable for Xyron ST 4.0, alu raw matt / black matt and Xyron ST 5.0, bronze matt / black matt and graphite gray matt / black matt, from mod. 2025 (Z20)incl. ball bearings Read more Read less
| PU 1 | |
 without stickers / decals!suitable for Xyron ST 4.0, alu raw matt / black matt and Xyron ST 5.0, bronze matt / black matt and graphite gray matt / black matt, from mod. 2025 (Z20) Read more Read less
| PU 1 |
| Article | Price | |
|---|---|---|
 Out of Stock full suspension, 29", graphit grey matt, 12-speed SHIMANO "XT" Blender, 39 cm / S Read more Read less
| PU 1 |
The "Xyron ST 5.0" is your new partner for the trails - a real full suspension e-bike that gives you the ultimate kick with its Bosch mid-motor and a whopping 800 Wh battery capacity. With support up to 25 km/h and 29" wheels, you are always fast on the road, whether on steep climbs or rapid descents.With the Shimano "XT" 12-speed derailleur gears, you always have the right gear to hand, whether you want to speed up a steep slope or maintain your speed on the descent. The precise gear changes allow you to shift between gears at lightning speed so that you never fall behind. The hydraulic disc brake system ensures that you are always in control. With 150 mm fork travel and 150 mm frame travel, the "Xyron ST 5.0" absorbs every bump and gives you a great riding experience.
