CONWAY Electric SUV "Cairon C 2.0 625" Mod. 23
diamond, 29", black metallic matt / turquoise metallic, 9-speed TEKTRO "M350", 49 cm / L
Read more Read less - Article number: 02819597
- Original number: BK23HA0710
Please note the different equipment and prices of the individual models!
Product information
- Battery capacity 625.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Category SUV
- Chainstay 455 mm
- Colour designation black metallic matt / turquoise metallic
- Drive chain drive
- Drive system BOSCH Performance Line CX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features electronic sliding aid , fender , suspension fork
- Frame height 49 cm
- Frame shape diamond
- Frame size L
- Gears 9-speed
- Gender gents
- Main colour black
- Material 1 aluminium
- Permissible system weight 130 kg
- Reach 445 mm
- Seat angle 74.5 °
- Seat tube 490 mm
- Secondary colour blue
- Shifting name 9-Gang TEKTRO "M350"
- Shifting type derailleur shifting
- Stack 658 mm
- Steering tube 130 mm
- Steering tube angle 67.0 °
- Stem length 90.0 mm
- Support up to 25km/h
- Toptube 620 mm
- Transmission 1x 9-speed
- Travel 120 mm
- Wheel distance 1197 mm
- Wheel size 29 "

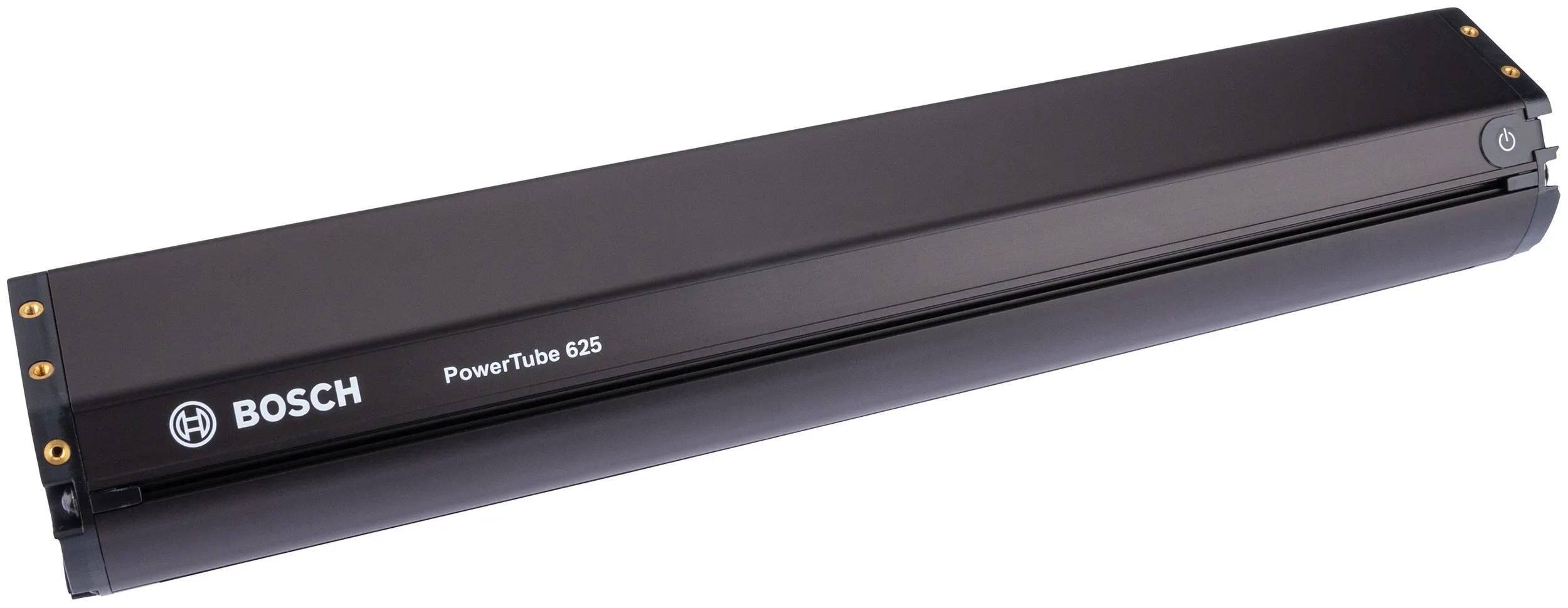

- Battery: BOSCH "PowerTube 625", 625 Wh, BES3, horizontal
- Battery Lock: AXA "New Lock"
- Bottom bracket: BOSCH
- Brake: TEKTRO "HD-M280"
- Brake lever: TEKTRO "HD-M280"
- Bremse H.R.: TEKTRO Disc Brake "HD-T280", hydraulic, 2 pistons, for 1.8 mm brake rotors
- Chain / belt: SHIMANO "CN-HG53"
- Chain ring / pulley: MIRANDA, 36 teeth
- Charger: BOSCH 4 A
- Crank: MIRANDA "Classic", 165 mm, for Bosch Gen. 4, ISIS, Q:12, black
- Derailleur hanger: CONWAY "V2" for Cairon QR

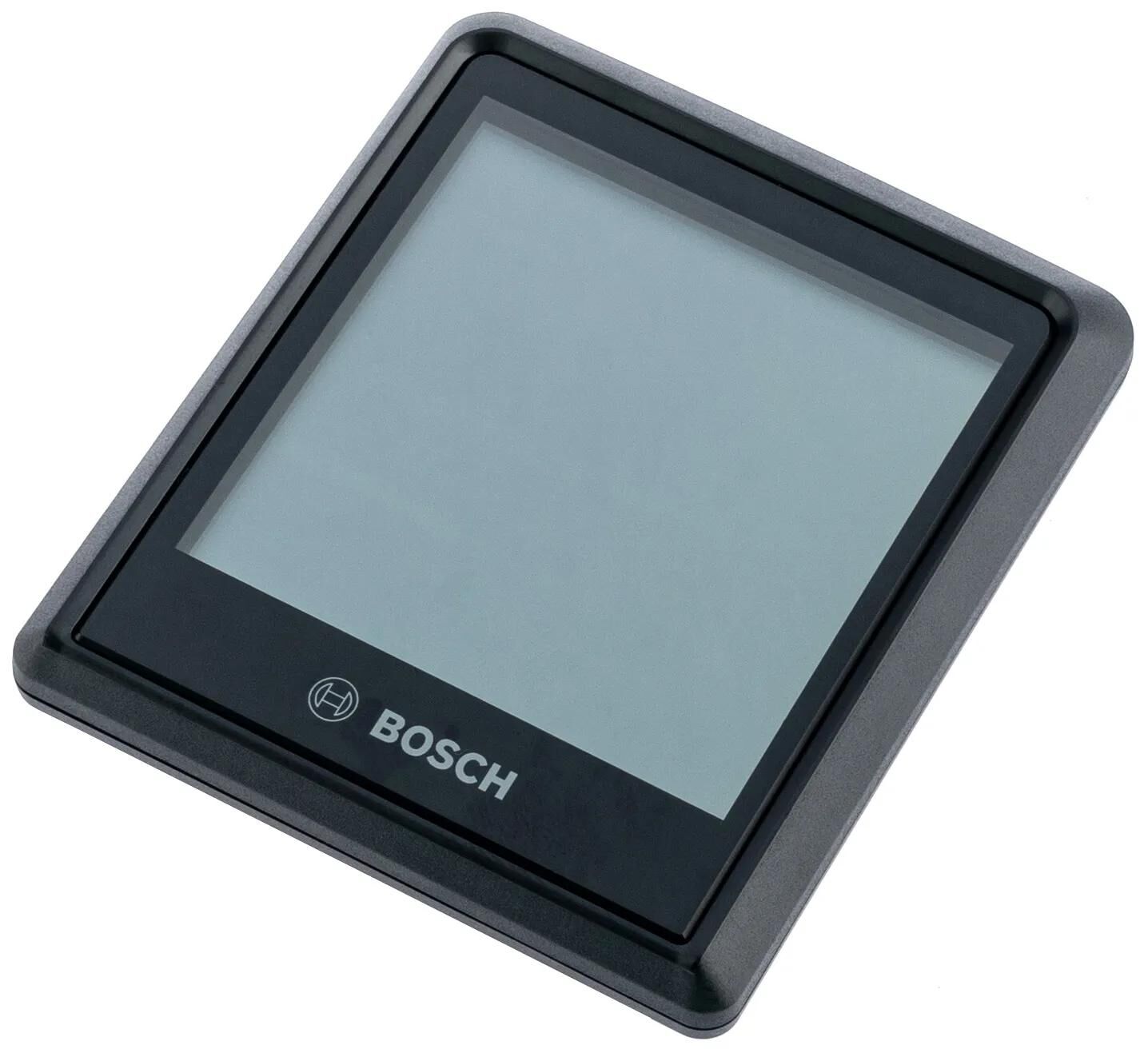

- Display: BOSCH "Intuvia 100", 4-stages, remote control, push aid
- Engine: BOSCH "Performance Line CX", max. 85 Nm

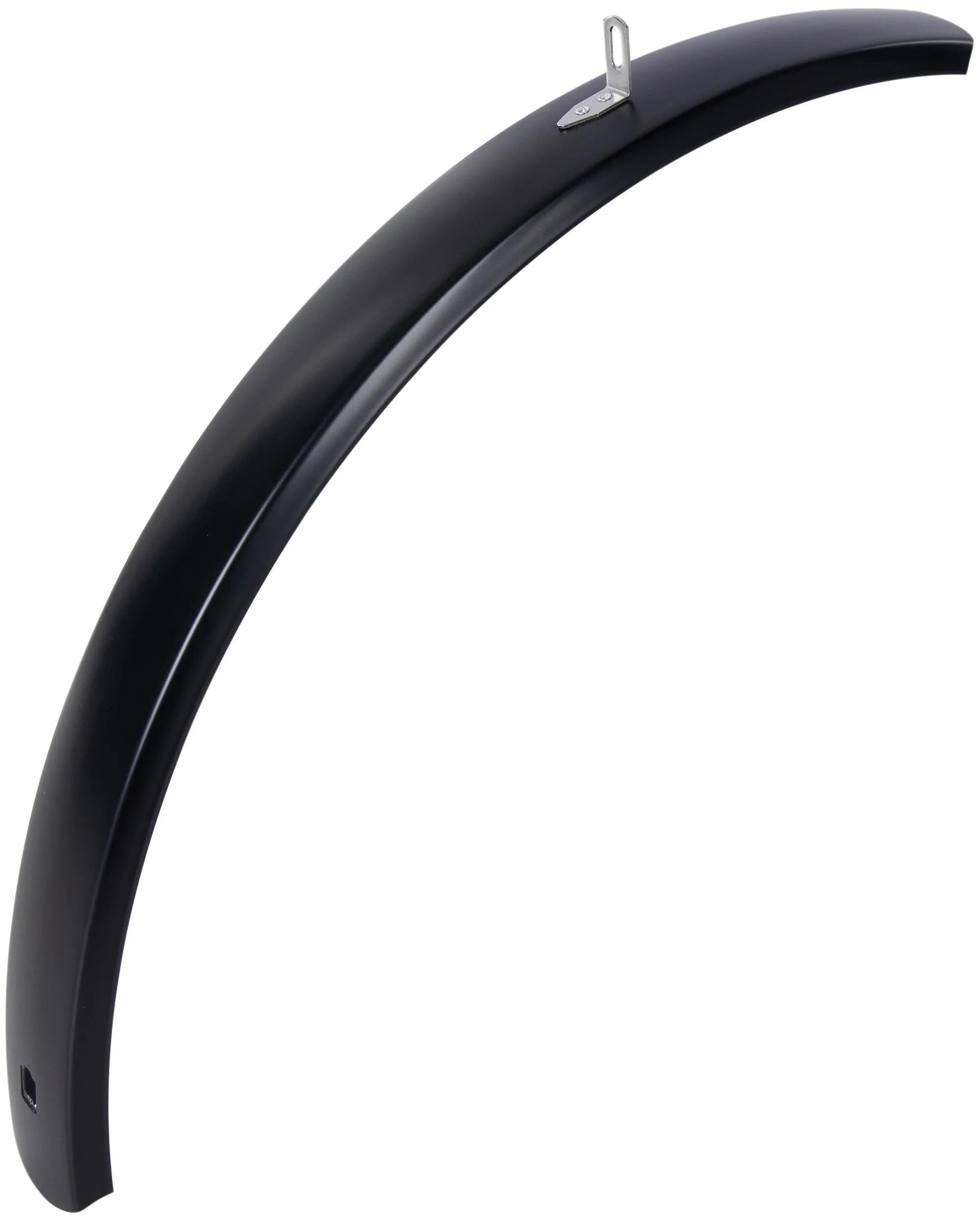

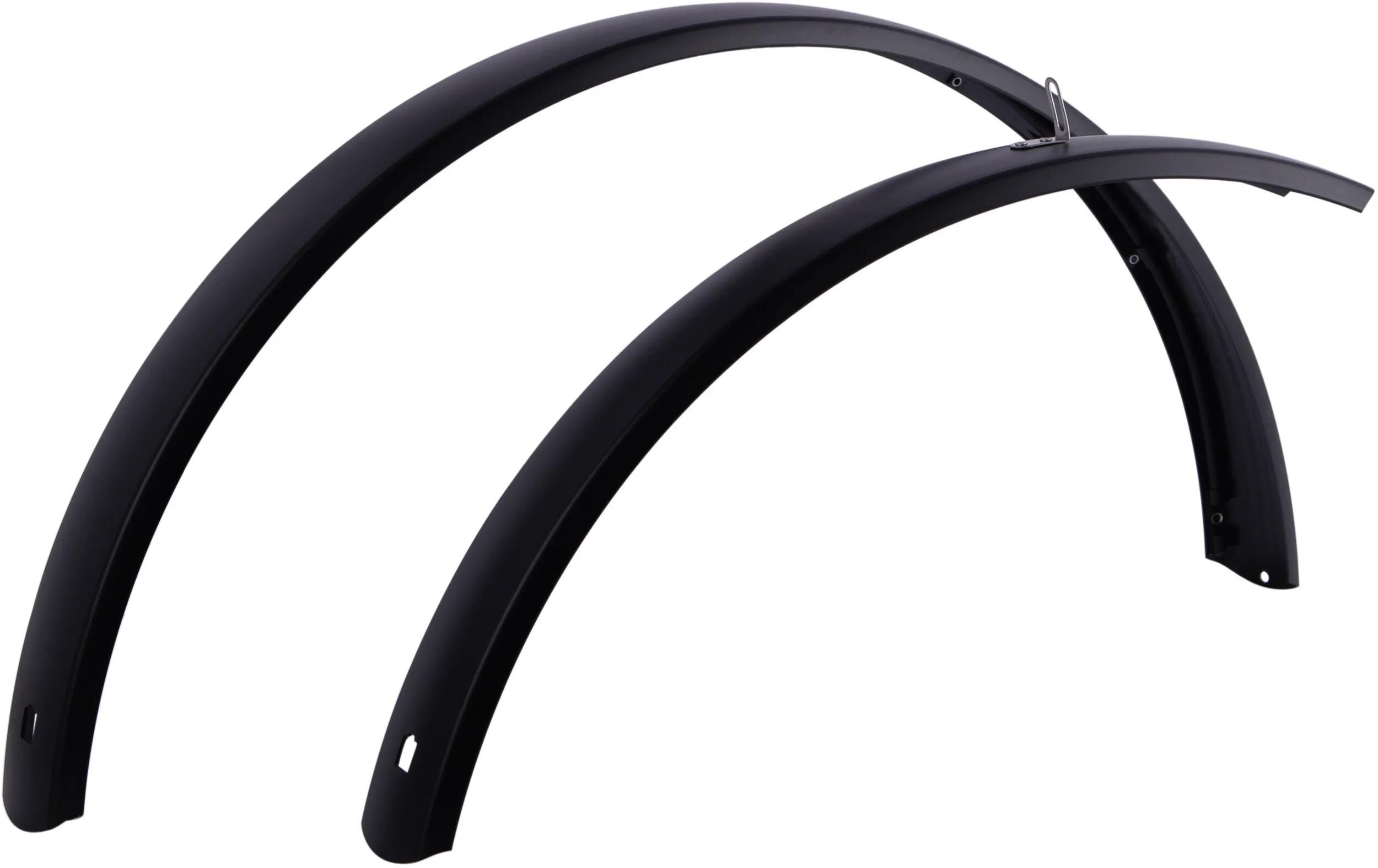

- Fender: SKS "A 65 R"
- Fork: RST "Blaze ML", 120 mm travel, QR
- Frame: Intube Bosch, Gen. 4, BES3, aluminum, diamond, 49 cm

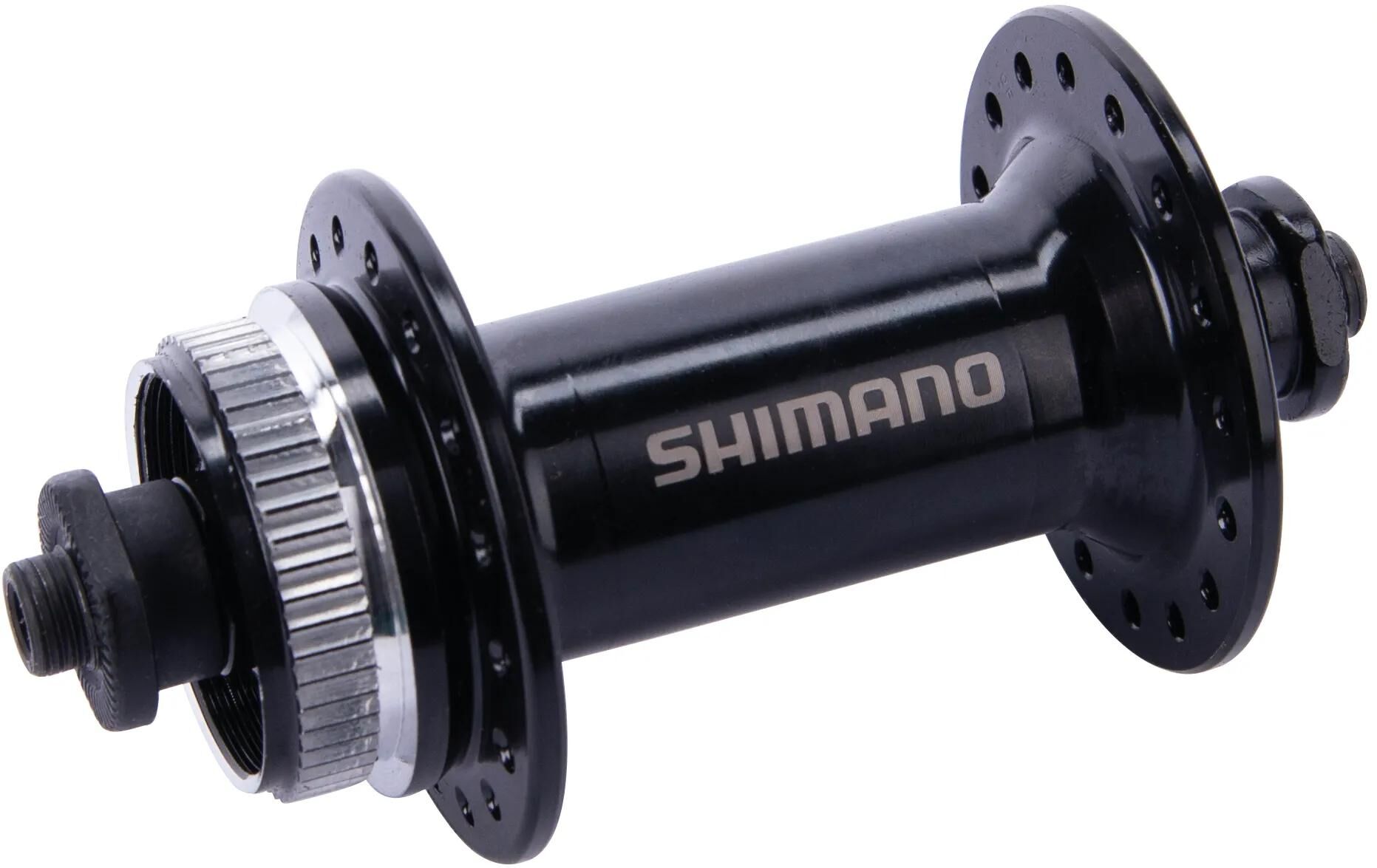

- Front hub: SHIMANO "Tourney TX HB-TX505", Center Lock, QR
- Front light: CONTEC "DLUX 50 E+", 50 lux
- Front rotor: TEKTRO "TR180-35", Ø 180 mm, Center Lock
- Front tire: CONTINENTAL "Ruban", 58-622, Reflex
- Grips: CONTEC "MERGE Mountain Straight", 140 mm, G-Link, black / gray
- Handlebar: LEVELNINE "Low Riser", 720 mm, Ø 31.8 mm, backsweep 9°, upsweep 5°
- Headset: ACROS ZS56/28.6 / ZS56/40, 120° blocklock
- Pedals: VP COMPONENTS "VPE-506"
- Rear carrier: atranvelo "Commute Pro"
- Rear derailleur: TEKTRO "RD-M350"
- Rear hub: SHIMANO "Tourney TX FH-TX505", Center Lock, QR
- Rear light: CONTEC "TL-335 E"
- Rear rotor: TEKTRO "TR180-35", Ø 180 mm, Center Lock
- Rear tire: CONTINENTAL "Ruban", 58-622, Reflex
- Remote: BOSCH "BRC3300", mini remote
- Rims: MACH1 "MAXX", 32 hole, eyeleted
- Saddle: Selle Royal "Vivo", Athletic
- Seatpost: CONWAY, Ø 31.6 mm, 350 mm long, 15 mm offset
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Spokes: Niro
- Stands: URSUS "R81 - Wave Rear"
- Stem: LEVELNINE "Adjustable", 1 1/8", 31,8mm handlebar clamp, 90mm long, black
- Supplier Article Number: BK23HA0710
- EAN: 4251971117044
- MSRP: €3,499.95
- WEEE registration number: DE92509320
- DST-Code: 1B01
- SB-Article: No
- Bidex-Code: 122010
- Fedas-Code: 155021
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight: 26.5 kg
- Bedienungsanleitung NL
- Explosionszeichnung Metall
- Bedienungsanleitung DE
- Bedienungsanleitung ES
- Bedienungsanleitung DE
- Bedienungsanleitung DK
- Bedienungsanleitung DK
- Bedienungsanleitung EN
- Bedienungsanleitung EN
- Bedienungsanleitung FR
- Bedienungsanleitung NL
- Bedienungsanleitung ES
- Bedienungsanleitung IT
- Bedienungsanleitung FR
- Explosionszeichnung Kunststoff und Gummi
| Article | Price | |
|---|---|---|
 | ||
 | ||
 | ||

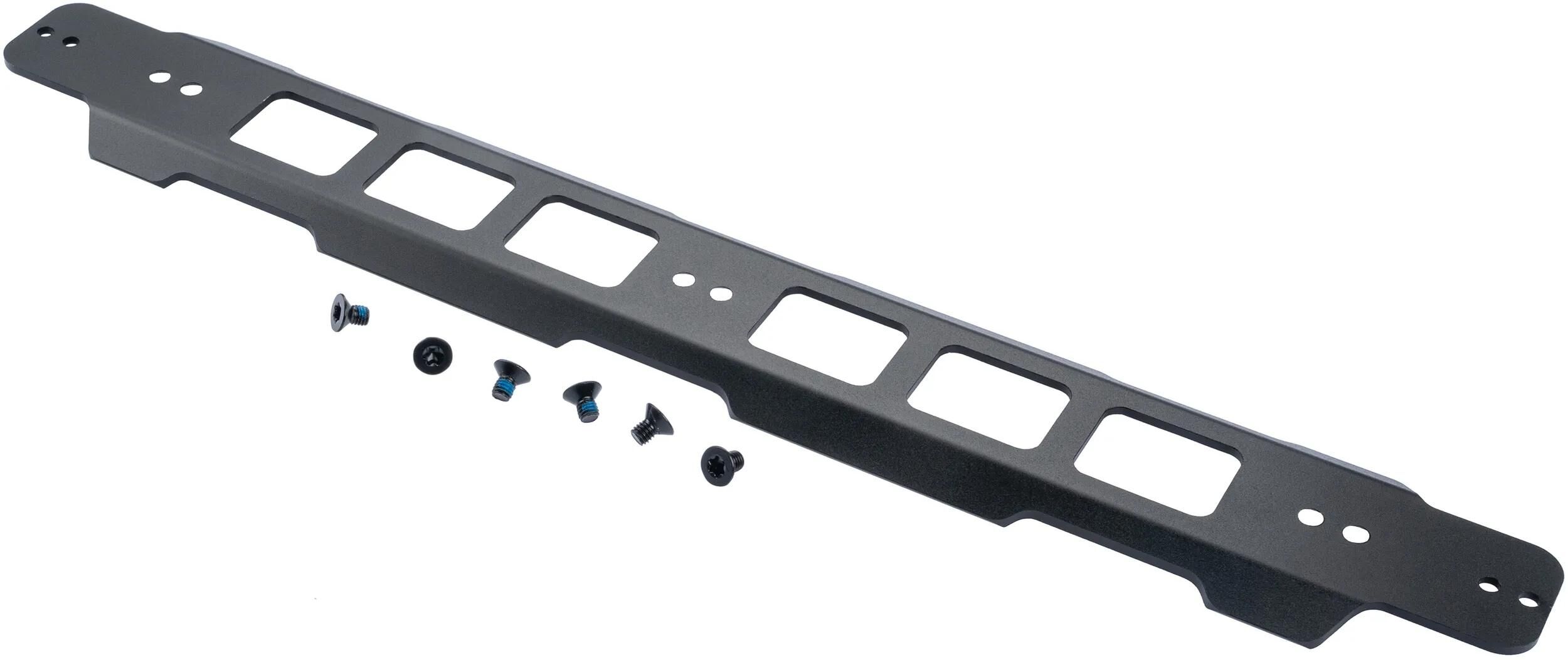

 Extensions for 500 Wh Battery to 625 Wh Battery Bracket and 625 Wh Battery to 750 Wh Battery Bracket Read more Read less
| ||
 suitable for Cairon trapeze and gents (Z11, Z12, Z14) and Xyron (Z11), Smart system, Gen.4 (Performance Line CX), BES3 Read more Read less
| ||
 | ||
 | ||
 | ||
 | ||
 | ||
 32 hole, QR 173 mm, 135 mm installation width, black Read more Read less
| ||
 | ||
 | ||
 suitable for Cairon with rear QR (Z12) and Cairon SUV FS (Z14), Smart system, BES3 Read more Read less
| ||
 suitable for Cairon trapeze, gents and wave, Smart System, BES3 (Z11 / Z12) Read more Read less
| ||
 carrier attachment 50mm, self-service package Read more Read less
| ||
 | ||
 29", suitable for Cairon C from mod.20dimensions (HxW): 400 x 99mm Read more Read less
| ||
 | ||
 | ||
 | ||
| ||
 suitable for all Bosch chargers Read more Read less
| ||
 | ||
 suitable for Cairon with rear QR axle (Z12) and Cairon SUV FS (Z14), Smart system, BES3 Read more Read less
| ||
 | ||
 MTB 27,5" / 29", matt black Read more Read less
| ||
 suitable for Cairon Wave / Trapeze / Men (Z11 and Z12), Xyron Aluminum and Xyron Carbon / Aluminum, smart system, BES3 (Z11) and Xyron LT / ST (Z20) Read more Read less
| ||
 suitable for Cairon trapeze and gents with rear QR, Smart system, BES3 (Z12) Read more Read less
| ||
 for Cairon BES3 (Z11 / Z12), Xyron BES3 aluminium and carbon (Z11), Cairon SUV FS BES3 (Z14) and Nyvon (Z17) Read more Read less
| ||
 | ||
 | ||
 | ||
 suitable for Cairon (Z11 and Z12), Cairon SUV FS (Z14) and Xyron (Z11), Gen.4 (Performance CX), smart system (BES3) Read more Read less
| ||
 | ||
 |
Whether you're touring overland through the countryside or cross-country - the "Cairon C 2.0 625" E-SUV is your companion. Our developers gave the sporty trekking bike a fresh digital update. With the Bosch Smart System, the new "Cairon C 2.0 625" is fully connected and all drive components can communicate with each other. The "Performance CX" of the 4th generation provides a welcome tailwind.The Bosch "PowerTube" battery is fully integrated in the down tube and supplies the sporty "Performance CX" mid-motor with plenty of energy with a capacity of 625 Wh. When it comes to hilly terrain, the Tektro derailleur offers a solid range of gears. The hydraulic disc brake reacts reliably when riding downhill at high speed. It can be finely dosed, but can also grip firmly."Smart Sam" by SCHWALBE has all-round qualities, which it can demonstrate in varying terrain. With a width of 57 mm, it provides additional damping on bumpy roads, while the 120 mm suspension fork once again significantly increases ride comfort.The e-bike only becomes roadworthy with the right all-round equipment. This includes the Contec LED lighting system, which illuminates the way home with a solid 50 lux at the front. Mudguards and a luggage rack make the "Cairon C 2.0 625" fit for short errands through the city or for its use as a commuter.
