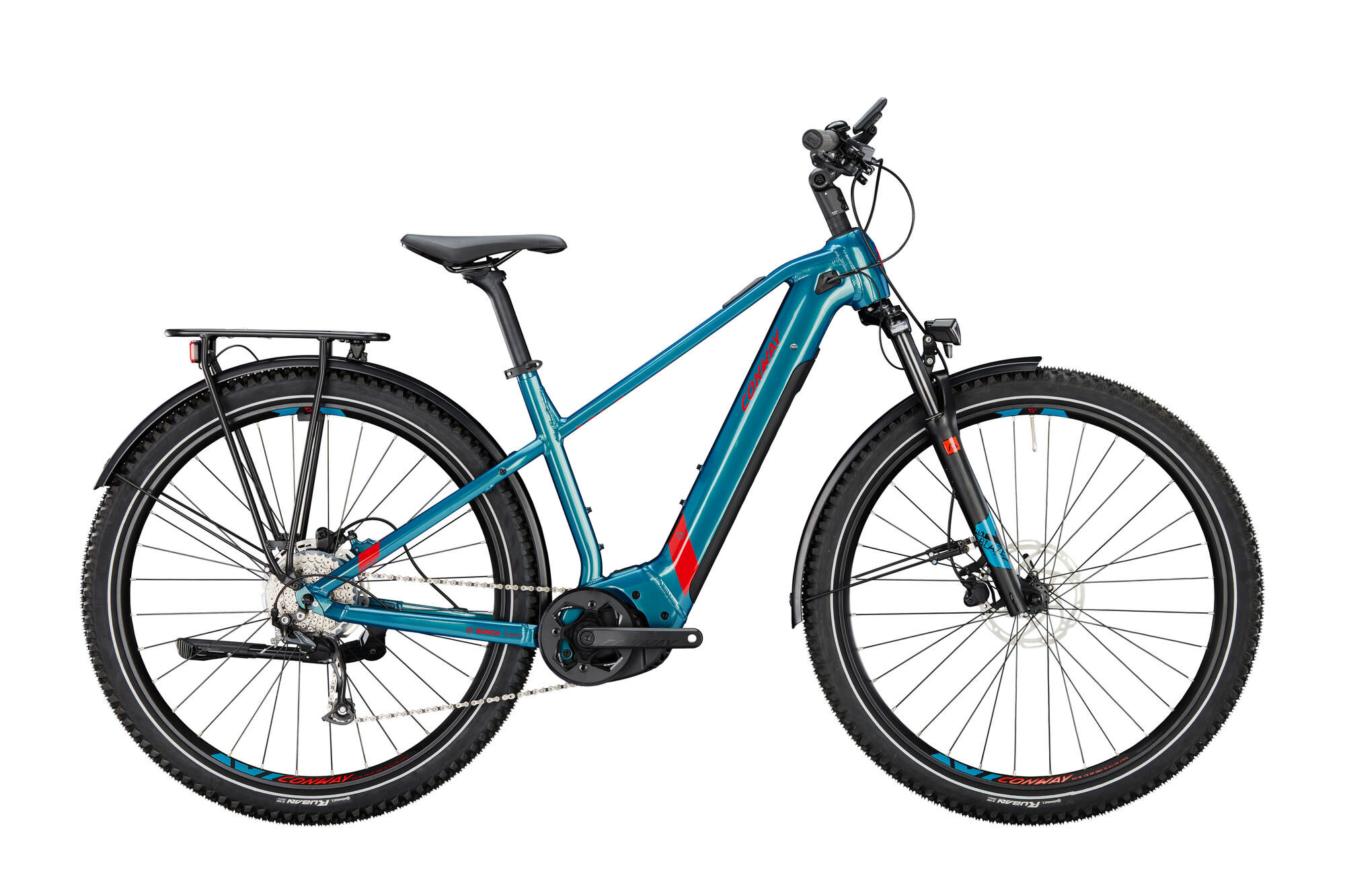

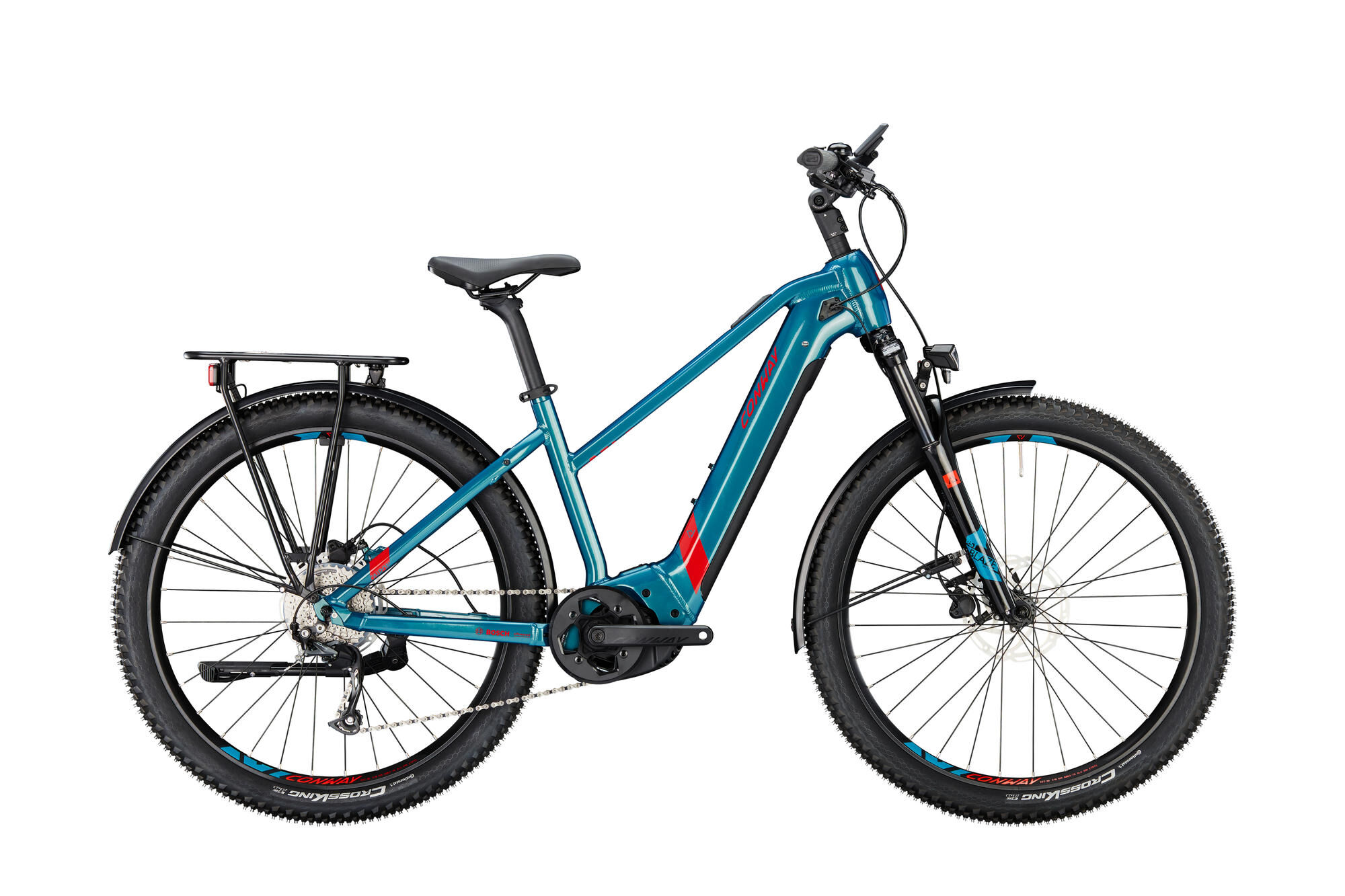

CONWAY Electric SUV "Cairon C 2.0 625" Mod. 23
trapeze, 27,5", black metallic matt / turquoise metallic, 9-speed TEKTRO "M350", 41 cm / S
Read more Read less - Article number: 02819639
- Original number: BK23HA0750
The bike consists of an aluminum frame and is equipped with the Bosch Smart System. Drives are provided by a chain drive with a 9-speed TEKTRO "M350" derailleur gear system. The hydraulic disc brakes offer reliable braking performance. Equipped with a Suspension Fork with a fork travel of 120 mm and Fender, the battery capacity is 625.0 Wh. The BOSCH Performance Line CX mid-motor has an output of 250 W. The permissible system weight is 130 kg. The electric SUV offers electronic Pushing Help.
Product information
- Battery capacity 625.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Chainstay 440 mm
- Colour designation black metallic matt / turquoise metallic
- Drive chain drive
- Drive system BOSCH Performance Line CX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features fender
- Frame height 41 cm
- Frame shape trapeze
- Frame size S
- Gears 9-speed
- Gender ladies
- Main colour black
- Material 1 aluminium
- Permissible system weight 130 kg
- Reach 401 mm
- Seat angle 74.0 °
- Seat tube 410 mm
- Secondary colour blue
- Shifting name 9-Gang TEKTRO "M350"
- Shifting type derailleur shifting
- Stack 619 mm
- Steering tube 130 mm
- Steering tube angle 67.0 °
- Stem length 65.0 mm
- Support up to 25km/h
- Toptube 575 mm
- Transmission 1x 9-speed
- Travel 120 mm
- Type SUV
- Wheel distance 1135 mm
- Wheel size 27,5 "
- Battery: BOSCH "PowerTube 625", 625 Wh, BES3, horizontal
- Battery Lock: AXA "New Lock"
- Bottom bracket: BOSCH
- Brake: TEKTRO "HD-M280"
- Brake lever: TEKTRO "HD-M280"
- Bremse H.R.: TEKTRO Disc Brake "HD-T280", hydraulic, 2 pistons, for 1.8 mm brake rotors
- Chain / belt: SHIMANO "CN-HG53"
- Chain ring / pulley: MIRANDA, 36 teeth
- Charger: BOSCH 4 A
- Crank: MIRANDA "Classic", 165 mm, for Bosch Gen. 4, ISIS, Q:12, black
- Derailleur hanger: CONWAY "V2" for Cairon QR
- Display: BOSCH "Intuvia 100", 4-stages, remote control, push aid
- Engine: BOSCH "Performance Line CX", max. 85 Nm
- Fender: SKS "A 65 R"
- Fork: RST "Blaze ML", 120 mm travel, QR
- Frame: Intube Bosch, Gen. 4, BES3, aluminum, trapeze, 41 cm
- Front hub: SHIMANO "Tourney TX HB-TX505", Center Lock, QR
- Front light: CONTEC "DLUX 50 E+", 50 lux
- Front rotor: TEKTRO "TR180-35", Ø 180 mm, Center Lock
- Front tire: CONTINENTAL "Ruban", 58-584, Reflex
- Grips: CONTEC "MERGE Mountain Straight", 140 mm, G-Link, black / gray
- Handlebar: LEVELNINE "Low Riser", 720 mm, Ø 31.8 mm, backsweep 9°, upsweep 5°
- Headset: ACROS ZS56/28.6 / ZS56/40, 120° blocklock
- Pedals: VP COMPONENTS "VPE-506"
- Rear derailleur: TEKTRO "RD-M350"
- Rear hub: SHIMANO "Tourney TX FH-TX505", Center Lock, QR
- Rear light: CONTEC "TL-335 E"
- Rear rotor: TEKTRO "TR180-35", Ø 180 mm, Center Lock
- Rear tire: CONTINENTAL "Ruban", 58-584, Reflex
- Remote: BOSCH "BRC3300", mini remote
- Rims: MACH1 "MAXX", 32 hole, eyeleted
- Saddle: Selle Royal "Vivo", Athletic
- Seatpost: CONWAY, Ø 31.6 mm, 350 mm long, 15 mm offset
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Spokes: Niro
- Stands: URSUS "R81 - Wave Rear"
- Stem: LEVELNINE "Adjustable", 1 1/8", 31,8mm handlebar clamp, 65mm long, black
- Supplier Article Number: BK23HA0750
- EAN: 4251971117082
- MSRP: €3,499.95
- WEEE registration number: DE92509320
- DST-Code: 1B01
- SB-Article: No
- Bidex-Code: 122010
- Fedas-Code: 155021
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight: 26.1 kg
- Bedienungsanleitung DE
- Bedienungsanleitung DK
- Bedienungsanleitung EN
- Bedienungsanleitung ES
- Bedienungsanleitung FR
- Bedienungsanleitung IT
- Bedienungsanleitung NL
- Bedienungsanleitung DE
- Bedienungsanleitung DK
- Bedienungsanleitung EN
- Bedienungsanleitung FR
- Bedienungsanleitung NL
- Bedienungsanleitung ES
- Explosionszeichnung Kunststoff und Gummi
- Explosionszeichnung Metall
| Article | Price | |
|---|---|---|
 suitable for Cairon Wave / Trapeze / Men (Z11 and Z12), Xyron Aluminum and Xyron Carbon / Aluminum, smart system, BES3 (Z11) and Xyron LT / ST (Z20) Read more Read less
| ||
 | ||
 | ||
 | ||
 carrier attachment 50mm, self-service package Read more Read less
| ||
 for Cairon BES3 (Z11 / Z12), Xyron BES3 aluminium and carbon (Z11), Cairon SUV FS BES3 (Z14) and Nyvon (Z17) Read more Read less
| ||
 | ||
 | ||
 | ||
 | ||
 | ||
 | ||
 32 hole, QR 173 mm, 135 mm installation width, black Read more Read less
| ||
 | ||
 suitable for all Bosch chargers Read more Read less
| ||
 suitable for Cairon with rear QR (Z12) and Cairon SUV FS (Z14), Smart system, BES3 Read more Read less
| ||
 | ||
 | ||
 suitable for Cairon trapeze, gents and wave, Smart System, BES3 (Z11 / Z12) Read more Read less
| ||
 | ||
 suitable for Cairon (Z11 and Z12), Cairon SUV FS (Z14) and Xyron (Z11), Gen.4 (Performance CX), smart system (BES3) Read more Read less
| ||
 | ||
| ||
 suitable for Cairon trapeze and gents with rear QR, Smart system, BES3 (Z12) Read more Read less
| ||
 suitable for Cairon with rear QR axle (Z12) and Cairon SUV FS (Z14), Smart system, BES3 Read more Read less
| ||
 27"/28", suitable for Cairon T derailleur shifting and Cairon C SUV from mod.20dimensions (HxW): 390 x 99mm Read more Read less
| ||
 | ||
 | ||
 | ||
 Extensions for 500 Wh Battery to 625 Wh Battery Bracket and 625 Wh Battery to 750 Wh Battery Bracket Read more Read less
| ||
 | ||
 suitable for Cairon trapeze and gents (Z11, Z12, Z14) and Xyron (Z11), Smart system, Gen.4 (Performance Line CX), BES3 Read more Read less
| ||
 MTB 27,5" / 29", matt black Read more Read less
| ||
 | ||
 | ||
 |
Whether you're touring through the countryside or across country, the "Cairon C 2.0 625" E-SUV bike is your companion. Our developers have recently given the sporty trekking bike a digital update. With the Bosch Smart System, the new "Cairon C 2.0 625" is fully networked and all drive components can communicate with each other. The 4th generation "Performance CX" provides a welcome tailwind.The Bosch "PowerTube" Battery is fully integrated in the down tube and supplies the sporty "Performance CX" mid-motor with plenty of energy - its capacity is 625 Wh. On hilly terrain, the Tektro derailleur system offers a solid range of gears. When riding downhill at speed, the hydraulic Disc Brakes respond reliably. They can be finely dosed, but can also be firmly applied.Schwalbe's "Smart Sam" shines with its all-round properties, which it can put to the test on varying terrain. With a width of 57 mm, it provides additional damping on bumpy trails, while the 120 mm Suspension Fork significantly increases riding comfort.The e-bike only becomes roadworthy with the right all-round equipment. This includes the Contec LED lighting system, which illuminates the way home with a solid 50 lux at the front. Fenders and a Carrier make the "Cairon C 2.0 625" fit for short errands through the city or for use as a commuter.
