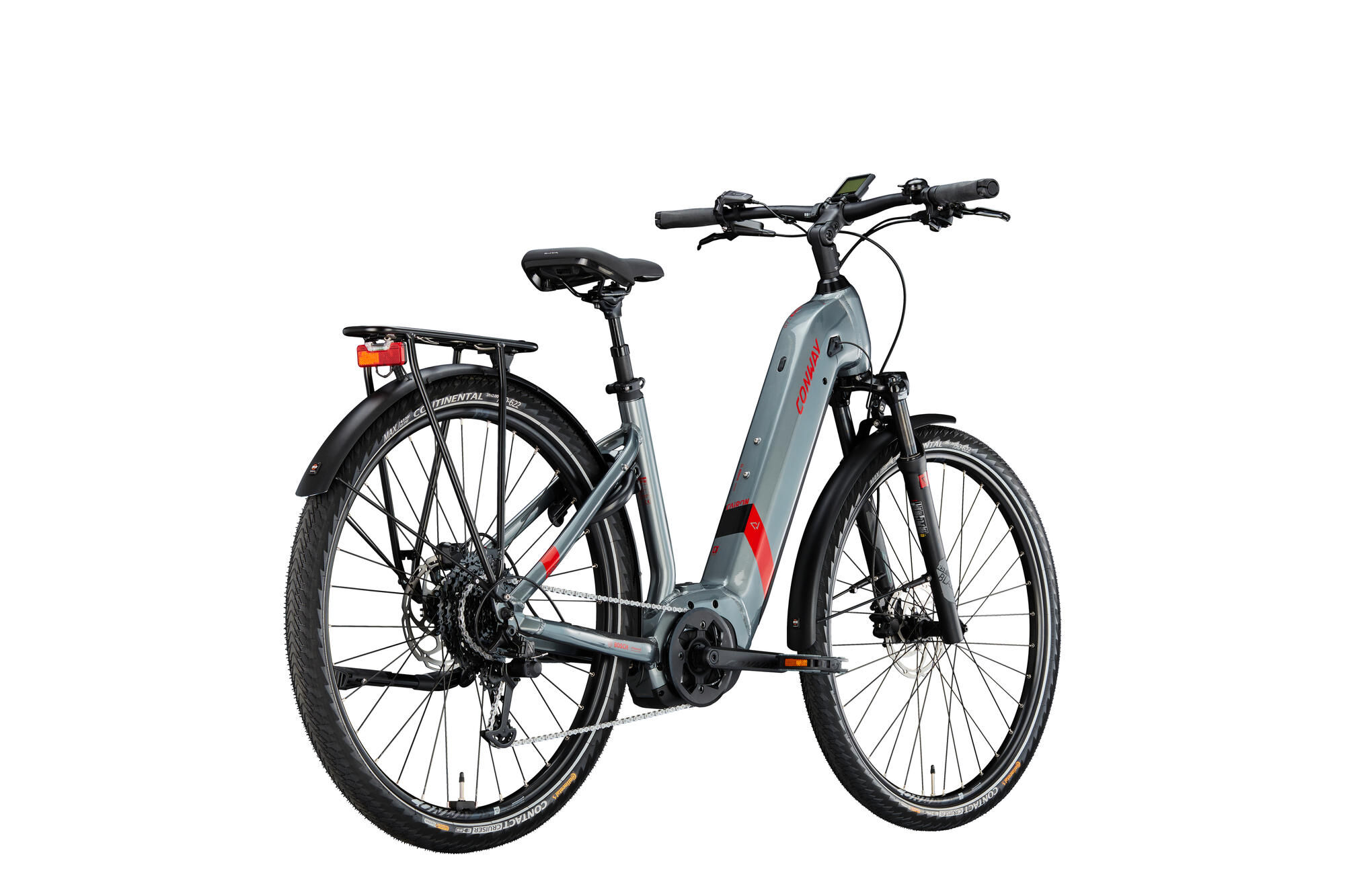

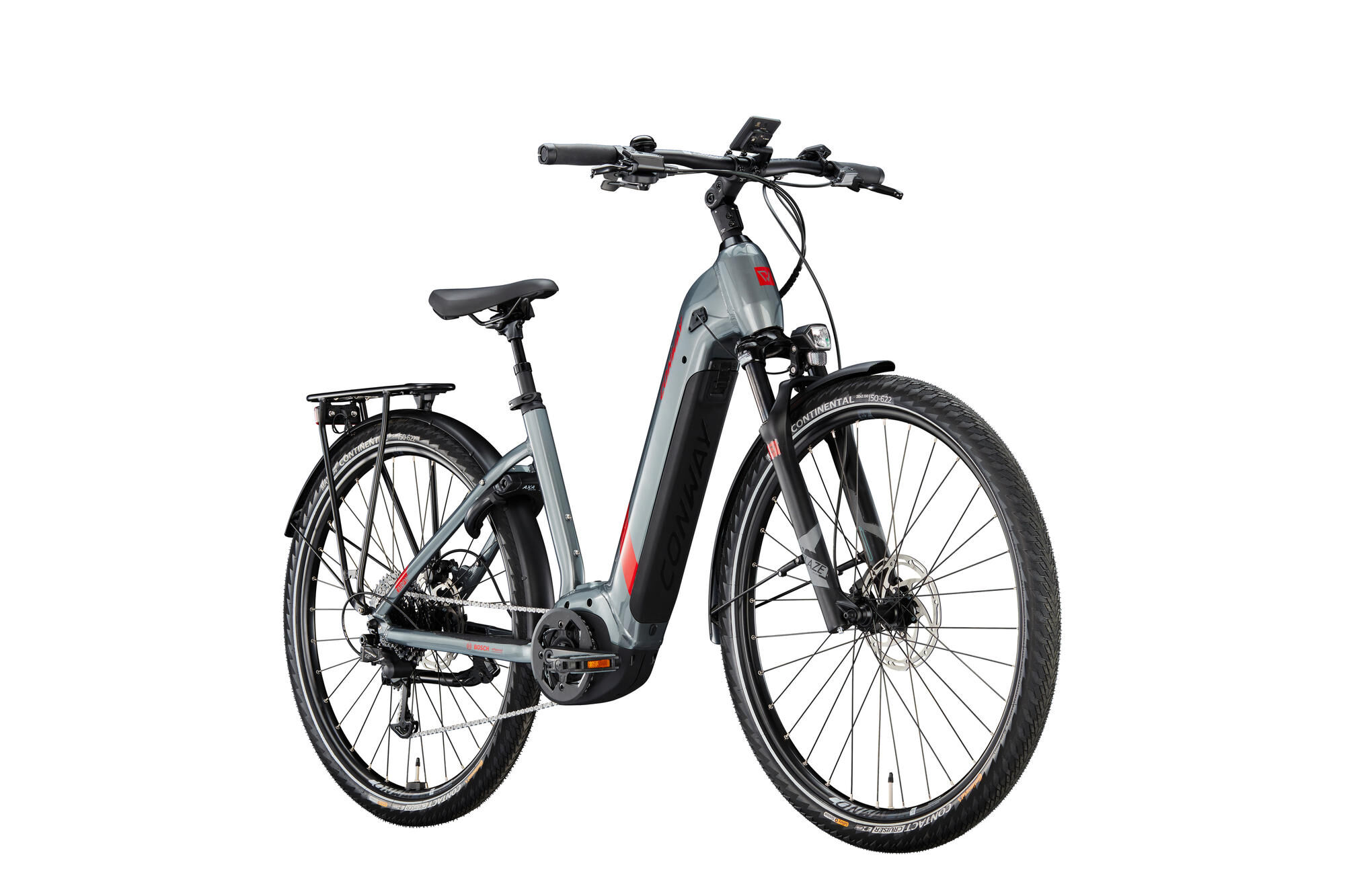

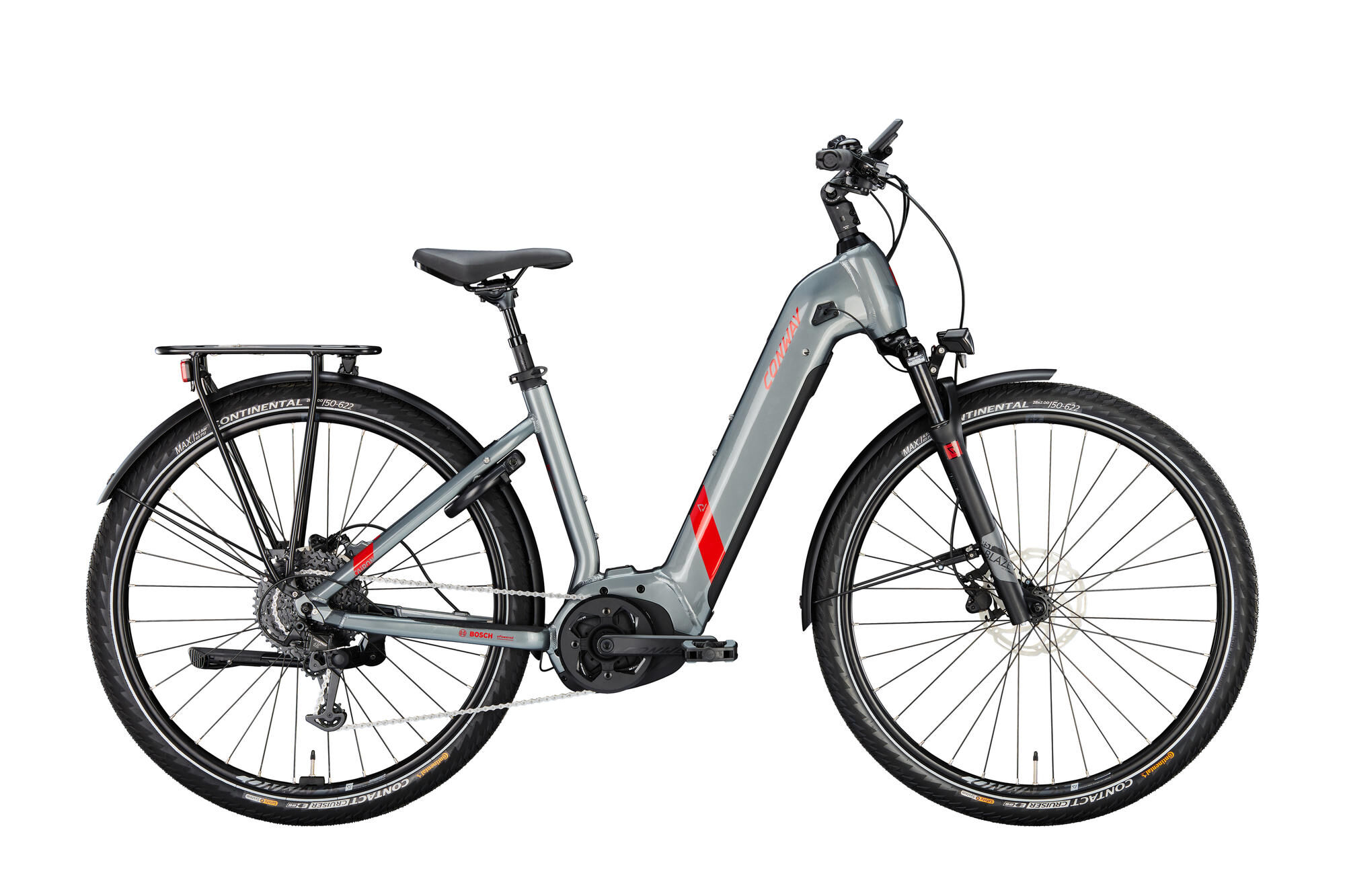

CONWAY Electric trekking bike "Cairon T 2.0 500" Mod. 23
wave, 28", shadowgrey metallic matt / red metallic, 9-speed TEKTRO "M350", 54 cm / XL
- Article number: 02828994
Please note the different equipment and prices of the individual models!
Product information
- Battery capacity: 500.0 Wh
- Bosch Smart System: yes
- Brake system: hydraulic disc brake
- Category: trekking bike
- Chainstay: 485 mm
- Colour designation: shadowgrey metallic matt / red metallic
- Drive: chain drive
- Drive system: BOSCH
- Drive version: middle motor
- E-bike: yes
- Engine power: 250 W
- Features: fender
- Frame height: 54 cm
- Frame shape: wave
- Frame size: XL
- Gears: 9-speed
- Gender: ladies
- Main colour: grey
- Material 1: aluminium
- Permissible total weight: 130 kg
- Seat angle: 73.0 °
- Seat tube: 540 mm
- Secondary colour: red
- Shifting name: 9-Gang TEKTRO "M350"
- Shifting type: derailleur shifting
- Steering tube: 170 mm
- Steering tube angle: 68.0 °
- Stem length: 90.0 mm
- Support: up to 25km/h
- Toptube: 640 mm
- Transmission: 1x 9-speed
- Travel: 80 mm
- Wheel distance: 1220 mm
- Wheel size: 28 "
- Battery: BOSCH "PowerTube 500", 500 Wh, BES3, horizontal
- Battery Lock: AXA "Block XXL", for PowerTube, BES3
- Bremse H.R.: SHIMANO disc brake "BL-MT200 / BR-MT200", hydraulic, adapter for 180mm
- Bremse V.R.: SHIMANO Disc Brakes "BL-MT200 / BR-MT200", hydraulic, Post Mount, Adapter for 180 mm
- Chain / belt: SHIMANO "CN-HG53"
- Chain guard: HESLING “Move”
- Chain ring / pulley: MIRANDA "Gen3", 36 Z., w/o CG
- Charger: BOSCH 4 A, BES3
- Crank: MIRANDA "Classic Gen3", 165 mm
- Crankset: MIRANDA "Classic", 165 mm, 36 teeth, for Bosch Gen. 3, BNI
- Derailleur hanger: CONWAY "V2" for Cairon QR

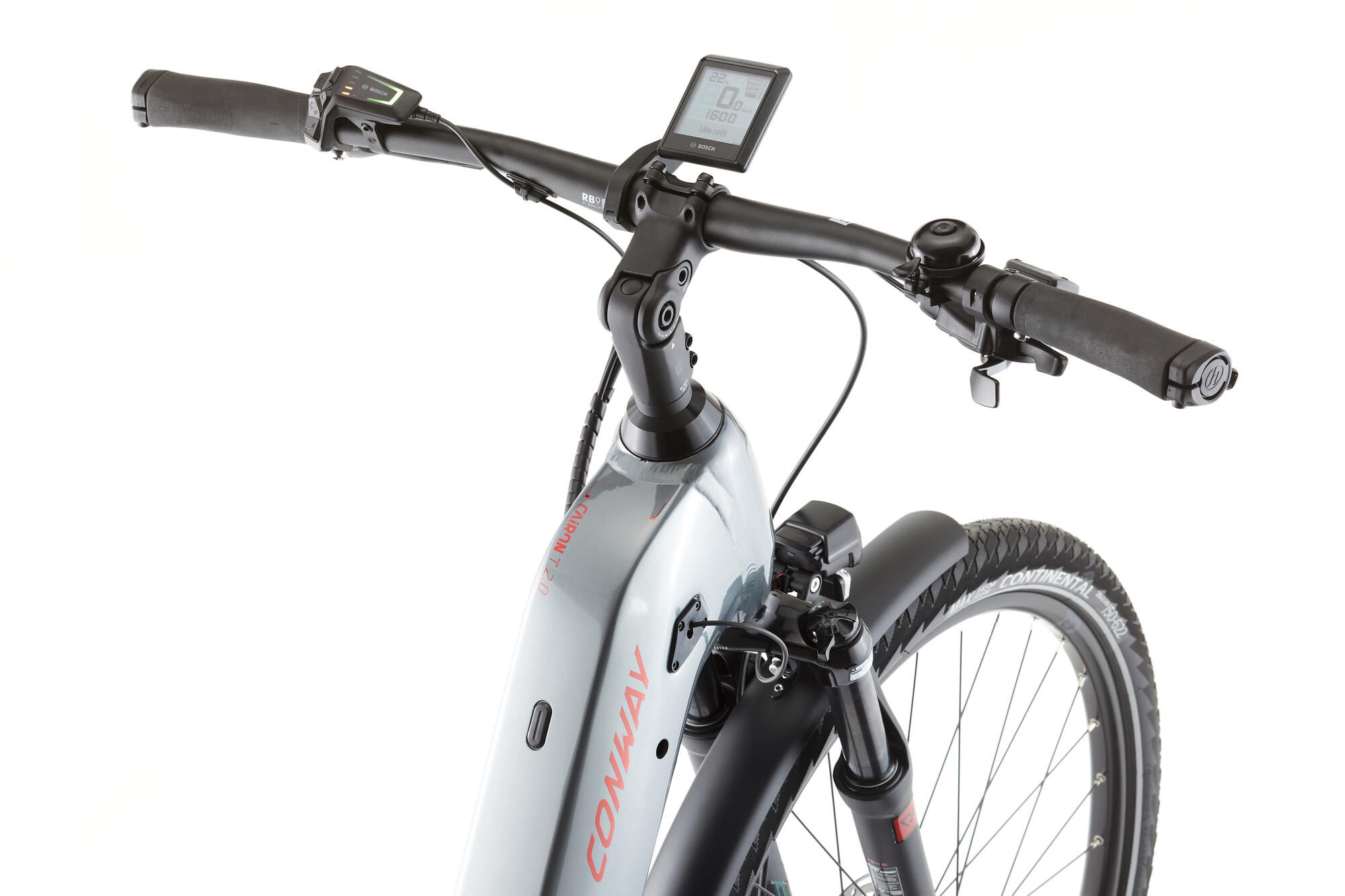

- Display: BOSCH "Intuvia 100", 4-stages, remote control, push aid

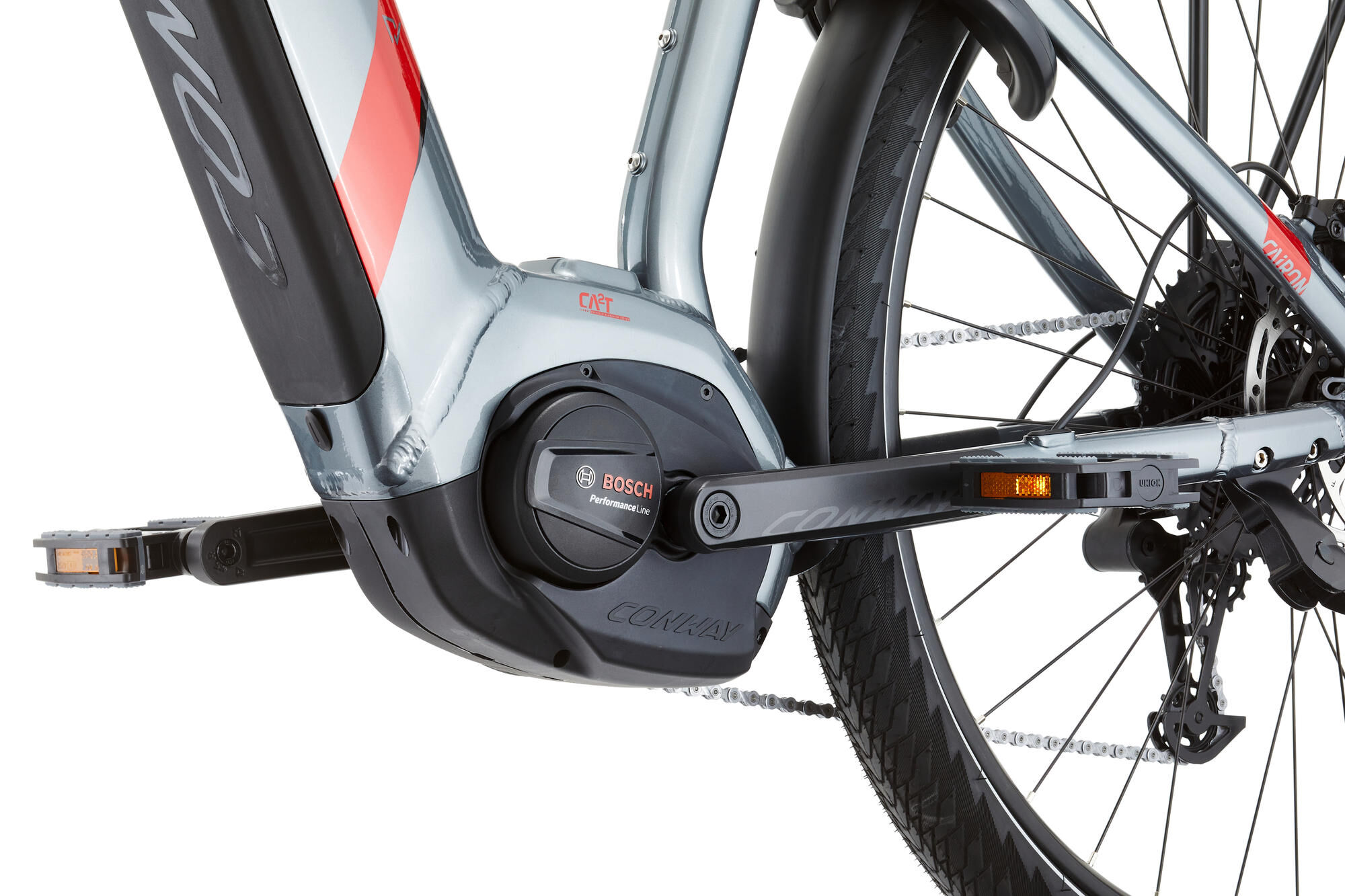

- Engine: BOSCH engine "Performance Line", Gen. 3, BES3
- Fender: SKS "A 60 S", plastic, 60 mm, black
- Fork: RST suspension fork "Blaze ML", 28", 80 mm travel, tapered, post mount, QR, black
- Frame: Intube Bosch, Gen. 3, BES3, aluminum, Wave, 54 cm
- Frame Lock: AXA "Block XXL", for PowerTube, BES3
- Front hub: SHIMANO "Tourney TX HB-TX505", Center Lock, 32 holes, QR, black
- Front light: CONTEC "DLUX 50 E+", 50 lux
- Front rotor: SHIMANO "SM-RT30", Ø 180mm, Center Lock
- Front tire: CONTINENTAL "Contact Cruiser", 50-622, reflex
- Grips: HERRMANS "Clik Original DD37", 123/123 mm, handlebar clamps, black
- Handlebar: LEVELNINE "Trekking", 660mm, Ø 31,8mm, black
- Headset: GLORY WHEEL "SIT3 Strummer", ZS56/28.6 / ZS56/40, 1 1/8" - 1.5"
- Pedals: UNION "SP-827"
- Rear carrier: ATRANVELO "Commute Pro", AVS system, F-Fix, black

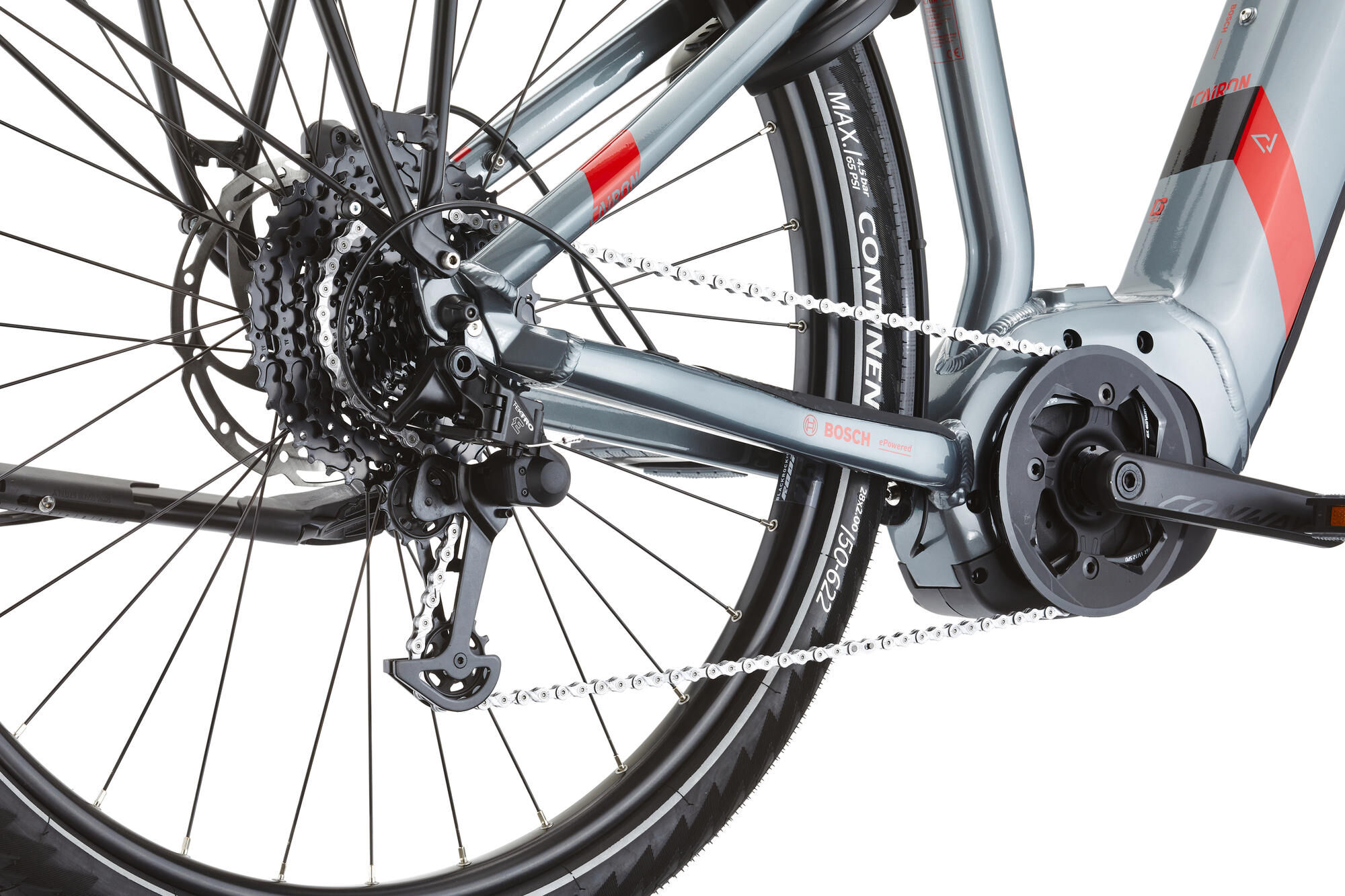

- Rear derailleur: TEKTRO "RD-M350"
- Rear hub: SHIMANO "Tourney TX FH-TX505", Center Lock, 8-/9-/10-speed HG, 32 holes, QR, black
- Rear light: CONTEC "TL-335 E", 50 mm screw spacing
- Rear rotor: SHIMANO "SM-RT30", Ø 180mm, Center Lock
- Rear tire: CONTINENTAL "Contact Cruiser", 50-622, reflex
- Remote: BOSCH "BRC3600", LED remote
- Rims: RODI "Blackrock 25", 25-622, 32 holes disc brake, easy eyelets, black
- Saddle: SELLE ROYAL "Vivo", ladies, moderate, black
- Seatpost: ERGOTEC "SP-10.0", Ø 31.6 mm, 350 mm long, 45 mm travel, Level 5, black
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: TEKTRO "SL-M350R", 9-speed
- Spokes: Niro schwarz
- Sprocket / pulley: TEKTRO "CS-M350-9", 9-speed, 11-46 teeth
- Stands: URSUS "R81 - Wave Rear", adjustable, 40 mm hole spacing, black matt
- Stem: LEVELNINE "Adjustable", 1 1/8", 31,8mm handlebar clamp, 90mm long, black
- EAN: 4251971120082
- MSRP: €2,999.95
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Bedienungsanleitung IT
- Bedienungsanleitung NL
- Bedienungsanleitung DK
- Bedienungsanleitung NL
- Bedienungsanleitung DE
- Explosionszeichnung Metall
- Explosionszeichnung Kunststoff und Gummi
- Bedienungsanleitung DE
- Bedienungsanleitung ES
- Bedienungsanleitung FR
- Bedienungsanleitung FR
- Bedienungsanleitung EN
- Bedienungsanleitung EN
- Bedienungsanleitung DK
- Bedienungsanleitung ES
| Article | Price | |
|---|---|---|
 left, without adapter
| ||
 | ||
 | ||
 | ||
 suitable for Cairon trapeze and gents with rear QR, Smart system, BES3 (Z12)
| ||
 suitable for Cairon with rear QR axle (Z12) and Cairon SUV FS (Z14), Smart system, BES3
| ||
 black
| ||
 | ||
 | ||
 black
| ||
 suitable for Cairon with rear QR (Z12) and Cairon SUV FS (Z14), Smart system, BES3
| ||
 suitable for Cairon with rear QR axle (Z12), Gen.3 (Performance Line), Smart system (BES3)
| ||
 suitable for Cairon trapeze, gents and wave, Smart System, BES3 (Z11 / Z12)
| ||
 | ||
 | ||
 suitable for Cairon Wave top (Z11, Z12) and Cairon SUV FS top (Z14), smart system, BES3
| ||
 carrier attachment 50mm, self-service package
| ||
 suitable for Cairon Wave / Trapeze / Men (Z11 and Z12), Xyron Aluminum and Xyron Carbon / Aluminum, smart system, BES3 (Z11) and Xyron LT / ST (Z20)
| ||
 29", suitable for Cairon C from mod.20dimensions (HxW): 400 x 99mm
| ||
 for Cairon BES3 (Z11 / Z12), Xyron BES3 aluminium and carbon (Z11), Cairon SUV FS BES3 (Z14) and Nyvon (Z17)
| ||
 40mm hole distance
| ||
 right, without adapter
| ||
 | ||
 suitable for Cairon Wave (Z6, Z11, Z12) and Cairon Wave FS (Z9, Z14), smart system, BES3
| ||
 matt black, 38 teeth, suitable for Conway Cairon
| ||
 suitable for all Bosch chargers
| ||
 32 holes, 173mm QR, installation width: 135mm
| ||
 | ||
 | ||
 | ||
 suitable for Cairon Wave below (Z11, Z12) and Cairon SUV FS below (Z14), Smart system, BES3
| ||
 suitable for Cairon wave (Z11, Z12, Z14), Smart system (BES3)
| ||
 | ||
 Bosch Gen.3, suitable for Conway Cairon
| ||
 grey 20/21, MS, GRV, Cairon T, Xyron
| ||
 |
Whether on extended weekend tours or for errands through the city - our "Cairon T 2.0 500" is designed for versatile use. The Bosch "Performance" e-drive, providing powerful acceleration of up to 25 km/h. It is powered by the 500 Wh battery, which elegantly disappears in an aluminum down tube. The overall low center of gravity gives the pedelec a natural ride.Bosch Smart System creates a versatile e-bike with digital connectivity. Just download the E-Bike Flow app and you can connect your smartphone to your bike and always have all your tour data at your fingertips.The carrier takes on all the bags packed with spare clothes or provisions for tours. The mudguards, on the other hand, make the bike more suitable for use in the city. Dirt and splashing water are kept away sovereign.The drive supports the reliable derailleur and the hydraulic disc brakes - both from Tektro - for precise braking. The 50mm wide Continental tires in combination with the suspension fork and the suspension seatpost give the "Cairon T 2.0 500" a lot of comfort.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|

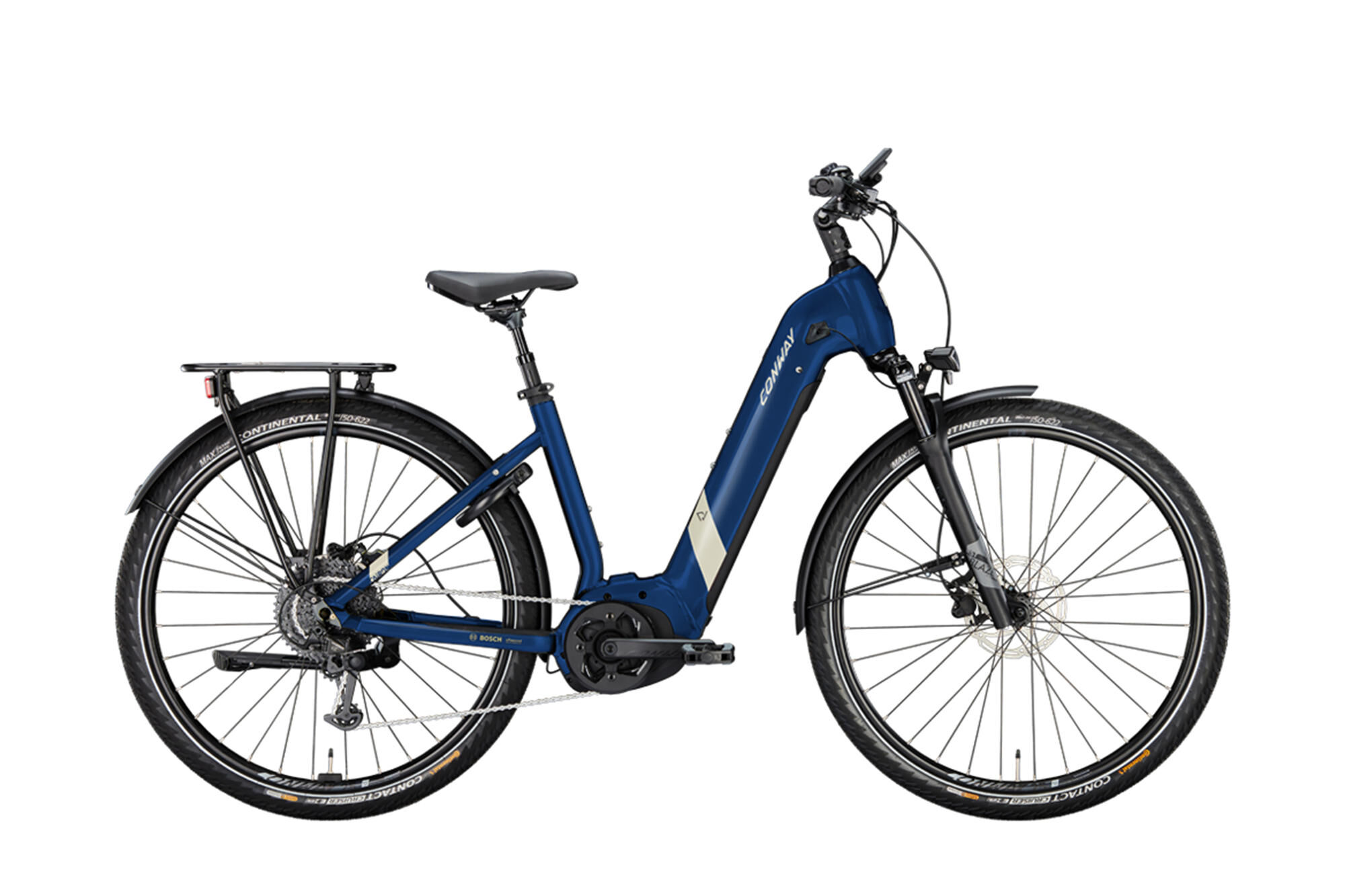

 wave, 28", blue metallic / desert matt, 9-speed TEKTRO "M350", 46 cm / M
| ||
 wave, 28", shadowgrey metallic matt / red metallic, 9-speed TEKTRO "M350", 42 cm / S
| ||
wave, 28", blue metallic / desert matt, 9-speed TEKTRO "M350", 50 cm / L
| ||
wave, 28", blue metallic / desert matt, 9-speed TEKTRO "M350", 42 cm / S
| ||
wave, 28", shadowgrey metallic matt / red metallic, 9-speed TEKTRO "M350", 46 cm / M
| ||
wave, 28", shadowgrey metallic matt / red metallic, 9-speed TEKTRO "M350", 50 cm / L
| ||
wave, 28", shadowgrey metallic matt / red metallic, 9-speed TEKTRO "M350", 54 cm / XL
| ||

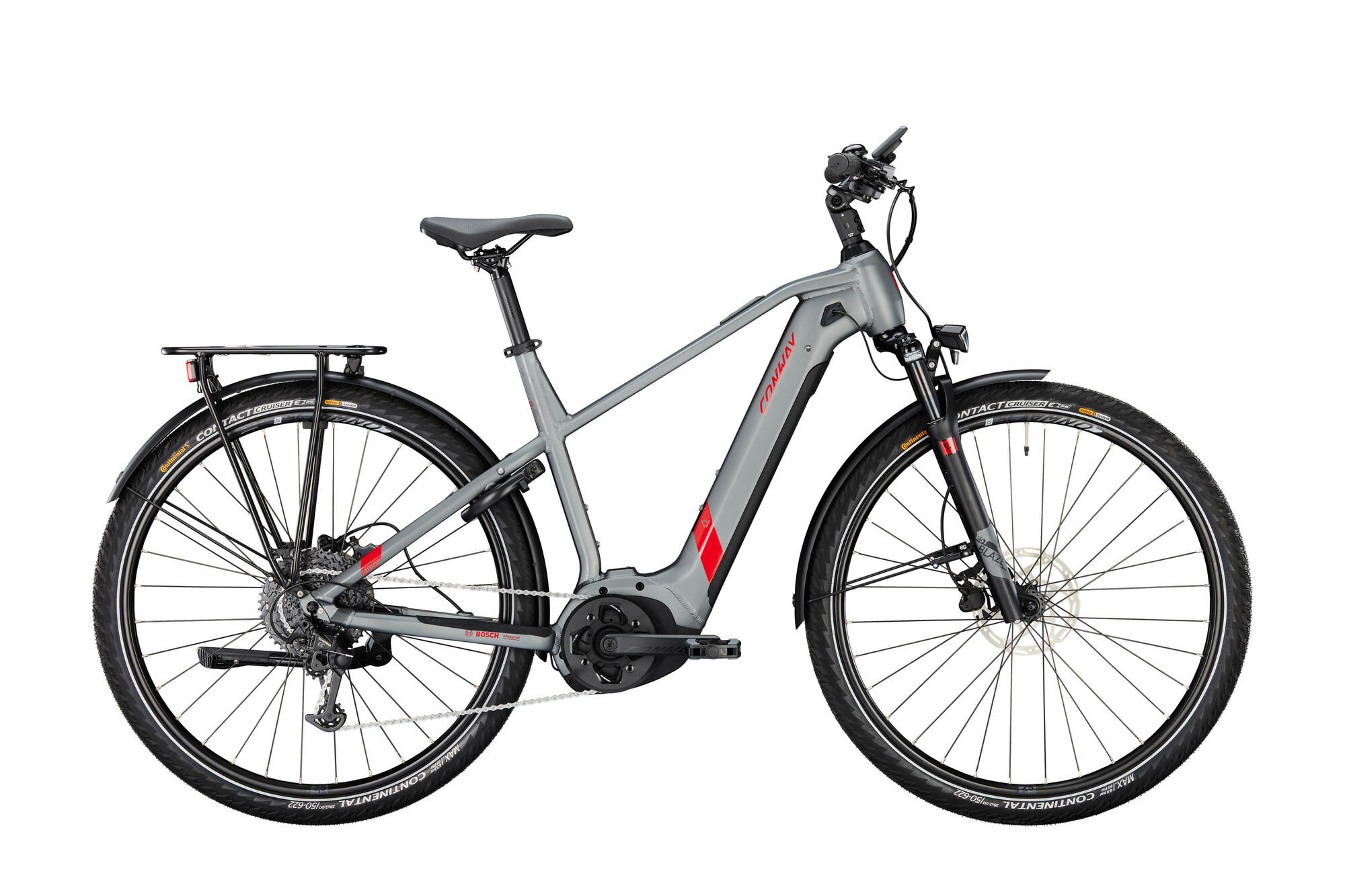

 diamond, 28", shadowgrey metallic matt / red metallic, 9-speed TEKTRO "M350", 51 cm / M
| ||
diamond, 28", shadowgrey metallic matt / red metallic, 9-speed TEKTRO "M350", 54 cm / L
| ||

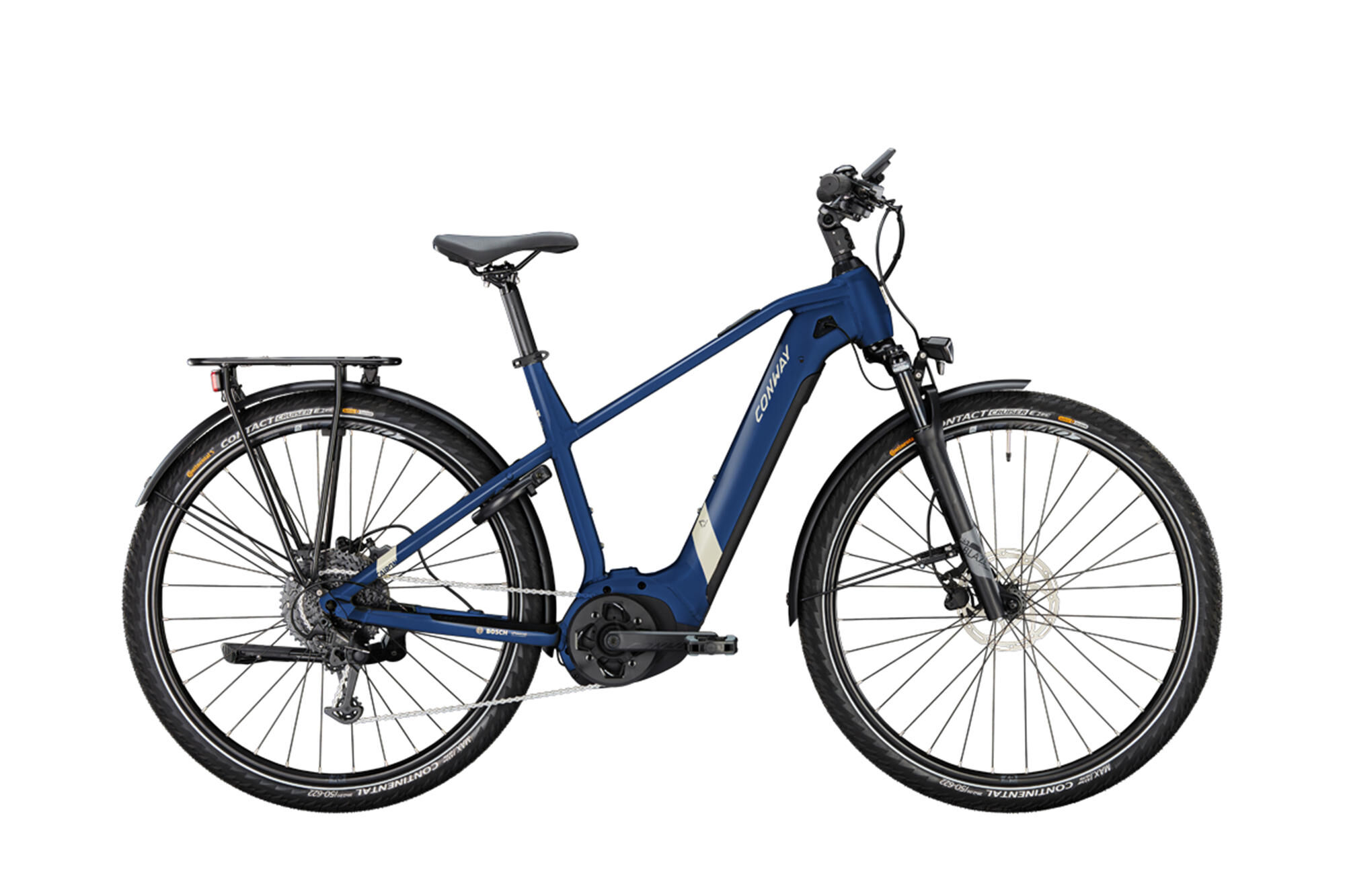

 diamond, 28", blue metallic / desert matt, 9-speed TEKTRO "M350", 54 cm / L
| ||
