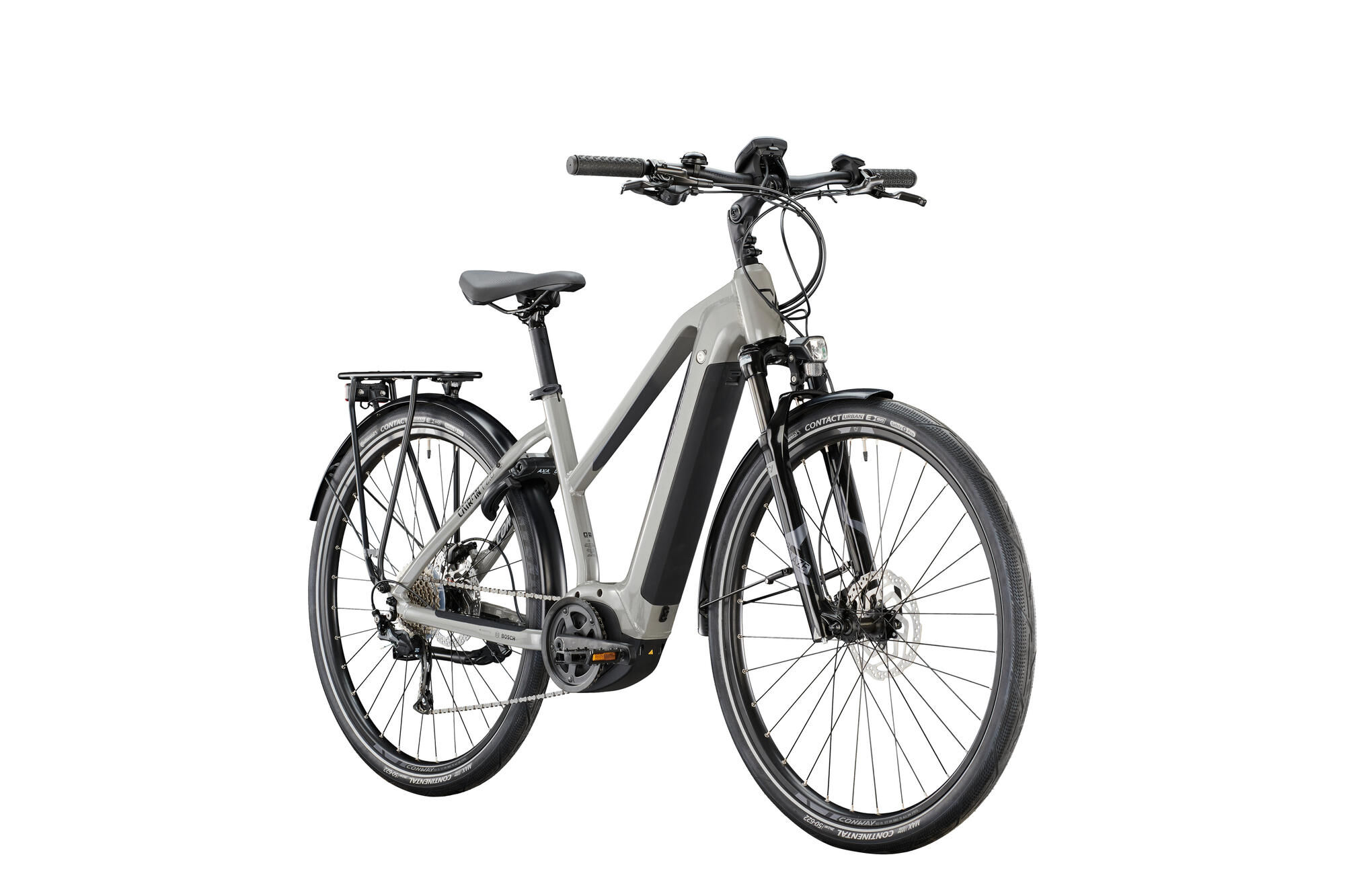

CONWAY Electric trekking bike "Cairon T 2.0 625" Mod. 22
- Article number: 02896348
- Original number: 22080426
Please note the different equipment and prices of the individual models!
Product information
- Battery capacity 625.0 Wh
- Bosch Smart System no
- Brake system hydraulic disc brake
- Category trekking bike
- Chainstay 485 mm
- Colour designation graphitegreymetallic / shadowgrey
- Drive chain drive
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features fender
- Frame height 46 cm
- Frame shape trapeze
- Frame size M
- Gears 9-speed
- Gender ladies
- Main colour grey
- Material 1 aluminium
- Reach 393 mm
- Seat angle 73.0 °
- Seat tube 460 mm
- Secondary colour grey
- Shifting name SHIMANO "Altus RD-M2000", 9speed
- Shifting type derailleur shifting
- Stack 628 mm
- Steering tube 130 mm
- Steering tube angle 70.0 °
- Stem length 90.0 mm
- Support up to 25km/h
- Toptube 582 mm
- Transmission 1x 9-speed
- Travel 80 mm
- Wheel distance 1135 mm
- Wheel size 28 "
- Battery: BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh
- Bottom bracket: BOSCH
- Brake: TEKTRO "HD-T280"
- Brake lever: TEKTRO "HD-T280"
- Chain / belt: SHIMANO "HG53"
- Chain ring / pulley: FSA "WB385 W1144", 38 Z.
- Charger: Bosch 2 Ah
- Crank: FSA "CK-200", 170 mm
- Derailleur hanger: 0281175/0
- Display: BOSCH, "Intuvia " 4-Stufen, Remote Control, Schiebehilfe
- Engine: BOSCH Mittelmotor Gen.3 "Performance", 36 V, 250 W
- Fender: SKS "A60S", Kunststoff
- Fork: RST "Blaze ML", 80 mm
- Frame: CONWAY Intube Bosch, Alu
- Frame Lock: AXA "Bock XXL"
- Front hub: SHIMANO "HB-TX505" QR
- Front light: CONTEC "DLUX 50 E+"
- Front rotor: TEKTRO "TR180-35", 180 mm
- Front tire: CONTINENTAL "Contact Urban", 50-622, Reflex
- Grips: CONWAY "Sport"
- Handlebar: HUMPERT "Ergotec" Low Riser, Ø 31,8, 720 mm
- Headset: ZS44 / ZS56, Reduzierkonus
- Pedals: Marwie "SP 827"
- Rear carrier: ATRAN "Cummute Pro", inkl. Federklappe
- Rear derailleur: SHIMANO "Altus RD-M2000", 9speed
- Rear hub: SHIMANO "FH-TX505" QR
- Rear light: CONTEC "CTL 335 E"
- Rear rotor: TEKTRO "TR180-35", 180 mm
- Rear tire: CONTINENTAL "Contact Urban", 50-622, Reflex
- Rims: CONWAY Hohlkammer "X17", Disc
- Saddle: SELLE ROYAL "Vivo Athletic Ergo", Da
- Seatpost: CONWAY Patent, 31,6 mm, 350 mm
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: SHIMANO "Altus SL-M2000"
- Spokes: Niro
- Sprocket / pulley: SHIMANO "HG200", 11-36 Z.
- Stands: URSUS "Wave", 40mm
- Stem: HUMPERT "Ergotec Octopus", Adjustable, 90 mm
- Supplier Article Number: 22080426
- EAN: 4251507982344
- MSRP: €3,049.95
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight: 27.1 kg
Article | Price | |
---|---|---|
![]() 38 teeth, with chain guard ring Read more Read less
| ||
![]() 90mm long, sandblasted black, eff. length: 90 / 60mm, eff. height: 50 / 120mm Read more Read less
| ||
![]() suitable for Cairon, rubber, chain stay cable guide, except MTB gents + Trap. Powertube Read more Read less
| ||
![]() | ||
![]() suitable for all Bosch chargers Read more Read less
| ||
![]() suitable for Cairon and Xyron with BES2 system and PT battery (Z6 and Z9) Read more Read less
| ||
![]() | ||
![]() carrier attachment 50mm, self-service package Read more Read less
| ||
![]() | ||
![]() 27"/28", suitable for Cairon T derailleur shifting and Cairon C SUV from mod.20dimensions (HxW): 390 x 99mm Read more Read less
| ||
![]() extension for 500 Wh battery to 625 Wh battery bracketMounting material must be ordered separately:2x 0.281.163/02x 0.281.163/2 Read more Read less
| ||
![]() silver, self-service package, 114 links Read more Read less
| ||
![]() | ||
![]() | ||
![]() suitable for 36-38 teeth Read more Read less
| ||
![]() horizontalincl. mounting plate 0.299.931/6 Read more Read less
| ||
![]() suitable for Cairon and Xyron Aluminium BES2 (Z6) Read more Read less
| ||
![]() 11-13-15-18-22-27-33-40 teeth Read more Read less
| ||
![]() for Powertube charging base, black Read more Read less
| ||
![]() for down tube, suitable for Cairon gents, trapeze and wave und Xyron with 500 / 625 Wh PT battery, BES2 (Z6) Read more Read less
| ||
![]() suitable for Conway MS / MC / ML / MCL (27,5“ and 29“) and Cairon BES2 (Z6) with fork with 1 1/8“ shaft Read more Read less
| ||
![]() for steering tube, suitable for Cairon gents, trapeze and wave and xyron with 500/625 Wh PT battery, BES2 (Z6) Read more Read less
| ||
![]() suitable for all Cairon and Xyron BES2 with PT battery (Z6) Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() suitable for Cairon / Cairon Wave / Cairon SUV FS and Xyron BES2 (Z6 and Z9) Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() |
Article | Price | |
---|---|---|
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() moss / black, size L Read more Read less
| ||
![]() | ||
![]() grey / black, size M Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() grey / black, size XXL Read more Read less
| ||
![]() | ||
![]() | ||
![]() grey / black, size XS Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() moss / black, size XS Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() grey / black, size L Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() moss / black, size S Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() moss / black, size XXL Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() moss / black, size XL Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() grey melange with silver sticker Read more Read less
| ||
![]() | ||
![]() | ||
![]() grey / black, size XL Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() grey / black, size S Read more Read less
| ||
![]() | ||
![]() moss / black, size M Read more Read less
| ||
![]() |
Product variants
Article | Price | |
---|---|---|
![]() diamond, 28", graphitegreymetallic / shadowgrey, 9-speed SHIMANO "Altus RD-M2000", 54 cm / L Read more Read less
| ||
![]() wave, 28", graphitegreymetallic / shadowgrey, 9-speed SHIMANO "Altus RD-M2000", 46 cm / M Read more Read less
| ||
![]() diamond, 28", graphitegreymetallic / shadowgrey, 9-speed SHIMANO "Altus RD-M2000", 50 cm / M Read more Read less
| ||
![]() trapeze, 28", red metallic / black metallic, 9-speed SHIMANO "Altus RD-M2000", 46 cm / M Read more Read less
| ||
![]() wave, 28", graphitegreymetallic / shadowgrey, 9-speed SHIMANO "Altus RD-M2000", 42 cm / S Read more Read less
| ||
![]() trapeze, 28", red metallic / black metallic, 9-speed SHIMANO "Altus RD-M2000", 50 cm / L Read more Read less
| ||
![]() diamond, 28", graphitegreymetallic / shadowgrey, 9-speed SHIMANO "Altus RD-M2000", 58 cm / XL Read more Read less
| ||
![]() diamond, 28", red metallic / black metallic, 9-speed SHIMANO "Altus RD-M2000", 58 cm / XL Read more Read less
| ||
![]() diamond, 28", red metallic / black metallic, 9-speed SHIMANO "Altus RD-M2000", 54 cm / L Read more Read less
| ||
![]() diamond, 28", red metallic / black metallic, 9-speed SHIMANO "Altus RD-M2000", 50 cm / M Read more Read less
| ||
![]() trapeze, 28", graphitegreymetallic / shadowgrey, 9-speed SHIMANO "Altus RD-M2000", 42 cm / S Read more Read less
| ||
![]() wave, 28", red metallic / black metallic, 9-speed SHIMANO "Altus RD-M2000", 46 cm / M Read more Read less
| ||
![]() trapeze, 28", red metallic / black metallic, 9-speed SHIMANO "Altus RD-M2000", 42 cm / S Read more Read less
| ||
![]() wave, 28", graphitegreymetallic / shadowgrey, 9-speed SHIMANO "Altus RD-M2000", 50 cm / L Read more Read less
| ||
![]() trapeze, 28", graphitegreymetallic / shadowgrey, 9-speed SHIMANO "Altus RD-M2000", 46 cm / M Read more Read less
| ||
![]() trapeze, 28", red metallic / black metallic, 9-speed SHIMANO "Altus RD-M2000", 54 cm / XL Read more Read less
| ||
![]() wave, 28", red metallic / black metallic, 9-speed SHIMANO "Altus RD-M2000", 42 cm / S Read more Read less
| ||
![]() wave, 28", red metallic / black metallic, 9-speed SHIMANO "Altus RD-M2000", 50 cm / L Read more Read less
| ||
![]() trapeze, 28", graphitegreymetallic / shadowgrey, 9-speed SHIMANO "Altus RD-M2000", 50 cm / L Read more Read less
| ||
![]() diamond, 28", red metallic / black metallic, 9-speed SHIMANO "Altus RD-M2000", 46 cm / S Read more Read less
| ||
![]() wave, 28", graphitegreymetallic / shadowgrey, 9-speed SHIMANO "Altus RD-M2000", 54 cm / XL Read more Read less
| ||
![]() diamond, 28", graphitegreymetallic / shadowgrey, 9-speed SHIMANO "Altus RD-M2000", 46 cm / S Read more Read less
| ||
![]() trapeze, 28", graphitegreymetallic / shadowgrey, 9-speed SHIMANO "Altus RD-M2000", 54 cm / XL Read more Read less
| ||
![]() wave, 28", red metallic / black metallic, 9-speed SHIMANO "Altus RD-M2000", 54 cm / XL Read more Read less
|
