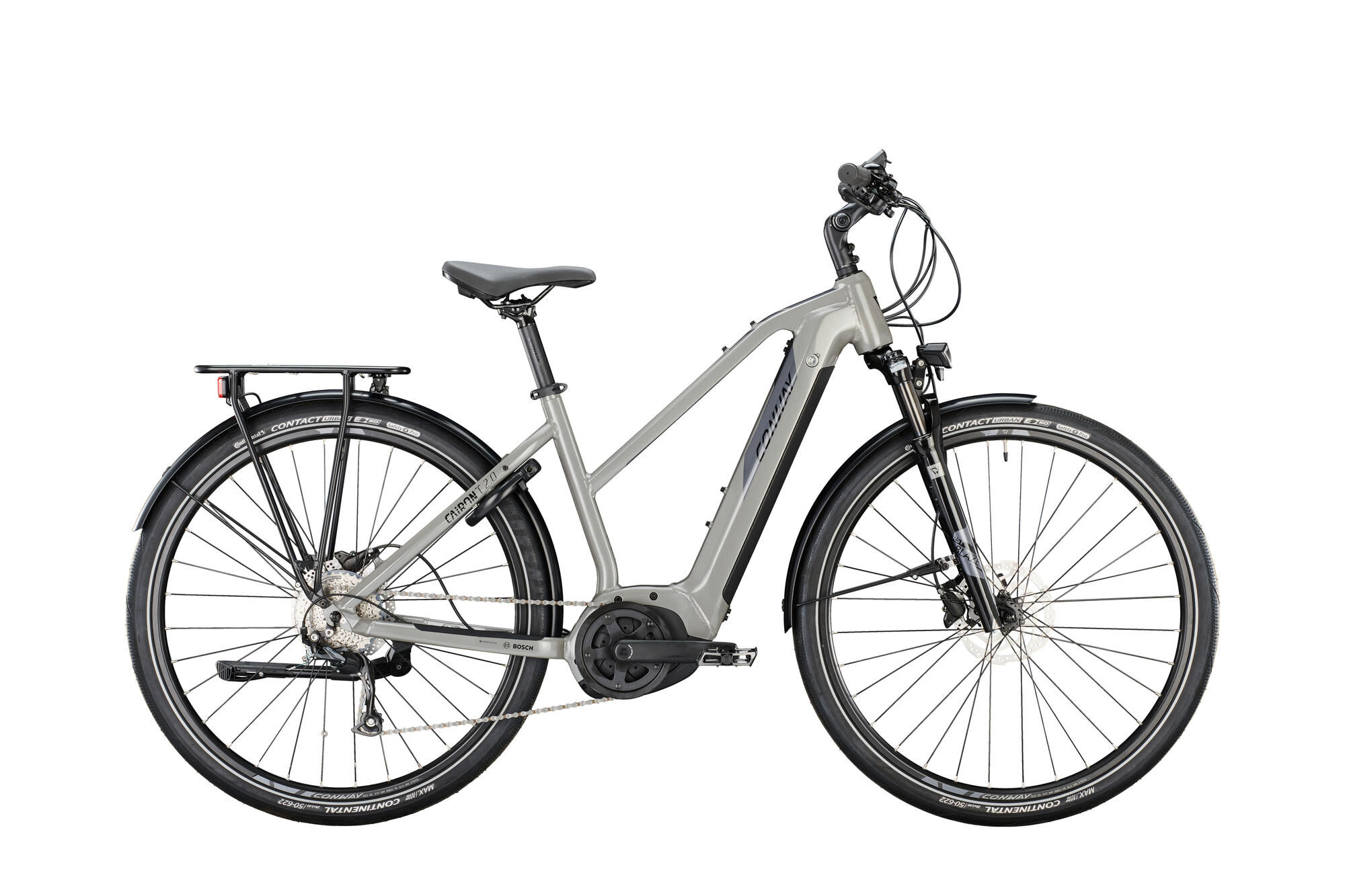

CONWAY Electric trekking bike "Cairon T 2.0 625" Mod. 22
- Article number: 02898021
- Original number: 22080551
The electric trekking bikes is equipped with a Bosch Performance Line mid-motor, which delivers a motor output of 250 W. The battery capacity is 625.0 Wh. For gear selection, the bike has a SHIMANO "Altus RD-M2000" derailleur gear system with 9 gears. The drives are via a chain. The hydraulic Disc Brakes are mounted on both wheels. The Suspension Fork has a fork travel of 80 mm. The weight of the bike is within the permissible system weight of 130 kg. The wheel size is 28 inches. The equipment includes chain guards, Fenders and an electronic Pushing Help.
Product information
- Battery capacity 625.0 Wh
- Bosch Smart System no
- Brake system hydraulic disc brake
- Chainstay 485 mm
- Colour designation red metallic / black metallic
- Drive chain drive
- Drive system BOSCH Performance Line
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features fender
- Frame height 50 cm
- Frame shape diamond
- Frame size M
- Gears 9-speed
- Gender gents
- Main colour red
- Material 1 aluminium
- Permissible system weight 130 kg
- Reach 395 mm
- Seat angle 73.0 °
- Seat tube 500 mm
- Secondary colour black
- Shifting name SHIMANO "Altus RD-M2000", 9speed
- Shifting type derailleur shifting
- Stack 630 mm
- Steering tube 130 mm
- Steering tube angle 70.5 °
- Stem length 90.0 mm
- Support up to 25km/h
- Toptube 585 mm
- Transmission 1x 9-speed
- Travel 80 mm
- Type trekking bike
- Wheel distance 1132 mm
- Wheel size 28 "
- Battery: BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh
- Bottom bracket: BOSCH
- Brake: TEKTRO "HD-T280"
- Brake lever: TEKTRO "HD-T280"
- Chain / belt: SHIMANO "HG53"
- Chain ring / pulley: FSA "WB385 W1144", 38 Z.
- Charger: Bosch 2 Ah

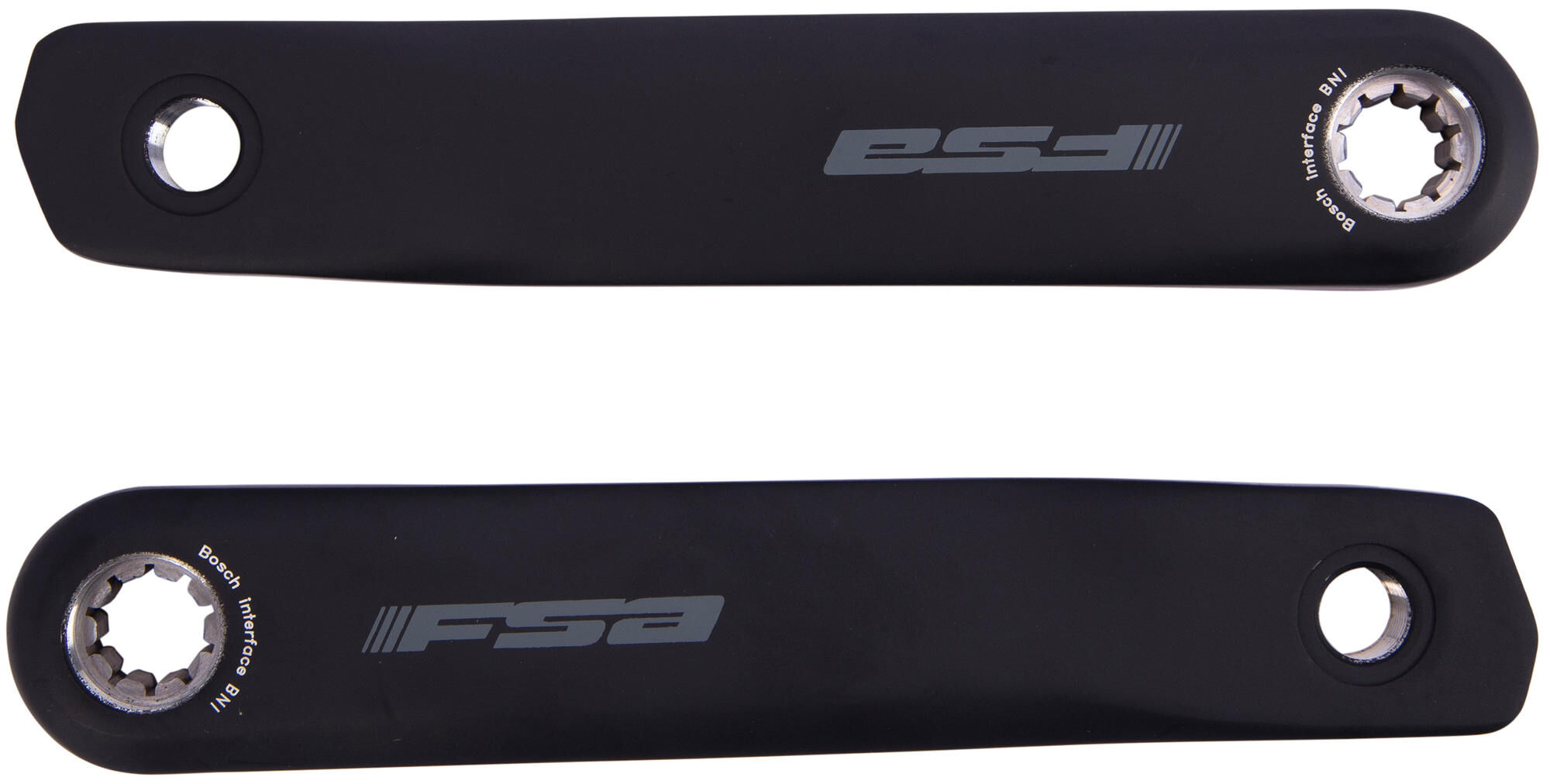

- Crank: FSA "CK-200", 170 mm
- Derailleur hanger: 0281175/0
- Display: BOSCH, "Intuvia " 4-Stufen, Remote Control, Schiebehilfe
- Engine: BOSCH Mittelmotor Gen.3 "Performance", 36 V, 250 W
- Fender: SKS "A60S", Kunststoff
- Fork: RST "Blaze ML", 80 mm
- Frame: CONWAY Intube Bosch, Alu
- Frame Lock: AXA "Bock XXL"
- Front hub: SHIMANO "HB-TX505" QR
- Front light: CONTEC "DLUX 50 E+"
- Front rotor: TEKTRO "TR180-35", 180 mm
- Front tire: CONTINENTAL "Contact Urban", 50-622, Reflex
- Grips: CONWAY "Sport"
- Handlebar: HUMPERT "Ergotec" Low Riser, Ø 31,8, 720 mm
- Headset: ZS44 / ZS56, Reduzierkonus
- Pedals: Marwie "SP 827"
- Rear carrier: ATRAN "Cummute Pro", inkl. Federklappe
- Rear derailleur: SHIMANO "Altus RD-M2000", 9speed
- Rear hub: SHIMANO "FH-TX505" QR
- Rear light: CONTEC "CTL 335 E"
- Rear rotor: TEKTRO "TR180-35", 180 mm
- Rear tire: CONTINENTAL "Contact Urban", 50-622, Reflex
- Rims: CONWAY Hohlkammer "X17", Disc
- Saddle: SELLE ROYAL "Vivo Athletic Ergo", He
- Seatpost: CONWAY Patent, 31,6 mm, 350 mm
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: SHIMANO "Altus SL-M2000"
- Spokes: Niro
- Sprocket / pulley: SHIMANO "HG200", 11-36 Z.
- Stands: URSUS "Wave", 40mm
- Stem: HUMPERT "Ergotec Octopus", Adjustable, 90 mm
- Supplier Article Number: 22080551
- EAN: 4251507983860
- MSRP: €3,049.95
- WEEE registration number: DE92509320
- DST-Code: 1B01
- SB-Article: No
- Bidex-Code: 122010
- Fedas-Code: 155021
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight: 27.2 kg
| Article | Price | |
|---|---|---|
![]() horizontalincl. mounting plate 0.299.931/6 Read more Read less
| ||
![]() | ||
![]() 11-13-15-17-20-23-26-30-36 teeth Read more Read less
| ||
![]() | ||
![]() suitable for Cairon / Cairon Wave / Cairon SUV FS and Xyron BES2 (Z6 and Z9) Read more Read less
| ||
![]() 90mm long, sandblasted black, eff. length: 90 / 60mm, eff. height: 50 / 120mm Read more Read less
| ||
![]() suitable for all Cairon and Xyron BES2 with PT battery (Z6) Read more Read less
| ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() | ||
![]() suitable for Cairon, rubber, chain stay cable guide, except MTB gents + Trap. Powertube Read more Read less
| ||
![]() suitable for Cairon and Xyron Aluminium BES2 (Z6) Read more Read less
| ||
![]() | ||
![]() suitable for Conway MS / MC / ML / MCL (27,5“ and 29“) and Cairon BES2 (Z6) with fork with 1 1/8“ shaft Read more Read less
| ||
![]() 27"/28", suitable for Cairon T derailleur shifting and Cairon C SUV from mod.20dimensions (HxW): 390 x 99mm Read more Read less
| ||
![]() | ||
![]() | ||
![]() extension for 500 Wh battery to 625 Wh battery bracketMounting material must be ordered separately:2x 0.281.163/02x 0.281.163/2 Read more Read less
| ||
![]() | ||
![]() | ||
![]() for Powertube charging base, black Read more Read less
| ||
![]() | ||
![]() | ||

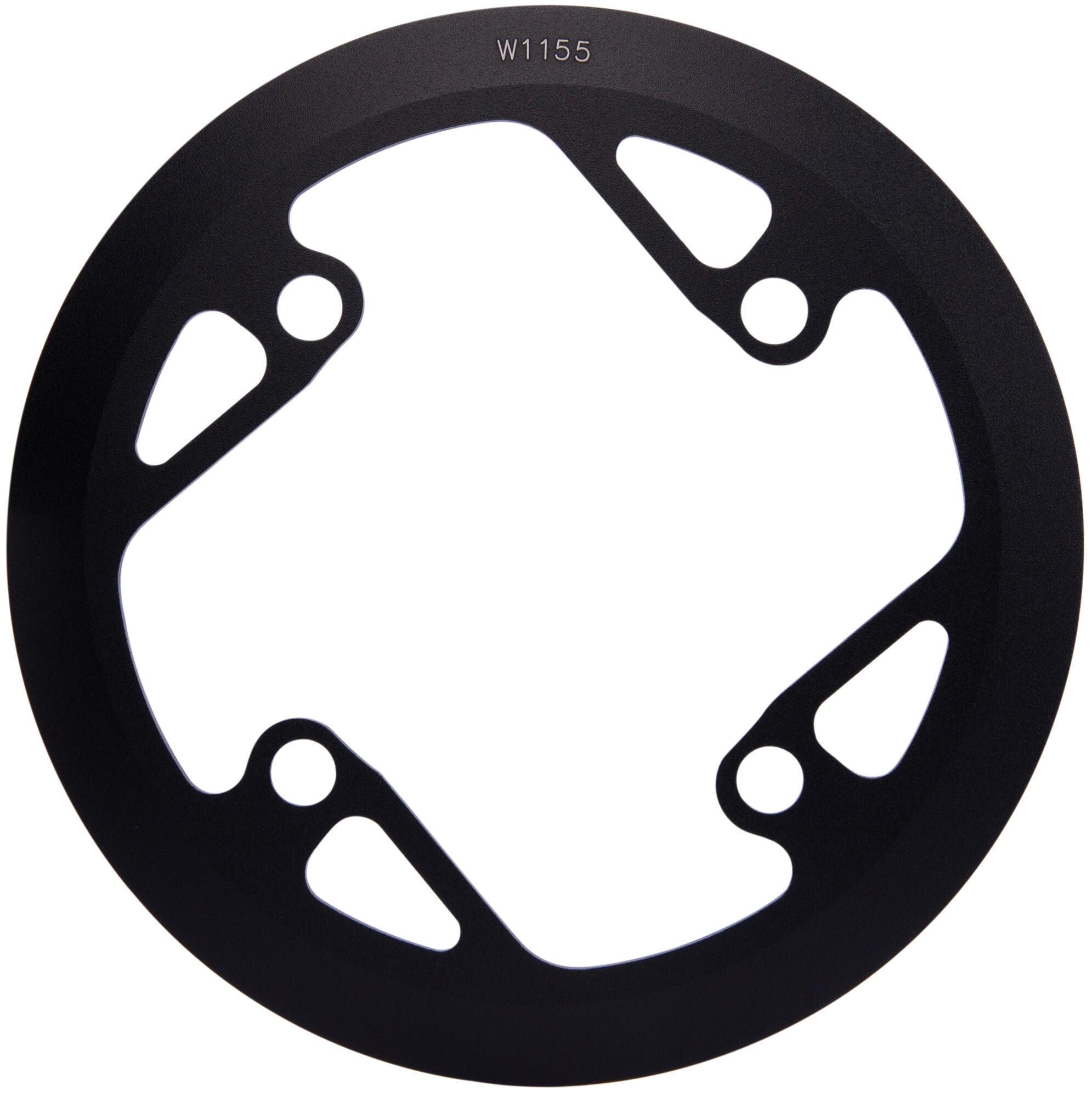

![]() 38 teeth, with chain guard ring Read more Read less
| ||
