CONWAY Electric trekking bike "Cairon TF 3.8" Mod. 24
wave, 28", pearl white / black metallic, 8-speed SHIMANO "Nexus" freewheel, 50cm
- Article number: 02896876
- Original number: 22080612
Product information
- Battery capacity: 625.0 Wh
- Bosch Smart System: no
- Brake system: hydraulic disc brake
- Category: trekking bike
- Chainstay: 485 mm
- Colour designation: pearl white / black metallic
- Drive: chain drive
- Drive system: BOSCH
- Drive version: middle motor
- E-bike: yes
- Engine power: 250 W
- Features: fender
- Frame height: 50 cm
- Frame shape: wave
- Frame size: L
- Gears: 8-speed
- Gender: ladies
- Main colour: white
- Material 1: aluminium
- Permissible total weight: 130 kg
- Reach: 420 mm
- Seat angle: 73.0 °
- Seat tube: 500 mm
- Secondary colour: black
- Shifting name: 8-Gang SHIMANO "Nexus" Leerlauf
- Shifting type: internal gear shifting
- Stack: 659 mm
- Steering tube: 170 mm
- Steering tube angle: 68.0 °
- Stem length: 110.0 mm
- Support: up to 25km/h
- Toptube: 620 mm
- Transmission: 1x 8-speed
- Travel: 80 mm
- Wheel distance: 1189 mm
- Wheel size: 28 "
- Battery: BOSCH "PowerTube 625", 625 Wh, BES2, horizontal
- Battery Lock: AXA "Block XXL", for PowerTube, BES2
- Bremse H.R.: TEKTRO disc brake "HD-T280", hydraulic, 2 pistons, A11 adapter, for 1,8mm rotors
- Bremse V.R.: TEKTRO disc brake "HD-T280", hydraulic, 2 pistons, post mount, A11 adapter, for 1,8mm rotors
- Chain / belt: KMC "Z610 EPT"
- Chain guard: HESLING “Move”, plastic, 38 teeth, matt black
- Chain ring / pulley: FSA, 38 teeth, for Bosch Gen.3, direct mount
- Charger: BOSCH 2A, BES2
- Crank: FSA "CK-200", 170mm, for Bosch Gen.3, BNI, aluminium, black
- Derailleur hanger: CONWAY "Slider Nabe" for Cairon from MY20
- Display: BOSCH "Intuvia", 4 levels, remote control, push aid
- Engine: BOSCH "Active Line Plus", Gen.3, BES2
- Fender: SKS "A 60 S", plastic, 60mm, black
- Fork: RST suspension fork "Blaze ML", 28", 80 mm travel, tapered, post mount, QR, black
- Frame: Intube Bosch, Gen.3, BES2, aluminium, wave, 50cm
- Frame Lock: AXA "Block XXL", for PowerTube, BES2
- Front hub: SHIMANO "Tourney TX HB-TX505", Center Lock, 32 holes, QR, black
- Front light: CONTEC "DLUX 50 E+", 50 lux
- Front rotor: TEKTRO "TR180-35", Ø 180mm, Center Lock, thickness: 1,8mm
- Front tire: CONTINENTAL "Contact Urban", 50-622, reflex
- Grips: HERRMANS "Clik Original DD37", 90/123mm, handlebar clamp, black
- Handlebar: ERGOTEC "Lady Town", 620mm, Ø 31,8mm, 30° backsweep, rise 16mm, Level 4, black
- Headset: GLORY WHEEL "Strummer", ZS44/28,6 / ZS56/40, 1 1/8" - 1,5", crown race
- Pedals: UNION "SP-827"
- Rear carrier: ATRAN VELO "Commute Pro", AVS system, F-Fix, black
- Rear derailleur: SHIMANO "Nexus SG-C6001", 8speed, LL
- Rear hub: SHIMANO "Nexus SG-C6001-8D", 8-speed, freewheel, Center Lock, 32 holes, black
- Rear light: CONTEC "TL-335 E-Stop", distance between screws: 50mm, stoplight function
- Rear rotor: TEKTRO "TR180-35", Ø 180mm, Center Lock, thickness: 1,8mm
- Rear tire: CONTINENTAL "Contact Urban", 50-622, reflex
- Rims: CROSS "X17", 25-622, 32 holes, disc brake, with eyelets, black
- Saddle: SELLE ROYAL "Vivo", ladies, moderate, black
- Seatpost: ERGOTEC "SP-10.0", Ø 31,6mm, 350mm long, 45mm travel, Level 5, black
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Spokes: Niro, schwarz
- Sprocket / pulley: SHIMANO "SM-GEAR", 18 teeth
- Stands: URSUS "R81 - Wave Rear", adjustable, 40mm hole distance, matt black
- Stem: ERGOTEC "Octopus 2 Ahead 50",1 1/8", 31,8mm handlebar clamp, 110mm long, adjustable, Level 4, sandblasted black
- Supplier Article Number:: 22080612
- EAN: 4251507982795
- MSRP: €3,399.95
- Brand/Supplier CONWAY
- Unit of measure: PIECE
| Article | Price | |
|---|---|---|
 TEKTRO disc brake "HD-T280" right, without adapter
| ||
 ERGOTEC handlebar "Lady Town" black
| ||
 URSUS rear kickstand "R78XL - King Evo Rear XL" 40mm hole distance
| ||
 SHIMANO front hub "Tourney TX HB-TX505" 32 holes (special item, bulk)
| ||
 ERGOTEC stem "Octopus Ahead 50" 90mm long, sandblasted black, eff. length: 90 / 60mm, eff. height: 50 / 120mm
| ||
 BOSCH Charger 230 V / 2A
| ||
 CONWAY engine cover "Bosch" Gen. 3
| ||
 CONWAY cable guide for down tube, suitable for Cairon gents, trapeze and wave und Xyron with 500 / 625 Wh PT battery, BES2 (Z6)
| ||
 SHIMANO shifter "Alfine S503" standard version
| ||
 CONWAY guide plug suitable for Cairon, rubber, chain stay cable guide, except MTB gents + Trap. Powertube
| ||
 BOSCH control unit "Kiox Compact" 290mm
| ||
 BOSCH Power Cable suitable for all Bosch chargers
| ||
 URSUS rear kickstand "R81 - Wave Rear" 40mm hole distance
| ||
 AXA frame and battery lock set "BlockXXL" intube battery
| ||
 ATRANVELO carrier attachment "F-Fix V2 R360" black
| ||
 CONWAY charging socket cover suitable for Cairon and Xyron with BES2 system and PT battery (Z6 and Z9)
| ||
 FSA crank arm set "CK-200" 170mm crank length
| ||
 FSA chain ring 38 teeth, without chain guard ring
| ||
SHIMANO shifter "Alfine S503" Scandinavian version
| ||
 ERGOTEC suspension seatpost "SP-10.0" Ø 31,6mm
| ||
 CONWAY battery cover suitable for Cairon / Cairon Wave / Cairon SUV FS and Xyron BES2 (Z6 and Z9)
| ||
 CONWAY mounting set Bosch Gen.3, suitable for Conway Cairon
| ||
 FASI touch-up stick pearl white 21, eWME
| ||
 CONWAY reducing headset suitable for Conway MS / MC / ML / MCL (27,5“ and 29“) and Cairon BES2 (Z6) with fork with 1 1/8“ shaft
| ||
 CONTEC LED rear rack light "TL-335 E-Stop" carrier attachment 50mm, self-service package
| ||
 CONWAY cable guide for steering tube, suitable for Cairon gents, trapeze and wave and xyron with 500/625 Wh PT battery, BES2 (Z6)
| ||
 BOSCH adapter extension for 500 Wh battery to 625 Wh battery bracketMounting material must be ordered separately:2x 0.281.163/02x 0.281.163/2
| ||
 CONWAY downtube cover suitable for Cairon Wave top (Z11, Z12) and Cairon SUV FS top (Z14), smart system, BES3
| ||
 CONWAY cover suitable for Cairon and Xyron Aluminium BES2 (Z6)
| ||
 CONTEC LED front light "DLUX 50 E+" bulk
| ||
 TEKTRO disc brake "HD-T280" left, without adapter
| ||
 TEKTRO rotor "TR35" Ø 180 mm, old packaging
| ||
 ATRANVELO rear rack "Commute Pro AVS" 27,5"/28", suitable for Conway Cairon T Wave IGH from mod.20dimensions (HxW): 350 x 99mm
| ||
 FASI touch-up stick black 20/21
| ||
 BOSCH Cover Cap for Powertube charging base, black
| ||
 CONWAY cover cap suitable for Cairon Wave (Z6, Z11, Z12) and Cairon Wave FS (Z9, Z14), smart system, BES3
| ||

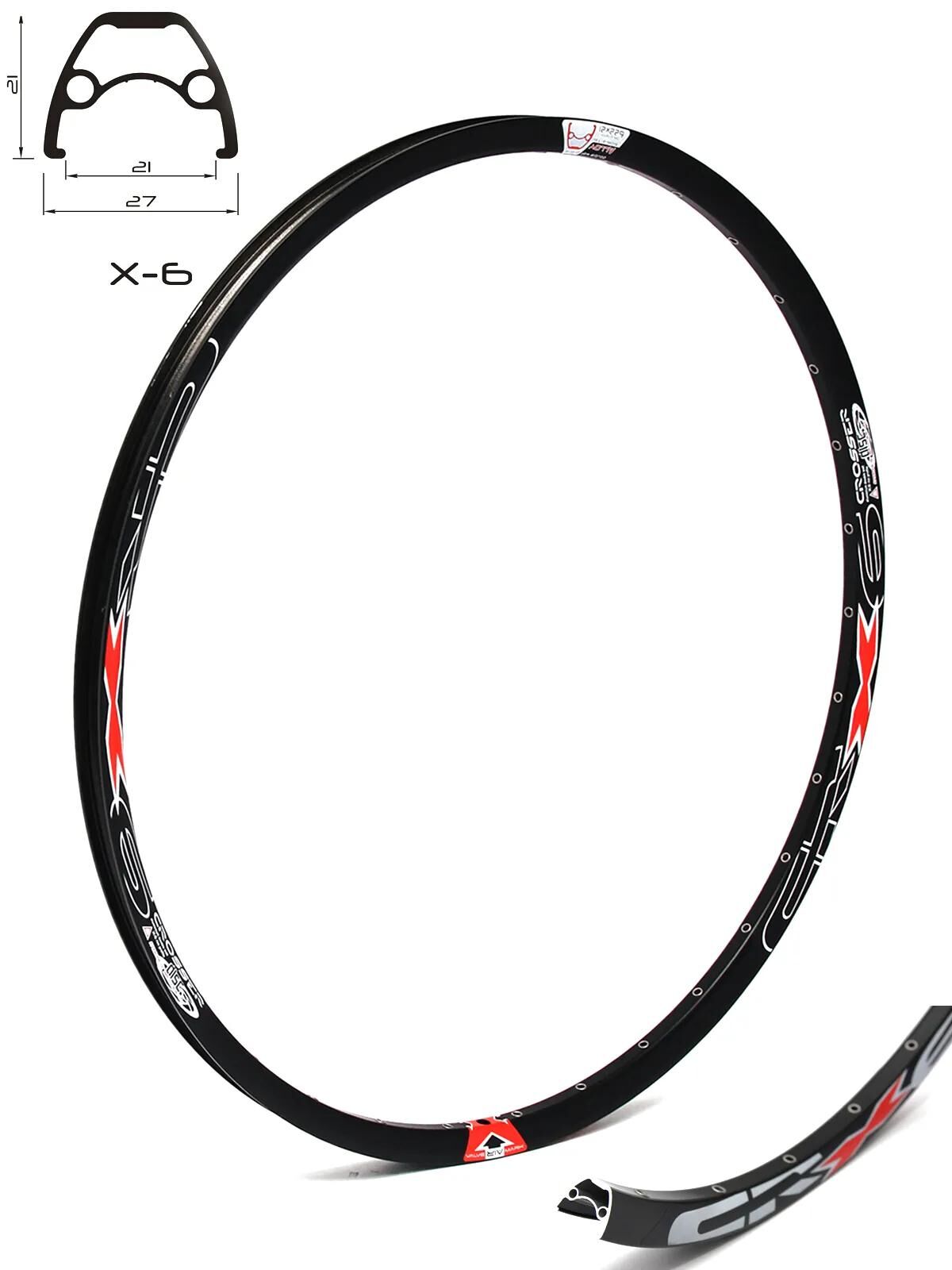

 CROSS rim "X6" 21-622 (28"), rim height: 20,2mm
| ||
