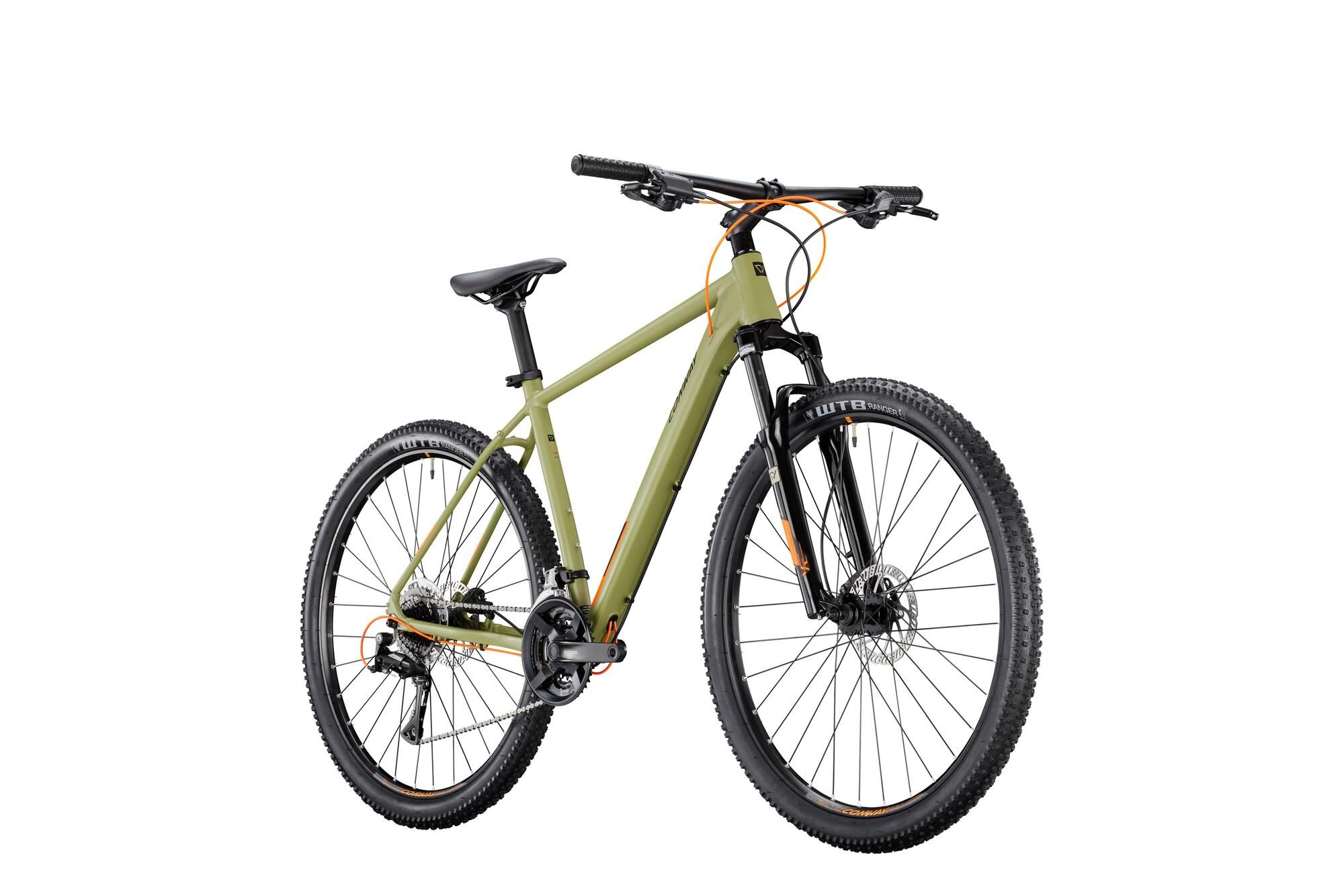

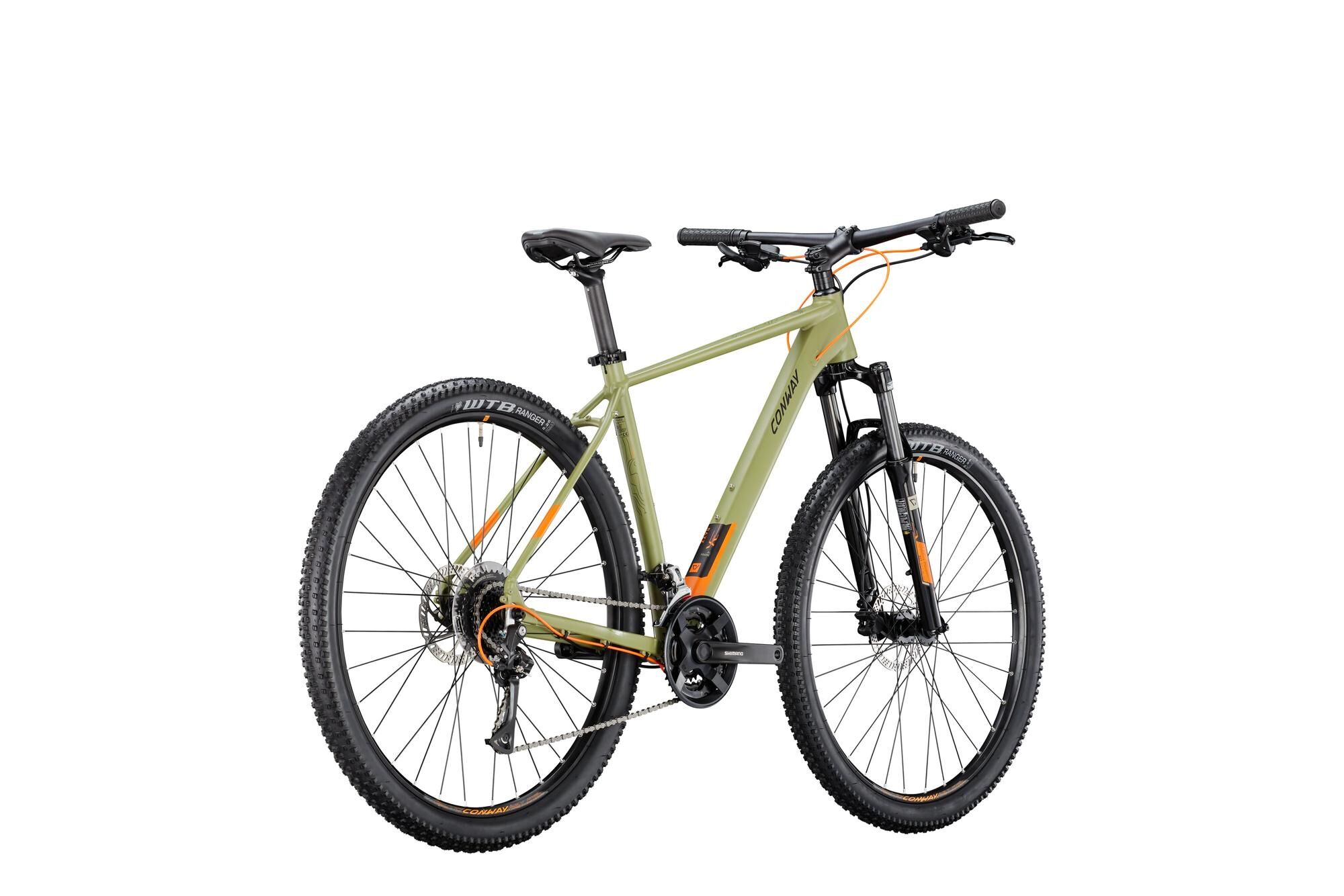

CONWAY MTB hardtail "Razz 4.0" (#1)
hardtail, 29", olive matt, 24-speed SHIMANO "Acera", 41 cm / S
Read more Read less - Article number: 02810472
- Original number: 4251971168435
The MTB hardtail consists of an aluminum frame and is equipped with a Suspension Fork, which has a fork travel of 100 mm. Drives are provided by a chain drive. A 24-speed SHIMANO Acera derailleur is integrated for gear selection. The braking system is a hydraulic Disc Brake that provides effective braking power on both wheels. The permissible system weight is 130 kg.
PU 1
Product information
- Brake system hydraulic disc brake
- Chainstay 448 mm
- Colour designation olive matt
- Drive chain
- E-bike no
- Features suspension fork
- Frame height 41 cm
- Frame shape hardtail
- Frame size S
- Gears 24-speed
- Gender gents
- Main colour green
- Material 1 aluminium
- Model series Razz
- Permissible system weight 130 kg
- Reach 369 mm
- Seat angle 72.4 °
- Seat tube 406 mm
- Shifting name 24-Gang SHIMANO "Acera"
- Shifting type derailleur shifting
- Stack 634 mm
- Standover height 771 mm
- Steering tube 120 mm
- Steering tube angle 70.0 °
- Stem length 70.0 mm
- Toptube 570 mm
- Transmission 3x 8-speed
- Travel 100 mm
- Type hardtail
- Wheel distance 1069 mm
- Wheel size 29 "
- Bottom bracket SHIMANO "BB-UN101", BSA, 68 mm / 70 mm housing width
- Brake TEKTRO "HD-M280"
- Brake lever TEKTRO "HD-M280"
- Chain / belt KMC "Z8", 8-speed
- Crankset SHIMANO "Tourney FC-TY301", 175 mm, 24/34/42 teeth
- Derailleur hanger CONWAY for MS / MC / ML 27.5", 29" from 2019 model onwards
- Fork RST "Gila", 100 mm travel, QR
- Frame Aluminum, diamond, 41 cm
- Front derailleur SHIMANO "Acera RD-M360"
- Front hub QUANDO "KT-K68F", QR
- Front rotor TEKTRO "TR160-24", Ø 160 mm, 6-hole
- Front tire WTB "Ranger", 57-622
- Grips CONWAY "Sport", 130 mm, black
- Handlebar LEVELNINE Handlebar, 720 mm, Ø 31.8 mm, Rise 0.5 mm
- Headset FSA "Orbit 1.5B ZS", ZS44/28.6 / ZS56/40, reduction cone
- Pedals WELLGO "C280DU"
- Rear derailleur SHIMANO "Acera RD-M360"
- Rear hub QUANDO "KT-K68R", 6-hole, QR
- Rear rotor TEKTRO "TR160-24", Ø 160 mm, 6-hole
- Rear tire WTB "Ranger", 57-622
- Rear wheel brake TEKTRO Disc Brake "HD-M275", hydraulic, 2 pistons, for 1.8 mm brake rotors
- Rims CONWAY "35 Bar", 32 hole
- Seatpost CONWAY, Ø 31.6 mm, 300 mm long
- Spokes Steel black
- Stem CONWAY, 1 1/8", 31,8mm handlebar clamp, 70mm long, angle 7°, black
- Supplier Article Number: 4251971168435
- EAN 4251971168435
- MSRP: €599.95
- Bidex-Code 101010
- DST-Code 1E00
- SB-Article No
- Fedas-Code 154010
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight 14.8 kg
| Article | Price | |
|---|---|---|
 EPT, self-service package, 114 links Read more Read less
| PU 60 | |
 | PU 25 | |
 MS / MC / ML 27,5" / 29" from mod.19 Read more Read less
| PU 1 | |
 Out of Stock 160 mm, old packaging Read more Read less
| PU 20 | |
 23-622, 609 mm ERD (measured incl. spoke holes), 16.2 mm high, 23.2 mm inner width, 28.3 mm outer width, approx. 566 g Read more Read less
| PU 25 | |
 122,5mm axle length, 68mm housing width Read more Read less
| PU 50 | |
 suitable for Conway MS / MC / ML / MCL (27,5“ and 29“) and Cairon BES2 (Z6) with fork with 1 1/8“ shaft Read more Read less
| PU 50 | |
 | PU 20 | |
 | PU 1 | |
 silver, self-service package, 114 links Read more Read less
| PU 60 | |
 | PU 25 | |
 Out of Stock 720mm long, Ø 31,8mm, 9° backsweep, 5° upsweep, rise: 15mm Read more Read less
| PU 25 | |
 | PU 50 | |
 silver / gray, SB-packed, 122 links Read more Read less
| PU 30 | |
Out of Stock olive matt YS 7369 matt Read more Read less
| PU 36 | |
 | PU 20 | |
 Out of Stock 32 holes, black Read more Read less
| PU 25 | |
 | PU 12 | |
 70 mm long, 31.8 mm handlebar clamps Read more Read less
| PU 50 | |
 11-13-15-17-20-23-26-34 teeth Read more Read less
| PU 20 | |
 | PU 25 | |
 | PU 25 |
Imagine conquering the trails with the "Conway Razz 4.0" - the perfect hardtail MTBs for beginners of all ages! The lightweight aluminum frame and 29" wheels offer you a stable and safe riding experience.The 24-speed Shimano "Acera" derailleur gears with 3x8-speed transmission allow you to change gears quickly and precisely so that you always have the optimum gear. The 100 mm fork travel ensures excellent damping on all trails, while the hydraulic Disc Brakes provide reliable braking power.
