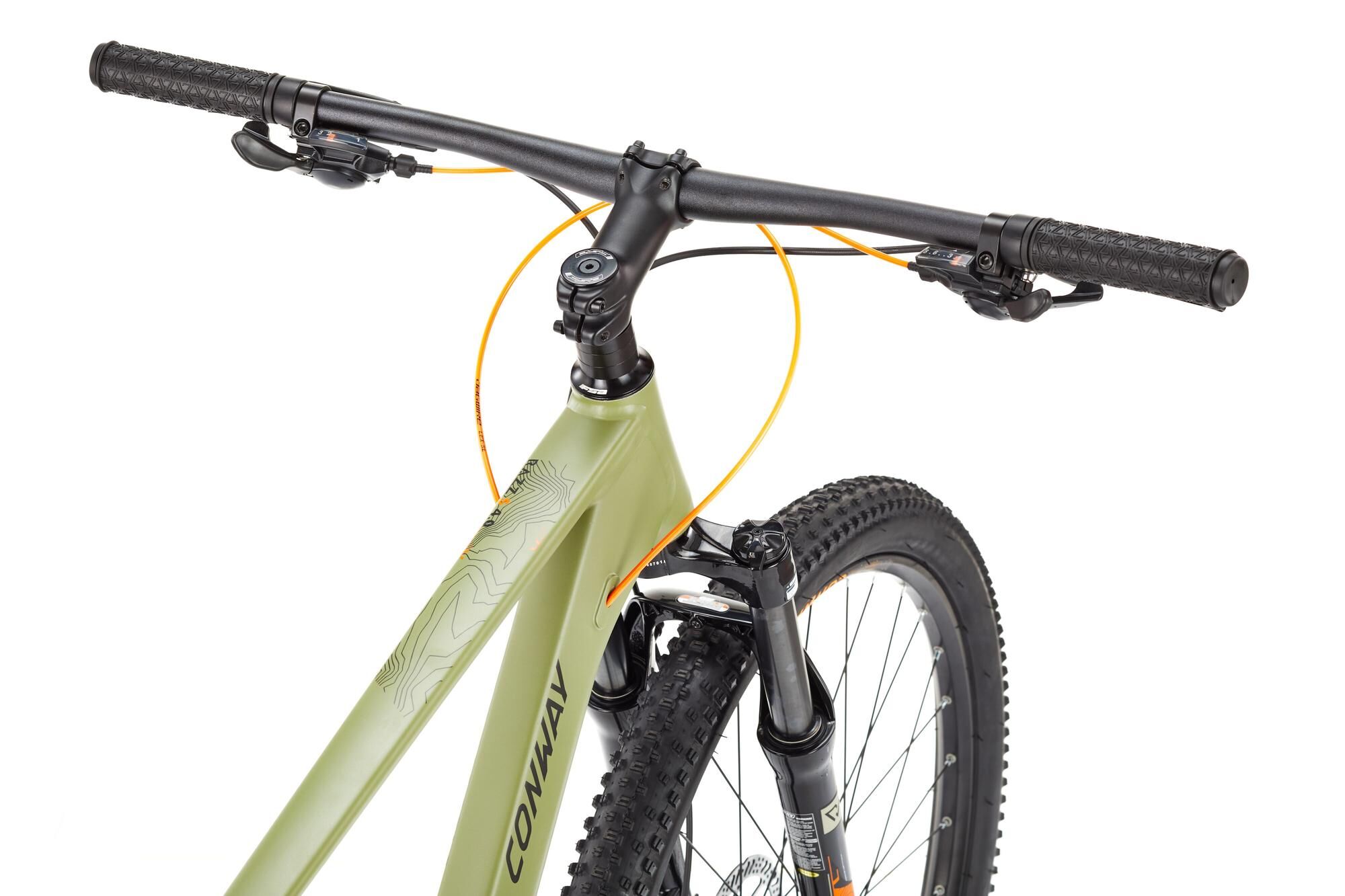

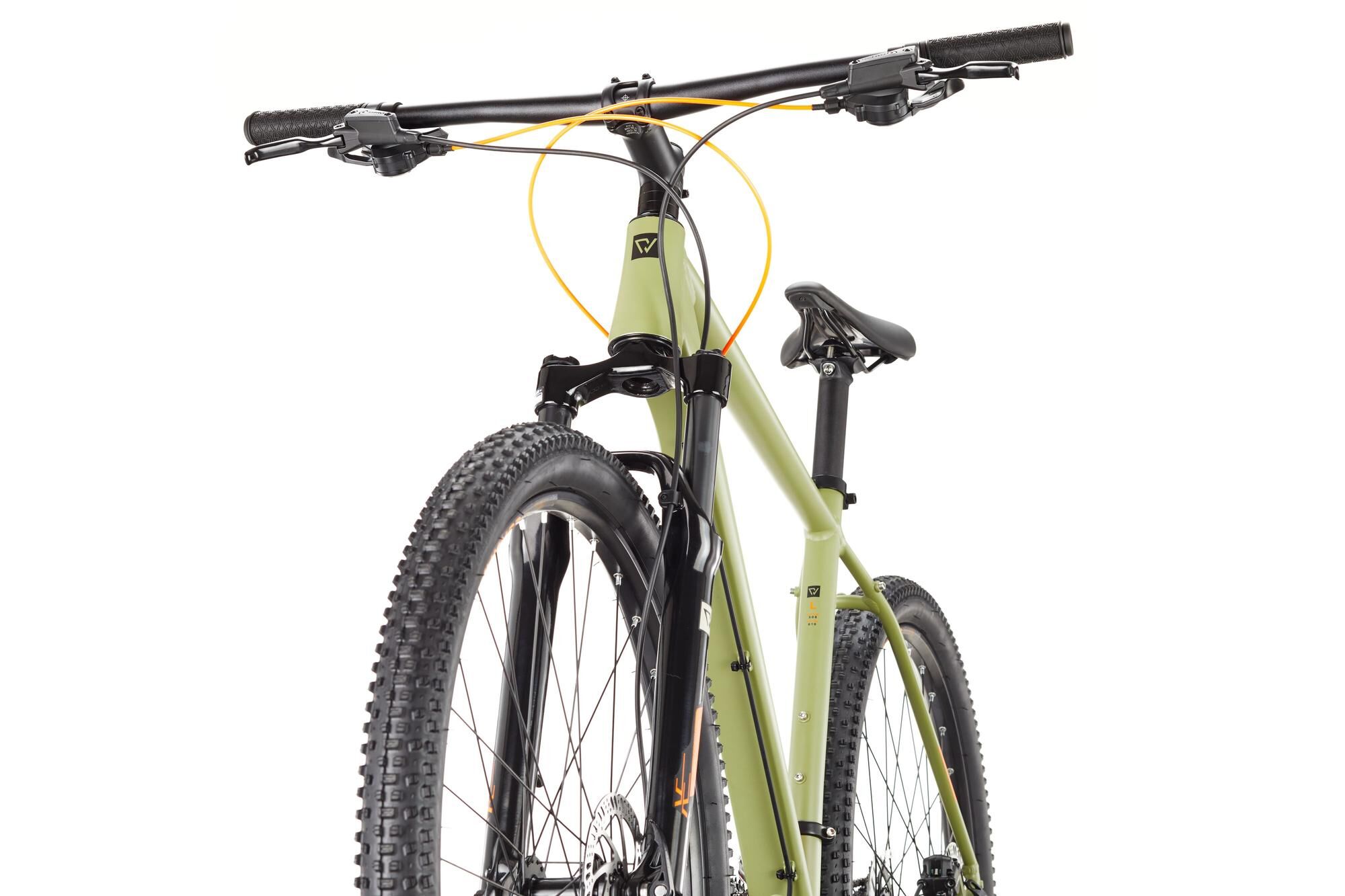

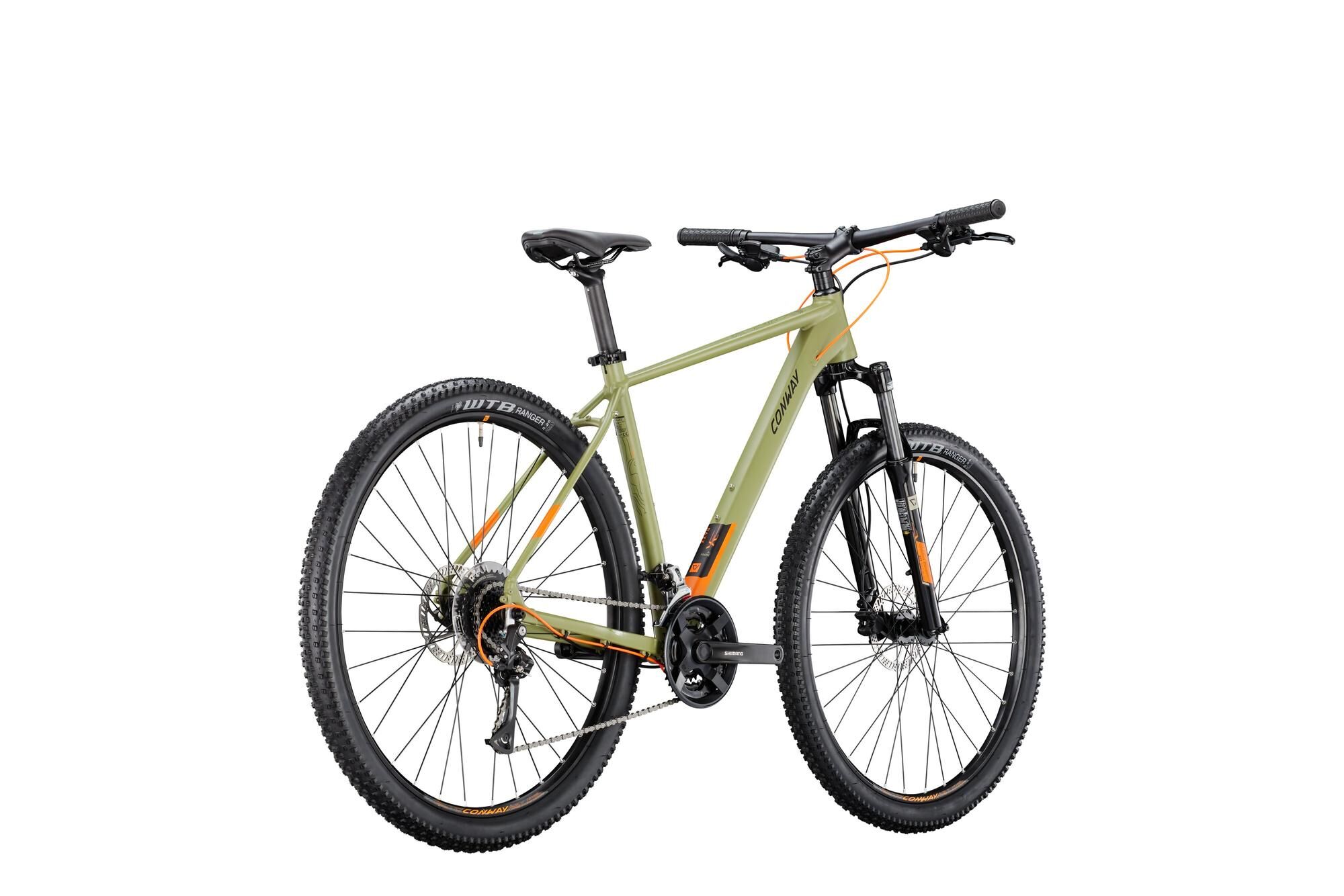

CONWAY MTB hardtail "Razz 4.0" (#1)
hardtail, 29", olive matt, 24-speed SHIMANO "Acera", 56 cm / XL
Read more Read less - Article number: 02810475
- 100 mm fork travel.

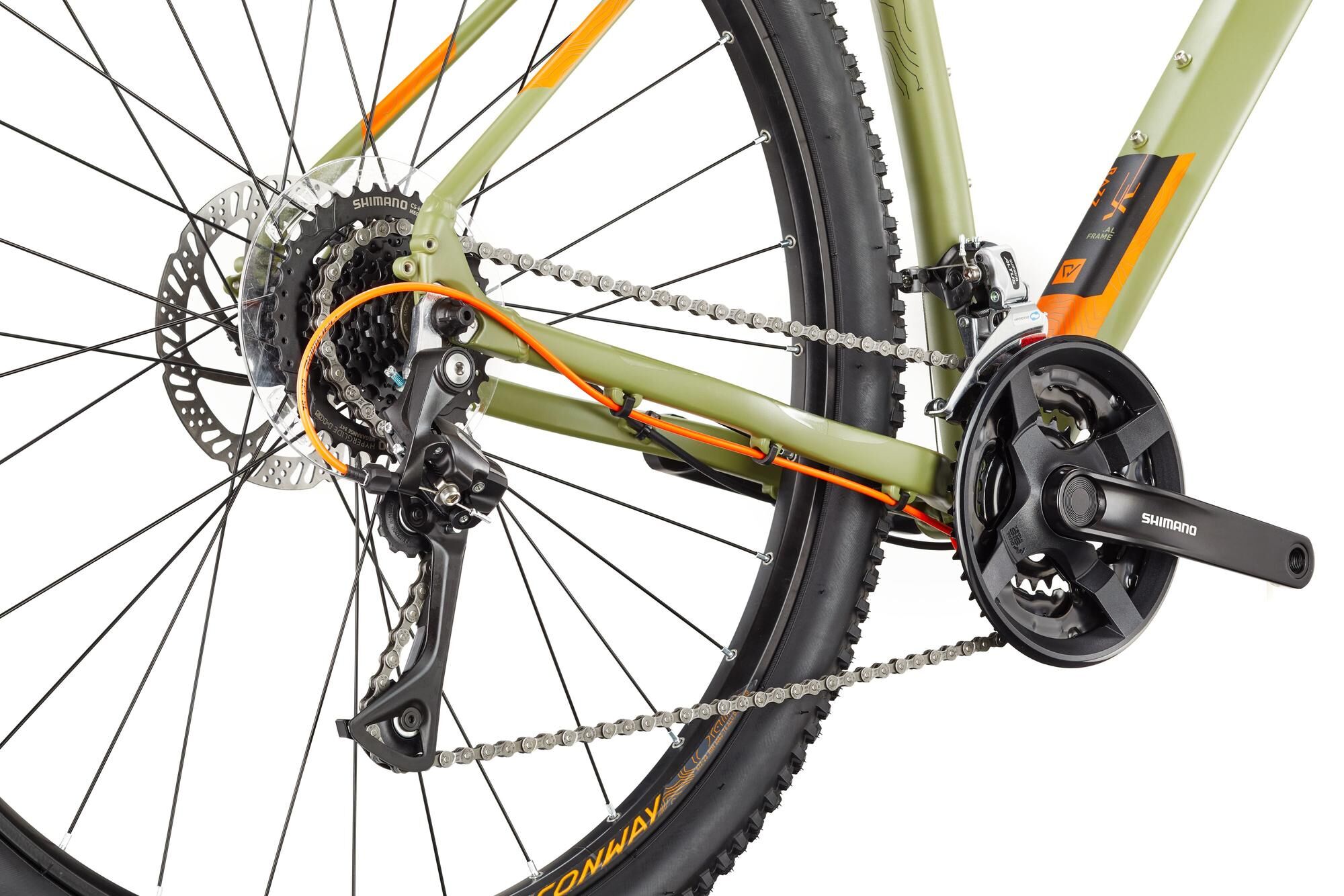

- 24-speed SHIMANO "Acera" derailleur and chain drive.
- Hydraulic Disc Brakes.
- Equipped with a Suspension Fork.
- Maximum system weight: 130 kg.
- Aluminum frame.
PU 1
Product information
- Brake system hydraulic disc brake
- Child Seat Approval no
- Colour designation olive matt
- Drive chain
- E-bike no
- Features suspension fork
- Frame height 56 cm
- Frame shape hardtail
- Frame size XL
- Gears 24-speed
- Gender gents
- Main colour green
- Material 1 aluminium
- Model range Razz
- Permissible system weight 130 kg
- Shifting name 24-Gang SHIMANO "Acera"
- Shifting type derailleur shifting
- Trailer Approval no
- Transmission 3x 8-speed
- Travel 100 mm
- Type hardtail
- Wheel size 29 "
- Chainstay 448 mm
- Reach 423 mm
- Seat angle 72.4 °
- Seat tube 559 mm
- Stack 652 mm
- Standover height 865 mm
- Steering tube 140 mm
- Steering tube angle 70.0 °
- Stem length 110.0 mm
- Toptube 630 mm
- Wheel distance 1124 mm
- Bottom bracket SHIMANO "BB-UN101", BSA, 68 mm / 70 mm housing width
- Chain / belt KMC "Z8", 8-speed
- Crankset SHIMANO "Tourney FC-TY301", 175 mm, 24/34/42 teeth
- Derailleur hanger CONWAY for MS / MC / ML 27.5", 29" from 2019 model onwards
- Fork RST "Gila", 100 mm travel, QR
- Frame Aluminum, diamond, 56 cm
- Front brake TEKTRO "HD-M275", Post Mount
- Front derailleur SHIMANO "Acera RD-M360"
- Front hub QUANDO "KT-K68F", QR
- Front rotor TEKTRO "TR160-24", Ø 160 mm, 6-hole
- Front tire WTB "Ranger", 57-622
- Grips CONWAY "Sport", 130 mm, black
- Handlebar LEVELNINE Handlebar, 720 mm, Ø 31.8 mm, Rise 0.5 mm
- Headset FSA "Orbit 1.5B ZS", ZS44/28.6 / ZS56/40, reduction cone
- Pedals WELLGO "C280DU"
- Rear brake TEKTRO Disc Brake "HD-M275", hydraulic, 2 pistons, for 1.8 mm brake rotors
- Rear derailleur SHIMANO "Acera RD-M360"
- Rear hub QUANDO "KT-K68R", 6-hole, QR
- Rear rotor TEKTRO "TR160-24", Ø 160 mm, 6-hole
- Rear tire WTB "Ranger", 57-622
- Rims CONWAY "35 Bar", 32 hole
- Saddle Selle Royal "Vivo", Athletic
- Seatpost CONWAY, Ø 31.6 mm, 350 mm long
- Shifting lever SHIMANO "Altus SL-M315-L/SL-M315-8R"
- Spokes Steel black
- Sprocket / pulley SHIMANO "Altus CS-HG31", 11-34 teeth
- Stem CONWAY, 1 1/8", 31,8mm handlebar clamp, 110mm long, angle 7°, black
- EAN 4251971168466
- MSRP: €599.95
- Bidex-Code 101010
- DST-Code 1E00
- SB-Article No
- Fedas-Code 154010
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight 14.8 kg
- product data sheet CONWAY MTB hardtail Razz 4.0 DA
- product data sheet CONWAY MTB hardtail Razz 4.0 DE
- product data sheet CONWAY MTB hardtail Razz 4.0 EN
- product data sheet CONWAY MTB hardtail Razz 4.0 ES
- product data sheet CONWAY MTB hardtail Razz 4.0 FR
- product data sheet CONWAY MTB hardtail Razz 4.0 IT
- product data sheet CONWAY MTB hardtail Razz 4.0 NL
- instruction manual
| Article | Price | |
|---|---|---|
 | PU 50 | |
 silver / gray, SB-packed, 122 links Read more Read less
| PU 30 | |
 silver, self-service package, 114 links Read more Read less
| PU 60 | |
 EPT, self-service package, 114 links Read more Read less
| PU 60 | |
 Out of Stock Successor: 03075729 160 mm, old packaging Read more Read less
| PU 20 | |
 MS / MC / ML 27,5" / 29" from mod.19 Read more Read less
| PU 1 | |
 122,5mm axle length, 68mm housing width Read more Read less
| PU 50 | |
 Out of Stock Successor: 07463084 black Read more Read less
| PU 20 | |
 Out of Stock Successor: 07472139 32 holes, black Read more Read less
| PU 25 | |
 | PU 12 | |
 | PU 25 | |
 | PU 25 | |
 | PU 20 | |
 | PU 25 | |
 11-13-15-17-20-23-26-34 teeth Read more Read less
| PU 20 | |
 110 mm long, 31.8 mm handlebar clamps Read more Read less
| PU 50 | |
 suitable for Conway MS / MC / ML / MCL (27,5“ and 29“) and Cairon BES2 (Z6) with fork with 1 1/8“ shaft Read more Read less
| PU 50 | |
 | PU 1 | |
 23-622, 609 mm ERD (measured including spoke holes), 16.2 mm high, 23.2 mm inner width, 28.3 mm outer width, approx. 566 g Read more Read less
| PU 25 | |
 | PU 25 | |
 | PU 36 |
Imagine conquering the trails on the "Conway Razz 4.0"—the perfect hardtail MTB for beginners of all ages! The lightweight aluminum frame and 29" wheels give you a stable and secure riding experience.The 24-speed Shimano “Acera” derailleur with a 3x8-speed gearing system lets you shift gears quickly and precisely, so you’re always in the optimal gear. The 100 mm suspension travel on the fork ensures excellent shock absorption on all trails, while the hydraulic disc brakes provide reliable stopping power.
