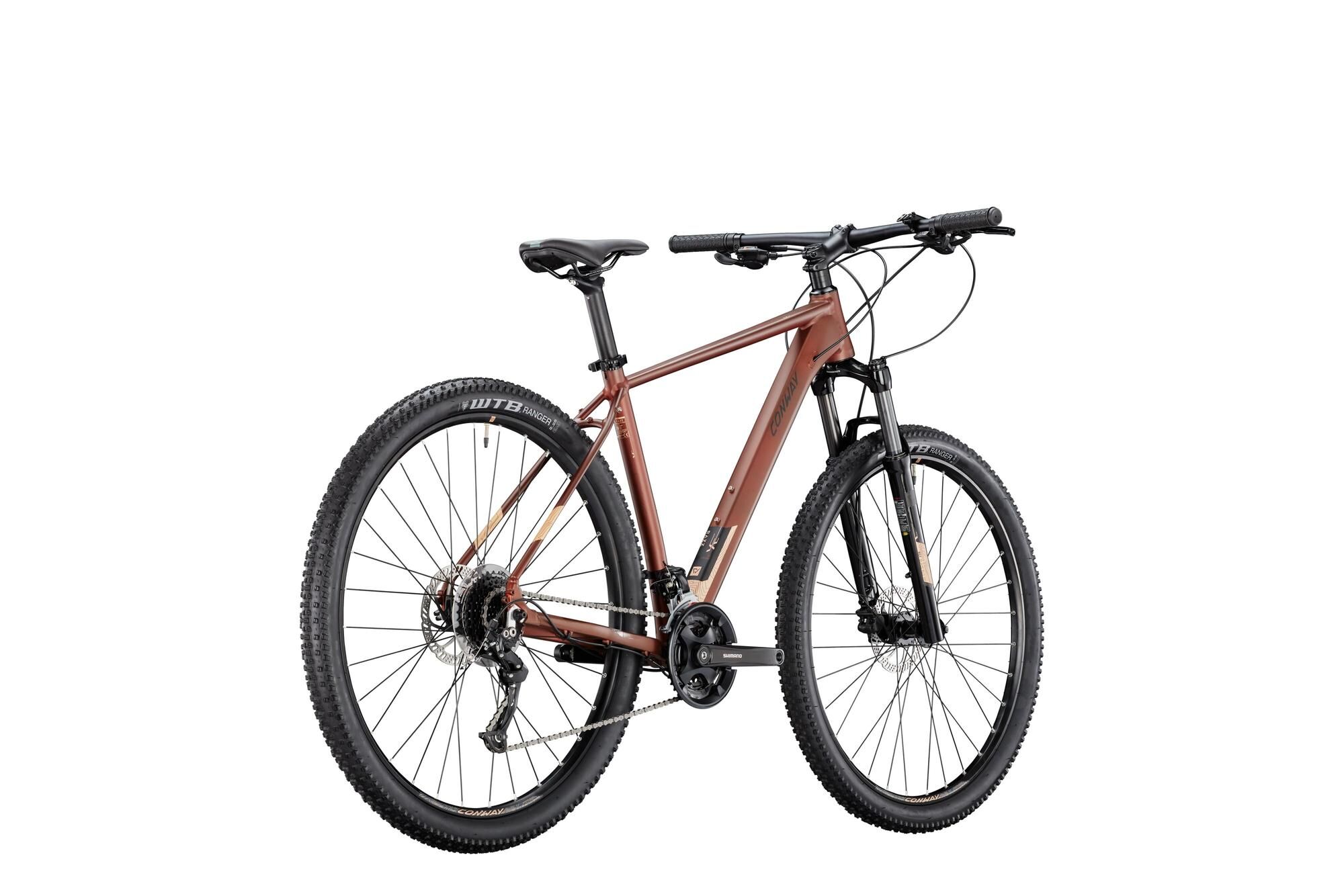

CONWAY MTB hardtail "Razz 5.0" (#1)
hardtail, 29", rustred matt, 27-speed SHIMANO "Alivio", 46 cm / M
Read more Read less - Article number: 02810483
- Original number: 4251971168541
The MTB hardtail consists of an aluminum frame and is equipped with a Suspension Fork that offers a fork travel of 100 mm. Drives are provided by a chain, and gears are selected via a 27-speed SHIMANO Alivio derailleur system. The braking system includes hydraulic Disc Brakes mounted both front and rear. The permissible system weight is 130 kg. The combination of these components ensures stability and reliability off-road.
BEC Showroom
PU 1
Product information
- Brake system hydraulic disc brake
- Chainstay 448 mm
- Colour designation rustred matt
- Drive chain
- E-bike no
- Features suspension fork
- Frame height 46 cm
- Frame shape hardtail
- Frame size M
- Gears 27-speed
- Gender gents
- Main colour red
- Material 1 aluminium
- Model series Razz
- Permissible system weight 130 kg
- Reach 389 mm
- Seat angle 72.4 °
- Seat tube 457 mm
- Shifting name 27-Gang SHIMANO "Alivio"
- Shifting type derailleur shifting
- Stack 634 mm
- Standover height 800 mm
- Steering tube 120 mm
- Steering tube angle 70.0 °
- Stem length 70.0 mm
- Toptube 590 mm
- Transmission 3x 9-speed
- Travel 100 mm
- Type hardtail
- Wheel distance 1089 mm
- Wheel size 29 "
- Bottom bracket SHIMANO "BB-UN101", BSA, 68 mm / 70 mm housing width
- Brake TEKTRO "HD-M280"
- Brake lever TEKTRO "HD-M280"
- Chain / belt KMC "Z99", 9-speed
- Crankset SHIMANO "Alivio FC-MT101", square, 175 mm, 22/30/40 teeth
- Derailleur hanger CONWAY for MS / MC / ML 27.5", 29" from 2019 model onwards
- Fork RST "Blaze RLO", 100 mm travel, QR
- Frame Aluminum, diamond, 46 cm
- Front derailleur SHIMANO "Altus FD-M2000", Down Swing
- Front hub QUANDO "KT-K68F", QR
- Front rotor TEKTRO "TR160-24", Ø 160 mm, 6-hole
- Front tire WTB "Ranger", 57-622
- Handlebar LEVELNINE Handlebar, 720 mm, Ø 31.8 mm, Rise 0.5 mm
- Headset FSA "Orbit 1.5B ZS", ZS44/28.6 / ZS56/40, reduction cone
- Pedals WELLGO "C280DU"
- Rear derailleur SHIMANO "Alivio RD-M3100"
- Rear hub QUANDO "KT-K68R", 6-hole, QR
- Rear rotor TEKTRO "TR160-24", Ø 160 mm, 6-hole
- Rear tire WTB "Ranger", 57-622
- Rear wheel brake TEKTRO Disc Brake "HD-M280", hydraulic, 2 pistons, for 1.8 mm brake rotors
- Rims RODI "Blackrock 23", 23-622, 32 holes, disc brake, easy eyelets, black
- Saddle Selle Royal "Vivo", Athletic
- Seatpost CONWAY, Ø 31.6 mm, 350 mm long
- Spokes Steel black
- Stem CONWAY, 1 1/8", 31,8mm handlebar clamp, 70mm long, angle 7°, black
- Supplier Article Number: 4251971168541
- EAN 4251971168541
- MSRP: €799.95
- Bidex-Code 101010
- DST-Code 1E00
- SB-Article No
- Fedas-Code 154010
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight 14.9 kg
| Article | Price | |
|---|---|---|
 Out of Stock 32 holes, black Read more Read less
| PU 25 | |
 | PU 25 | |
 23-622, 609 mm ERD (measured incl. spoke holes), 16.2 mm high, 23.2 mm inner width, 28.3 mm outer width, approx. 566 g Read more Read less
| PU 25 | |
 Out of Stock 720mm long, Ø 31,8mm, 9° backsweep, 5° upsweep, rise: 15mm Read more Read less
| PU 25 | |
 | PU 25 | |
 122,5mm axle length, 68mm housing width Read more Read less
| PU 50 | |
 | PU 20 | |
 | PU 50 | |
 | PU 25 | |
 11-13-15-17-20-23-26-30-34 teeth Read more Read less
| PU 20 | |
 Out of Stock 160 mm, old packaging Read more Read less
| PU 20 | |
 Out of Stock pair, 3-/9-speed Read more Read less
| PU 12 | |
 70 mm long, 31.8 mm handlebar clamps Read more Read less
| PU 50 | |
 suitable for Conway MS / MC / ML / MCL (27,5“ and 29“) and Cairon BES2 (Z6) with fork with 1 1/8“ shaft Read more Read less
| PU 50 | |
 silver / gray, SB-packed, 122 links Read more Read less
| PU 30 | |
 | PU 36 | |
 | PU 25 | |
 MS / MC / ML 27,5" / 29" from mod.19 Read more Read less
| PU 1 | |
 | PU 25 | |
| PU 1 |
Get ready for your next adventure with our "Razz 5.0"! This hardtail MTBs is perfect for bikers who want to conquer the trails. The 27-speed Shimano "Alivio" derailleur gears with their 3x9-speed transmission allow you to change gears quickly and precisely so that you always have the optimum gear ratio.100 mm suspension travel at the front provides damping and simply swallows up bumpy roads. Hydraulic Disc Brakes guarantee you maximum safety and control, especially in wet conditions or on steep descents.With its aluminum frame, our "Razz 5.0" is a robust and durable hardtail for anyone who enjoys biking and wants to go everywhere.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 hardtail, 27", dark teal matt, 27-speed SHIMANO "Alivio", 36 cm / XS Read more Read less
| PU 1 | |
 hardtail, 27", rustred matt, 27-speed SHIMANO "Alivio", 36 cm / XS Read more Read less
| PU 1 | |
 hardtail, 29", dark teal matt, 27-speed SHIMANO "Alivio", 41 cm / S Read more Read less
| PU 1 | |
 hardtail, 29", dark teal matt, 27-speed SHIMANO "Alivio", 46 cm / M Read more Read less
| PU 1 | |
hardtail, 29", dark teal matt, 27-speed SHIMANO "Alivio", 51 cm / L Read more Read less
| PU 1 | |
 hardtail, 29", dark teal matt, 27-speed SHIMANO "Alivio", 56 cm / XL Read more Read less
| PU 1 | |
 hardtail, 29", rustred matt, 27-speed SHIMANO "Alivio", 41 cm / S Read more Read less
| PU 1 | |
 hardtail, 29", rustred matt, 27-speed SHIMANO "Alivio", 46 cm / M Read more Read less
| PU 1 | |
hardtail, 29", rustred matt, 27-speed SHIMANO "Alivio", 51 cm / L Read more Read less
| PU 1 | |
 hardtail, 29", rustred matt, 27-speed SHIMANO "Alivio", 56 cm / XL Read more Read less
| PU 1 |
