CONWAY MTB hardtail "Razz 5.0" (#1)
hardtail, 27", rustred matt, 27-speed SHIMANO "Alivio", 36 cm / XS
Read more Read less - Article number: 02810481

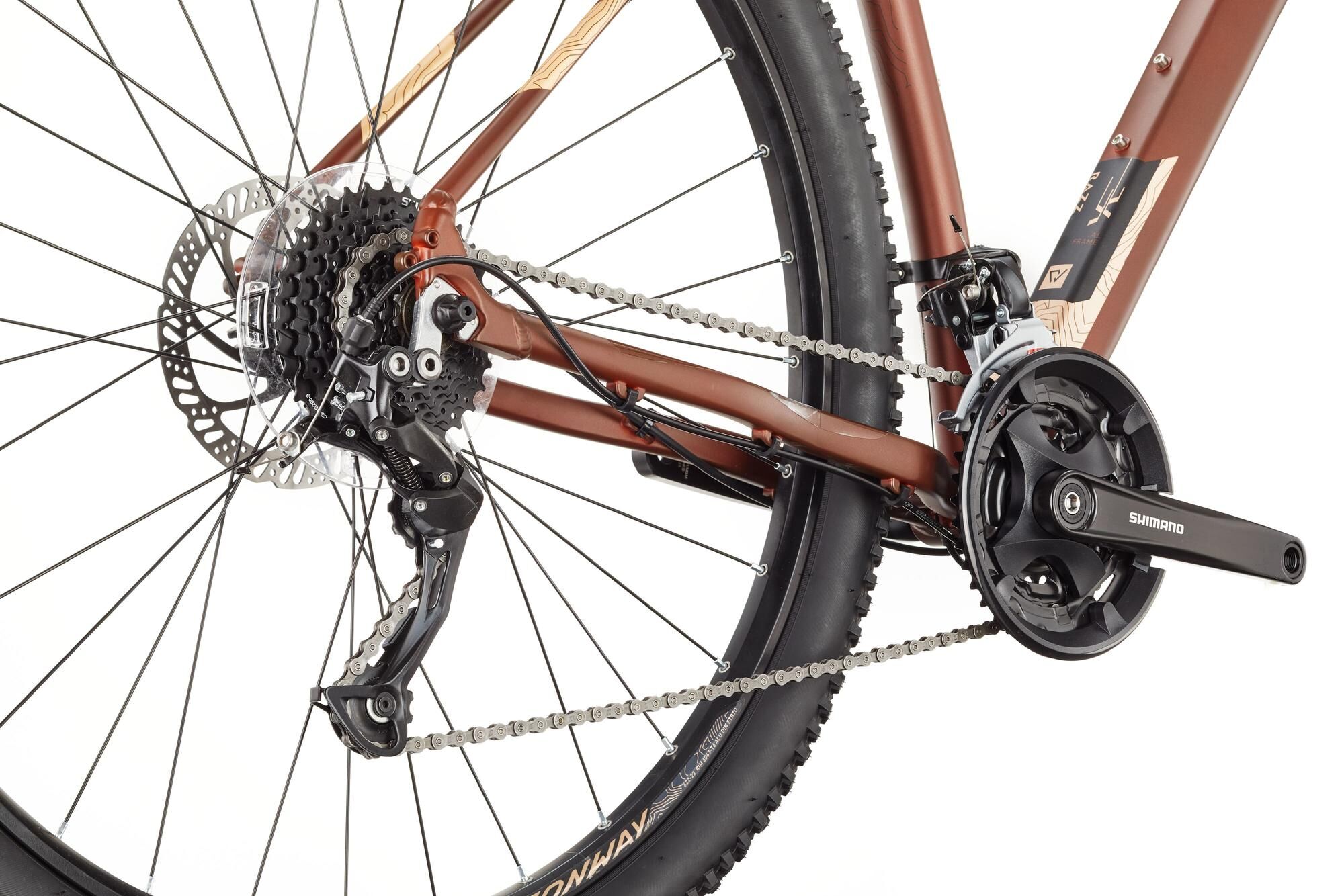

- 27-speed SHIMANO "Alivio" derailleur and chain drive.
- Hydraulic Disc Brakes.
- 100 mm fork travel.
- Aluminum frame.
- Maximum system weight: 130 kg.
PU 1
Product information
- Brake system hydraulic disc brake
- Child Seat Approval no
- Colour designation rustred matt
- Drive chain
- E-bike no
- Features suspension fork
- Frame height 36 cm
- Frame shape hardtail
- Frame size XS
- Gears 27-speed
- Gender gents
- Main colour red
- Material 1 aluminium
- Model range Razz
- Permissible system weight 130 kg
- Shifting name 27-Gang SHIMANO "Alivio"
- Shifting type derailleur shifting
- Trailer Approval no
- Transmission 3x 9-speed
- Travel 100 mm
- Type hardtail
- Wheel size 27 "
- Chainstay 435 mm
- Reach 381 mm
- Seat angle 74.0 °
- Seat tube 355 mm
- Stack 589 mm
- Standover height 715 mm
- Steering tube 110 mm
- Steering tube angle 70.0 °
- Stem length 50.0 mm
- Toptube 550 mm
- Wheel distance 1059 mm
- Bottom bracket SHIMANO "BB-UN101", BSA, 68 mm / 70 mm housing width
- Chain / belt KMC "Z99", 9-speed
- Crankset SHIMANO "Alivio FC-MT101", 170 mm, 22/30/40 teeth
- Derailleur hanger CONWAY for MS / MC / ML 27.5", 29" from 2019 model onwards
- Fork RST "Blaze RLO", 100 mm travel, QR
- Frame Aluminum, diamond, 36 cm
- Front brake TEKTRO "HD-M280", Post Mount
- Front derailleur SHIMANO "Altus FD-M2000", Down Swing
- Front hub QUANDO "KT-K68F", QR
- Front rotor TEKTRO "TR160-24", Ø 160 mm, 6-hole
- Front tire WTB "Ranger", 57-584
- Grips CONWAY "Sport", 130 mm, black
- Handlebar LEVELNINE Handlebar, 720 mm, Ø 31.8 mm, Rise 0.5 mm
- Headset FSA "Orbit 1.5B ZS", ZS44/28.6 / ZS56/40, reduction cone
- Pedals WELLGO "C280DU"
- Rear brake TEKTRO Disc Brake "HD-M280", hydraulic, 2 pistons, for 1.8 mm brake rotors
- Rear derailleur SHIMANO "Alivio RD-M3100"
- Rear hub QUANDO "KT-K68R", 6-hole, QR
- Rear rotor TEKTRO "TR160-24", Ø 160 mm, 6-hole
- Rear tire WTB "Ranger", 57-584
- Rims RODI "Blackrock 23", 23-622, 32 holes, disc brake, easy eyelets, black
- Saddle Selle Royal "Vivo", Athletic
- Seatpost CONWAY, Ø 31.6 mm, 300 mm long
- Shifting lever SHIMANO "Altus SL-M2010-L/SL-M2010-9R"
- Spokes Steel black
- Sprocket / pulley SHIMANO "Acera CS-HG200", 11-34 teeth
- Stem CONWAY, 1 1/8", 31,8mm handlebar clamp, 50mm long, angle 7°, black
- EAN 4251971168527
- MSRP: €799.95
- Bidex-Code 101010
- DST-Code 1E00
- SB-Article No
- Fedas-Code 154010
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight 14.9 kg
- product data sheet CONWAY MTB hardtail Razz 5.0 DA
- product data sheet CONWAY MTB hardtail Razz 5.0 DE
- product data sheet CONWAY MTB hardtail Razz 5.0 EN
- product data sheet CONWAY MTB hardtail Razz 5.0 ES
- product data sheet CONWAY MTB hardtail Razz 5.0 FR
- product data sheet CONWAY MTB hardtail Razz 5.0 IT
- product data sheet CONWAY MTB hardtail Razz 5.0 NL
- instruction manual
| Article | Price | |
|---|---|---|
 | PU 50 | |
 silver / gray, SB-packed, 122 links Read more Read less
| PU 30 | |
 Out of Stock Successor: 03075729 160 mm, old packaging Read more Read less
| PU 20 | |
 MS / MC / ML 27,5" / 29" from mod.19 Read more Read less
| PU 1 | |
 122,5mm axle length, 68mm housing width Read more Read less
| PU 50 | |
 Out of Stock Successor: 07463084 black Read more Read less
| PU 20 | |
 Out of Stock Successor: 07472139 32 holes, black Read more Read less
| PU 25 | |
 Out of Stock pair, 3-/9-speed Read more Read less
| PU 12 | |
 | PU 25 | |
 | PU 25 | |
 | PU 25 | |
 | PU 25 | |
 Out of Stock 11-13-15-17-20-23-26-30-34 teeth Read more Read less
| PU 20 | |
 | PU 50 | |
 suitable for Conway MS / MC / ML / MCL (27,5“ and 29“) and Cairon BES2 (Z6) with fork with 1 1/8“ shaft Read more Read less
| PU 50 | |
 | PU 1 | |
 23-584, 571 mm ERD (measured including spoke holes), 16.2 mm high, 23.2 mm inner width, 28.3 mm outer width, approx. 532 g Read more Read less
| PU 25 | |
 | PU 25 | |
 | PU 36 |
Get ready for your next adventure with our "Razz 5.0"! This hardtail MTB is perfect for riders who want to conquer the trails. The 27-speed Shimano “Alivio” derailleur, with its 3x9-speed gearing, lets you shift gears quickly and precisely, so you always have the optimal gear ratio.100 mm of front suspension travel provides cushioning and easily absorbs bumps on rough terrain. Hydraulic disc brakes guarantee maximum safety and control, especially in wet conditions or on steep descents.With its aluminum frame, our “Razz 5.0” is a sturdy and durable hardtail for anyone who loves biking and wants to ride fast anywhere.
