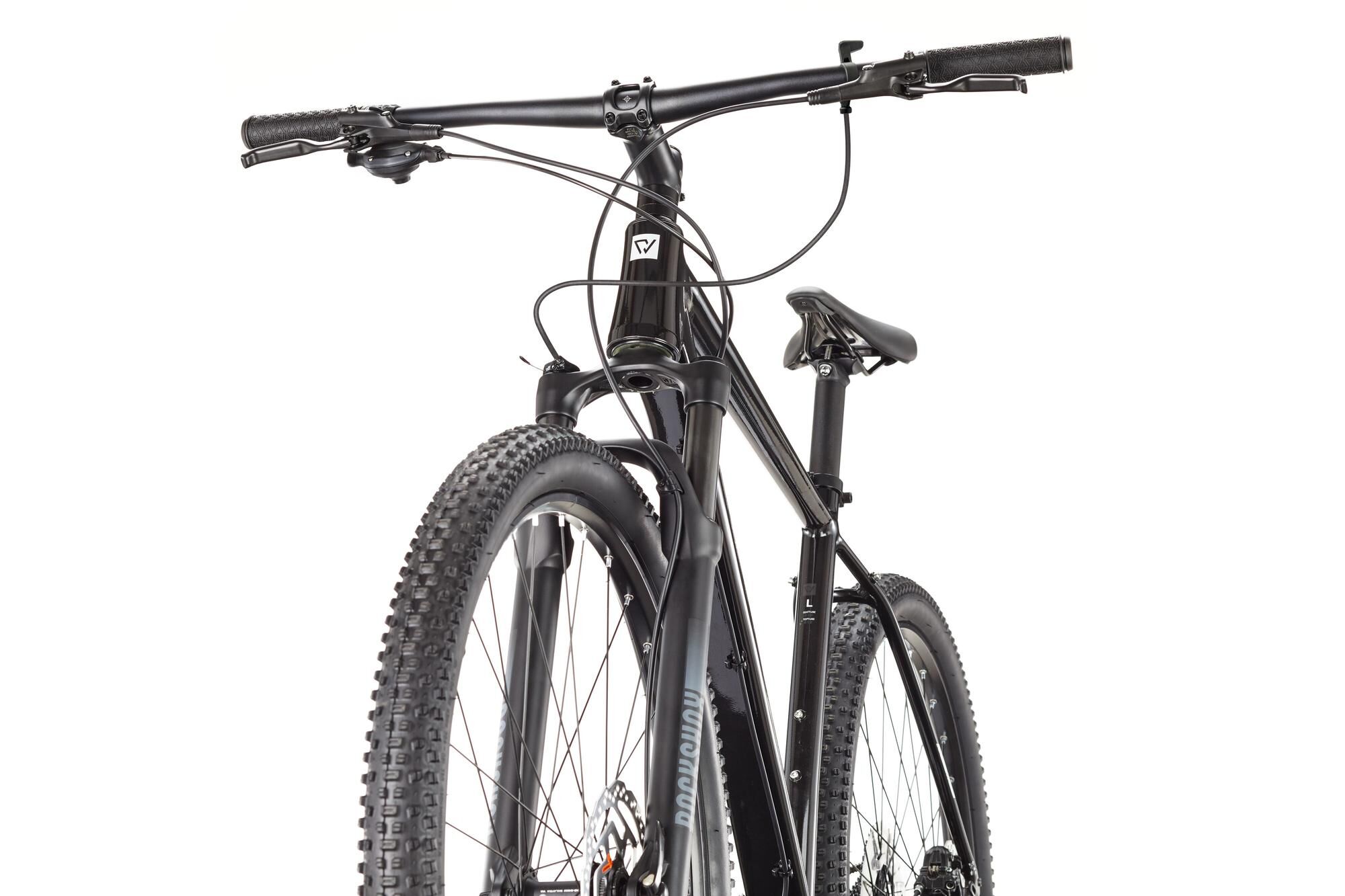

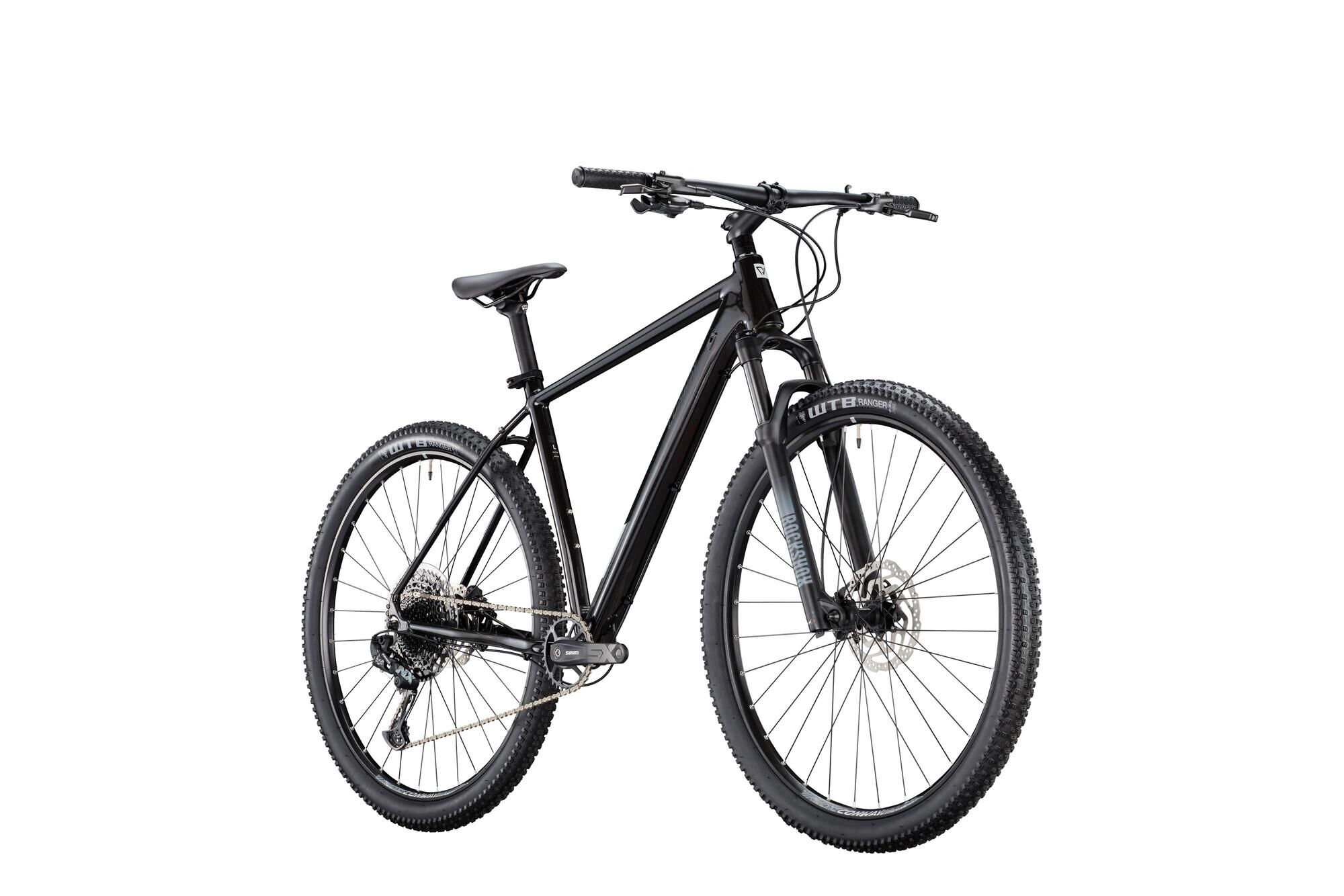

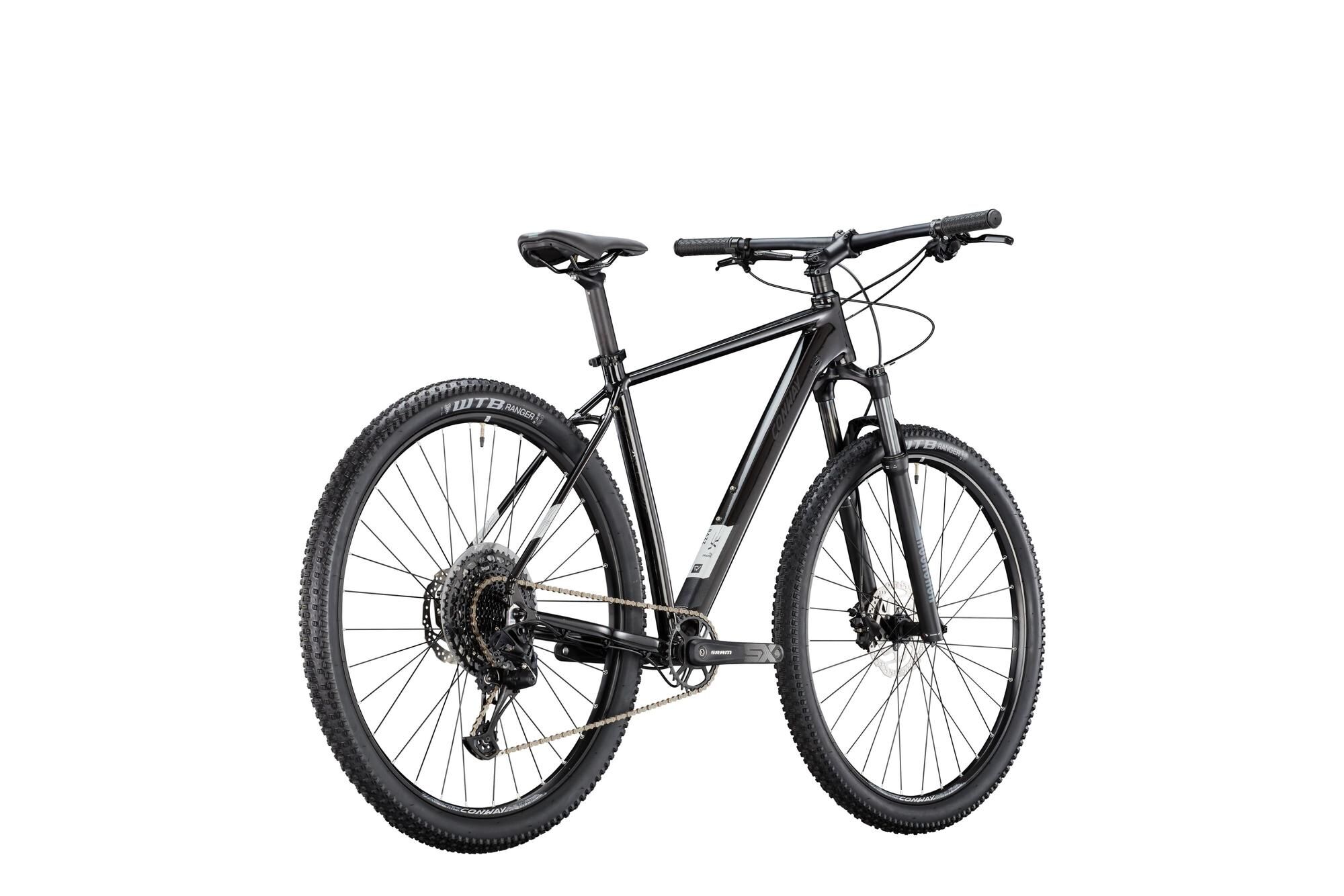

CONWAY MTB hardtail "Razz 9.0" (#1)
hardtail, 29", black, 12-speed SRAM "NX", 41 cm / S
Read more Read less - Article number: 02810499
- Original number: 4251971168701
The MTB hardtail is made of aluminum and has a Suspension Fork with 100 mm fork travel. The drives are via a chain and it is equipped with a 12-speed SRAM "NX" derailleur. The hydraulic Disc Brakes ensure reliable braking power. The wheels have a diameter of 29". The permissible system weight is 130 kg.
PU 1
Product information
- Brake system hydraulic disc brake
- Chainstay 448 mm
- Colour designation black
- Drive chain
- E-bike no
- Features suspension fork
- Frame height 41 cm
- Frame shape hardtail
- Frame size S
- Gears 12-speed
- Gender gents
- Main colour black
- Material 1 aluminium
- Modellreihe Razz
- Permissible system weight 130 kg
- Reach 369 mm
- Seat angle 72.4 °
- Seat tube 406 mm
- Shifting name 12-Gang SRAM "NX"
- Shifting type derailleur shifting
- Stack 634 mm
- Standover height 771 mm
- Steering tube 120 mm
- Steering tube angle 70.0 °
- Stem length 70.0 mm
- Toptube 570 mm
- Transmission 1x 12-speed
- Travel 100 mm
- Type hardtail
- Wheel distance 1069 mm
- Wheel size 29 "
- Bottom bracket: TRUVATIV "PowerSpline", BSA, 68 mm / 73 mm housing width
- Brake: SHIMANO "BR-MT200"
- Brake lever: SHIMANO "BL-MT200"
- Chain / belt: SRAM "SX Eagle"
- Crankset: SRAM "SX Eagle", 175 mm, 32 teeth
- Derailleur hanger: CONWAY for MS / MC / ML 27.5", 29" from 2019 model onwards
- Fork: ROCKSHOX "Judy Silver TK", 100 mm travel, SoloAir, TurnKey, QR
- Frame: Aluminum, diamond, 41 cm
- Front hub: SHIMANO "Alivio HB-M4050", Center Lock, QR
- Front rotor: SHIMANO "SM-RT10", Ø 180 mm, Center Lock
- Front tire: SCHWALBE "Rapid Rob", 57-622
- Grips: CONWAY "Sport", 130 mm, black

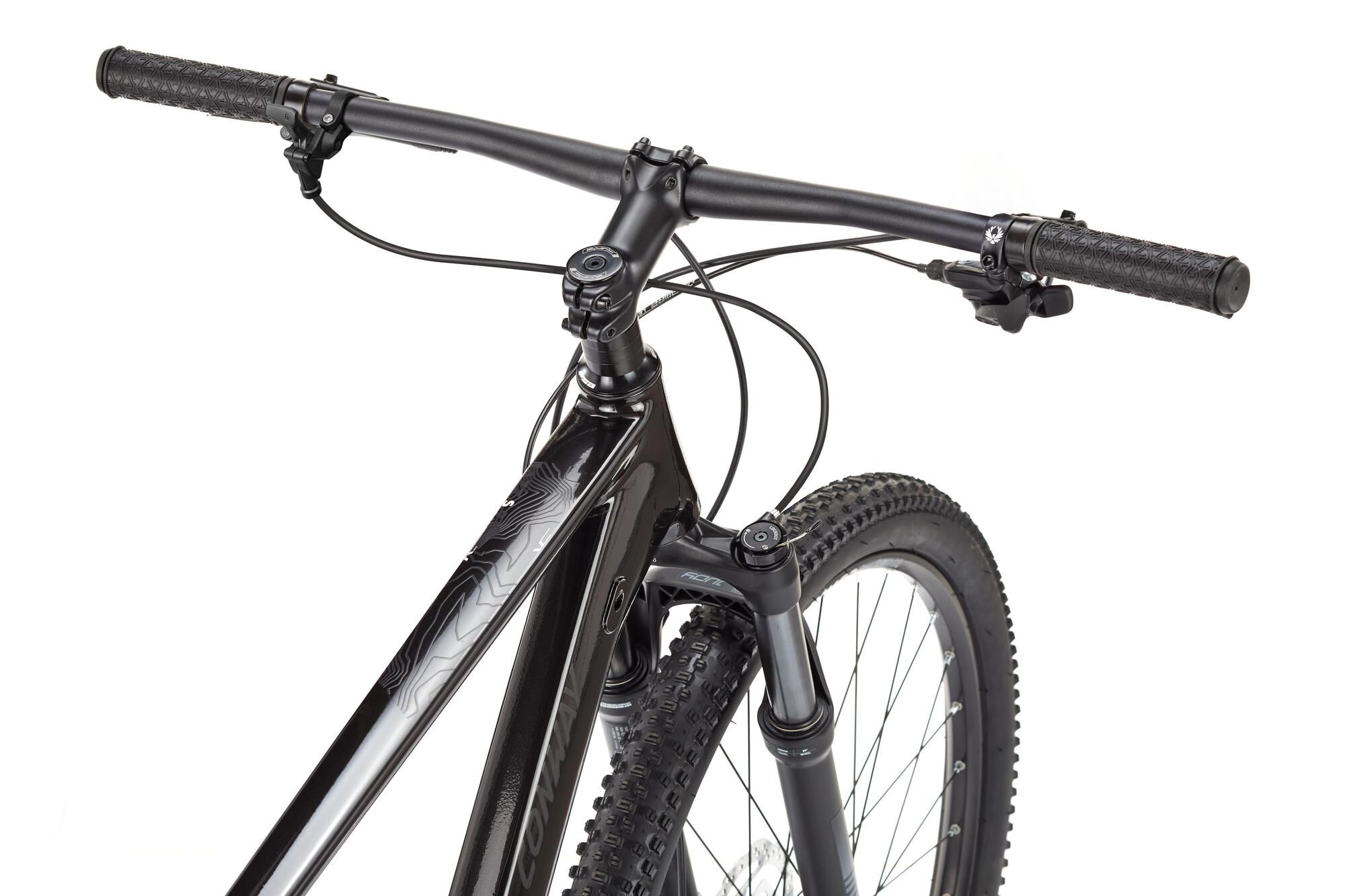

- Handlebar: LEVELNINE Handlebar, 720 mm, Ø 31.8 mm, Rise 0.5 mm
- Headset: FSA "Orbit 1.5B ZS", ZS44/28.6 / ZS56/40, reduction cone
- Pedals: WELLGO "C280DU"

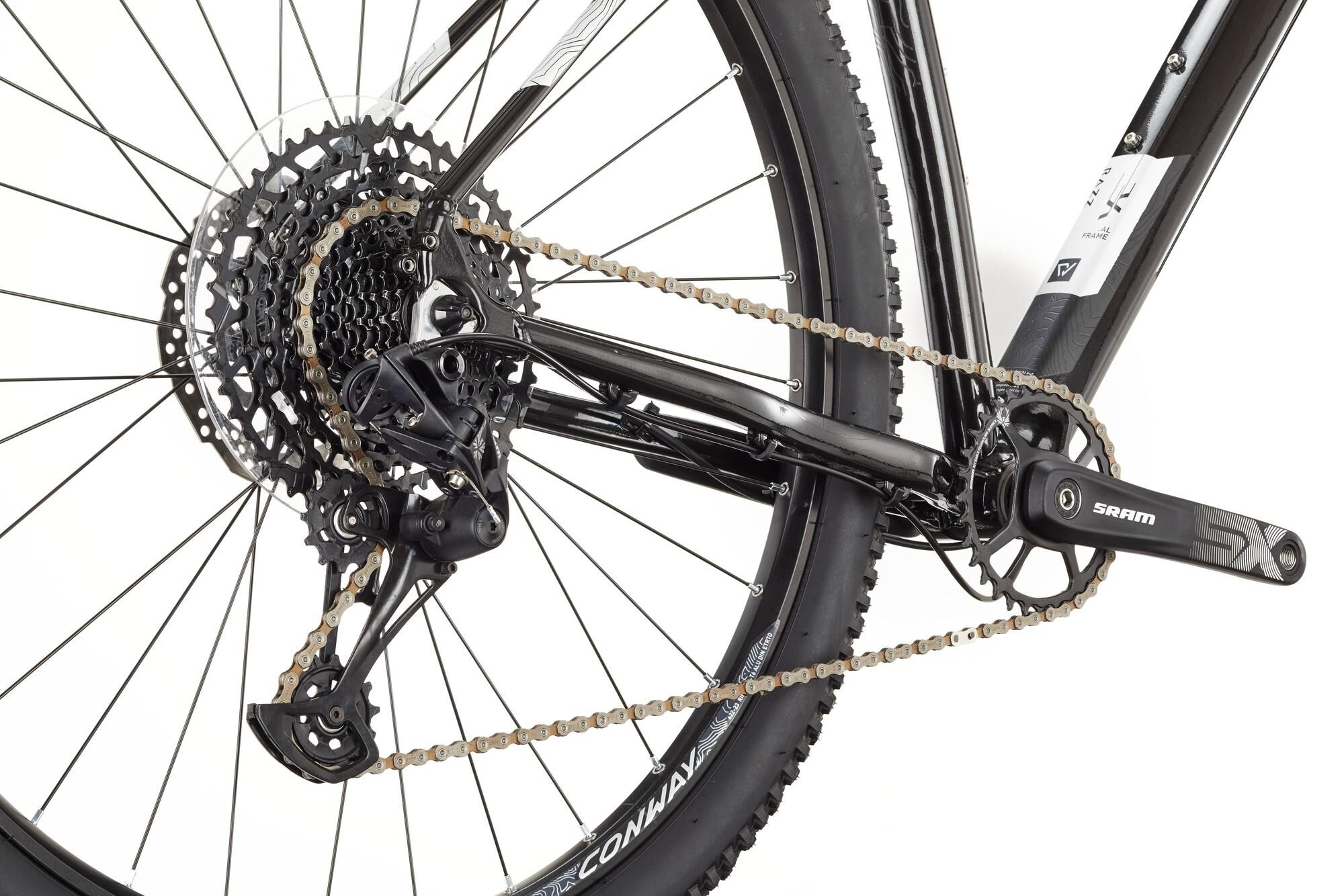

- Rear derailleur: SRAM "NX Eagle"
- Rear hub: SHIMANO "Alivio FH-M4050", Center Lock, QR
- Rear rotor: SHIMANO "SM-RT10", Ø 180 mm, Center Lock
- Rear tire: SCHWALBE "Rapid Rob", 57-622
- Rims: RODI "Blackrock 23", 23-622, 32 holes, disc brake, easy eyelets, black
- Saddle: Selle Royal "Vivo", Athletic
- Seatpost: CONWAY, Ø 31.6 mm, 300 mm long
- Spokes: Steel black
- Stem: CONWAY, 1 1/8", 31,8mm handlebar clamp, 70mm long, angle 7°, black
- Supplier Article Number: 4251971168701
- EAN: 4251971168701
- MSRP: €999.95
- Bidex-Code: 101010
- DST-Code: 1E00
- SB-Article: No
- Fedas-Code: 154010
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight: 13.9 kg
| Article | Price | |
|---|---|---|
 Out of Stock 32 holes, black Read more Read less
| PU 20 | |
 | PU 30 | |
 MS / MC / ML 27,5" / 29" from mod.19 Read more Read less
| PU 1 | |
 | PU 10 | |
 for BSA thread (1,37"), 68 / 73mm housing width Read more Read less
| PU 50 | |
 23-622, 609 mm ERD (measured incl. spoke holes), 16.2 mm high, 23.2 mm inner width, 28.3 mm outer width, approx. 566 g Read more Read less
| PU 25 | |
 | PU 50 | |
 front, 1000mm cable, left lever Read more Read less
| PU 10 | |
 70 mm long, 31.8 mm handlebar clamps Read more Read less
| PU 50 | |
 | PU 40 | |
 DUB, 175mm crank length Read more Read less
| PU 1 | |
PU 1 | ||
 | PU 50 | |
11-13-15-17-19-22-25-28-32-36-42-50 teeth Read more Read less
| PU 10 | |
 rear, 1700mm cable, reight lever Read more Read less
| PU 10 | |
 Out of Stock 720mm long, Ø 31,8mm, 9° backsweep, 5° upsweep, rise: 15mm Read more Read less
| PU 25 | |
 | PU 36 | |
 | PU 50 | |
 Out of Stock 32 holes, black Read more Read less
| PU 20 | |
 suitable for Conway MS / MC / ML / MCL (27,5“ and 29“) and Cairon BES2 (Z6) with fork with 1 1/8“ shaft Read more Read less
| PU 50 | |
 | PU 10 |
Made for fun! The "Razz 9.0" was made for ambitious hobby riders of all ages: a reliable, high-quality aluminum hardtail with which you can have a lot of fun without having to fear the racing character of a carbon bike.With a lightweight aluminum frame and a wheel size of 29", you are perfectly equipped for any challenge. The "NX Eagle" 12-speed derailleur from SRAM ensures precise and fast gear changes, while the hydraulic Disc Brakes offer you maximum control and safety.The 100 mm fork travel and Suspension Fork make light work of even the hardest trails. With a permissible total weight of 130 kg and a weight of only 13.9 kg, the "Razz 9.0" is robust and yet light enough to accompany you everywhere.The well thought-out dimensions such as a seat tube of 508 mm, a top tube of 610 mm and a head tube angle of 70° ensure an optimum riding position and agile handling. The wheelbase of 1,104 mm and the 448 mm Chain Stay offer you stability and maneuverability at the same time.Experience the trails like never before with the "Razz 9.0" - your perfect companion for every adventure!
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 hardtail, 29", black, 12-speed SRAM "NX", 41 cm / S Read more Read less
| PU 1 | |
 hardtail, 29", black, 12-speed SRAM "NX", 46 cm / M Read more Read less
| PU 1 | |
 Out of Stock hardtail, 29", black, 12-speed SRAM "NX", 51 cm / L Read more Read less
| PU 1 | |
hardtail, 29", black, 12-speed SRAM "NX", 56 cm / XL Read more Read less
| PU 1 | |
 hardtail, 29", desert matt, 12-speed SRAM "NX", 41 cm / S Read more Read less
| PU 1 | |
 hardtail, 29", desert matt, 12-speed SRAM "NX", 46 cm / M Read more Read less
| PU 1 | |
 hardtail, 29", desert matt, 12-speed SRAM "NX", 51 cm / L Read more Read less
| PU 1 | |
hardtail, 29", desert matt, 12-speed SRAM "NX", 56 cm / XL Read more Read less
| PU 1 |
