Out of Stock

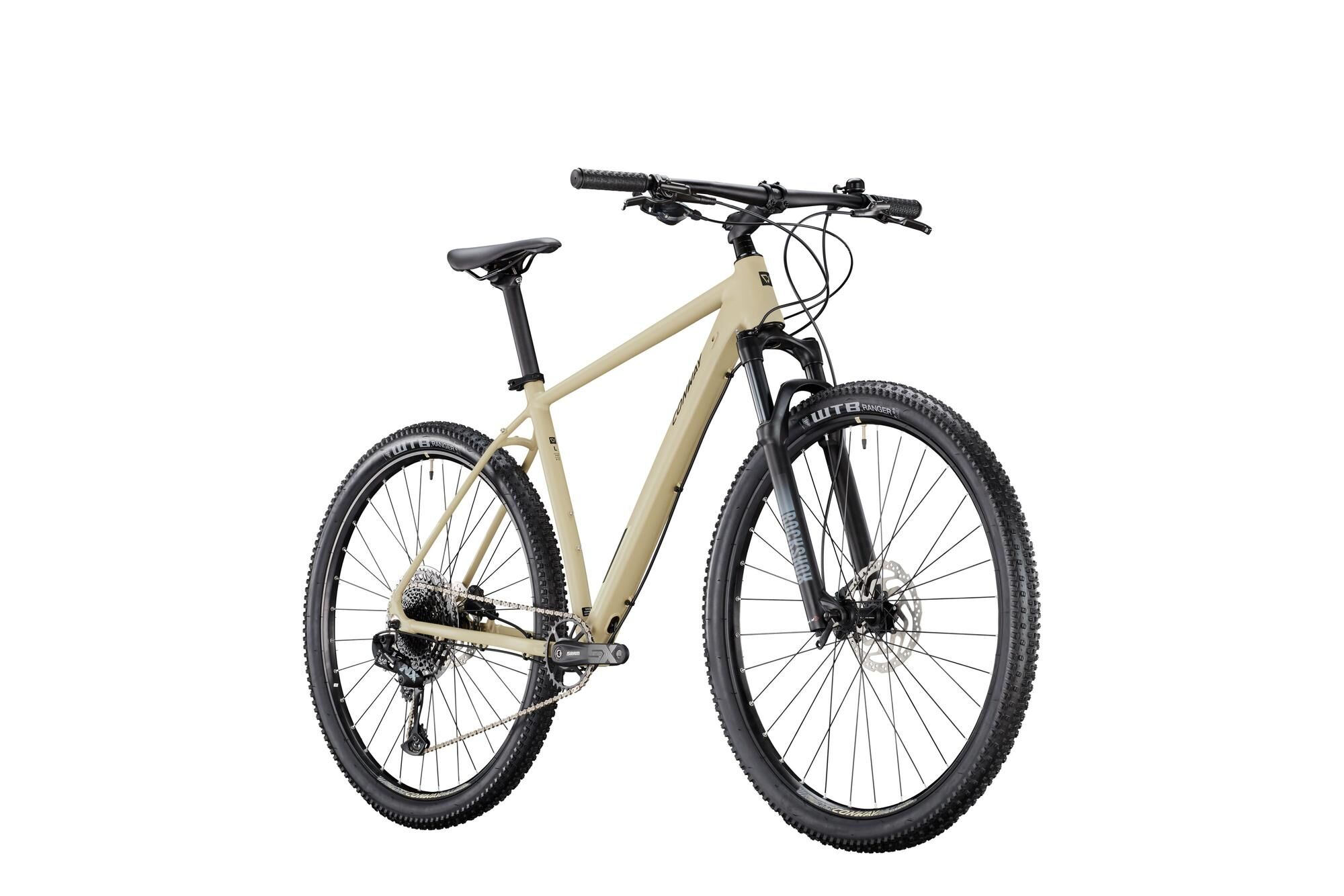

CONWAY MTB hardtail "Razz 9.0" (#1)
hardtail, 29", desert matt, 12-speed SRAM "NX", 46 cm / M
Read more Read less - Article number: 02810504
- Derailleur and 12-speed SRAM "NX" drivetrain and chain.
- Hydraulic Disc Brakes.
- 100 mm suspension travel and Suspension Fork.
- 29" wheels.
- Aluminum frame.
- Maximum system weight: 130 kg.
PU 1
Product information
- Brake system hydraulic disc brake
- Child Seat Approval no
- Colour designation desert matt
- Drive chain
- E-bike no
- Features suspension fork
- Frame height 46 cm
- Frame shape hardtail
- Frame size M
- Gears 12-speed
- Gender gents
- Main colour beige
- Material 1 aluminium
- Model range Razz
- Permissible system weight 130 kg
- Shifting name 12-Gang SRAM "NX"
- Shifting type derailleur shifting
- Trailer Approval no
- Transmission 1x 12-speed
- Travel 100 mm
- Type hardtail
- Wheel size 29 "
- Chainstay 448 mm
- Reach 389 mm
- Seat angle 72.4 °
- Seat tube 457 mm
- Stack 634 mm
- Standover height 800 mm
- Steering tube 120 mm
- Steering tube angle 70.0 °
- Stem length 70.0 mm
- Toptube 590 mm
- Wheel distance 1089 mm
- Bottom bracket TRUVATIV "PowerSpline", BSA, 68 mm / 73 mm housing width
- Chain / belt SRAM "SX Eagle"
- Crankset SRAM "SX Eagle", 175 mm, 32 teeth
- Derailleur hanger CONWAY for MS / MC / ML 27.5", 29" from 2019 model onwards
- Fork ROCKSHOX "Judy Silver TK", 100 mm travel, SoloAir, TurnKey, QR
- Frame Aluminum, diamond, 46 cm
- Front brake SHIMANO "BL-MT200 / BR-MT200", Post Mount
- Front hub SHIMANO "Alivio HB-M4050", Center Lock, QR
- Front rotor SHIMANO "SM-RT10", Ø 180 mm, Center Lock
- Front tire SCHWALBE "Rapid Rob", 57-622
- Grips CONWAY "Sport", 130 mm, black
- Handlebar LEVELNINE Handlebar, 720 mm, Ø 31.8 mm, Rise 0.5 mm
- Headset FSA "Orbit 1.5B ZS", ZS44/28.6 / ZS56/40, reduction cone
- Pedals WELLGO "C280DU"
- Rear brake SHIMANO "BL-MT200 / BR-MT200"

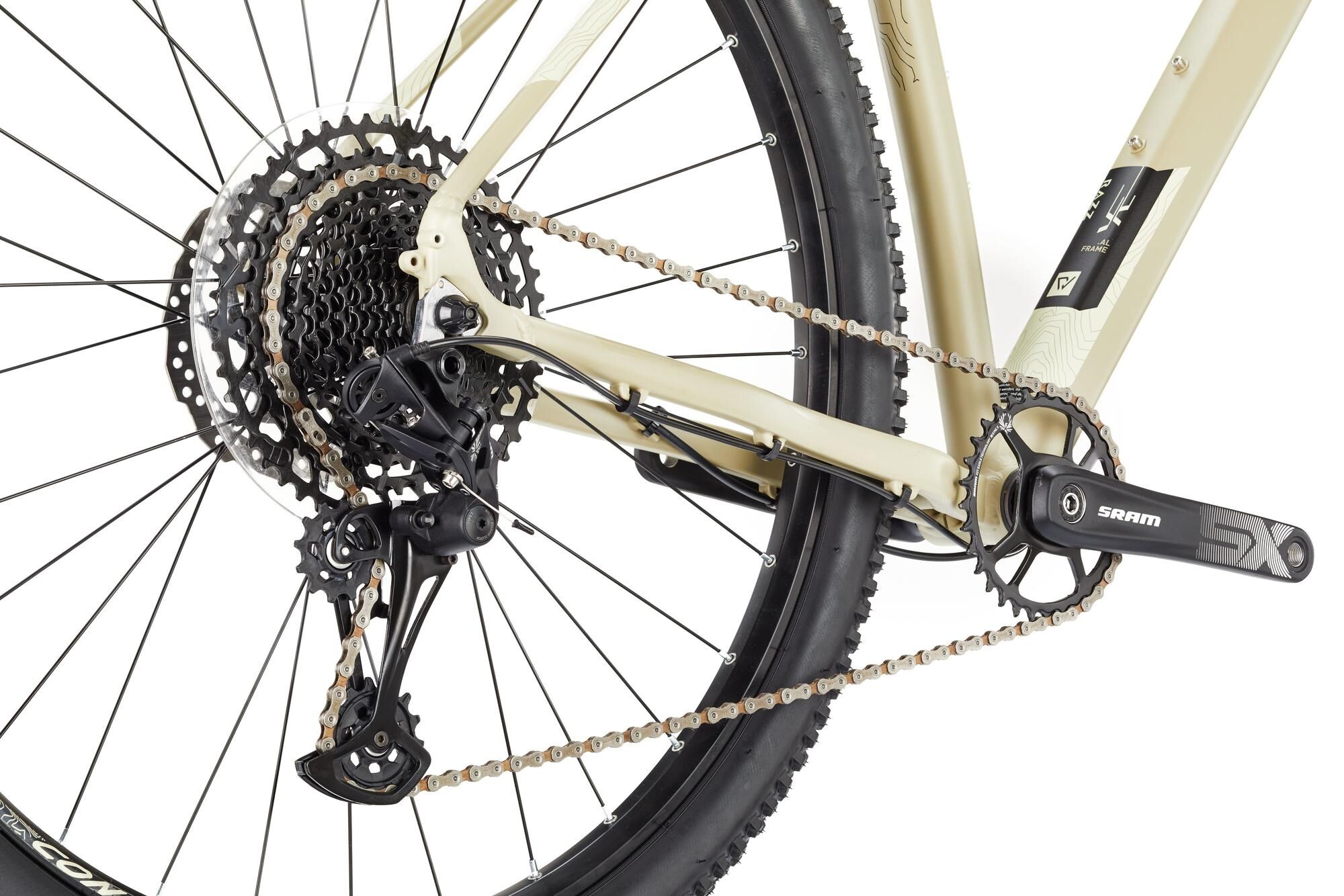

- Rear derailleur SRAM "NX Eagle"
- Rear hub SHIMANO "Alivio FH-M4050", Center Lock, QR
- Rear rotor SHIMANO "SM-RT10", Ø 180 mm, Center Lock
- Rear tire SCHWALBE "Rapid Rob", 57-622
- Rims RODI "Blackrock 23", 23-622, 32 holes, disc brake, easy eyelets, black
- Saddle Selle Royal "Vivo", Athletic
- Seatpost CONWAY, Ø 31.6 mm, 350 mm long
- Shifting lever SRAM "NX Eagle"
- Spokes Steel black
- Sprocket / pulley SRAM "PG-1210", 11-50 teeth
- Stem CONWAY, 1 1/8", 31,8mm handlebar clamp, 70mm long, angle 7°, black
- EAN 4251971168756
- MSRP: €999.95
- Bidex-Code 101010
- DST-Code 1E00
- SB-Article No
- Fedas-Code 154010
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight 13.9 kg
- product data sheet CONWAY MTB hardtail Razz 9.0 DA
- product data sheet CONWAY MTB hardtail Razz 9.0 DE
- product data sheet CONWAY MTB hardtail Razz 9.0 EN
- product data sheet CONWAY MTB hardtail Razz 9.0 ES
- product data sheet CONWAY MTB hardtail Razz 9.0 FR
- product data sheet CONWAY MTB hardtail Razz 9.0 IT
- product data sheet CONWAY MTB hardtail Razz 9.0 NL
- instruction manual
| Article | Price | |
|---|---|---|
 | PU 50 | |
 MS / MC / ML 27,5" / 29" from mod.19 Read more Read less
| PU 1 | |
 Out of Stock Successor: 07463080 32 holes, black Read more Read less
| PU 20 | |
 Out of Stock 32 holes, black Read more Read less
| PU 20 | |
 | PU 40 | |
 | PU 30 | |
 front, 1000mm cable, left lever Read more Read less
| PU 10 | |
 rear, 1700mm cable, reight lever Read more Read less
| PU 10 | |
 | PU 10 | |
 Successor: 03472380 black Read more Read less
| PU 10 | |
 for BSA thread (1,37"), 68 / 73mm housing width Read more Read less
| PU 50 | |
 Out of Stock Successor: 03373934 11-13-15-17-19-22-25-28-32-36-42-50 teeth Read more Read less
| PU 10 | |
 Out of Stock Successor: 03342453 self-service package Read more Read less
| PU 50 | |
 Out of Stock Successor: 03342441 126 links Read more Read less
| PU 50 | |
 70 mm long, 31.8 mm handlebar clamps Read more Read less
| PU 50 | |
 suitable for Conway MS / MC / ML / MCL (27,5“ and 29“) and Cairon BES2 (Z6) with fork with 1 1/8“ shaft Read more Read less
| PU 50 | |
 | PU 1 | |
 | PU 36 | |
 23-622, 609 mm ERD (measured including spoke holes), 16.2 mm high, 23.2 mm inner width, 28.3 mm outer width, approx. 566 g Read more Read less
| PU 25 |
Made for Fun! The "Razz 9.0" was designed for ambitious recreational riders of all ages: a reliable, high-quality aluminum hardtail that’s a blast to ride, without the race-oriented feel of a carbon bike.With a lightweight aluminum frame and 29" wheels, you’re perfectly equipped for any challenge. The SRAM “NX Eagle” 12-speed derailleur ensures precise and quick shifting, while the hydraulic disc brakes give you maximum control and safety.The 100 mm suspension travel and Suspension Fork make even the toughest trails a breeze. With a maximum weight capacity of 130 kg and a weight of just 13.9 kg, the “Razz 9.0” is sturdy yet light enough to take you anywhere.The well-thought-out dimensions—such as a 508 mm seat tube, a 610 mm top tube, and a 70° head tube angle—ensure an optimal riding position and agile handling. The 1,104 mm wheelbase and 448 mm Chain Stay offer both stability and maneuverability.Experience the trails like never before with the “Razz 9.0”—your perfect companion for every adventure!
