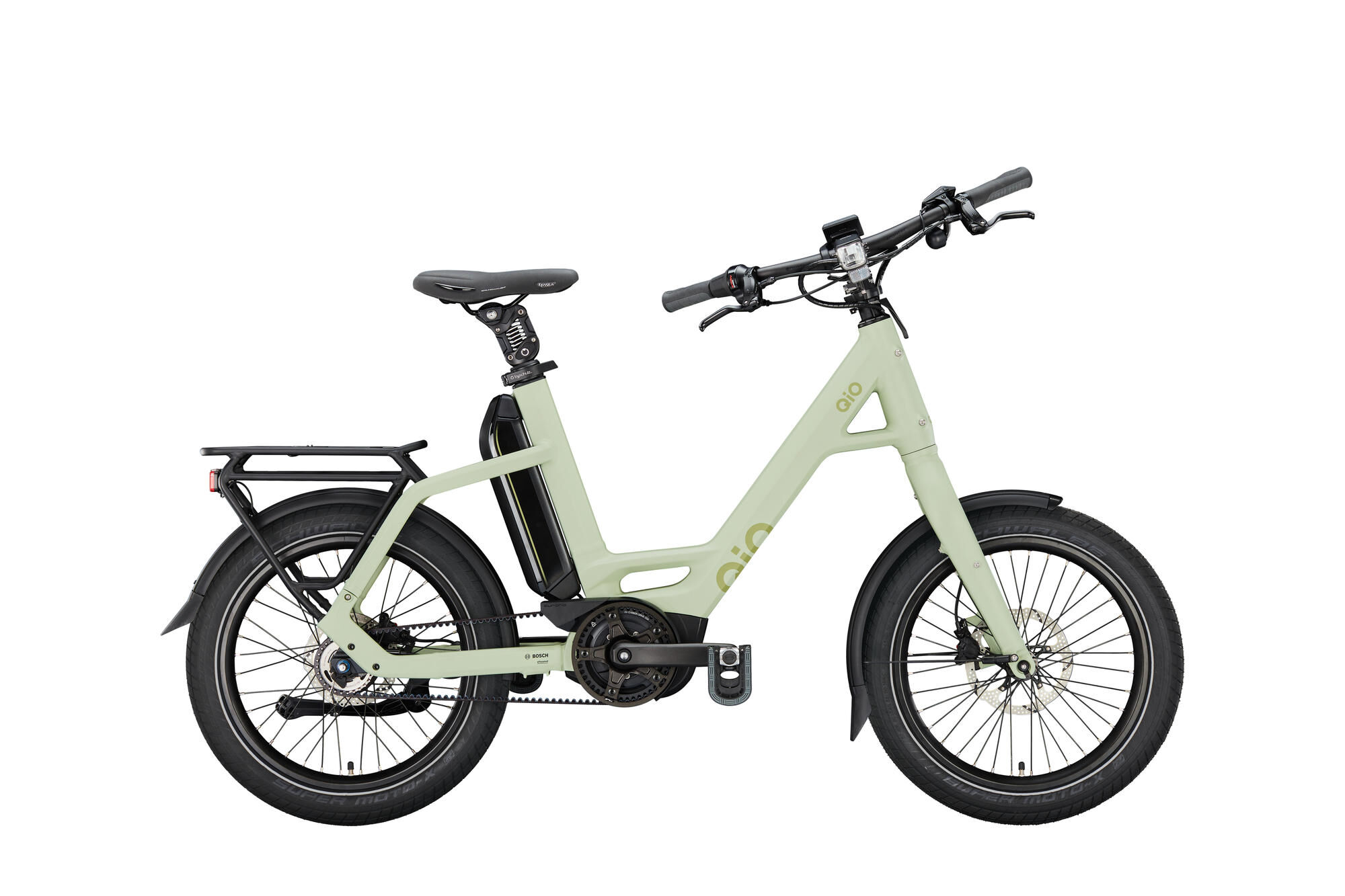

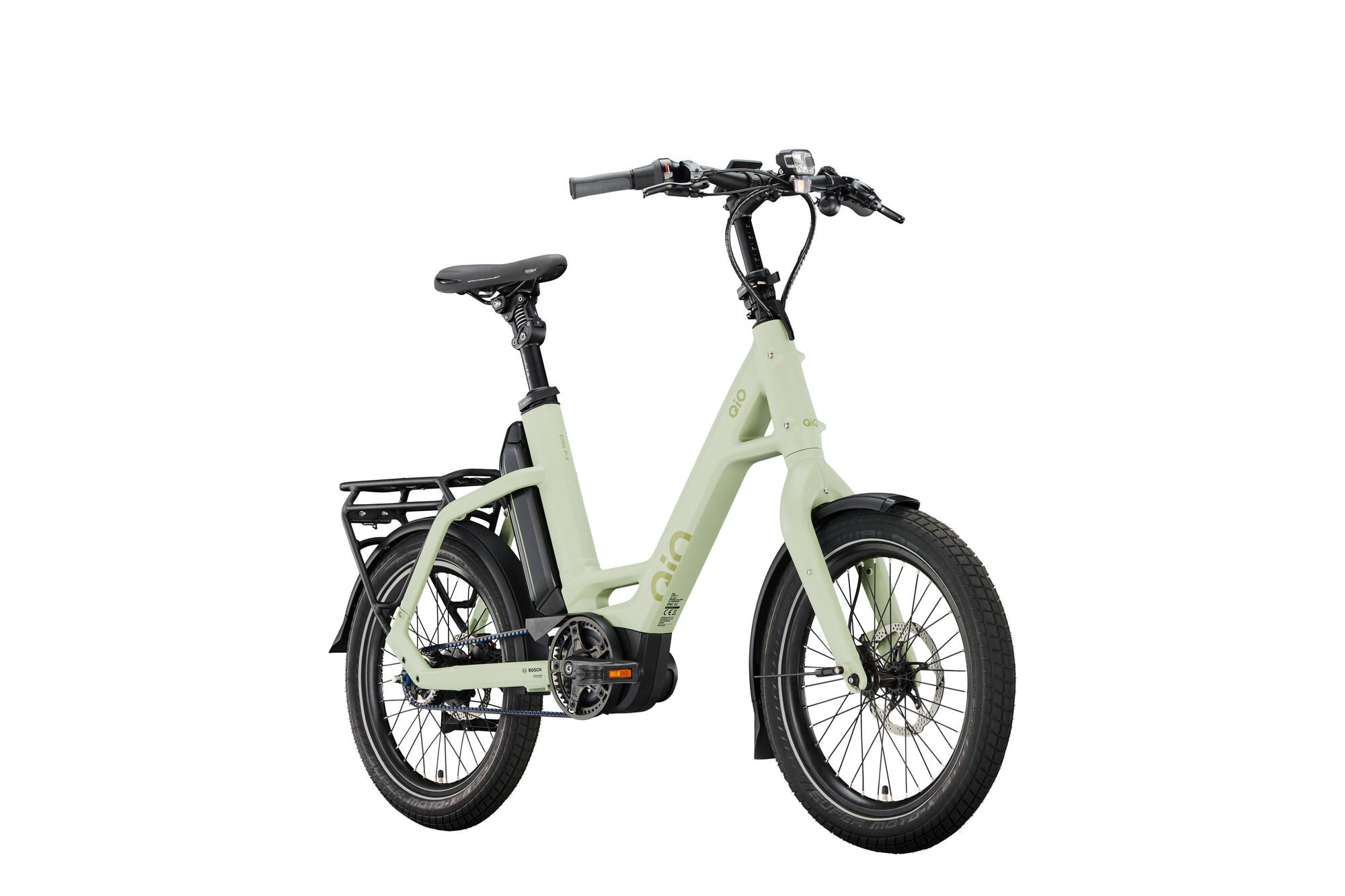

QiO Electric compact bike "EINS P-5" Mod. 24

unisex, 20", light olive matt, 5-speed SHIMANO "Nexus" freewheel, 48 cm

Article number: 02651372
Original number: 01722374

This item is available in 16 variants. All in Accessories All in Successors

The electric compact bike is equipped with a BOSCH Performance Line mid-motor, which offers a motor power of 250 W. The Battery has a capacity of 545.0 Wh. The bike has a hub gear system for gear selection. The drive is provided by a belt drive. The frame is made of aluminum and is equipped with a low step-through. Other features include suspension seatposts, a chain guard and Fenders. The permissible system weight is 180 kg and the wheel size is 20". An electronic Pushing Help is also integrated.

Product information

Battery capacity 545.0 Wh
Bosch Smart System yes
Brake system hydraulic rim brake
Colour designation light olive matt
Drive belt
Drive system BOSCH Performance Line
Drive version middle motor
E-bike yes
Engine power 250 W
Features fender
Frame height 48 cm
Frame shape unisex
Gears 5-speed
Gender unisex
Main colour green
Material 1 aluminium
Permissible system weight 180 kg
Shifting name 5-Gang SHIMANO "Nexus" Leerlauf
Shifting type internal gear shifting
Support up to 25km/h
Type compact bike
Wheel size 20 "

Battery: BOSCH "PowerPack 545", 545 Wh
Battery Lock: CONTEC "PowerLoc"
Chain guard: CURANA "C+", 46 teeth
Chain ring / pulley: GATES "CDX", 46 teeth, belt line 45.5 mm
Charger: BOSCH 4 A
Crank: Stronglight "Magan 3B", 170 mm
Derailleur hanger: QIO Slider Dropout
Display: BOSCH "Intuvia 100", 4-stages, remote control, push aid
Engine: BOSCH "Performance Line" engine, max. 75 Nm
Fender: SKS "A 69 R"
Fork: QIO EINS 20", aluminum, tapered 1 1/4" - 1.5", 313.5 mm shaft, post mount, lead metal glossy
Frame: QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm, light olive matt
Front hub: URSUS "RD30", Center Lock, QR
Front light: CONTEC "DLUX 80 E+", 80 lux
Front rotor: TRP "TR-25", Ø 180 mm, Centerlock
Front tire: SCHWALBE "Super Moto-X", 62-406, Reflex
Handlebar: ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
Headset: TOKEN "TK255E-HJ01", IS52/40 / IS52/44
Pedals: UNION "SP-153", foldable
Rear carrier: QIO "MIK HD"
Rear hub: SHIMANO "Nexus SG-C7000-5D", 5-speed, Center Lock
Rear light: CONTEC "TL-335 E-Stop", stop light
Rear rotor: TRP "TR-25", Ø 160 mm, Centerlock
Rear tire: SCHWALBE "Super Moto-X", 62-406, Reflex
Remote: BOSCH "BRC3600", LED Remote
Rims: SCHÜRMANN "YAK DISC 25", 25-406, 36 holes, disc brake, black
Saddle: Selle Royal "Nuvola 5060", Relaxed
Sensor: Pedal pressure measuring im Motor + speed sensor
Spokes: Niro, schwarz
Stands: URSUS "R78 - King Mini"
Stem: BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black

Supplier Article Number: 01722374
EAN: 4251971142190
MSRP: €4,199.00
Fedas-Code: 159021
DST-Code: 1A01
WEEE registration number: DE92509320
SB-Article: No
Bidex-Code: 123040
Brand/Supplier QiO
Unit of measure: PIECE
Weight: 26.5 kg
